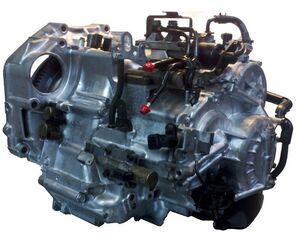

Transmission general data BVLA is 5-speed automatic transmission produced by Honda. This transmission is often installed in Honda Pilot. Honda Pilot; 05-07; V6 3.5L (J35Z4); ATF Capacity/Change: 8.7/8.3 3.9/3.7 BVLA transmission may have some problems in case of accelerations higher than 160 km/h, especially when dealing with poor road surface. This problem may lead to the overheating or oil starvation. Transmission specialists recommend warming up transmission before driving, including summer-time, monitor the oil level and timely perform diagnostic checks. Which cars run with this gearbox?BrandModelYearTypeEngineHondaPILOT65 SP FWDV6 3.5L

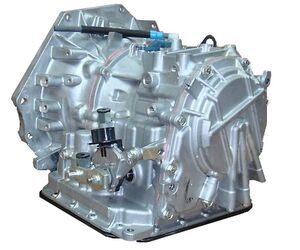

Transmission general data The U440E unit was designed by Aisin Co in 1999 for small FWD cars Toyota Yariz, Witz and Corolla with 1.3-liter capacity, which replaced the AW60-40 unit. This gear shifting solution usually can be found on the Japanese market of right-hand drive vehicles. The U340 unit produced simultaneously with U440E was chosen by Toyota for Corolla with the engine capacity of 1.5 liters and higher. The U540E unit more known as AQ4 is a quite rare solution for Daihatsu with more simple complete set. This gearbox is also used for American small cars Cadillac, Buick, Ford and Chinese Donfeng, Landwind under names AW80-40LS and AW81-40LS. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type4ATFWD1505,82,1Toyota Type T-IV Technical issues and repair guidelines The repair of this transmission is usually performed for cars with high mileage and already worn-out torque converter lockup unit. Each 4-th case of the rebuilding of this robust unit requires MasterKit – complete kit of spare parts. After the exhaustion of resource of this transmission (and rings wear-out), the first component to be worn is a set of frictions with steel discs in the clutch package Direct. After that, С1 Forward and Overdrive frictions get worn and then others. The "soft spot" of AW81-40 components is considered to be the planetary gear, which even during testing required some servicing before covering 100 thousand kilometers. The reason is related to design issues. The transmission of maximum operating torque via the gear to the differential by means of strong side loads leads to the damage of units in this package. (Only paired with 1.6 liter engines). The major wear-out of friction units and consequent damage of the pump bushing takes place when neglecting the oil pressure parameters and wear-out of the torque converter. As for electrical components, standard cleaning and valve body reassembly, repair specialists order EPC and On-Off solenoids. Sometimes the differential is also ordered for the overhaul. In old cars, specialist often install external fine filter. The filter helps to preserve clean ATF and decreases wear-out of friction components. The spare parts resource will be significantly increased, if ATF is kept clean and the torque converter gets repaired after covering 150- 200 thousand kilometers (depending on the car type and driving style) and preventive cleaning of the valve body and solenoids. More often problems occur in cars with engines capacity equal to 1.3. The torque of these engines turns out to be too high for this automatic unit and electronic control allows the driver to load the transmission to the maximum. Careful usage of cars with this gearbox without fast accelerations from traffic lights and slipping on deep snow allows postponing first overhauls of this “invincible” gearbox for 6 or more years. Which cars run with this gearbox?BrandModelYearTypeEngineBeijingautoE-SERIES12-164 SP FWDL4 1.3L 1.5LChanganCD101124 SP FWDL4 2.0LChanganCX2010-164 SP FWDL4 1.3LChanganJOICE07-124 SP FWDL4 1.6L 2.0LChanganV80510-124 SP FWDL4 1.6LChanganYUEXIANG09-144 SP FWDL4 1.5LChanganYUEXIANG V512-164 SP FWDL4 1.5LChanganZ-SHINE08-124 SP FWDL4 1.5L 1.6L 1.8L 2.0LDongfengA3014-164 SP FWDL4 1.5LDongfengBFX114 SP FWDL4 1.6LDongfengH3010-164 SP FWDL4 1.5L 1.6LDongfengJOYEAR164 SP FWDL4 1.5LDongfengS3009-164 SP FWDL4 1.5L 1.6LFordFIESTA97-164 SP FWDL4 1.6LFordFUSION06-124 SP F/4WDL4 1.6LGonowE MEI14-164 SP FWDL4 1.6LLand-WindB102 HB / B103 NB11-124 SP FWDL4 1.6LLand-WindE10111-124 SP FWDL4 2.0LLand-WindFENGSHANG06-104 SP FWDL4 2.0LOpel / VauxhallAGILA08-144 SP FWDL3 1.0L L4 1.2LSuzukiALTO15-164 SP FWDL3 1.0LSuzukiBALENO00-084 SP FWDL4 1.5LSuzukiSPLASH08-144 SP FWDL4 1.2LSuzukiSWIFT97-164 SP FWDL4 1.2L 1.3L 1.4L 1.5L 1.6LToyotaYARIS12-134 SP FWDL4 1.5L Instruction manuals and useful linksLink typeSourceDescriptionpdfwww.at-manuals.comScheme U440Ewebwww.at-manuals.comCheck Balls U440Ewebwww.at-manuals.comStall test U440E

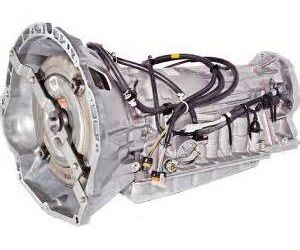

Transmission general data The rare 4-speed automatic transmission AW450-43LE had been installed since 1998 until 2007 on the RWD model ISUZU NPR/ NQR. with engines capacity of appr. 5 liters. In terms of design, this transmission is similar to AW442F. In most cases Isuzu models come to repair shops with the purpose of fixing the transmission. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type4ATRWD12,56Type T-IV Technical issues and repair guidelines This transmission for RWD vehicles is very reliable as all Aisin transmissions with high torque capacity. In most cases, problems occur in old vehicles and mainly associated with their age. If the car owner keeps track of the thermostat condition, then the lifespan of the automatic transmission AW450-43LE can exceed the service life of the car itself. The torque converter is the first component to get out of order in this transmission, then it leads problems with the worn-out oil pump and bushings. The repair kit of gaskets and seals is included in the common order for a complete reassembly of this transmission. Rare repair cases usually include replacement of the Direct package. In most cases friction friction components of this package are the first to get burnt because of high loads. Frequently, this transmission comes to the repair shop completely burnt friction elements. In such cases, specialists order a full kit of frictions as well as the kit of steel discs. Which cars run with this gearbox?BrandModelYearTypeEngineIsuzuELF97-154 SP R/4WDL4 3.1L 4.6LIsuzuTRUCK NPR99-074 SP RWDL4 4.75L 5.2L DIESELMazdaTITAN04-154 SP R/4WDL4 3.1LUD TrucksCONDOR97-144 SP R/4WDL4 3.1L 4.6L How to repair this transmission (Videos)450-43LE Teardown Instruction manuals and useful linksLink typeSourceDescriptionpdfSonnaxValve Body Layout AW45043LE

Transmission general data The automatic transmission AD-4, AD-8 is a French modification of the 01M (01P) unit. The AD-4 is intended for engines up to 2 liters and may be installed on FWD Laguna, Megan and Clio from Renault. The AD-8 modification was released a bit earlier for Safrane and Espace with 3 liter engines V6 produced in 1989-1998. Both transmissions are quite reliable and rarely met in repair services. Friction components for AD-4 are interchangeable with parts for the 01M. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type4ATFWD5,73,5-4Dexron III Technical issues and repair guidelines Overhauls ofd this automatic transmission consist of the reassembly and cleaning of the transmission with replacement of seals and gaskets. Sometimes specialists replace friction componeand solenoids. Specialists order the following for repair procedures: - individual filter for AD-4 Megan - individual filter for AD-4 Clio and Scenic - filter AD-8 - repair kits of gaskets and seals, AD-4 frictions, which are interchangeable with parts for German transmission. Frictions for AD-8 are selected separately taking into account size and quantity: - Kit of pistons AD4\AD8 consisting of 5 pieces. This transmission is quite simple and repairable, after a proper repair it operates for a long period of time. Which cars run with this gearbox?BrandModelYearTypeEngineRenaultMEGANE04 SP FWDL4 1.6L Instruction manuals and useful linksLink typeSourceDescriptionpdfdogacelektronik.comFault finding AD4, AR4

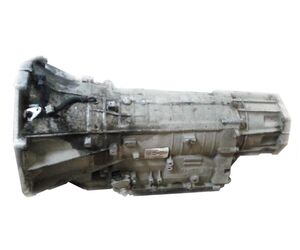

Transmission general data The 8-speed RWD automatic transmissions A8LR1, A8TR1 (4WD) with longitudinal positioning designed by Hyundai were installed on luxury cars with engines from V6 3.0 up to V8 5.0L since 2011. This transmission was launched in production in 2010 and after several years of testing on the Korean market, Hyundai engineers introduced some updates, which improved some hard parts and frictions. Some electrical mechanisms and computer settings were also changed. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type8ATRWD/AWD5009.6ULTRA ATF SP-IV RR Technical issues and repair guidelines These transmissions rarely get in repair services, because of reliable rear drive construction which operates properly for the first 4-5 years of service without serious problems. Ravenol SP-IV RR fluid is used for these finely adjusted transmissions. Specialists do not recommend using other types of fluid, because the oil in this transmission performs many other functions in addition to lubrication, cooling and hydraulic environment. Although the oil ageing slightly worsens its qualities, after running 80-100 thousand kilometers it is recommended to check it for transparency and change it together with the filter-pan, especially if the transmission operated at maximum loads. One of the main soft spots causing problems in this transmission is the valve body with solenoids. This transmission is very sensitive to operation with contaminated oil under the condition of ultimate loads. Intensively operating VFS solenoids-electric-regulators are the first to reach the end of their lifespan. Which cars run with this gearbox?BrandModelYearTypeEngineHyundaiEQUUS11-168 SP RWDV6 3.0L 3.8LHyundaiGENESIS11-168 SP R/4WDV6 3.0L 3.3L 3.8LHyundaiGENESIS COUPE11-168 SP RWDL4 2.0L V6 3.8LKIAK912-168 SP RWDV6 3.3L 3.8LKIAQUORIS13-168 SP RWDV6 3.3L 3.8L How to repair this transmission (Videos)Hyundai's new 8-Speed Automatic Transmission Instruction manuals and useful linksLink typeSourceDescriptionpdfdrive.google.comKIA A8LR1 Service information

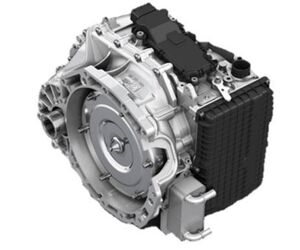

Transmission general data 9 speed transverse ZF 9HP48 for the front drive was released in 2013 at two factories: in Saarbrücken for Europe and by Chrysler in Kokomo (USA) for Japanese and American cars - Honda and Chrysler. Both versions have significant differences in the range of spare parts and major components because Chrysler made plenty of changes in its version . It was tested on the American market and there were mostly problems with computer settings and electrics. ZF9HP48 is designed to transfer the torque from the engine up to 480 Nm, but as all transmissions with transverse positioning it is much less endurable to extreme stress and therefore it is installed on urban jeeps.9 gears are only required when the vehicle passes half a day at the 1st gear in urban traffic and when out of traffic it immediately gets on the freeway where the 9th gear serves to save fuel. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type9ATFWD4807.54ZF Lifeguardfluid 9 Technical issues and repair guidelines Rebuilding of a transmission is always made with a repair kit consisting of gaskets and seals (overhaul kit). In this case the filter is replaced as well .Prolonged driving with contaminated oil and worn-out sealing rings leads to rapid wear of solenoids, which operate evenly as a group and also a group fail around the same time period. But it actually requires a long time to have the solenoids fully unconditional. ATF change is quite difficult and requires experience in automatic transmissions, especially with the 6-speed and 8-speed ZF automatics. Smell of burnt ATF or presence of metal grit of around 1mm is considered to be an indicator for a major overhaul of the automatic transmission even if the gearbox runs flawlessly. Which cars run with this gearbox?BrandModelYearTypeEngineAcuraMDX14-169 SP 4WDV6 3.0L 3.5LAcuraRLX169 SP FWDV6 3.5LAcuraTL14-169 SP F/4WDV6 3.5LChrysler20014-169 SP F/4WDL4 2.4L V6 3.6LChryslerTOWN & COUNTRY169 SP FWDV6 3.6LChryslerTOWN & COUNTRY169 SP FWDL4 2.8L V6 3.6LDodgeDART15-169 SP FWDL4 1.4L 2.0L 2.4LDodgePROMASTER CITY14-169 SP FWDL4 2.4LFiat500X14-169 SP 4WDL4 1.4L 2.0L 2.4LHondaCIVIC14-169 SP FWDL3 1.2L L4 1.6LHondaCR-V15-169 SP 4WDL4 1.6LHondaODYSSEY169 SP FWDV6 3.5LHondaPILOT15-169 SP F/4WDV6 3.5LJEEPCHEROKEE13-169 SP F/4WDL4 2.0L 2.4L V6 3.2L 3.6LJEEPRENEGADE14-169 SP F/4WDL4 1.4L 2.0L 2.4LLand-RoverDISCOVERY SPORT14-169 SP 4WDL4 2.0L 2.2LLand-RoverRANGE ROVER EVOQUE13-169 SP F/4WDL4 2.0L 2.2L How to repair this transmission (Videos)9HP 9-speed transmission9HP Transaxle Operation - Part 1 of 29HP Transaxle Operation - Part 2 of 2ZF 9HP48 and Chrysler 948TE Instruction manuals and useful linksLink typeSourceDescriptionpdfAtraIntroduction 9HP48/948TEwebWikipediaZF 9HP transmissionwebgearsmagazine.comChrysler’s 948TE pdffzth.deScheme 948TE

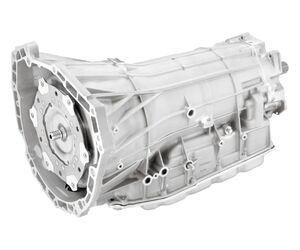

Transmission general data The RWD automatic transmissions with longitudinal positioning Hydra-Matic 8L90 (M5U) and 8L45 (M5N, M5T) were designed in 2015 for Cadillac CT6 with new engines (3.6 liters) and also suitable for 6-liter engines V8. The design of this modern transmission is similar to 8HP by ZF and has a lot of same "features", like Start-Stop system on at traffic lights, used to save more fuel. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type8ATRWD/AWD100011,76Dexron HP Technical issues and repair guidelines The transmissions has much higher reserve on components than its German competitor and should operate at least 200-300 thousand kilometers before the first overhaul ( under the condition of well-timed ATF change). In case of frequent “kickdown” usage with a switch-on of controlled slipping of the lock-up clutch, the wear-out of friction elements occurs quite rapidly and contaminates the valve body, fluid and filter. The filter is made of plastic with a two-layer felt membrane and its better to change this part in a timely manner. The oil and filter should be changed when there are any suspicions related to oil transparency. Such situations may occur after travelling 40 thousand kilometers or 80 thousand kilometers depending on driving style and adherance to the transmission warm-up rule before driving in winter time. Removal of the pan allow specialists to estimate the level of components wear-out and valve body contamination. Which cars run with this gearbox?BrandModelYearTypeEngineCadillacATS15-168 SP RWDV6 3.6LCadillacCT615-168 SP 4WDV6 3.0LCadillacCTS15-168 SP RWDV8 6.2LCadillacESCALADE15-168 SP R/4WDV8 6.2LCadillacESCALADE ESV15-168 SP R/4WDV8 6.2LChevrolet/GMCAMARO15-168 SP RWDV8 6.2LChevrolet/GMCORVETTE14-168 SP RWDV8 6.2LChevrolet/GMSIERRA14-168 SP R/4WDV8 6.2LChevrolet/GMSILVERADO14-168 SP R/4WDV8 5.3L 6.2LChevrolet/GMYUKON XL06-168 SP R/4WDV8 6.0L 6.2L How to repair this transmission (Videos)TransTec 8L45 TeardownValve Body Disassembly8L90 Case Disassembly8L90 assembly Instruction manuals and useful linksLink typeSourceDescriptionpdfAtraIntroduction 8L90webgmauthority.comSpecification 8L90websandyblogs.comHarsh Shifting on the 8L90 websandyblogs.comReprogramming Procedures for the 8L90websandyblogs.comAll-New 8L90 8-Speed info

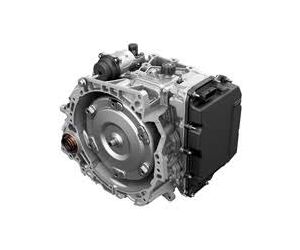

Transmission general data The 9-speed automatic transmission Hydra-Matic 9T50 for front-wheel drive vehicles was designed by GM and was officially showcased in December 2016. This transmission was intended to replace its 6-speed predecessor. According to GM engineers, the 9T50 transmission allows striking a balance between high dynamic parameters and fuel economy. The size of this transmission is the same as the size of its 6-speed predecessor, but the Hydra-Matic 9T50 also supports start/stop technology and has a new torque converter. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type9ATFWD/AWD380106,3Dexron HP One of the peculiarities of this transmission is a selective clutch, which may disconnect the transmission from the engine and operate in the rundown mode. The first car to operate with this transmission was Chevrolet Malibu. The first gear of the 9T50 transmission is very short (gear ratio is 4.69), so the car can move very smoothly from a standstill. The 9-th gear is designed for economical and more relaxed driving (gear ratio is 0,62). Which cars run with this gearbox?BrandModelYearTypeEngineBuickEXCELLE GT15-169 SP FWDL4 2.0LBuickLACROSSE169 SP F/4WDV6 3.6L Instruction manuals and useful linksLink typeSourceDescriptionpdfsandyblogs.comTechLink 9T50

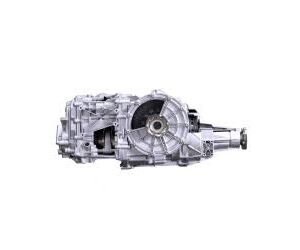

Transmission general data The 7DCL750 7-speed dual-clutch transmission was designed by Getrag for transaxle and mid-engine positioning in sports vehicles with RWD or AWD. The 7DCL750 has an optimal installation length, which became possible thanks to a 4-shaft structure. The ratio of 1-st gear, 7-th gear and final drive can be defined and adopted to the respective usage. This transmission also may have a mechanically or electronically-operated differential locking device. The dry-sump lubrication system helps to enhance the level of efficiency and fuel consumption. In addition, this system also helps to keep to minimum windage losses Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type7DCTRWD7507,83,5DCTF105786 Typical problems: Mechanical friction suspension from hot ATF clogs valves of the valve body and solenoids, then it appears on friction surfaces and contributes to wear, vibrations and sticking of valves, especially when the friction layer is worn down to the glue basis. It leads to the chain reaction of metal wear and further contamination of ATF. Thus, DSG transmissions are equipped with outside filters of high capacity. Getrag engineers recommend changing this filter more often, especially if the transmission is old. Which cars run with this gearbox?BrandModelYearTypeEngineFerrariCALIFORNIA08-167 SP RWDV8 4.3LFerrariF1212-167 SP RWDV12 6.3LFerrariF45809-157 SP RWDV8 4.5LFerrariF48815-167 SP RWDV8 3.9LFerrariF599 GTB09-117 SP R/4WDV12 6.0LFerrariF61210-117 SP R/4WDV12 5.7LFerrariFF11-167 SP 4WDV12 6.3LFerrariLAFERRARI13-157 SP RWDV12 6.3LFordGT167 SP RWDV6 3.5LMercedes-BenzGT14-167 SP RWDV8 4.0LMercedes-BenzSLS10-147 SP RWDV8 6.3L How to repair this transmission (Videos)Ferrari 458 Getrag Double Clutch Transmission Fix Instruction manuals and useful linksLink typeSourceDescriptionpdfgetrag.comPress information 7DCL750pdfgetrag.comTechnical data 7DCL750

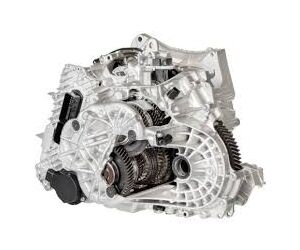

Transmission general data The 7-speed automatic transmission PowerShift 7DCT300 was manufactured by Getrag. This transmission with 2 clutches is intended for front-wheel drive cars with the engine east-west mounting. The design of this transmission successfully combines two multiple-disc clutches and electro-hydraulic gearbox actuators. The 7DCT300 is designed on the basis of the 6-speed PowerShift 6DCT250. The basic design of the transmission is implemented according to the three shaft configuration. At the same time the total weight of the transmission was reduced from 72 to 67kg. The development of the improved design was made because of more severe requirements for fuel economy, dynamics and environmental compatibility of cars. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type7DCTRWD2,11,8DCTF105786 Designed on a modular platform, the 7DCT300 transmission is intended for engines with the torque capacity up to 300 Nm. Engineers of this transmission solution think that the most remarkable feature of this transmission is an intelligent power transmission system Smart Actuation. This system facilitated to reducing the powertrain power consumption to 40 volt and made this transmission more efficient. Electric actuators, as a part of the transmission control mechanisms, can operate with the non-running engine and when the car is not moving. The electronic transmission control unit (TCU) is mounted on the transmission case. By means of the wiring harness, the TCU is connected to 5 electric motors, 2 speed sensors, oil temperature sensors, sensor of engaged gear and two pressure sensors in clutch actuators. The TCU software was designed taking into account demands of 23 automakers using Getrag transmissions with 2 clutches. Usually, the transmission is equipped with the open-type differential, so the oil filling operation is performed when the transmission is installed on the car and when the wheel drives are mounted. However, at the request of the car manufacturer, the PowerShift 7DCT300 may be equipped the differential of the closed type. Currently, dual-clutch transmissions produced by Getrag are installed on such cars as Ford Focus, Ford Galaxy, Renault Clio RS, Honda-Acura, Ferrari 458 Speciale, BMW-M, Volvo, Qoros. Which cars run with this gearbox?BrandModelYearTypeEngineFordECOSPORT167 SP FWDL3 1.5L How to repair this transmission (Videos)GETRAG 7DCT300 Instruction manuals and useful linksLink typeSourceDescriptionpdfgetrag.com7DCT300 general informationvideogetrag.com7DCT300 Product animation

Transmission general data The Hydra-Matic range 6L45 - ... 6L90 is the second generation of modular-type 6-speed automatic transmissions, used for RWD vehicles. The 6L80 and 6L90 were the first automatic gearboxes of the Heavy-duty class designed in 2005. Next year 6L50 \6L45 gearboxes of the Medium-Duty class (with a lower torque) up to 450 Nm replaced BMW gearbox, which was popular in repair services. The 6L45E (GA6L45R) is a constructively modified 5L40 (which was actually replaced by the 6L45E in 2007 ). Mainly used with budgetary BMW-3 and X3 with engines 2.5l - 3.0L. 6L50, 6L80 and 6L90 transmissions may be considered as quite reliable RWD 6-speed gearboxes of GM series. European modifications 6L45 /R have been used since 2006 on BMW Х1, Х3 of 1-st 3-rd and 5-th series and manufactured in Strasbourg, France. These gearboxes mainly differ in electrical components. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type6ATRWD4509,86,2Mercon SP These gearboxes usually get in repair services for scheduled ATF change, replacement of the filters with the pan gasket. ATF gets contaminated because of aggressive accelerations and wear-out of the lock-up clutch. It is recommended to change ATF in accordance with its contamination level, but no later than after travelling 80 thousand kilometers. Typical problems The problem detected on the 6L80 (manufactured before 2008) is related to the design of the pump cover and cranking of filler rings resulting in problems with shifting from the 2-nd to the 3-rd gear and delays in switch-on of Forward or Reverse gears. In case of the overhaul, it is recommended to check the leak integrity of the drum 555. There may be some hidden cracks leading to the operation pressure losses in packs causing problems when shifting gears 2-3 and Reverse. Overheating is dangerous for all pistons, which have to be fully replaced. It is the problem inherited from its 5-speed predecessor 5L40E. All pistons and retainers are replaced quite frequently (kit of pistons 6L45-50). Problems with the torque converter (TC) may also occur in these gearboxes. The wheel-hub early gets out of order. Rare and complicated cases of the overhaul show some vulnerability of the pack (4-5-6 Clutch), which in neglected cases leads to burning of all frictions, including steel discs and pistons. The reason is often related to wear-out of the TC bushing and TC itself. The torque converter is often considered to be a soft spot in American gearboxes. After 100-150 thousand kilometers (depending on engine and driving style), it is recommended to test the TC seal for leaks. When there are leakages in the seal or ATF gets rapidly contaminated, then it is desirable to get TC in repair services to prevent problems with the pump or the valve body. This measure particularly should be applied when automatic gearboxes operate jointly with motors (with maximum torques). Which cars run with this gearbox?BrandModelYearTypeEngineBMW5-SERIES06-106 SP R/4WDL6 2.5L 3.0LBMW6 SERIES07-136 SP RWDL6 3.0LBMWZ4 ROADSTER09-116 SP R/4WDL6 3.0L How to repair this transmission (Videos)DisassemblyManual Valve6L90, building the tehcm pressure switches6L80-E Transmission Repair6L80E Teardown Inspection6L80E ValvebodyGM 6L80 E Transmission - No Forward Instruction manuals and useful linksLink typeSourceDescriptionpdfwww.at-manuals.comScheme 6L45pdfSonnaxValve Body Layout GM 6L45, 6L50, 6L80, 6L90pdfSonnaxVacuum test 6L45, 6L50, 6L80, 6L90webSonnax6L80 Family Identification GuidewebSonnaxLocation and Function of New #8 Checkball for 6L80/90webSonnax6L80/6L90 "No Movement" After RepairvideoSonnax6L80 Series Transmission Upgrades & Repairs

Transmission general data The 6DCT250 6-speed transmission has been developed for front-transverse installation in medium and compact cars with the torque capacity up to 280 Nm. This transmission is equipped with a dual wet clutch. Currently, this transmission is installed in almost all Ford models. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type6DCTFWD1,81,875w90 A smooth gear shifting is ensured thanks to the parallel operation of two main shafts, actuated by the clutch system. In practice, it is implemented in the following way: one clutch selects the necessary gear, while the other one prepares the next gear for engagement. It is worth mentioning that the gear shifting process in the 6DCT250 transmission rules out the possibility of torque losses. In other words, the automatic transmission successfully combines all conveniences of automatic transmissions and the efficiency of manual transmissions. This transmission may have a separate PTU with AWD system, as well as a start-/stop feature without modification of the hardware. Combined with an E-motor, the gearbox may also be applied in a hybrid drive. Peculiarities of operation: In terms of design, this transmission is a nonstandard solution, which specifies special requirements for the maintenance and operation of the vehicle: - When stopping the car, the driver has to press the brake pedal, using the handbrake lever, and only then shit to “P” parking position; - When using the vehicle in the "Select-Shift" mode, the driver should not keep the button “+/-“ pressed; -When the engine runs idly, the driver should switch the selector into “P” (parking) or into “N” (neutral) mode; - When selecting “R” (reverse), “S” (sport), or “D” (drive) mode, it is not recommended to keep the brakes engaged for a long time; - Transmission repair specialists recommend changing of ATF and filter after each 45 thousand kilometers. It is important that this procedure should be performed at special services. Problems The most common faults in the 6DCT250 Powershift transmission are related to the clutch system. Due to structural stiffness, this transmission component responds to ECU malfunctions, which may lead to wedging and gear failure. In some cases specialists detect ATF leakages in the primary shaft seal. The ATF appearance on the clutch may lead to slippage. Which cars run with this gearbox?BrandModelYearTypeEngineFordB-MAX12-166 SP FWDL4 1.5L 1.6LFordC-MAX14-166 SP FWDL4 1.5LFordFIESTA10-166 SP FWDL3 1.0L L4 1.2L 1.5L 1.6LFordFOCUS11-166 SP FWDL3 1.5L L4 1.5L 1.6L 2.0LFordTRANSIT COURIER15-166 SP FWDL4 1.6L How to repair this transmission (Videos)Ford Dual Clutch Transaxle (DCT) DPS6DPS6 Transmission TeardownDPS6 Internal OperationSlipping/Shudder Clutch replacementDual Clutch Transmission Clutch Assembly Removal and Installation Guide Instruction manuals and useful linksLink typeSourceDescriptionpdfwww.getrag.com Specifications 6DCT250pdfgetrag.comPress information 6DCT250pdfautomaticchoiceScheme 6DCT250
