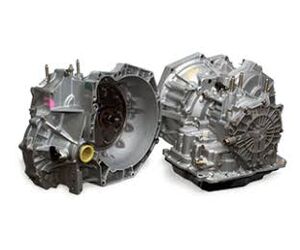

Transmission general data The 4-speed automatic gearbox 4F27E was designed in 1998 for well-known FWD vehicles Ford Focus with the engine capacity from 1.3 up to 2 liters. According to Mazda classification, this models is also known as FN4A-EL. This gearbox is intended for lower torque. It is a remarkable solution which can be rebuilt without removing the whole mechanism. The cover is a common component for repair in this gearbox. This easy-to-operate gearbox is still assembled on many plants of Ford-Mazda worldwide. The range of 4F27E /FNR5 is the most common Ford-Mazda gearboxes in repair services. Spare parts for repair of 4F27E (FN4A-EL) are almost the same as in the 5-speed FNR5. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type4ATFWD20083,5DexronVI / Mercon LV Technical issues and repair guidelines Clearance of the Reverse drum on the back cover stator. Friction components of Overdrive and Reverse packages get burnt quite rapidly. Fast burning of these elements is related to design peculiarities of such type of gearboxes. Burning of these reliable friction elements occurs because the drum seating position on the rear cover support wears out and oil leaks out from teflon rings. Back cover of the FN4A-EL Specialists assume that the back cover issue is related to the stator’s material in the FN4A-EL. It is softer than in Ford (4F27E), therefore gearboxes for Ford have no problems with the rear cover. Electrical elements in the 4F27E work properly for a long time. The valve body is usually cleaned and rubber with gaskets get replaced with the help of the Overhaul Kit. The differential is one more problematic component of “old” units. Ford updated the differential several times for different cars and now differentials of the 4F27E vary in quantity of “teeth”.Rubber-covered pistons (Reverse, Forward, Low/Reverse) are the spare parts of second priority. This gearbox is well-known among repair specialists, most parts for this gearbox are widely available. Proper exploitation and well-timed maintenance make this gearbox reliable and repairable. Which cars run with this gearbox?BrandModelYearTypeEngineFordECOSPORT07-124 SP FWDL4 2.0LFordFESTIVA04 SP FWDL4 1.3LFordFIESTA08-134 SP FWDL4 1.3L 1.4L 1.5LFordFOCUS C-MAX00-114 SP FWDL4 1.6L 1.8L 2.0L 2.3LFordI-MAX07-104 SP F/4WDL4 1.8LFordIXION04-054 SP F/4WDL4 1.8LFordLASER00-054 SP FWDL4 1.5L 1.8LFordLYNX00-054 SP FWDL4 1.3L 1.6LFordTELSTAR04 SP FWDL4 2.0LFordTIERRA00-074 SP FWDL4 1.6LFordTRANSIT CONNECT09-134 SP FWDL4 2.0LHongqiMINGSHI06-084 SP F/4WDV6 2.0L How to repair this transmission (Videos)FN4AEL TeardownFord 4F27E Auto Tranmsission RebuildFord 4F27E Auto Tranmsission Rebuild Instruction manuals and useful linksLink typeSourceDescriptionpdfwww.at-manuals.comFailures and Faithful Fixes for FN4A-EL and 4F27Epdfwww.at-manuals.comScheme 4F27Ewebwww.at-manuals.comStall test 4F27Ewebwww.at-manuals.comSolenoid application chart 4F27E
