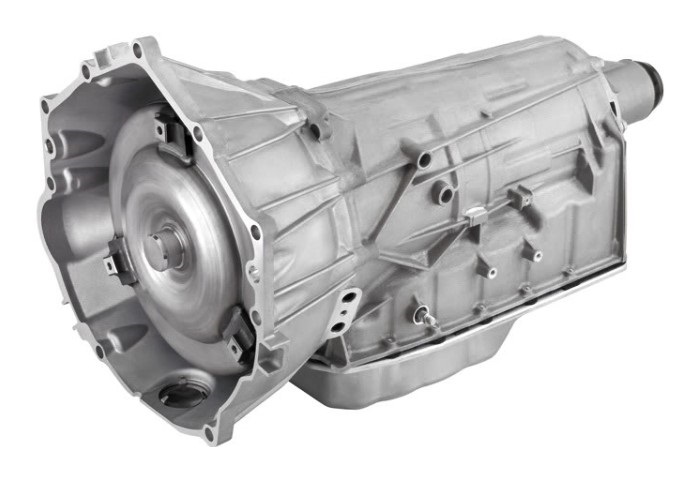

General Motors 6L45 Transmission

The Hydra-Matic range 6L45 - ... 6L90 is the second generation of modular-type 6-speed automatic transmissions, used for RWD vehicles. The 6L80 and 6L90 were the first automatic gearboxes of the Heavy-duty class designed in 2005. Next year 6L50 \6L45 gearboxes of the Medium-Duty class (with a lower torque) up to 450 Nm replaced BMW gearbox, which was popular in repair services. The 6L45E (GA6L45R) is a constructively modified 5L40 (which was actually replaced by the 6L45E in 2007 ). Mainly used with budgetary BMW-3 and X3 with engines 2.5l - 3.0L. 6L50, 6L80 and 6L90 transmissions may be…

Speeds 6
Type AT
Drive RWD
Max torque 450
ATF capacity (L) 9,8
ATF change (L) 6,2
ATF type Mercon SP
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

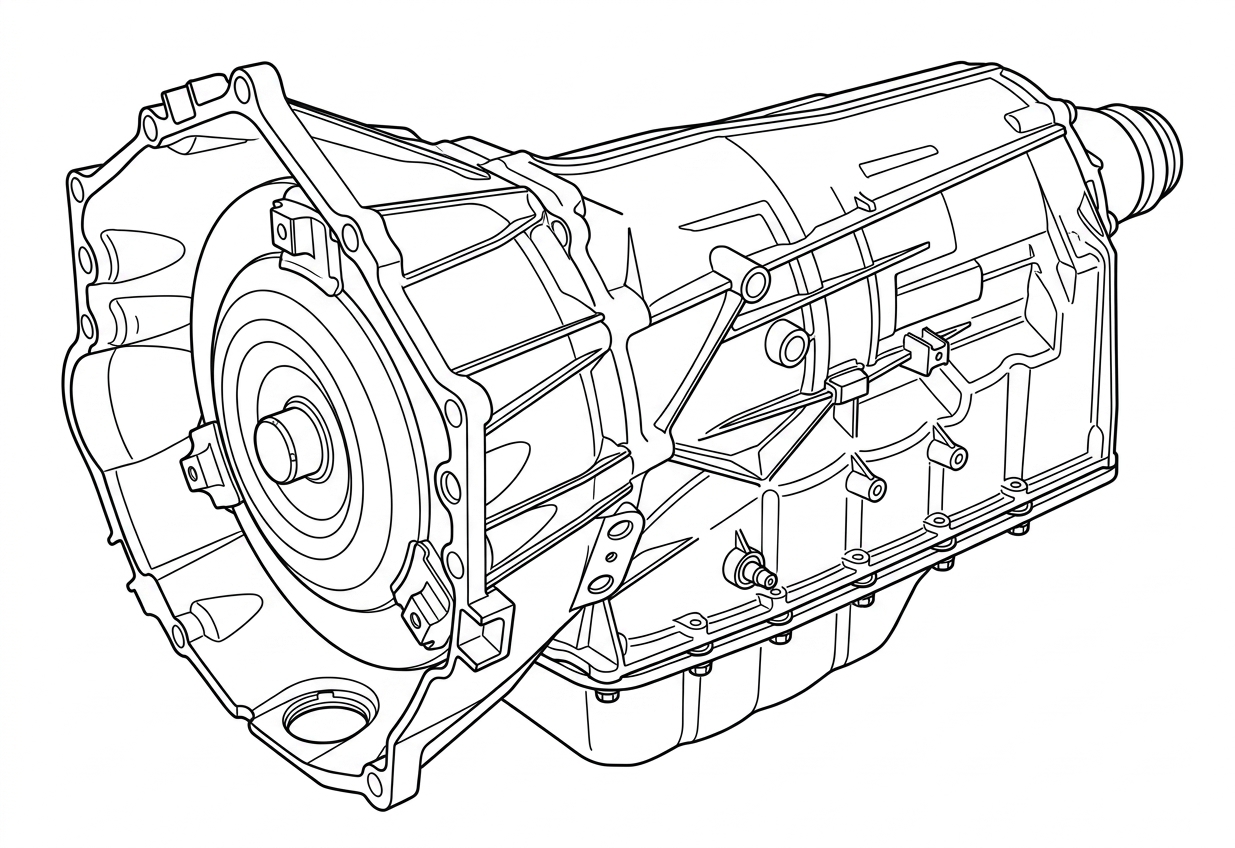

6L45
7.7/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.2
Documentation depth10.0
Knowledge & support9.5

Exploded diagram & parts

Full 6L80 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

898 898 · No. 1 070 070 · No. 2 034 034 · No. 3 750 750 · No. 4 311 311 · No. 5 313 313 · No. 6 534 534 · No. 7 538 538 · No. 8 539 539 · No. 9 532 532 · No. 10 11 11 · No. 11 533 533 · No. 12 538 538 · No. 13 036 036 · No. 14 528 528 · No. 15 310 310 · No. 16 381 381 · No. 17 529 529 · No. 18 179 179 · No. 19 037 037 · No. 20 211 211 · No. 21 383 383 · No. 22 228 228 · No. 23 555 555 · No. 24 046 046 · No. 25 332-2 332-2 · No. 26 332-1 332-1 · No. 27 332 332 · No. 28 337 337 · No. 29 965 965 · No. 30 975 975 · No. 31 336 336 · No. 32 337-1 337-1 · No. 33 956 956 · No. 34 333 333 · No. 35 872 872 · No. 36 962 962 · No. 37 972 972 · No. 38 982 982 · No. 39 874 874 · No. 40 125 125 · No. 41 777 777 · No. 42 536 536 · No. 43 535/540 535, 540 · No. 44 778 778 · No. 45 124/104 124, 104 · No. 46 144 144 · No. 47 873* 873* · No. 48 548 548 · No. 49 127 127 · No. 50 126/106 126, 106 · No. 51 146 146 · No. 52 878* 878* · No. 53 582 582 · No. 54 612 612 · No. 55 241 241 · No. 56 238 238 · No. 57 380 380 · No. 58 554 554 · No. 59 177 177 · No. 60 048 048 · No. 61 964 964 · No. 62 974 974 · No. 63 984 984 · No. 64 877 877 · No. 65 129 129 · No. 66 128/108 128, 108 · No. 67 148 148 · No. 68 876 876 · No. 69 232 232 · No. 70 574 574 · No. 71 108-1 108-1 · No. 72 148-1 148-1 · No. 73 875 875 · No. 74 235 235 · No. 75 236 236 · No. 76 575 575 · No. 77 243 243 · No. 78 051 051 · No. 79 578 578 · No. 80 051-1 051-1 · No. 81 244 244 · No. 82 883 883 · No. 83 861 861 · No. 84 140 140 · No. 85 120/100 120, 100 · No. 86 121 121 · No. 87 862 862 · No. 88 970 970 · No. 89 960 960 · No. 90 044 044 · No. 91 632 632 · No. 92 044-1 044-1 · No. 93 338 338 · No. 94 967 967 · No. 95 977 977 · No. 96 884 884 · No. 97 694 694 · No. 98 664 664 · No. 99 286 286 · No. 100 654 654 · No. 101 286 286 · No. 102 665 665 · No. 103 884 884 · No. 104 347-1 347-1 · No. 105 444 444 · No. 106 347 347 · No. 107 135 135 · No. 108 134/114 134, 114 · No. 109 154 154 · No. 110 885* 885* · No. 111 250 250 · No. 112 226 226 · No. 113 614 614 · No. 114 246 246 · No. 115 614-1 614-1 · No. 116 584 584 · No. 117 889 889 · No. 118 594 594 · No. 119 889 889 · No. 120 476 476 · No. 121 594-1 594-1 · No. 122 251 251 · No. 123 062 062 · No. 124 678 678 · No. 125 260 260 · No. 126 760 760 · No. 127 064 064 · No. 128 074 074 · No. 129 383 383 · No. 130 382 382 · No. 131 342 342 · No. 132 379 379 · No. 133 348 348 · No. 134 770 770 · No. 135 066 066 · No. 136 074 074 · No. 137 841 841 · No. 138 798 798 · No. 139 991-4 991-4 · No. 140 991-3 991-3 · No. 141 994-6 994-6 · No. 142 394 394 · No. 143 995-1 995-1 · No. 144 995-2 995-2 · No. 145 995-3 995-3 · No. 146 483 483 · No. 147 410 410 · No. 148 740 740 · No. 149 016 016 · No. 150 791 791 · No. 151 010 010 · No. 152 300/765 300, 765 · No. 153 781 781 · No. 154 991-2 991-2 · No. 155 994 994 · No. 156 420 420 · No. 157 438 438 · No. 158 159 159 · No. 159

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 6L45 in the Go4Trans marketplace.
Sell 6L45 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

27 applications · 4 makes · 2006–2016 BMW 15 · Cadillac 10 · Chevrolet 1 · Holden 1

Make Model Year Drive Engine
BMW 1 Series 2008-2013 1.6, 3.0
BMW 1 Series, 116i, 118i, 120i, 125i, 128i, 130i 2007 6 Spd RWD 1.6,1.8,2.0,2.5,2.8,3.0L
BMW 3 Ser, 318i,320i,323i/xi,325i/xi,328i/xi,330i/xi 2007 6 Spd RWD/AWD Various
BMW 328i/xi 2007-2009 3.0
BMW SÉRIE 1 2006-2012 6 Spd RWD L4 1.6/2.0L L6 3.0L
BMW SÉRIE 3 2006-2012 6 Spd R/AWD L6 2.5/3.0L
BMW SÉRIE 5 2006-2010 6 Spd R/AWD L6 2.5L/3.0L
BMW SÉRIE 6 2007-2013 6 Spd RWD L6 3.0L
BMW X3 2007-2011 6 Spd R/AWD L6 2.5L 3.0L
BMW X3 2007-2011 2.5, 3.0
BMW X3, 3.0si, 2.5si, 3.0i 2007 6 Spd AWD L6 3.0L
BMW X5 2009 3.0
BMW X6 2008-2009 3.0
BMW XI 2009-2016 6 Spd RWD L4 2.0L
BMW Z4 ROADSTER 2009-2016 6 Spd R/AWD L6 3.0L
Cadillac ATS 2013-2015 2.0, 2.5
Cadillac ATS 2012-2016 6 Spd RWD L4 2.0L V6 3.6L
Cadillac CTS 2008-2014 6 Spd R/AWD L4 2.0L V6 2.8/3.0L
Cadillac CTS 2008-2014 3.0, 3.6
Cadillac CTS 2008-2010 V6 3.0, 3.6L
Cadillac CTS SPORT WAGON 2009-2014 6 Spd R/4WD V6 3.0/3.6L
Cadillac SRX 2007-2011 V8 4.6L
Cadillac STS 2008-2011 V6 3.6L
Cadillac STS 2006-2013 6 Spd 4R/4WD L4 2.0L V6 3.0/3.6L V8
Cadillac XLR 2007-2011 V8 4.6L
Chevrolet Camaro 2010-2013 V6 3.6L
Holden COMMODORE 2012-2013 6 Spd RWD V6 3.0L/3.6L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

MYA
6L45-E
6L45
6L45 E
6L45E
GA6L45R
G6L46R
6L45R
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pump Cover Filler Ring Cranking
6L80 pre-2008 pump cover design flaw causes filler ring cranking, affecting 2-3 shift and Forward/Reverse engagement.
?
2-3 Gear Shift Delay
Delayed or problematic shifting from 2nd to 3rd gear linked to pump cover defect and drum 555 pressure loss.
!
Drum 555 Hidden Cracks
Cracks in drum 555 cause operating pressure loss in clutch packs, disrupting 2-3 shifts and Reverse engagement.
!
4-5-6 Clutch Pack Burn
Neglected TC bushing wear leads to 4-5-6 clutch pack failure, burning all frictions, steel discs, and pistons.
!
Torque Converter Bushing Wear
TC bushing wear-out is primary cause of 4-5-6 clutch pack damage and accelerated ATF contamination.
!
Piston and Retainer Failure
All pistons and retainers prone to failure due to overheating, inherited from 5L40E predecessor; full replacement requir
?
Torque Converter Seal Leak
TC seal leakage causes rapid ATF contamination and risks pump and valve body damage if left unaddressed.
?
ATF Contamination from Lock-Up
Aggressive driving and lock-up clutch wear-out accelerate ATF contamination; change recommended before 80k km.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The Hydra-Matic range 6L45 - ... 6L90 is the second generation of modular-type 6-speed automatic transmissions, used for RWD vehicles. The 6L80 and 6L90 were the first automatic gearboxes of the Heavy-duty class designed in 2005. Next year 6L50 \6L45 gearboxes of the Medium-Duty class (with a lower torque) up to 450 Nm replaced BMW gearbox, which was popular in repair services. The 6L45E (GA6L45R) is a constructively modified 5L40 (which was actually replaced by the 6L45E in 2007 ). Mainly used with budgetary BMW-3 and X3 with engines 2.5l - 3.0L. 6L50, 6L80 and 6L90 transmissions may be considered as quite reliable RWD 6-speed gearboxes of GM series. European modifications 6L45 /R have been used since 2006 on BMW X1, X3 of 1-st 3-rd and 5-th series and manufactured in Strasbourg, France. These gearboxes mainly differ in electrical components.

These gearboxes usually get in repair services for scheduled ATF change, replacement of the filters with the pan gasket. ATF gets contaminated because of aggressive accelerations and wear-out of the lock-up clutch. It is recommended to change ATF in accordance with its contamination level, but no later than after travelling 80 thousand kilometers.

Typical problems

The problem detected on the 6L80 (manufactured before 2008) is related to the design of the pump cover and cranking of filler rings resulting in problems with shifting from the 2-nd to the 3-rd gear and delays in switch-on of Forward or Reverse gears.

In case of the overhaul, it is recommended to check the leak integrity of the drum 555. There may be some hidden cracks leading to the operation pressure losses in packs causing problems when shifting gears 2-3 and Reverse. Overheating is dangerous for all pistons, which have to be fully replaced. It is the problem inherited from its 5-speed predecessor 5L40E.

All pistons and retainers are replaced quite frequently (kit of pistons 6L45-50). Problems with the torque converter (TC) may also occur in these gearboxes. The wheel-hub early gets out of order. Rare and complicated cases of the overhaul show some vulnerability of the pack (4-5-6 Clutch), which in neglected cases leads to burning of all frictions, including steel discs and pistons. The reason is often related to wear-out of the TC bushing and TC itself.

The torque converter is often considered to be a soft spot in American gearboxes. After 100-150 thousand kilometers (depending on engine and driving style), it is recommended to test the TC seal for leaks. When there are leakages in the seal or ATF gets rapidly contaminated, then it is desirable to get TC in repair services to prevent problems with the pump or the valve body. This measure particularly should be applied when automatic gearboxes operate jointly with motors (with maximum torques).
