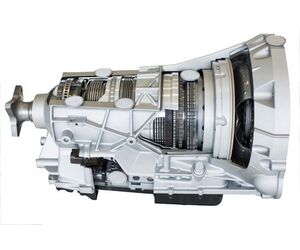

Transmission general data The 10R80 is a 10-speed automatic gearbox designed thanks to fruitful cooperation between Ford and GM (10L90). Both companies pointed out the fact that while the mechanical part of the gearbox was developed collaboratively, the software part of the 10R80 will be different for each manufacturer and, as a result, their corresponding powertrain structures should not necessarily resemble each other in view of gear shifting algorithms. This transmission has 10 forward gears, three of which are overdrive ratios. It's deep 4.69 to 1 first gear ratio is the lowest in its class and it features a relatively tall 0.63 to 1 final overdrive ratio. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type10ATRWD/4WD80012.98Motorcraft ULV A built-in electrohydraulic pump ensures that the "start-stop" feature operates with minimal delay. The 10R80 includes 3 operation modes - "Tow Haul", "Sport", and "Normal", with each mode changing the gear shifting algorithm and characteristics to compliment particular forms of driving behavior. Since the gearbox has 10 forward gears, its running characteristics and, more importantly, fuel efficiency is maximized by the transmission's capacity to get a suitable ratio for current operating conditions, such as engine speed, load, and car speed. This transmission became a standard option for the 2017 F-150 equipped with the 3.5L Eco-Boost engine. Which cars run with this gearbox?BrandModelYearTypeEngineFordF-1501610 SP R/4WDV6 3.5L V8 5.0LFordF-150 SUPERCREW1610 SP R/4WDV8 5.0LFordMUSTANG1610 SP RWDL4 2.3L V8 5.0L How to repair this transmission (Videos)10-speed Transmission Assembly Instruction manuals and useful linksLink typeSourceDescriptionwebwww.f150hub.com0R80 10 SPEED AUTOMATIC TRANSMISSION RATIOS
