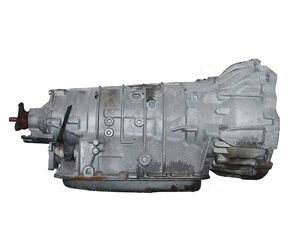

Transmission general data The 4-speed automatic transmission 4L40E produced by GM found application on the most common BMW 318 (since 1998). This automatic transmission was designed on the constructive basis of a reliable 4L60E, but were produced in Europe for the Bavarian automobile factory. This range of automatic transmissions replaced the 4-speed 4L30E and had been in production until 2007, when GM replaced these transmissions with the 6-speed 6L45. In terms of design the 4L40E (5L40) is the most simple, robust and reasonably priced transmission. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type4ATRWD36095,5-6Dexron VI Technical issues and repair guidelines The repair of this transmission mainly lies in the replacement of filter, gaskets and seals (preventing oil leakage), and replacement of burnt friction elements. All parts are interchangeable with 5L40E and 5L50E. Frictions are one-sided as in the popular DP0 transmission. The pack (Direct Clutch; 2nd Coast) burns twice as frequently as other clutch packs.Generally, this gearbox is considered to be reliable and almost “invincible”, when avoiding heavy ATF contamination by friction dust and the abradant which wears out not only friction nodes, but also the valve body. This issue (oil contamination) often results in self-regulating pump becoming “unregulated”, also remaining in the mode of ultimate capacity. It leads to the rapid gear-shifting as well as to increased pressure in packages resulting in pistons damage. Issues with pistons is a typical soft spot for the 5-speed 5L40E and 5L50E (BMW Х5). The rubber-covered piston (forward) most commonly gets out of order because of its design peculiarities.It is usually recommended to take care about the ATF quality for this transmission. Which cars run with this gearbox?BrandModelYearTypeEngineBMW3-SERIES00-054 SP RWDL4 1.9L L6 2.0L 2.8L How to repair this transmission (Videos)Part 1 Transmission ServicePart 2 Transmission Service Instruction manuals and useful linksLink typeSourceDescriptionpdfshinseiauto.comScheme 4L40E
