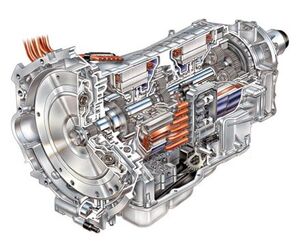

Transmission general data The 2ML70 gearbox is a 4-speed rear drive which can be configured in a two or four wheel drive application. The secret of this transmission lies in combination of 2 electric motors inside the transmission, which serve not only for driving the car under certain conditions, but also for starting the engine. The 2ML70 transmission has several important advantages when compared to its gasoline counterparts: reduced fuel consumption, improved performance characteristics, reduced amount of toxic emissions. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type4Hybrid SystemRWD51512.310.8Dexron VI This transmission doesn’t have a torque converter. It is equipped with stop/start technology and therefore has a 12 volt auxiliary pump to keep the 1-2 clutch primed any time the engine shuts down. The design of 2ML70 also includes 3 planetary gear sets, 2 rotating clutch packs and 2 fixed clutch packs. The gearbox functioning is controlled by a Transmission Control Module (TCM) which is located inside the transmission and the hybrid systems operation is controlled by the Hybrid Control Processor (HCP) located under the hood. Which cars run with this gearbox?BrandModelYearTypeEngineBMWX609-14EVT 4WDV8 4.4LCadillacESCALADE HYBRID07-13EVT R/4WDV8 6.0LChevrolet/GMSILVERADO HYBRID/SIERRA HYBRID09-13CVT R/4WDV8 6.0LChevrolet/GMTAHOE HYBRID07-13CVT R/4WDV8 6.0LChevrolet/GMYUKON HYBRID08-13EVT R/4WDV8 6.0LChryslerASPEN HYBRID9CVT R/4WDV8 5.7L HEMIDodgeDURANGO HYBRID9EVT R/4WDV8 5.7L HEMIMercedes-BenzR CLASS09-11CVT R/4WDV6 3.5L How to repair this transmission (Videos)GM Two Mode HybridWhat is a two-mode hybrid? Instruction manuals and useful linksLink typeSourceDescriptionwebwww.searchautoparts.comAN INTRODUCTION TO GM'S 2ML70 TWO MODE HYBRID TRANSMISSIONpdfwww.atraonline.com2ML70 (RPO M99)
