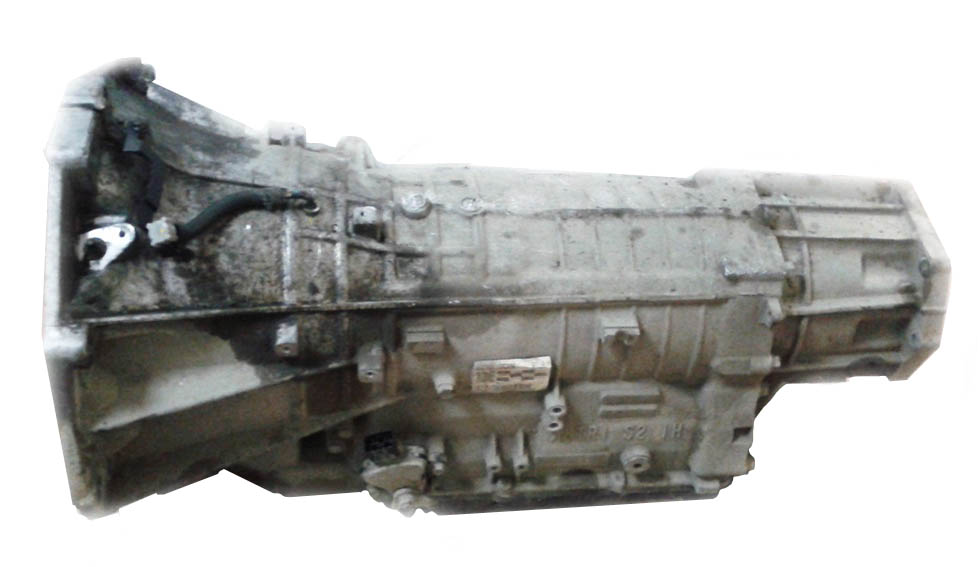

Hyundai Motor Group A8LR1 Transmission

The 8-speed RWD automatic transmissions A8LR1, A8TR1 (4WD) with longitudinal positioning designed by Hyundai were installed on luxury cars with engines from V6 3.0 up to V8 5.0L since 2011. This transmission was launched in production in 2010 and after several years of testing on the Korean market, Hyundai engineers introduced some updates, which improved some hard parts and frictions. Some electrical mechanisms and computer settings were also changed.

Speeds 8
Type AT
Drive RWD/AWD
Max torque 500
ATF capacity (L) 9.6
ATF type ULTRA ATF SP-IV RR
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A8LR1
4.8/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.2
Documentation depth8.9
Knowledge & support4.0

Exploded diagram & parts

Full A8TR1 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 311 311 · No. 3 4 4 · No. 4 530 530 · No. 5 381 381 · No. 6 036 036 · No. 7 520 520 · No. 8 778 778 · No. 9 209 209 · No. 10 338 338 · No. 11 339 339 · No. 12 967 967 · No. 13 987 987 · No. 14 893 893 · No. 15 154 154 · No. 16 134/114 134, 114 · No. 17 155* 155* · No. 18 885 885 · No. 19 210 210 · No. 20 610 610 · No. 21 216 216 · No. 22 580 580 · No. 23 217* 217* · No. 24 380 380 · No. 25 177 177 · No. 26 590 590 · No. 27 223 223 · No. 28 052 052 · No. 29 612 612 · No. 30 241 241 · No. 31 592 592 · No. 32 654 654 · No. 33 667 667 · No. 34 853 853 · No. 35 875 875 · No. 36 777 777 · No. 37 638 638 · No. 38 638-1 638-1 · No. 39 186 186 · No. 40 41 41 · No. 41 186 186 · No. 42 238 238 · No. 43 239 239 · No. 44 582 582 · No. 45 876 876 · No. 46 148* 148* · No. 47 128/108 128, 108 · No. 48 877 877 · No. 49 984 984 · No. 50 974 974 · No. 51 964 964 · No. 52 334 334 · No. 53 335 335 · No. 54 048 048 · No. 55 554 554 · No. 56 048 048 · No. 57 881 881 · No. 58 883 883 · No. 59 232 232 · No. 60 632 632 · No. 61 62 62 · No. 62 333/332 333, 332 · No. 63 962 962 · No. 64 852 852 · No. 65 982 982 · No. 66 125 125 · No. 67 124/104 124, 104 · No. 68 144* 144* · No. 69 873 873 · No. 70 552 552 · No. 71 337 337 · No. 72 784 784 · No. 73 783 783 · No. 74 385A 385A · No. 75 490 490 · No. 76 336/965 336, 965 · No. 77 975 975 · No. 78 985 985 · No. 79 337-1 337-1 · No. 80 879 879 · No. 81 858 858 · No. 82 126/106 126, 106 · No. 83 146*/878 146*, 878 · No. 84 626 626 · No. 85 615 615 · No. 86 246 246 · No. 87 247 247 · No. 88 614 614 · No. 89 248 248 · No. 90 584 584 · No. 91 251 251 · No. 92 678 678 · No. 93 180 180 · No. 94 254 254 · No. 95 270 270 · No. 96 760 760 · No. 97 272 272 · No. 98 897 897 · No. 99 074 074 · No. 100 841 841 · No. 101 084 084 · No. 102 798 798 · No. 103 371 371 · No. 104 494 494 · No. 105 697 697 · No. 106 889 889 · No. 107 252 252 · No. 108 043 043 · No. 109 571 571 · No. 110 043 043 · No. 111 220/219 220, 219 · No. 112 221 221 · No. 113 864 864 · No. 114 142* 142* · No. 115 122 +3 122, 865, 961, 102 · No. 116 865 865 · No. 117 981 981 · No. 118 971 971 · No. 119 961 961 · No. 120 328 328 · No. 121 329 329 · No. 122 046A 046A · No. 123 551 551 · No. 124 446-1 446-1 · No. 125 347 347 · No. 126 347 347 · No. 127 072 072 · No. 128 991-4 991-4 · No. 129 494 494 · No. 130 371 371 · No. 131 371 371 · No. 132 494 494 · No. 133 459 459 · No. 134 446 446 · No. 135 991-3 991-3 · No. 136 991-2 991-2 · No. 137 994 994 · No. 138 995-1 995-1 · No. 139 995-4 995-4 · No. 140 995-3 995-3 · No. 141 995-6 995-6 · No. 142 428 428 · No. 143 425 425 · No. 144 376A 376A · No. 145 376B 376B · No. 146 421 421 · No. 147 414 414 · No. 148 046B 046B · No. 149 578 578 · No. 150 235 235 · No. 151 861* 861* · No. 152 140* 140* · No. 153 120/100 120, 100 · No. 154 862 862 · No. 155 980 980 · No. 156 970 970 · No. 157 960 960 · No. 158 330 330 · No. 159 331 331 · No. 160 558 558 · No. 161 267 267 · No. 162 268 268 · No. 163 894 894 · No. 164 782 782 · No. 165 740 740 · No. 166 765/300 765, 300 · No. 167 430 430 · No. 168 422 422 · No. 169 450 450 · No. 170 431 431 · No. 171 427 427 · No. 172 468 468 · No. 173 779 779 · No. 174 387 387 · No. 175 492 492 · No. 176 387 387 · No. 177 492 492 · No. 178

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A8LR1 in the Go4Trans marketplace.
Sell A8LR1 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

5 applications · 2 makes · 2011–2016 Hyundai 3 · Kia 2

Make Model Year Drive Engine
Hyundai EQUUS 2011-2016 8 Spd RWD V8 3.8L
Hyundai GENESIS 2011-2016 8 Spd RWD V6 3.0/3.3/3.8L
Hyundai GENESIS COUPE 2012-2014 8 Spd RWD L4 2.0L V6 3.8L
Kia K9 2011-2012 8 Spd RWD V6 3.3L
Kia QUORIS 2013-2014 8 Spd FWD V6 3.3L 3.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A8LR1
A8R40
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Valve Body Solenoid Failure
Valve body with solenoids is a primary soft spot; highly sensitive to contaminated oil under maximum load conditions.
!
VFS Solenoid Regulator Wear
Variable Force Solenoid (VFS) electric regulators are first components to reach end of lifespan due to intensive operati
?
Contaminated Oil Sensitivity
Transmission exhibits accelerated component failure when operated with dirty fluid, especially under high load condition
!
Incorrect Fluid Type Damage
Use of non-specified fluid (other than Ravenol SP-IV RR) disrupts lubrication, cooling, and hydraulic functions simultan
!
Transmission Fluid Degradation
Oil ageing degrades fluid qualities; transparency check and fluid/filter-pan replacement recommended at 80-100k km.
!
Filter Pan Contamination
Filter-pan accumulates debris from degraded fluid; replacement required alongside fluid change to prevent solenoid damag
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 8-speed RWD automatic transmissions A8LR1, A8TR1 (4WD) with longitudinal positioning designed by Hyundai were installed on luxury cars with engines from V6 3.0 up to V8 5.0L since 2011. This transmission was launched in production in 2010 and after several years of testing on the Korean market, Hyundai engineers introduced some updates, which improved some hard parts and frictions. Some electrical mechanisms and computer settings were also changed.

Technical issues and repair guidelines

These transmissions rarely get in repair services, because of reliable rear drive construction which operates properly for the first 4-5 years of service without serious problems.

Ravenol SP-IV RR fluid is used for these finely adjusted transmissions. Specialists do not recommend using other types of fluid, because the oil in this transmission performs many other functions in addition to lubrication, cooling and hydraulic environment. Although the oil ageing slightly worsens its qualities, after running 80-100 thousand kilometers it is recommended to check it for transparency and change it together with the filter-pan, especially if the transmission operated at maximum loads.

One of the main soft spots causing problems in this transmission is the valve body with solenoids. This transmission is very sensitive to operation with contaminated oil under the condition of ultimate loads. Intensively operating VFS solenoids-electric-regulators are the first to reach the end of their lifespan.
