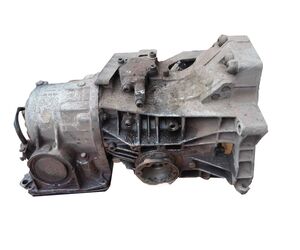

Transmission general data Since 1975 this 3-speed automatic transmission VAG 010 (later in 1983, it was used as a prototype for the automatic transmissions 087 and 089) has been successfully operating on many FWD models of Volkswagen (CABRIOLET, GOLF, JETTA) and Audi (80, 100, 200, ... and 4000S) with engines from 1.6 to 2.2 liters and on all Audi models starting from simple Audi 80 up to Audi 5000S. One more rare modification of this transmission for RWD vehicles - "090" (VANAGON) was released in 1978. Number of gearsTransmission TypeDriveTorque (Nm)ATF (full capacity) LATF (change) LATF type3ATFWD63Dexron III Technical issues and repair guidelines The most popular kit of spare parts for maintenance of this “invincible” transmission, which often comes to the repair shop with half million kilometers of mileage usually consists of: - Kit of friction components - Kit of gaskets and seals (Overhaul Kit) - Full kit of spare parts, which includes all gaskets, seals, frictions and steel discs (MasterKit). Sometimes, repair specialists order a separate kit of steel discs.There is some difference between repair kits of gaskets and seals for Audi 087 and 089 models. As for the replacement frequency, then come the following spare parts: - pump and axle seals (included in the repair kit), which are replaced with a full kit of bushings, their wear-out causes vibrations (which damage seals) and oil pressure in packages gets lost (that leads to friction linings burning); - Rubber-covered pistons with friction clutches of packages Forward or Direct; - Brake band (Direct, High/ Reverse) is replaced when it is completely worn; - Rebuilding of the torque converter with replacement of spare parts. This automatic transmission is very simple and reliable, which is used by many specialists as a guidebook for learning trasnmission repair methods. Which cars run with this gearbox?BrandModelYearTypeEngineVolkswagenCABRIOLET85-923 SP FWDL4 1.8LVolkswagenGOLF85-923 SP FWDL4 1.8L 2.0LVolkswagenJETTA80-923 SP FWDL4 1.6L 1.7L 1.8L How to repair this transmission (Videos)BUILDING A VW TRANSMISSION010 AUTOMOTIVE AUTOMATIC TRANSMISSIONS – LAYOUT and OPERATION Instruction manuals and useful linksLink typeSourceDescriptionwebwww.at-manuals.comType 010 3-Speed Diagnosis & Overhaulpdfwww.at-manuals.comTransmission breakdown illustration 010pdfsympatico.ca010 troubleshooting guidepdfthesamba.comRepair manual 010 transmission
