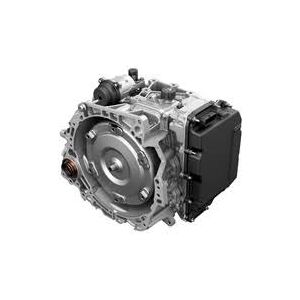

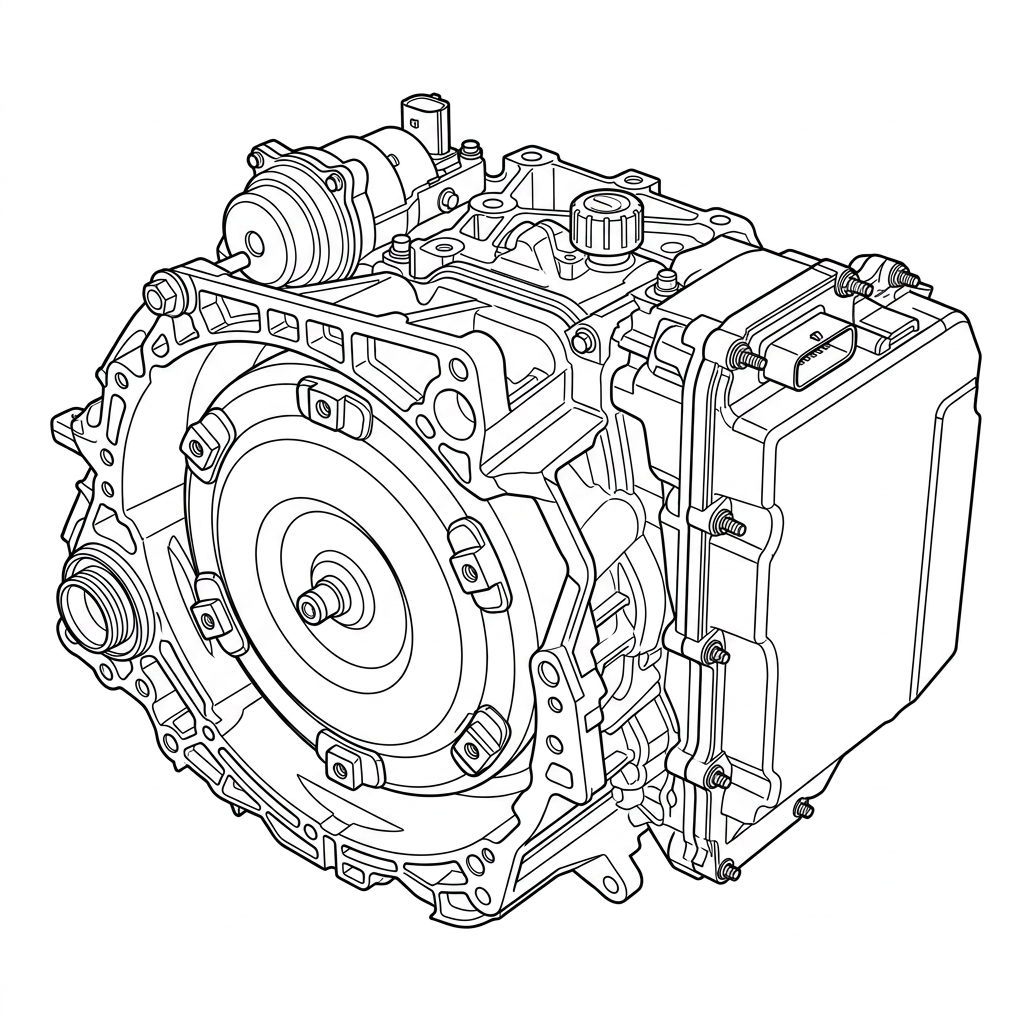

General Motors 9T50 Transmission

The 9-speed automatic transmission Hydra-Matic 9T50 for front-wheel drive vehicles was designed by GM and was officially showcased in December 2016. This transmission was intended to replace its 6-speed predecessor. According to GM engineers, the 9T50 transmission allows striking a balance between high dynamic parameters and fuel economy. The size of this transmission is the same as the size of its 6-speed predecessor, but the Hydra-Matic 9T50 also supports start/stop technology and has a new torque converter.

Speeds 9
Type AT
Drive FWD/AWD
Max torque 380
ATF capacity (L) 10
ATF change (L) 6,3
ATF type Dexron HP
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
9T50
2.9/10
Support & Market Presence Index
Niche / hard to source

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.5
Documentation depth0.0
Knowledge & support2.5

Exploded diagram & parts

Full 9T50 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

494P 494P · No. 1 702 702 · No. 2 289 +3 289, 288, 290, 292 · No. 3 715 +2 715, 246, 247 · No. 4 247 247 · No. 5 618 618 · No. 6 899/598 899, 598 · No. 7 700 700 · No. 8 706 706 · No. 9 281 281 · No. 10 263 263 · No. 11 070 070 · No. 12 076 076 · No. 13 031 031 · No. 14 318/750 318, 750 · No. 15 778 778 · No. 16 698 698 · No. 17 705 705 · No. 18 212 212 · No. 19 295 295 · No. 20 050 050 · No. 21 574/894 574, 894 · No. 22 235 235 · No. 23 050 050 · No. 24 894 +2 894, 626, 690 · No. 25 060 +2 060, 878, 148 · No. 26 128/108 128, 108 · No. 27 129 129 · No. 28 777 777 · No. 29 698 698 · No. 30 519 519 · No. 31 526/205 526, 205 · No. 32 525 525 · No. 33 210 210 · No. 34 036 036 · No. 35 178 178 · No. 36 520 520 · No. 37 037 037 · No. 38 079 079 · No. 39 211 211 · No. 40 895 895 · No. 41 776 776 · No. 42 010 010 · No. 43 701 701 · No. 44 527 527 · No. 45 080 080 · No. 46 870 870 · No. 47 211H 211H · No. 48 671 671 · No. 49 974/964 974, 964 · No. 50 334 +2 334, 584, 335 · No. 51 594 594 · No. 52 238/889 238, 889 · No. 53 582/241 582, 241 · No. 54 592/882 592, 882 · No. 55 612/217 612, 217 · No. 56 237/590 237, 590 · No. 57 931 +2 931, 352, 686 · No. 58 379 379 · No. 59 793/434 793, 434 · No. 60 313 313 · No. 61 315 315 · No. 62 528 528 · No. 63 533 533 · No. 64 65 65 · No. 65 532 532 · No. 66 534 534 · No. 67 510 510 · No. 68 778-1 778-1 · No. 69 787 787 · No. 70 682 682 · No. 71 681-2 681-2 · No. 72 681-3 681-3 · No. 73 306 306 · No. 74 681-6 681-6 · No. 75 681-5 681-5 · No. 76 792 792 · No. 77 389 389 · No. 78 394 +4 394, 932, 687, 931-1, 350 · No. 79 482 482 · No. 80 345 345 · No. 81 868/580 868, 580 · No. 82 83 83 · No. 83 616/038 616, 038 · No. 84 333 +11 333, 961, 332, 879, 971, 972, 962, 125, 124, 558, 219, 104 · No. 85 347 347 · No. 86 992 992 · No. 87 072 072 · No. 88 994-7 994-7 · No. 89 994-6 994-6 · No. 90 446 446 · No. 91 013/326-1 013, 326-1 · No. 92 326 326 · No. 93 995 995 · No. 94 95 95 · No. 95 96 96 · No. 96 991-4 991-4 · No. 97 991-2/410 991-2, 410 · No. 98 994 994 · No. 99 494 494 · No. 100 121 +3 121, 101, 143, 221 · No. 101 978/571 978, 571 · No. 102 039/610 039, 610 · No. 103 221/866 221, 866 · No. 104 144 144 · No. 105 126/106 126, 106 · No. 106 858 858 · No. 107 051 051 · No. 108 624 624 · No. 109 049 049 · No. 110 741-M 741-M · No. 111 112 112 · No. 112 939 939 · No. 113 936 936 · No. 114 937 937 · No. 115 388 388 · No. 116 450 450 · No. 117 440 440 · No. 118 433 433 · No. 119 120 120 · No. 120 121 121 · No. 121 122 122 · No. 122 123 123 · No. 123 124 124 · No. 124 421 421 · No. 125 381 381 · No. 126 760 760 · No. 127 670 670 · No. 128 223 223 · No. 129 062 062 · No. 130 570 570 · No. 131 062 062 · No. 132 140*/861 140*, 861 · No. 133 120/100 120, 100 · No. 134 970 +3 970, 980, 960, 860 · No. 135 330 +2 330, 331, 330-1 · No. 136 892/154 892, 154 · No. 137 134/114 134, 114 · No. 138 301/766 301, 766 · No. 139 425 425 · No. 140 431 431 · No. 141 427 427 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 748 +4 748, 740, 747, 742, 746 · No. 146 422 422 · No. 147 423 423 · No. 148 479 479 · No. 149 077 077 · No. 150 179 179 · No. 151 788 788 · No. 152 426 426 · No. 153 384 384 · No. 154 155 155 · No. 155 156 156 · No. 156 382-1 382-1 · No. 157 382-1 382-1 · No. 158 436 436 · No. 159 438 438 · No. 160 550/135 550, 135 · No. 161 162 162 · No. 162 338 +3 338, 339-1, 339, 987 · No. 163 845 +2 845, 967, 867 · No. 164 048 048 · No. 165 048-1 048-1 · No. 166 548 548 · No. 167 168 168 · No. 168 790 +2 790, 634, 232 · No. 169

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 9T50 in the Go4Trans marketplace.
Sell 9T50 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

14 applications · 5 makes · 2015–2020 Chevrolet 5 · Buick 3 · Cadillac 2 · GMC 2 · Geo 2

Make Model Year Drive Engine
Buick EXCELLE GT 2015-2016 9 Spd FWD L4 2.0L
Buick LaCrosse 2016-2020 L
Buick LaCrosse 2016 9 Spd FWD V6 3.6L
Cadillac XT4 2018-2020 L
Cadillac XT4 2018 9 Spd F/4WD L4 2.0L
Chevrolet Captiva 2018-2020 L
Chevrolet CAPTIVA 2018 9 Spd F/4WD L4 2.5L
Chevrolet Equinox 2017-2020 L
Chevrolet EQUINOX 2017-2018 9 Spd 4WD L4 2.0L
Chevrolet Malibu 2015-2020 L
Geo CAPTIVA 2018 9 Spd F/4WD L4 2.5L
Geo EQUINOX 2017-2018 9 Spd 4WD L4 2.0L
GMC CAPTIVA 2018 9 Spd F/4WD L4 2.5L
GMC EQUINOX 2017-2018 9 Spd 4WD L4 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

M3E
9T50
M3D
M3H
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 9-speed automatic transmission Hydra-Matic 9T50 for front-wheel drive vehicles was designed by GM and was officially showcased in December 2016. This transmission was intended to replace its 6-speed predecessor. According to GM engineers, the 9T50 transmission allows striking a balance between high dynamic parameters and fuel economy. The size of this transmission is the same as the size of its 6-speed predecessor, but the Hydra-Matic 9T50 also supports start/stop technology and has a new torque converter.

One of the peculiarities of this transmission is a selective clutch, which may disconnect the transmission from the engine and operate in the rundown mode. The first car to operate with this transmission was Chevrolet Malibu. The first gear of the 9T50 transmission is very short (gear ratio is 4.69), so the car can move very smoothly from a standstill. The 9-th gear is designed for economical and more relaxed driving (gear ratio is 0,62).
