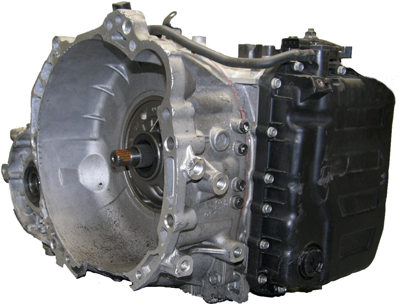

Hyundai Motor Group A6LF1 Transmission

The automatic transmission A6LF1 is a part of 6-speed transmissions family (A6LF2/3, A6GF1, A6MF1 /2) produced by Hyundai. This transmission is an expensive and comfortable alternative to the 5-speed automatic transmissions A5HF1 (A5GF1). These transmissions had been tested since 2009 on a limited series of Hyundai Avante HD\MD and after 2-3 years of modifications were installed on luxury FWD and AWD cars Hyundai (Sonata, Opirus...) and Kia models with engine capacity from 1.4 up to 3.8 liters.

Speeds 6
Type AT
Drive FWD/4WD
Max torque 323
ATF capacity (L) 7,8
ATF change (L) 4
ATF type SP-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A6LF1
6.5/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.1
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full 6F24 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 070 070 · No. 2 311 311 · No. 3 034 034 · No. 4 530 530 · No. 5 530 530 · No. 6 036 036 · No. 7 520 520 · No. 8 778 778 · No. 9 211* 211* · No. 10 333 333 · No. 11 962/334 962, 334 · No. 12 972 972 · No. 13 982 982 · No. 14 874 874 · No. 15 852 852 · No. 16 145* 145* · No. 17 124/104 124, 104 · No. 18 144 144 · No. 19 555 555 · No. 20 336 336 · No. 21 337 337 · No. 22 965 965 · No. 23 975 975 · No. 24 985 985 · No. 25 871 871 · No. 26 126/106 126, 106 · No. 27 146 146 · No. 28 878* 878* · No. 29 219 219 · No. 30 750 750 · No. 31 999 999 · No. 32 777 777 · No. 33 34 34 · No. 34 379 379 · No. 35 010 010 · No. 36 410 410 · No. 37 992 992 · No. 38 575 575 · No. 39 221 221 · No. 40 043 043 · No. 41 571 571 · No. 42 864* 864* · No. 43 142 142 · No. 44 122/102 122, 102 · No. 45 865 865 · No. 46 971 971 · No. 47 328/329 328, 329 · No. 48 961 961 · No. 49 784 784 · No. 50 955 955 · No. 51 551 551 · No. 52 795 795 · No. 53 287 287 · No. 54 279 279 · No. 55 711 711 · No. 56 279 279 · No. 57 710 710 · No. 58 698-1 698-1 · No. 59 782 782 · No. 60 294 294 · No. 61 783 783 · No. 62 440 +11 440, 450, 425, 468, 427, 422, 421, 740, 428, 301, 766, 760 · No. 63 277* 277* · No. 64 273 273 · No. 65 274 274 · No. 66 730 730 · No. 67 712 712 · No. 68 281 281 · No. 69 280 280 · No. 70 995-2 995-2 · No. 71 995-3 995-3 · No. 72 995-1 995-1 · No. 73 994-4 994-4 · No. 74 995-6 995-6 · No. 75 446 446 · No. 76 436 436 · No. 77 347 347 · No. 78 996 996 · No. 79 996-2 996-2 · No. 80 996-2 996-2 · No. 81 996-1 996-1 · No. 82 996-1 996-1 · No. 83 994 994 · No. 84 991-2 991-2 · No. 85 991-4 991-4 · No. 86 076 076 · No. 87 698 698 · No. 88 290* 290* · No. 89 291 291 · No. 90 292 292 · No. 91 716 716 · No. 92 720 720 · No. 93 374 374 · No. 94 786 786 · No. 95 289 289 · No. 96 288 288 · No. 97 290* 290* · No. 98 077 077 · No. 99 254 254 · No. 100 338 338 · No. 101 339 339 · No. 102 967 967 · No. 103 977 977 · No. 104 893* 893* · No. 105 155* 155* · No. 106 857 857 · No. 107 134/114 134, 114 · No. 108 154 154 · No. 109 885 885 · No. 110 594 594 · No. 111 251 251 · No. 112 252 252 · No. 113 699 699 · No. 114 584 584 · No. 115 248 248 · No. 116 056 056 · No. 117 614 614 · No. 118 056 056 · No. 119 247 247 · No. 120 246 246 · No. 121 040 040 · No. 122 610 610 · No. 123 040 040 · No. 124 699-1 699-1 · No. 125 580 580 · No. 126 218 218 · No. 127 220* 220* · No. 128 129 129 · No. 129 130 130 · No. 130 699-2 699-2 · No. 131 590 590 · No. 132 867 867 · No. 133 570 570 · No. 134 868 868 · No. 135 652 652 · No. 136 884 884 · No. 137 861* 861* · No. 138 140 140 · No. 139 120/100 120, 100 · No. 140 862 862 · No. 141 980 980 · No. 142 970 970 · No. 143 960 960 · No. 144 330 330 · No. 145 331 331 · No. 146 216 216 · No. 147 217 217 · No. 148 550 550 · No. 149 214 214 · No. 150 215* 215* · No. 151 223 223 · No. 152 185 185 · No. 153 759 759 · No. 154 780 780 · No. 155

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A6LF1 in the Go4Trans marketplace.
Sell A6LF1 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

20 applications · 2 makes · 2009–2017 Hyundai 10 · Kia 10

Make Model Year Drive Engine
Hyundai Azera 2011-2017 3.3, 3.8
Hyundai AZERA 2011-2012 6 Spd FWD V6 3.3L
Hyundai GRANDEUR 2011-2016 6 Spd FWD V6 3.0/3.3/3.5/3.8L
Hyundai Grandeur (Non-USA) 2009-2012 3.0, 3.5, 3.8
Hyundai ix35 2011-2012 6 Spd FWD L4 2.0L/2.4L
Hyundai ix35 2011-2012 2.0, 2.4
Hyundai MAXCRUZ 2013-2016 6 Spd FWD L4 2.2L V6 3.0L/3.3L
Hyundai SANTA FÉ 2012-2016 6 Spd 4WD L4 2.0L V6 3.3L/3.5L
Hyundai TUCSON 2009-2012 6 Spd FWD/4X4 L4 2.0L
Hyundai Tucson ix 2009-2017 2.0
Kia CARNIVAL 2014-2016 6 Spd FWD V6 3.3L
Kia GRAND CARNIVAL 2009-2014 6 Spd FWD L4 2.2/3.5L
Kia K7 2012-2014 6 Spd FWD V6 3.0/3.3/3.5/3.8L
Kia OPIRUS 2009-2016 6 Spd FWD V6 3;3/3.8L
Kia Opirus (Non-USA) 2009-2011 3.3, 3.8
Kia Optima 2013-2016 6 Spd FWD L4 2.0L
Kia Sorento 2014-2016 6 Spd F/4WD V6 3.3L
Kia Sorento 2010-2017 2.0, 2.2, 3.3, 3.5
Kia Sorento 2009-2014 6 Spd FWD/4X4 L4 2.0/2.2L V6 3.3/3.5L
Kia Sportage 2010-2012 6 Spd FWD/4X4 L4 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A6LF1
A6F33
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Valve Body Contamination and Sticking
Critical contamination and sticking of valves due to ATF degradation; damages corresponding solenoids.
!
EPC and TCC Solenoid Failure
EPC, TCC, and shifting solenoids are most failure-prone; caused by increased loads from ATF leakages.
!
Overdrive and Underdrive Friction Burn
Insufficient oil pressure causes burning of Overdrive and Underdrive friction discs; worsened by neglect.
!
Clutch Pack 3-5R and 2-6 Burn
A6MF1/2-specific vulnerability: clutches 3-5/R and 2-6 burn; Hyundai released 'Power Pack' kit for repair.
?
Torque Converter Clutch Wear
Aggressive acceleration accelerates TCC wear-out; results in rapidly contaminating ATF and shift issues.
!
Overdrive Teflon Ring Wear
Contaminated fluid causes overload and wear of teflon rings on rear cover, leading to pressure loss in packages.
!
Differential Splineway Damage
Frequent wheel slippage causes splineway damage on differential body; typical Hyundai differential issue.
?
Gear Shifting Issues and ATF Contamination
Worn sealing rings and valve body problems cause gear shift irregularities and rapidly contaminating fluid.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The automatic transmission A6LF1 is a part of 6-speed transmissions family (A6LF2/3, A6GF1, A6MF1 /2) produced by Hyundai. This transmission is an expensive and comfortable alternative to the 5-speed automatic transmissions A5HF1 (A5GF1). These transmissions had been tested since 2009 on a limited series of Hyundai Avante HD\MD and after 2-3 years of modifications were installed on luxury FWD and AWD cars Hyundai (Sonata, Opirus...) and Kia models with engine capacity from 1.4 up to 3.8 liters.

Technical issues and repair guidelines

Aggressive accelerations and critical overheats may lead to replacement of rings and valve body gaskets. After covering over 150 thousand kilometers replacement of the whole repair kit is considered to be a routine procedure. The aim of this measure intended for protecting solenoids which have to deal with higher loads caused by increasing oil leakages through sealings. The main signs of the problem are the following: wear-out of the torque converter lock-up, rapidly contaminating transmission fluid, and issues with gear shifting. The valve body disassembly usually indicates critical contamination and sticking of valves.

Insufficient oil pressure (caused by problems with the valve body or leaks of ATF through rings, jointing edges and as a result wear-out of solenoid valves) in most cases leads to burning of friction elements with Overdrive and Underdrive discs, but often drivers neglect this problem, resulting in replacement of all friction clutches and steel discs which operated in burnt ATF. Contaminated ATF from this package damages corresponding valves and solenoids of the valve body.

The vulnerability of the A6MF1/2 transmissions resides in burning of clutches 3-5\R and 2-6. For replacement of these burning packages, Hyundai released the kit of "Power Pack" friction elements with steel and bearing discs.The Overdrive is also frequently replaced by repair specialists. The problem is explained by overloads caused by contaminated fluid, resulting in wear-out of teflon rings on the rear cover and pressure losses in packages.A typical problem for Hyundai differentials is related to damage of splineways of the differential body under the condition of longtime and frequent wheels slippages. During the first years of testing, the main problem lies in the valve body and solenoids (problem identical to ZF transmission ZF6HP from which the valve body operation principle was adopted).

The most failure-prone solenoids are the following:

1. EPC solenoid

2. TCC solenoid.

3. Shifting solenoids

Another frequent problem for this transmission (as well as for other 6-speed automatic transmissions) is related to the torque converter clutch wear-out. The more often drivers use aggressive accelerations, the closer this transmission to the repair shop.

The valve body may be considered a soft spot in the electrical part of the A6MF2 \LF2 transmission. As in all 6-speed automatic transmissions, the A6LF1 valve body is very sensitive to overheating and contaminated ATF, which first of all may be provoked by wear-out of the torque converter friction and clutch packages and in chain order lead to (pressure shortage from solenoids and the valve body) more rapid wear-out of frictions in packages of clutch and braking. Problems at the early stage are usually solved by repair and cleaning of the valve body and solenoids, opening of the torque converter for replacement of spare parts. In more complex repair cases, transmission specialists have to repalce solenoids.
