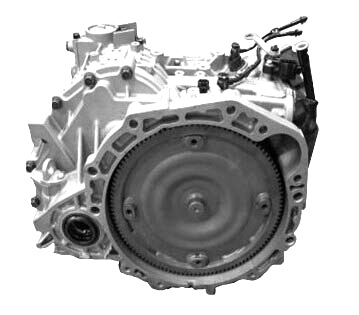

Hyundai Motor Group A5HF1 (F5A51) Transmission

The family of front-wheel drive 5-speed automatic transmissions A5GF1, A5HF1 (F5A51) from Hyundai has been modified since 2005 on the basis of 4-speed predecessor F4A51 and installed on the range FWD and AWD vehicles of Kia (Sportage, Sorento...) and Hyundai (Sonata, Santa Fe, Opirus, Karens... ) for the entire range of engines from 2 up to 3.5 liters. Mitsubishi uses this transmission named as F5A51.0. This front drive family of transmissions is related to the rear drive V4A51. Parts are maximally unified and interchangeable.

Speeds 5
Type AT
Drive FWD/4WD
ATF capacity (L) 8,4
ATF change (L) 3,5
ATF type SP III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A5HF1
7.5/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.0
Documentation depth10.0
Knowledge & support5.8

Exploded diagram & parts

Full F4A42 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774 774 · No. 1 796 796 · No. 2 274 274 · No. 3 275 275 · No. 4 276* 276* · No. 5 730 730 · No. 6 690 690 · No. 7 281/712 281, 712 · No. 8 281 281 · No. 9 586 586 · No. 10 878 878 · No. 11 146 146 · No. 12 126/106 126, 106 · No. 13 147 147 · No. 14 879 879 · No. 15 985 985 · No. 16 337C 337C · No. 17 975 975 · No. 18 965 965 · No. 19 336337 336337 · No. 20 336337 336337 · No. 21 046 046 · No. 22 555 555 · No. 23 046 046 · No. 24 022 022 · No. 25 695 695 · No. 26 259 259 · No. 27 654 654 · No. 28 897 897 · No. 29 665 665 · No. 30 695 695 · No. 31 229 229 · No. 32 263 263 · No. 33 750 750 · No. 34 776 776 · No. 35 730 730 · No. 36 274 274 · No. 37 273 273 · No. 38 735 735 · No. 39 712 712 · No. 40 696 696 · No. 41 899 899 · No. 42 277* 277* · No. 43 280 280 · No. 44 281 281 · No. 45 796 796 · No. 46 736 736 · No. 47 070 070 · No. 48 311 311 · No. 49 50 50 · No. 50 51 51 · No. 51 530 530 · No. 52 036 036 · No. 53 520 520 · No. 54 778 778 · No. 55 179 179 · No. 56 310 310 · No. 57 670 670 · No. 58 551 551 · No. 59 341 341 · No. 60 961 961 · No. 61 971 971 · No. 62 981 981 · No. 63 865 865 · No. 64 010 010 · No. 65 077 077 · No. 66 293* 293* · No. 67 291 291 · No. 68 292 292 · No. 69 716 716 · No. 70 71 71 · No. 71 289 289 · No. 72 288 288 · No. 73 076 076 · No. 74 438 438 · No. 75 410 410 · No. 76 992 992 · No. 77 436 436 · No. 78 786 786 · No. 79 013 013 · No. 80 338/339 338, 339 · No. 81 967 967 · No. 82 977 977 · No. 83 987 987 · No. 84 857 857 · No. 85 155* 155* · No. 86 134/114 134, 114 · No. 87 884 884 · No. 88 154 154 · No. 89 885* 885* · No. 90 395 395 · No. 91 662 662 · No. 92 883 883 · No. 93 337 337 · No. 94 880 880 · No. 95 122 +2 122, 880, 102 · No. 96 142 142 · No. 97 864* 864* · No. 98 219 219 · No. 99 571 571 · No. 100 710 710 · No. 101 279 279 · No. 102 711 711 · No. 103 279 279 · No. 104 795 795 · No. 105 760 760 · No. 106 285 285 · No. 107 652 652 · No. 108 109 109 · No. 109 652 652 · No. 110 652 652 · No. 111 889 889 · No. 112 058 058 · No. 113 584 584 · No. 114 248 248 · No. 115 056 056 · No. 116 614 614 · No. 117 056 056 · No. 118 246 246 · No. 119 594 594 · No. 120 580 580 · No. 121 040 040 · No. 122 123 123 · No. 123 124 124 · No. 124 578 578 · No. 125 040 040 · No. 126 222 222 · No. 127 124/104 124, 104 · No. 128 427 427 · No. 129 421 421 · No. 130 423 423 · No. 131 740 740 · No. 132 426 426 · No. 133 422 422 · No. 134 425 425 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 139 139 · No. 139 017 017 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 144* 144* · No. 148 982 982 · No. 149 972 972 · No. 150 962 962 · No. 151 333332 333332 · No. 152 956 956 · No. 153 039 039 · No. 154 874 874 · No. 155 570 570 · No. 156 039/214 039, 214 · No. 157 214 214 · No. 158 892* 892* · No. 159 150 150 · No. 160 130/110 130, 110 · No. 161 861* 861* · No. 162 140 140 · No. 163 120/100 120, 100 · No. 164 493 493 · No. 165 301/766 301, 766 · No. 166 446 446 · No. 167 347 347 · No. 168 446-4 446-4 · No. 169 916 916 · No. 170 999 999 · No. 171 896 896 · No. 172 360 360 · No. 173 909 909 · No. 174 360 360 · No. 175 342 342 · No. 176 185/233* 185, 233* · No. 177 181 181 · No. 178 179 179 · No. 179 180 180 · No. 180 780 780 · No. 181 995-2 995-2 · No. 182 995-3 995-3 · No. 183 991-6 991-6 · No. 184 991-2 991-2 · No. 185 991-4 991-4 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 191 191 · No. 191 195 195 · No. 192 907 907 · No. 193 896 896 · No. 194 141 141 · No. 195 331B 331B · No. 196 862 862 · No. 197 980 980 · No. 198 970 970 · No. 199 960 960 · No. 200 331 331 · No. 201 330 330 · No. 202 550 550 · No. 203 334 334 · No. 204 335 335 · No. 205 556 556 · No. 206 232 232 · No. 207 233* 233* · No. 208 223 223 · No. 209 210 210 · No. 210 211 211 · No. 211 212 212 · No. 212 213 213 · No. 213 214 214 · No. 214 215 215 · No. 215 759 759 · No. 216 217 217 · No. 217 788 788 · No. 218 995-1 995-1 · No. 219 994 994 · No. 220 221 221 · No. 221 222 222 · No. 222 223 223 · No. 223 906 906 · No. 224

Parts categories

View all parts →
Sell A5HF1 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

49 applications · 4 makes · 2000–2015 Hyundai 23 · Kia 21 · Mitsubishi 3 · Chery 2

Make Model Year Drive Engine
Chery A6 2011-2012 5 Spd FWD L4 2.0L V6 3.5L
Chery TIGGO 2013-2014 5 Spd F/4WD L4 2.0L
Hyundai AZERA 2006-2010 5 Spd FWD V6 3.3L/3.8L
Hyundai Azera 2006-2010 3.3, 3.8
Hyundai Azera 2006-2007 5 Spd FWD V6 3.3L/3.8L
Hyundai ENTOURAGE 2007-2010 5 Spd FWD V6 3.8L
Hyundai Entourage 2007-2009 3.8
Hyundai Entourage 2006-2007 5 Spd FWD V6 3.8L
Hyundai EQUUS 2006-2008 5 Spd FWD V6 3.3L/3.8L
Hyundai EQUUS 2000-2008 5 Spd FWD V6 3.0L/3.5L
Hyundai Equus (Non-USA) 2006-2008 3.3, 3.8
Hyundai GRANDEUR 2005-2010 5 Spd FWD L4 2.2L V6 2.7/3.3/3.8L
Hyundai Grandeur (Non-USA) 2005-2010 2.2, 2.4
Hyundai GRANDEUR XG 2000-2005 5 Spd FWD V6 2.5/3.0/3.5L
Hyundai SANTA FE 2007-2010 5 Spd FWD/4X4 V6 3.3L
Hyundai Santa Fe 2007 5 Spd FWD/4X4 V6 3.3L
Hyundai Santa Fe 2005-2011 3.3
Hyundai Sonata 2008-2009 2.4, 3.3
Hyundai Sonata 2006-2009 3.3
Hyundai SONATA 2006-2007 5 Spd FWD V6 3.3L
Hyundai Sonata Gls, LX 5 Spd FWD V6 3.3L
Hyundai XG 2001-2005 5 Spd FWD V6 3.0/3.5L
Hyundai XG300 2001 5 Spd FWD V6 3.0L
Hyundai XG300 2001 3.0
Hyundai XG350 2002-2005 3.5
Kia Amanti 2006-2009 5 Spd FWD V6 3.5L
Kia Amanti 2006-2009 3.5, 3.8
Kia Amanti 2006-2007 5 Spd FWD V6 3.5L
Kia Amanti 2004-2005 5 Spd FWD V6 3.5L
Kia Amanti 2004-2005 3.5
Kia CARNIVAL 2005-2014 5 Spd FWD L4 2.9L V6 3.8L
Kia CARNIVAL 2000-2005 5 Spd FWD V6 3.5L
Kia GRAND CARNIVAL 2005-2012 5 Spd FWD L4 2.9L V6 3.8L
Kia GRAND CARNIVAL 2004-2010 5 Spd FWD V6 3.5L
Kia Grand Carnival (Non-USA) 2005-2012 2.9, 3.8
Kia OPIRUS 2005-2009 5 Spd FWD V6 2.7/3.3/3.8L
Kia OPIRUS 2003-2005 5 Spd FWD V6 2.7/3.0/3.5L
Kia Opirus (Non-USA) 2005-2011 3.3, 3.8
Kia Optima 2006-2007 2.5, 2.7
Kia Rondo 2007-2009 2.7
Kia Sedona 2006-2011 5 Spd FWD V6 3.8L
Kia Sedona 2006-2009 3.8
Kia Sedona 2006-2007 5 Spd FWD V6 3.8L
Kia Sedona 2002-2005 5 Spd FWD V6 3.5L
Kia Sedona 2002-2005 3.5, 3.8
Kia Sorento 2010-2015 5 Spd RWD/4X4 L4 2.2L
Mitsubishi Diamante 2000-2001 5 Spd FWD V6 2.5L
Mitsubishi Eclipse 2006-2012 3.8
Mitsubishi Galant 2007-2011 3.8

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

HT04
A5HF1
P731
HT84
F5A51
S731
HT94
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pump Bushing and Seal Wear
Pump bushing and seal fail first due to worn torque converter clutch vibrations and contaminated oil accelerating aging.
!
Pump Assembly Replacement
Pump assembly requires replacement after prolonged operation with worn torque converter clutch causing vibrations.
!
EPC Solenoid VFS Failure
Solenoid EPC (VFS) electric controller is first solenoid to fail due to high operational loads on valve body.
?
Oil Shortage Seal Leaks
Worn-out seals lead to oil shortages causing transmission component problems and accelerated internal wear.
?
No Forward Slips Reverse
Transmission exhibits no forward movement and slipping in reverse, indicating clutch pack or hydraulic circuit failure.
!
Input Output Speed Sensors
Input and output shaft speed sensors are first electrical components to reach end of service lifespan.
!
Drum and Sun Gear
Drum with sun gear requires replacement, listed among commonly replaced components during overhaul.
!
Brake Band Wear
Brake band is a frequently replaced component included in standard overhaul parts list.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The family of front-wheel drive 5-speed automatic transmissions A5GF1, A5HF1 (F5A51) from Hyundai has been modified since 2005 on the basis of 4-speed predecessor F4A51 and installed on the range FWD and AWD vehicles of Kia (Sportage, Sorento...) and Hyundai (Sonata, Santa Fe, Opirus, Karens... ) for the entire range of engines from 2 up to 3.5 liters. Mitsubishi uses this transmission named as F5A51.0. This front drive family of transmissions is related to the rear drive V4A51. Parts are maximally unified and interchangeable.

Technical issues and repair guidelines

With regard to clutch packages this automatic transmission is well balanced. These packages work properly during their lifespan. Problems are mainly related to wear-out of seals leading to oil shortages and problems with transmission components.The pump assembly is also replaced under the condition of a long-term operation with worn-out torque converter clutch and subsequent vibrations. Contaminated oil speeds up ageing of the pump and bushing. The pump bushing and the seal are the first to get out of order because of above mentioned problem.

Worn-out bushings are repaired and replaced quite frequently. Then the list of parts to be replaced includes the drum with a sun gear and the brake band. As far as the electrics of this transmission is concerned, speed sensors of the input and output shafts are the first to reach the end of their service lifespan. Solenoids Shift are standardized in all valve bodies. These solenoids operate properly for quite a long time, Solenoid-electric controller EPC (VFS) is the first to get out of order because of high loads.
