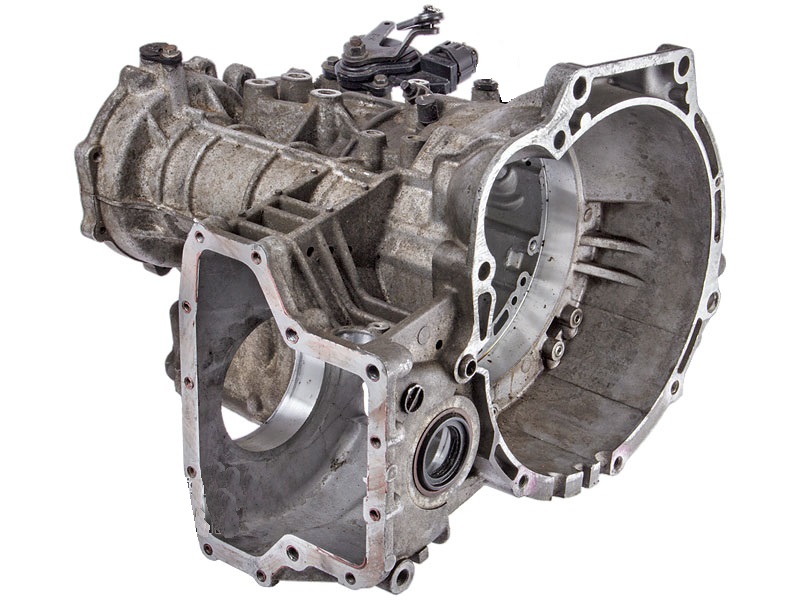

Hyundai Motor Group A4AF3 Transmission

The 4-speed automatic transmission A4AF-3, A4BF-3 was designed in 2000 by Hyundai specialists and was supposed to become a successor of the A4AF1 for FWD medium vehicles such as Hyundai Matrix, Elantra, Accent, with engine up to 2 liters.

Speeds 4
Type AT
Drive FWD
Max torque 190
ATF capacity (L) 6,3
ATF change (L) 4
ATF type SP-III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A4AF3
6.5/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.1
