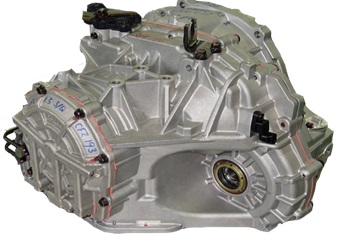

Hyundai Motor Group A4CF1 Transmission

The 4-speed modern automatic transmission A4CF1 produced in 2005 and its more powerful modification A4CF2 from Hyundai were designed for cars with the engine capacity up to 2 liters. Since 2006, these automatic transmissions can be installed on all FWD small cars of Hyundai (Accent, Solaris, Ceed, Getz...) and Kia (Spectra, Forte, Cerato, Soul...).

Speeds 4
Type AT
Drive FWD
Max torque 160
ATF capacity (L) 6
ATF change (L) 3
ATF type SP-III
Weight 73.9 kg
Layout Transverse
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A4CF1
7.6/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.0
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full A4CF1 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 369 369 · No. 2 774-1 774-1 · No. 3 750 750 · No. 4 070 070 · No. 5 034 034 · No. 6 311 311 · No. 7 530 530 · No. 8 530 530 · No. 9 036 036 · No. 10 777 777 · No. 11 520 520 · No. 12 778 778 · No. 13 179 179 · No. 14 310 310 · No. 15 211* 211* · No. 16 178 178 · No. 17 670 670 · No. 18 551 551 · No. 19 340 340 · No. 20 341 341 · No. 21 961 961 · No. 22 971 971 · No. 23 981 981 · No. 24 341-1 341-1 · No. 25 865 865 · No. 26 880 880 · No. 27 122/102 122, 102 · No. 28 142 142 · No. 29 864* 864* · No. 30 219 219 · No. 31 571 571 · No. 32 710 710 · No. 33 279 279 · No. 34 35 35 · No. 35 711 711 · No. 36 279 279 · No. 37 795 795 · No. 38 436 436 · No. 39 273 273 · No. 40 730/274 730, 274 · No. 41 712 712 · No. 42 281 281 · No. 43 276*/280 276*, 280 · No. 44 760 760 · No. 45 338 338 · No. 46 339 339 · No. 47 967 967 · No. 48 977 977 · No. 49 987 987 · No. 50 893 893 · No. 51 857 857 · No. 52 155* 155* · No. 53 134/114 134, 114 · No. 54 884 884 · No. 55 154 154 · No. 56 885 885 · No. 57 662 662 · No. 58 883 883 · No. 59 285 285 · No. 60 077 077 · No. 61 291 291 · No. 62 716 716 · No. 63 720 720 · No. 64 786 786 · No. 65 289 289 · No. 66 288 288 · No. 67 076 076 · No. 68 438 438 · No. 69 698 698 · No. 70 699 699 · No. 71 72 72 · No. 72 73 73 · No. 73 74 74 · No. 74 75 75 · No. 75 76 76 · No. 76 77 77 · No. 77 78 78 · No. 78 79 79 · No. 79 652/216 652, 216 · No. 80 584/216 584, 216 · No. 81 056/248 056, 248 · No. 82 614/056 614, 056 · No. 83 056 056 · No. 84 056/247 056, 247 · No. 85 246 246 · No. 86 594 594 · No. 87 580 580 · No. 88 867 867 · No. 89 124/104 124, 104 · No. 90 144 144 · No. 91 92 92 · No. 92 93 93 · No. 93 94 94 · No. 94 95 95 · No. 95 96 96 · No. 96 97 97 · No. 97 996-1 996-1 · No. 98 996 996 · No. 99 996 996 · No. 100 342 342 · No. 101 207 207 · No. 103 992 992 · No. 104 740 740 · No. 105 435 435 · No. 106 347 347 · No. 107 108 108 · No. 108 994 994 · No. 109 410 410 · No. 110 972 972 · No. 111 962 962 · No. 112 956 956 · No. 113 874 874 · No. 114 040 040 · No. 115 039 039 · No. 116 222 222 · No. 117 118 118 · No. 118 214 214 · No. 119 120 120 · No. 120 121 121 · No. 121 130/110 130, 110 · No. 122 123 123 · No. 123 124 124 · No. 124 995-3 995-3 · No. 125 126 126 · No. 126 425 +4 425, 426, 421, 422, 427 · No. 127 446 446 · No. 128 991-2 991-2 · No. 129 130 130 · No. 130 010 010 · No. 131 132 132 · No. 132 843 843 · No. 133 991-4 991-4 · No. 134 185 185 · No. 135 181 181 · No. 136 137 137 · No. 137 765/300 765, 300 · No. 138 140 140 · No. 139 120/100 120, 100 · No. 140 141 141 · No. 141 980 980 · No. 142 331-1 331-1 · No. 143 970 970 · No. 144 960 960 · No. 145 550 550 · No. 146 556 556 · No. 147 232 232 · No. 148 149 149 · No. 149 759 759 · No. 150 991-5 991-5 · No. 151 799 799 · No. 152 333 333 · No. 153 332 332 · No. 154 155 155 · No. 155

Parts categories

View all parts →
Sell A4CF1 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

38 applications · 2 makes · 2000–2016 Hyundai 21 · Kia 17

Make Model Year Drive Engine
Hyundai ACCENT 2000-2012 4 Spd FWD L4 1.3/1.4/1.5/1.6L
Hyundai Accent (Non-USA) 2000-2011 1.5, 1.6
Hyundai AVANTE HD/MD 2006-2012 4 Spd FWD L4 1.6/2.0L
Hyundai Avante MD/HD (Non-USA) 2006-2012 1.6, 2.0
Hyundai AVEGA 2011-2014 4 Spd FWD L4 1.6L
Hyundai Avega (Non-USA) 2011-2012 1.6
Hyundai CRETA 2015-2016 4 Spd FWD L4 1.4L
Hyundai ELANTRA 2007-2012 4 Spd FWD L4 1.6/1.8/2.0L
Hyundai GETZ 2006-2009 4 Spd FWD L4 1.4L
Hyundai Getz (Non-USA) 2006-2009 1.4
Hyundai HB 2012-2014 4 Spd FWD L4 1.6L
Hyundai i10 2013-2016 4 Spd FWD L3 1.0L L4 1.2L
Hyundai i20 2008-2014 4 Spd FWD L4 1.4/1.6L
Hyundai i20 (Non-USA) 2008-2011 1.4, 1.6
Hyundai i30 2007-2012 4 Spd FWD L4 1.4/1.6/2.0L
Hyundai i30 (Non-USA) 2007-2011 1.4, 1.6, 2.0
Hyundai ix20 2010-2016 4 Spd FWD L4 1.6L
Hyundai Moinca (Non-USA) 2009-2012 1.8
Hyundai SOLARIS 2011-2014 4 Spd FWD L4 1.4/1.6L
Hyundai VERNA 2007-2016 4 Spd FWD L4 1.4/1.5/1.6L
Hyundai Verna (Non-USA) 2005-2012 1.4, 1.5, 1.6
Kia C'eed / Pro_C'eed (Non-USA) 2007-2012 1.6, 2.0
Kia CARENS 2009-2012 4 Spd FWD L4 1.6L
Kia Carens (Non-USA) 2009-2012 1.6
Kia CEE'D 2007-2011 4 Spd FWD L4 1.6L 2.0L
Kia CERATO 2005-2010 4 Spd FWD L4 1.6L/2.0L
Kia Cerato (Non-USA) 2005-2011 1.6, 2.0
Kia Forte 2009-2014 4 Spd FWD L4 1.6L 2.0L
Kia Forte (Non-USA) 2008-2012 1.6, 2.0
Kia K2 2012-2014 4 Spd FWD L4 1.4L 1.6L
Kia Morning 2014-2016 4 Spd FWD L4 1.2L
Kia PRIDE 2005-2014 4 Spd FWD L4 1.4/1.5/1.6L
Kia Pride (Non-USA) 2005-2012 1.4, 1.5, 1.6
Kia RIO 2012-2014 4 Spd FWD L4 1.4/1.6L
Kia Soul 2008-2014 4 Spd FWD L4 1.6L/2.0L
Kia Soul (Non-USA) 2008-2012 1.6, 2.0
Kia Spectra / Spectra5 2004-2009 2.0
Kia VENGA 2010-2014 4 Spd FWD L4 1.6L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

4F16
A4CF1
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
VFS EPC Solenoid Failure
VFS (EPC) solenoids fail due to contaminated and overheated ATF from torque converter heat exposure.
!
PWM Solenoid Wear Out
PWM solenoids degrade from resource wear-out and contaminated transmission fluid clogging internal channels.
!
Valve Body Channel Clogging
Suspended contaminated fluid clogs and wears valve body channels causing oil pressure shortage in clutch packs.
!
Pump Seal Leak Damage
Long-term operation with leaking pump seal causes bushing damage and shaft vibrations leading to pump failure.
?
Friction Component Early Burnout
Early burning of friction components caused by oil pressure shortage from clogged valve body and solenoids.
!
Solenoid Wiring Fault
Faulty solenoid wiring causes electrical part failures, often misdiagnosed as solenoid hardware failure.
?
Vibrating Clutch Lock-Up
Clutch lock-up vibration occurs under low oil pressure conditions, accelerating pump and drivetrain wear.
?
Rapid ATF Contamination
High operating temperatures and forced torque converter lock-up accelerate ATF contamination and degradation.
!
Boost Valve Sleeve Wear
Continuous valve motion wears the boost valve sleeve, leaking EPC and/or Reverse circuit pressure and causing soft shifts or abnormal reverse pressure.
!
Pressure Regulator Bore Wear
Constant oscillation of the pressure regulator valve wears its bore, destabilizing line pressure and producing soft or harsh shifts with possible secondary clutch damage.
!
Pressure Reducing Valve Wear
Wear of the pressure-reducing valve bore reduces solenoid feed pressure, causing delayed forward engagement, general shift complaints and loss of converter lockup.
!
TCC Regulator Valve Bore Wear
Bore wear at the TCC regulator valve leaks converter-regulator pressure and can reduce lubrication flow, producing TCC slip, shudder or apply/release complaints.
?
Third-Gear Limp Fail-Safe
Under certain speed-sensor or solenoid electrical faults the control strategy locks the transmission in third gear as a fail-safe, which can look like a mechanical failure of the other gears.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed modern automatic transmission A4CF1 produced in 2005 and its more powerful modification A4CF2 from Hyundai were designed for cars with the engine capacity up to 2 liters. Since 2006, these automatic transmissions can be installed on all FWD small cars of Hyundai (Accent, Solaris, Ceed, Getz...) and Kia (Spectra, Forte, Cerato, Soul...).

The first modification A4CF1 had a lot of problems, therefore an updated modification named A4CF2 was released in 2005. Minor changes in electrical parts and computer settings were introduced in 2007 in order to prolong the transmission lifespan that may be comparable with the resource of the whole car.

Technical issues and repair guidelines

Typical problems during the first years of the transmission operation are related to change of ATF and filter replacement. It is recommended to replace all friction components together with the kit of gaskets and seals during the transmission rebuilding.

Common problems in A4CF2-\1:

The list of the most popular repair procedures for this transmission includes the valve body reassembly and replacement of solenoids. The most vulnerable failure-prone are VFS (EPC) solenoids and PWM solenoids. The problem is related to contaminated and hot (because of the torque converter) transmission fluid and resource wear-out. In many cases problems with electrical parts are caused by faulty wiring of solenoids.

Some problems may occur in the pump as a result of a long-time operation with the leaking seal, damaged bushing (applicable to A5HF1) and shaft vibrations.Specialists assume, that high temperatures and forced torque converter lock-up lead to rapid oil contamination and this suspended fluid clogs and wears out channels in the valve body and solenoids, leading to the oil pressure shortage in packages and early burning of friction components. A long-time operation with the pressure shortage and vibrating clutch lock-up leads to problems with the pump and some other unpredictable issues.
