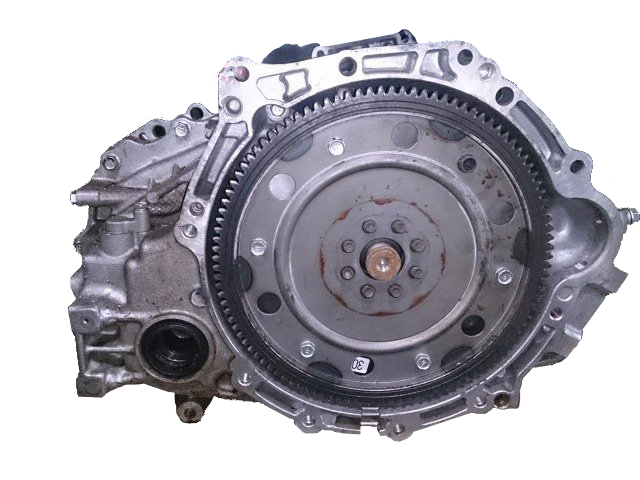

Toyota U340E Transmission

The 4-speed automatic gearbox Toyota U340 (U341) has been used since 2000 on FWD Toyota Avensis, Corolla etc. with engine capacity up to 2 liters. One more leading transmission which is commonly met in repair services.This transmission was designed together with U140\ U240 (and identical in design) and was a very popular transmission in the field of repair among Aisin gear shifting units. The modification U341E provides higher torque, therefore it is used in engines with higher operational capacity Celica (1.8 l), the U341F unit is the version for four-wheeled vehicles (4WD).

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 8
ATF change (L) 2,9
ATF type Toyota Type WS
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
U340E
6.5/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.1
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full U341E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774 774 · No. 1 275 275 · No. 2 274 274 · No. 3 730 730 · No. 4 712 712 · No. 5 276 276 · No. 6 273 273 · No. 7 446 446 · No. 8 347 347 · No. 9 438 438 · No. 10 750 750 · No. 11 076 076 · No. 12 291 291 · No. 13 292 292 · No. 14 847 847 · No. 15 716 716 · No. 16 720 720 · No. 17 289 289 · No. 18 288 288 · No. 19 290* 290* · No. 20 077 077 · No. 21 370 370 · No. 22 181 181 · No. 23 786 786 · No. 24 311 311 · No. 25 034 034 · No. 26 27 27 · No. 27 530 530 · No. 28 036 036 · No. 29 520 520 · No. 30 778 778 · No. 31 209 209 · No. 32 211 211 · No. 33 554 554 · No. 34 334 334 · No. 35 964 964 · No. 36 974 974 · No. 37 984 984 · No. 38 877 877 · No. 39 128/108 128, 108 · No. 40 148* 148* · No. 41 876 876 · No. 42 232 232 · No. 43 574 574 · No. 44 050 050 · No. 45 050/795 050, 795 · No. 46 277 277 · No. 47 710 710 · No. 48 279B 279B · No. 49 279 279 · No. 50 278 278 · No. 51 898 898 · No. 52 996/760 996, 760 · No. 53 250 250 · No. 54 251 251 · No. 55 251B 251B · No. 56 999 999 · No. 57 846 846 · No. 58 698 698 · No. 59 344 344 · No. 60 61 61 · No. 61 62 62 · No. 62 63 63 · No. 63 64 64 · No. 64 339338 339338 · No. 65 967 967 · No. 66 977 977 · No. 67 893 893 · No. 68 134/114 134, 114 · No. 69 154* 154* · No. 70 885 885 · No. 71 584 584 · No. 72 247 247 · No. 73 614 614 · No. 74 237 237 · No. 75 237 +2 237, 238, 239 · No. 76 239 239 · No. 77 889 889 · No. 78 594 594 · No. 79 582 582 · No. 80 240 240 · No. 81 241 241 · No. 82 956 956 · No. 83 332/333 332, 333 · No. 84 995-2 995-2 · No. 85 995-3 995-3 · No. 86 995-1 995-1 · No. 87 88 88 · No. 88 991-6 991-6 · No. 89 994 994 · No. 90 91 91 · No. 91 92 92 · No. 92 93 93 · No. 93 94 94 · No. 94 95 95 · No. 95 96 96 · No. 96 991-2 991-2 · No. 97 991-2 991-2 · No. 98 991-3 991-3 · No. 99 480 480 · No. 100 101 101 · No. 101 102 102 · No. 102 962 962 · No. 103 972 972 · No. 104 874 874 · No. 105 665 665 · No. 106 654 654 · No. 107 547 547 · No. 108 872 872 · No. 109 145 145 · No. 110 124/104 124, 104 · No. 111 144* 144* · No. 112 873 873 · No. 113 888 888 · No. 114 652 652 · No. 115 652 652 · No. 116 662 662 · No. 117 245 245 · No. 118 052 052 · No. 119 622 622 · No. 120 052 052 · No. 121 049 +2 049, 052, 244 · No. 122 049 049 · No. 123 575 575 · No. 124 049 049 · No. 125 410 410 · No. 126 991-4 991-4 · No. 127 428 428 · No. 128 740 740 · No. 129 425 425 · No. 130 131 131 · No. 131 423 423 · No. 132 133 133 · No. 133 134 134 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 992 992 · No. 138 422 422 · No. 139 421 421 · No. 140 179 179 · No. 141 780 780 · No. 142 379 379 · No. 143 010 010 · No. 144 228/229 228, 229 · No. 145 229 229 · No. 146 229/230 229, 230 · No. 147 892 892 · No. 148 150* 150* · No. 149 130/110 130, 110 · No. 150 878 878 · No. 151 146* 146* · No. 152 126/106 126, 106 · No. 153 975/879 975, 879 · No. 154 965 965 · No. 155 337 337 · No. 156 336 336 · No. 157 555 555 · No. 158 340 340 · No. 159 556 556 · No. 160 257 257 · No. 161 861 861 · No. 162 120/100 120, 100 · No. 163 141* 141* · No. 164 862 862 · No. 165 970 970 · No. 166 960 960 · No. 167 330/331 330, 331 · No. 168 223 223 · No. 169 759 759 · No. 170 765/300 765, 300 · No. 171 779 779 · No. 172

Parts categories

View all parts →
Sell U340E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

20 applications · 2 makes · 1997–2017 Toyota 18 · Scion 2

Make Model Year Drive Engine
Scion xA 2004-2007 1.5
Scion xB 2004-2010 1.5, 2.4
Toyota Allion 2002-2007 4 Spd FWD L4 1.5L
Toyota BELTA 2006-2014 4 Spd FWD L4 1.5L
Toyota Corolla 2009 4 Spd FWD L4 1.8L
Toyota Corolla 1997-2016 4 Spd F/AWD L4 1.5/1.6/1.8/2.0L
Toyota Echo 2000-2006 1.5
Toyota Echo 2000-2005 4 Spd FWD L4 1.5L
Toyota FUN CARGO 2000-2005 4 Spd F/4WD L4 1.5L
Toyota PLATZ 2000-2005 4 Spd F/AWD L4 1.5L
Toyota PORTE 2004-2012 4 Spd F/AWD L4 1.5L
Toyota Premio 2001-2007 4 Spd FWD L4 1.5L
Toyota Probox 2002-2016 4 Spd F/AWD L4 1.5L
Toyota Ractis 2005-2012 4 Spd F/AWD L4 1.3L 1.5L
Toyota RAUM 2003-2011 4 Spd F/AWD L4 1.5L
Toyota Scion xA/xB 2004-2006 4 Spd FWD L4 1.5L
Toyota SOLUNA VIOS 2002-2007 4 Spd FWD L4 1.5L
Toyota Yaris 2006-2017 1.5
Toyota Yaris 2006-2014 4 Spd FWD L4 1.5L
Toyota Yaris 2006-2007 4 Spd FWD L4 1.5L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

U340E
U340-E
U340 E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pump Seal Oil Leakage
Oil leaks from pump seal between gearbox and torque converter; seal replaced together with bushing.
!
EPC Solenoid Failure
EPC solenoid wears prematurely in post-2009 units due to higher operational intensity; contaminated ATF accelerates fail
!
Torque Converter Lining Wear
Torque converter friction lining wears out, rapidly contaminating ATF and requiring more frequent fluid changes.
!
Clogged Valve Body
Contaminated ATF clogs valve body plungers, blocking fluid transmission to clutch packs and causing unpredictable slippa
?
Unpredictable Clutch Pack Slippage
Slippage occurs in clutch packs when clogged valve body restricts ATF flow through corresponding plunger circuits.
!
Worn Rings and Seals
Internal rings and seals degrade with contaminated ATF; repair kit replacement extends EPC solenoid and transmission lif
?
Rapid ATF Contamination
ATF becomes contaminated faster than normal due to torque converter lining wear shedding friction material into fluid.
?
Premature Friction Component Wear
Long-term slippage from clogged valve body causes accelerated wear of otherwise durable friction components.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic gearbox Toyota U340 (U341) has been used since 2000 on FWD Toyota Avensis, Corolla etc. with engine capacity up to 2 liters. One more leading transmission which is commonly met in repair services.This transmission was designed together with U140\ U240 (and identical in design) and was a very popular transmission in the field of repair among Aisin gear shifting units. The modification U341E provides higher torque, therefore it is used in engines with higher operational capacity Celica (1.8 l), the U341F unit is the version for four-wheeled vehicles (4WD).

Technical issues and repair guidelines

The whole mechanical and hydraulic part of these transmissions is very robust and the service life before the 1-st major repair is above 200-300 thousand kilometers depending on the driving style of auto users. During the first years U340-341 units require timely change of fluid and filter replacement. After some period of operation and due to frictions wear-out (torque converter in particular), the fluid gets contaminated more rapidly and that results in more frequent ATF change. Frequent change of automatic transmission fluid postpones the replacement of the torque converter lining. One of the most common problems is the oil leakage from the pump seal located between the gearbox and the torque converter. The seal is changed together with the bushing.

One of the most common parts to be replaced in new units (produced since 2009) is the EPC solenoid, which operates in much more intensive way than others. This transmission gets out of order after continuous operation in contaminated ATF with worn-out rings and seals. Timely change of ATF and repair of rings included in the repair kit makes it possible for this solenoid to operate during the whole period of the transmission usage period.

Typical issues with valve body and solenoids in U340

The electrical components of this transmission are quite durable, therefore the whole U340 unit may be considered as a very reliable transmission. However, during each disassembly procedure of this gearbox, specialists usually rebuild and clean the valve body and solenoids, which get damaged because of contaminated ATF. The clogged valve body may lead to unpredictable slippage in the package, where the fluid is not transmitted through corresponding valve body plunger. Long-term operation of this transmission with such problem leads to premature wear of practically “invincible” friction components in this unit.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
2009 U340E Corolla Valve Body Problems
Transmission Repair
manual
Sonnax — Transmission Report — Pinball Wizard U341E/F TCC Slip Diagnosis
—
