Toyota U150E Transmission

The 5-speed automatic gearbox U250E is installed on all FWD and AWD vehicles produced by Toyota and Lexus with engine capacity from 2.5 up to 3.5 liters.

Speeds 5
Type AT
Drive FWD/AWD
ATF capacity (L) 9
ATF change (L) 4
ATF type Toyota Type T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

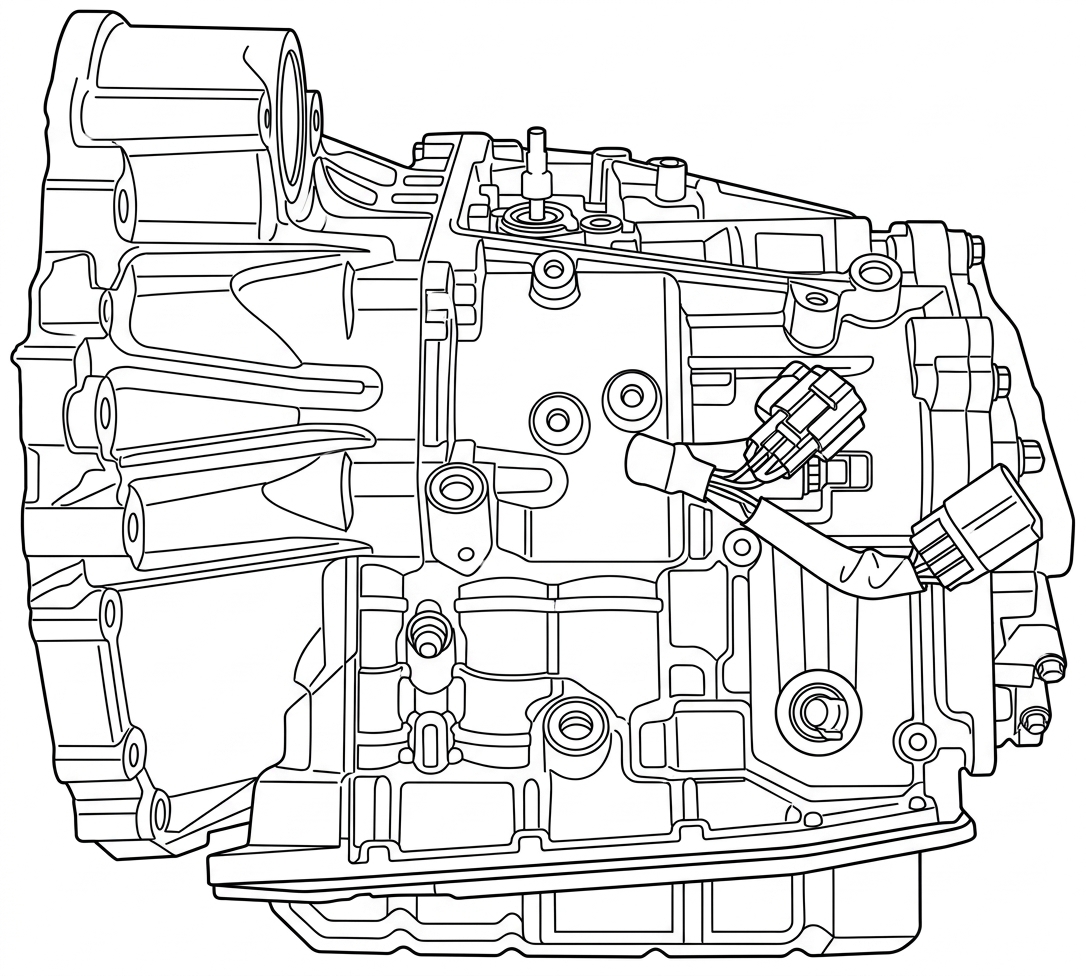

U150E
4.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.6
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full U250 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774 774 · No. 1 274 274 · No. 2 275 275 · No. 3 276 276 · No. 4 796 796 · No. 5 273 273 · No. 6 730 730 · No. 7 690 690 · No. 8 280 280 · No. 9 281 281 · No. 10 712 712 · No. 11 596 596 · No. 12 13 13 · No. 13 280 280 · No. 14 586 586 · No. 15 16 16 · No. 16 17 17 · No. 17 123/103 123, 103 · No. 18 19 19 · No. 19 20 20 · No. 20 21 21 · No. 21 22 22 · No. 22 23 23 · No. 23 24 24 · No. 24 25 25 · No. 25 26 26 · No. 26 27 27 · No. 27 28 28 · No. 28 29 29 · No. 29 30 30 · No. 30 31 31 · No. 31 32 32 · No. 32 639 639 · No. 33 34 34 · No. 34 35 35 · No. 35 369 369 · No. 36 750 750 · No. 37 076 076 · No. 38 293* 293* · No. 39 291 291 · No. 40 292 292 · No. 41 847 847 · No. 42 716 716 · No. 43 44 44 · No. 44 289 289 · No. 45 786 786 · No. 46 288 288 · No. 47 290* 290* · No. 48 077 077 · No. 49 142 142 · No. 50 122/102 122, 102 · No. 51 865 865 · No. 52 971 971 · No. 53 961 961 · No. 54 341 341 · No. 55 217 217 · No. 56 438 438 · No. 57 999 999 · No. 58 59 59 · No. 59 436 436 · No. 60 698 698 · No. 61 070 070 · No. 62 034 034 · No. 63 311 311 · No. 64 530 530 · No. 65 530 530 · No. 66 036 036 · No. 67 520 520 · No. 68 181 181 · No. 69 209 209 · No. 70 211 211 · No. 71 177 177 · No. 72 554 554 · No. 73 334/335 334, 335 · No. 74 964 964 · No. 75 974 974 · No. 76 877 877 · No. 77 128/108 128, 108 · No. 78 148* 148* · No. 79 876 876 · No. 80 232 232 · No. 81 050 050 · No. 82 574 574 · No. 83 050 050 · No. 84 235 235 · No. 85 236 236 · No. 86 795 795 · No. 87 287 287 · No. 88 710 710 · No. 89 279 279 · No. 90 278 278 · No. 91 898 898 · No. 92 889 889 · No. 93 370 370 · No. 94 370 370 · No. 95 778 778 · No. 96 760 760 · No. 97 250 250 · No. 98 251 251 · No. 99 338/339 338, 339 · No. 100 967 967 · No. 101 977 977 · No. 102 893 893 · No. 103 134/114 134, 114 · No. 104 135 135 · No. 105 885 885 · No. 106 889 889 · No. 107 594 594 · No. 108 577 577 · No. 109 956 956 · No. 110 333/332 333, 332 · No. 111 962 962 · No. 112 972 972 · No. 113 874 874 · No. 114 872 872 · No. 115 124/104 124, 104 · No. 116 144* 144* · No. 117 873 873 · No. 118 584 584 · No. 119 247 247 · No. 120 246 246 · No. 121 614 614 · No. 122 237 237 · No. 123 238 238 · No. 124 239 239 · No. 125 053 053 · No. 126 582 582 · No. 127 886 886 · No. 128 622 622 · No. 129 999 999 · No. 130 999 999 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 347 347 · No. 139 140 140 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 421 421 · No. 145 146 146 · No. 146 480-3 480-3 · No. 147 148 148 · No. 148 385 385 · No. 149 385 385 · No. 150 446 446 · No. 151 242 242 · No. 152 695 695 · No. 153 663 663 · No. 154 652 652 · No. 155 652 652 · No. 156 652 652 · No. 157 695 695 · No. 158 241 241 · No. 159 662 662 · No. 160 243 243 · No. 161 052 052 · No. 162 052 052 · No. 163 575 575 · No. 164 226 226 · No. 165 227 227 · No. 166 878 878 · No. 167 146* 146* · No. 168 126/106 126, 106 · No. 169 127 127 · No. 170 039 039 · No. 171 571 571 · No. 172 039 039 · No. 173 220 220 · No. 174 220/221 220, 221 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 379 379 · No. 179 180 180 · No. 180 181 181 · No. 181 423 423 · No. 182 428 428 · No. 183 431 431 · No. 184 480 480 · No. 185 740 740 · No. 186 994 994 · No. 187 991-3 991-3 · No. 188 010 010 · No. 189 440 440 · No. 190 422 422 · No. 191 425 425 · No. 192 991-6 991-6 · No. 193 991-4 991-4 · No. 194 991-2 991-2 · No. 195 991-8 991-8 · No. 196 860 860 · No. 197 140 140 · No. 198 120/100 120, 100 · No. 199 879 879 · No. 200 985 985 · No. 201 975 975 · No. 202 963 963 · No. 203 336 336 · No. 204 965 965 · No. 205 555 555 · No. 206 229 229 · No. 207 223 223 · No. 208 179 179 · No. 209 759 759 · No. 210 765/300 765, 300 · No. 211 212 212 · No. 212 995-2 995-2 · No. 213 995-1 995-1 · No. 214 995-3 995-3 · No. 215 992 992 · No. 216 410 410 · No. 217 072 072 · No. 218

Parts categories

View all parts →
Sell U150E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

1 application · 1 make · 2002–2003 Lexus 1

Make Model Year Drive Engine
Lexus ES300 2002-2003 5 Spd FWD V6 3.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

U150E
U150-E
U150 E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Overdrive Friction Clutch Wear
Steel disks in Overdrive drum burn first; linked to rear cover design acting as backup for clutch drum.
!
Direct Clutch Burnout
Direct clutch burns when vehicle continues operating with already burnt Overdrive friction components.
!
Torque Converter Lockup Failure
Torque converter and lockup clutch require repair/replacement; major repairs almost always start here.
!
Valve Body Solenoid Degradation
U250 (2002-2004) valve body fails to maintain set parameters; old solenoids unable to cope, causing rapid wear.
!
Pump Seal and Bushing Failure
Pump bushing and seals wear out, caused by aggressive driving and prolonged burnt torque converter clutch operation.
?
ATF Leakage Through Pump
Main symptom of pump seal failure is ATF leaking through the front pump seal area.
!
Burnt ATF Contamination
Burnt ATF found in gearbox requires full friction kit and overhaul kit replacement during repair.
!
Axle Seal Leakage
Axle seals commonly fail alongside pump seals in U150-U250 units, often replaced together during service.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic gearbox U250E is installed on all FWD and AWD vehicles produced by Toyota and Lexus with engine capacity from 2.5 up to 3.5 liters.

The whole range of U150 is more comfortable and economically viable (and high priced) alternative to "invincible" 4-speeds U140-U240. The 6-speed automatic gearbox U660 was produced in 2007 for Toyota Camry and Lexus car drivers who are more demanding of gear shifting process. The U150, 151 – can transmit a bit higher torque at low speeds than U250E. The U151F unit is intended for 6-cylinder full-wheel drive vehicles- RAV4, Highlander, Sienna.

Technical issues and repair guidelines

Major repairs of U150-250 units almost always starts with the torque converter repair and spare parts replacement ( lockup).The set of pistons is also included in the typical list of spare parts for repair of this transmission. The pairs of firctions (steel disks in the Overdrive drum) is the first component to get burned in these units. The second spare part to be considered is burnt Direct clutch (happens if the vehicle continuously operates with burnt Overdrive frictions).

The kit of friction components is ordered as frequently as the Overhaul kit especially when repair specialists have to deal with gearboxes with burnt ATF. Early wear of the Overdrive friction clutch is linked to the design of the rear cover, which plays the backup role for this clutch cover (drum). The other common issue for majority of these automated gearboxes is related to problems with pump seals and axles. The pump bushing is usually ordered together with abovementioned spare components. The main symptom of the problem is the ATF leakage through the pump seal. The main cause of this problem is an aggressive driving style and a long-term driving with burnt torque converter clutch.

Electrics in U250-150

Problems with electrical parts in U250 and U151 gearboxes are often triggered by issues with the valve body.The valve body U250 (2002-2004) frequently could not maintain set parameters, old (massive) solenoids couldn’t cope with tasks, therefore the valve body wears rapidly. In 2005, the valve body was updated after replacement of solenoids (the valve body itself was left unchanged). Solenoids for valve bodies of U250 and U151 units ranges for different cars and selected according to VIN-code of the car.

Peculiarities of early repairs of U250 and U151 units are related to the fact that the “electric clutch” was widely used in 2000-th and engineers refused from the "full-proof" comcept and did not limit capacity of the driver related to the aggressive driving style, that may lead to burning of friction components and other elements.
