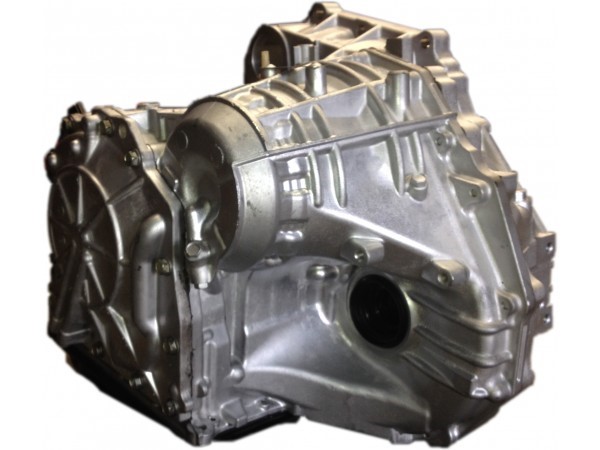

Toyota U140E Transmission

Transmission repair specialists frequently have to deal with repair issues in the 4-speed automatic transmissions U140E, U240, U241 and the entire range of these transmissions from Aisin Co. Aisin engineers wanted to design the U140E unit with a potential extension to 5 speeds.In 2000, more enhanced modification named U240 was introduced and a lot of U140\ U240 automatics found application in the whole range of popular Toyota cars at the auto market in Japan.

Speeds 4
Type AT
Drive FWD/AWD
ATF capacity (L) 9,5
ATF change (L) 4,2
ATF type Toyota Type T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
U140E
6.1/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.2
Documentation depth10.0
Knowledge & support7.9

Exploded diagram & parts

Full U240 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774 774 · No. 1 2 2 · No. 2 274 274 · No. 3 4 4 · No. 4 5 5 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 9 9 · No. 9 10 10 · No. 10 11 11 · No. 11 12 12 · No. 12 13 13 · No. 13 14 14 · No. 14 15 15 · No. 15 16 16 · No. 16 586 586 · No. 17 18 18 · No. 18 123/103 123, 103 · No. 19 20 20 · No. 20 21 21 · No. 21 22 22 · No. 22 23 23 · No. 23 24 24 · No. 24 25 25 · No. 25 26 26 · No. 26 27 27 · No. 27 28 28 · No. 28 29 29 · No. 29 369 369 · No. 30 750 750 · No. 31 076 076 · No. 32 293* 293* · No. 33 291 291 · No. 34 292 292 · No. 35 847 847 · No. 36 716 716 · No. 37 38 38 · No. 38 289 289 · No. 39 288 288 · No. 40 290* 290* · No. 41 077 077 · No. 42 863 863 · No. 43 694 694 · No. 44 650 650 · No. 45 650 650 · No. 46 650 650 · No. 47 661 661 · No. 48 694 694 · No. 49 864 864 · No. 50 142 142 · No. 51 122/102 122, 102 · No. 52 865 865 · No. 53 971 971 · No. 54 961 961 · No. 55 341 341 · No. 56 340 340 · No. 57 217 217 · No. 58 786 786 · No. 59 438 438 · No. 60 999 999 · No. 61 62 62 · No. 62 436 436 · No. 63 698 698 · No. 64 070 070 · No. 65 034 034 · No. 66 311 311 · No. 67 68 68 · No. 68 530 530 · No. 69 036 036 · No. 70 520 520 · No. 71 181 181 · No. 72 209 209 · No. 73 211 211 · No. 74 177 177 · No. 75 554 554 · No. 76 335 335 · No. 77 334 334 · No. 78 964 964 · No. 79 974 974 · No. 80 877 877 · No. 81 128/108 128, 108 · No. 82 148* 148* · No. 83 876 876 · No. 84 232 232 · No. 85 050 050 · No. 86 574 574 · No. 87 050 050 · No. 88 235 235 · No. 89 236 236 · No. 90 795 795 · No. 91 287 287 · No. 92 710 710 · No. 93 279 279 · No. 94 278 278 · No. 95 898 898 · No. 96 778 778 · No. 97 760 760 · No. 98 250 250 · No. 99 251 251 · No. 100 339 339 · No. 101 338 338 · No. 102 967 967 · No. 103 977 977 · No. 104 893 893 · No. 105 134/114 134, 114 · No. 106 135 135 · No. 107 885 885 · No. 108 889 889 · No. 109 594 594 · No. 110 577 577 · No. 111 956 956 · No. 112 333/332 333, 332 · No. 113 962 962 · No. 114 972 972 · No. 115 874 874 · No. 116 872 872 · No. 117 124/104 124, 104 · No. 118 144* 144* · No. 119 873 873 · No. 120 121 121 · No. 121 122 122 · No. 122 123 123 · No. 123 124 124 · No. 124 950 950 · No. 125 999 999 · No. 126 428 428 · No. 127 999 999 · No. 128 129 129 · No. 129 130 130 · No. 130 131 131 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 385 385 · No. 135 385 385 · No. 136 446 446 · No. 137 584 584 · No. 138 247 247 · No. 139 614 614 · No. 140 237 237 · No. 141 238 238 · No. 142 239 239 · No. 143 053 053 · No. 144 582 582 · No. 145 886 886 · No. 146 622 622 · No. 147 242 242 · No. 148 695 695 · No. 149 663 663 · No. 150 652 652 · No. 151 652 652 · No. 152 652 652 · No. 153 695 695 · No. 154 241 241 · No. 155 662 662 · No. 156 243 243 · No. 157 052 052 · No. 158 052 052 · No. 159 160 160 · No. 160 161 161 · No. 161 162 162 · No. 162 379 379 · No. 163 164 164 · No. 164 165 165 · No. 165 421 421 · No. 166 480 480 · No. 167 740 740 · No. 168 991-6 991-6 · No. 169 994 994 · No. 170 991-2 991-2 · No. 171 991-8 991-8 · No. 172 991-3 991-3 · No. 173 174 174 · No. 174 179/223 179, 223 · No. 175 010 010 · No. 176 425 425 · No. 177 422 422 · No. 178 431 431 · No. 179 991-4 991-4 · No. 180 575 575 · No. 181 226 226 · No. 182 227 227 · No. 183 878 878 · No. 184 146* 146* · No. 185 126/106 126, 106 · No. 186 879 879 · No. 187 985 985 · No. 188 975 975 · No. 189 965 965 · No. 190 555 555 · No. 191 229 229 · No. 192 223 223 · No. 193 759 759 · No. 194 765/300 765, 300 · No. 195 196 196 · No. 196 995-2 995-2 · No. 197 995-1 995-1 · No. 198 995-3 995-3 · No. 199 200 200 · No. 200 992 992 · No. 201 410 410 · No. 202 072 072 · No. 203

Parts categories

View all parts →
Sell U140E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

15 applications · 2 makes · 1998–2007 Toyota 10 · Lexus 5

Make Model Year Drive Engine
Lexus ES300 1999-2001 4 Spd FWD V6 3.0L
Lexus ES300 1999-2001 3.0
Lexus RX300 1999-2003 3.0
Lexus RX300 1998-2003 4 Spd FWD/AWD V6 3.0L
Lexus RX300 1998-2003 4 Spd FWD V6 3.0L
Toyota Camry 2002-2004 4 Spd FWD V6 3.0L
Toyota Camry 2002-2004 3.0
Toyota Camry 2002-2003 4 Spd FWD V6 3.0L
Toyota Estima 2000-2006 4 Spd R/4WD L4 2.0L V6 3.0L
Toyota Harrier 2000-2003 4 Spd F/AWD V6 3.0L
Toyota Highlander 2001-2007 3.0
Toyota Highlander 2001-2003 4 Spd FWD V6 3.0L
Toyota KLUGER V 2000-2003 4 Spd F/4WD V6 3.0L
Toyota Solara 2002-2005 3.3
Toyota WINDOM 2000-2002 4 Spd FWD V6 3.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

U140 E
U140E
U140-E
U140E /F
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Output Planet Pinion Axle Damage
Pinion-satellite axles damaged by critical loads in U140 units; sun gear and satellites fail together causing cascade da
!
Rear Planetary Gear Destruction
Fragments from damaged output planetary gear crush the rear planetary gear in U140 units as secondary failure stage.
!
Back Cover Structural Failure
Back cover support function compromised in U140-240; common on high-power engines in RAV-4, Camry, Lexus RX300.
!
Direct Clutch Friction Pack Wear
Friction and steel disks in Direct package replaced 3-4x more frequently than other packages due to high load.
!
ECU Non-Soldered Contact Failure
Non-soldered ECU contacts in early production years cause unpredictable clutch pack burning and hydraulic pressure jumps
!
Direct Clutch Rubber Piston Failure
Rubber-covered piston with holder degrades rapidly under high temperatures and dry operation with jittering.
!
Pump Bushing and Torque Converter
Damaged pump bushing requires concurrent repair with torque converter; first overhaul component on heavy 3L engine cars.
?
Valve Body Soot and Channel Blockage
Soot deposits accumulate in valve body channels restricting valve movement; requires cleaning and channel rebuilding on
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

Transmission repair specialists frequently have to deal with repair issues in the 4-speed automatic transmissions U140E, U240, U241 and the entire range of these transmissions from Aisin Co. Aisin engineers wanted to design the U140E unit with a potential extension to 5 speeds.In 2000, more enhanced modification named U240 was introduced and a lot of U140\ U240 automatics found application in the whole range of popular Toyota cars at the auto market in Japan.

The U241E (U240E) transmission has been operating safely since 2000 on the front-wheel (four-wheel drive) middle class cars with engine capacity from 2 up to 3 liters.The structure of these automatic units is so robust and sophisticated that even the presence of some soft spots (such as the third planetary gear) does not prevent U240-241 transmissions from being installed on very popular Toyota cars.

Technical issues and repair guidelines

The risk group of car with this reliable transmission includes heavy cars with 3-liter engines, where gearbox components operate under heavy loads and the 1-st overhaul may occur even before the car travels 200 thousand kilometers. The first component to be repaired is the torque converter. In "old" U140 units transmission specialists have to pay closer attention to the output planet, which may have some issues related to the damage of pinion-satellites axles caused by critical loads. The sun gear gets damaged together with satellites of the planetary gear. At the following stage of damaging process, fragments of the damaged planetary gear crush the rear planetary gear of the U140 unit.

The back cover is the second problematic place for this transmission: it performs a support function in U140-240 design. This issue is common for high-power engines both in RAV-4, and in Camry, Lexus RX300. According to the statistics change of frictions and steel disks in the Direct package is performed 3-4 times more frequently than in any other package.

One more frequently replaced element in the Direct clutch package is the rubber-covered piston with a holder. The rubber gets damaged very fast failing under higher temperatures and dry functioning with jittering. When the pump bushing gets damaged it should be repaired together with the torque converter. The typical problem of the ECU during first years of operation – non-soldered contacts, causing unpredictable burning of packages and pressure jumps. Almost each overhaul includes a preventive change of the pump cup seal on the left side and the left semi-axle seal on the housing side.

The 4-speed automatic transmissions U140E , U240 , U241 from Aisin Co traditionally have very reliable and persistent elecal components. Specialists almost every time are restricted to the repair and cleaning of the valve body and solenoids without any expensive replacements. The repair of old valve bodies involves cleaning of soot deposits and rebuilding of channels used for movement of valves.
