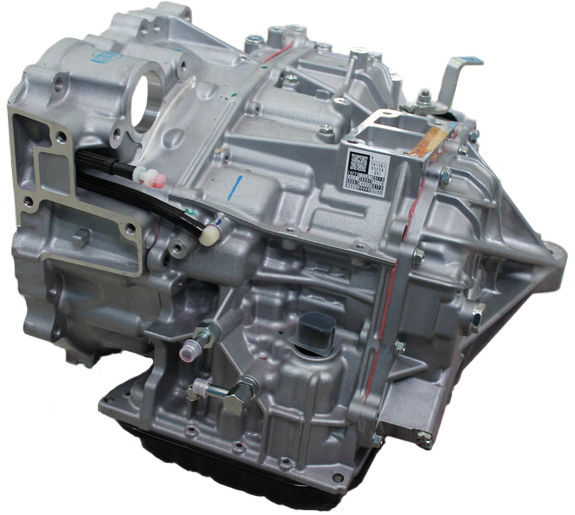

Toyota U660E Transmission

The 6-speed automatic transmission U660E designed by Aisin in 2006 for FWD cars Lexus ES350, as well as for the luxury 6-cylinder models (Camry, RAV4, Avensis) for 3.5 lit. The unit was paired with the V6 engine.The U660F unit is intended for AWD crossovers and sedans. The U660 unit is a competitor of ZF 6HP26. In 2009, the U660 unit was complemented by U760E model cured from "common problems" and intened for a bit lower torque from the engine (up to 2.7 l). After some period of time the U761E sub-modification was released for less powerful engines with 2.0-liter capacity. Repair parts for…

Speeds 6
Type AT
Drive FWD/AWD
ATF capacity (L) 6,5
ATF change (L) 2,8
ATF type Toyota Type WS
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
U660E
7.1/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.9
Documentation depth10.0
Knowledge & support6.5

Exploded diagram & parts

Full U660E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

277 277 · No. 1 273 273 · No. 2 274 274 · No. 3 730 730 · No. 4 281 281 · No. 5 280 280 · No. 6 864 864 · No. 7 865 865 · No. 8 616 616 · No. 9 670 670 · No. 10 177 177 · No. 11 214 214 · No. 12 215 215 · No. 13 571 571 · No. 14 867 867 · No. 15 888 888 · No. 16 042 042 · No. 17 586 586 · No. 18 056 056 · No. 19 614 614 · No. 20 056 056 · No. 21 217 217 · No. 22 218 218 · No. 23 596 596 · No. 24 076 076 · No. 25 750 750 · No. 26 999 999 · No. 27 999-6 999-6 · No. 28 776 776 · No. 29 293 293 · No. 30 291 291 · No. 31 292 292 · No. 32 716 716 · No. 33 720 720 · No. 34 786 786 · No. 35 289 289 · No. 36 288 288 · No. 37 132/112 132, 112 · No. 38 152 152 · No. 39 870 870 · No. 40 222 222 · No. 41 223 223 · No. 42 795 795 · No. 43 710 710 · No. 44 862 862 · No. 45 989 989 · No. 46 969 969 · No. 47 278 278 · No. 48 279 279 · No. 49 070 070 · No. 50 034 034 · No. 51 311 311 · No. 52 510 510 · No. 53 530 530 · No. 54 036 036 · No. 55 520 520 · No. 56 209 209 · No. 57 212 212 · No. 58 328/329 328, 329 · No. 59 961 961 · No. 60 61 61 · No. 61 981 981 · No. 62 122/102 122, 102 · No. 63 142 142 · No. 64 077 077 · No. 65 778 778 · No. 66 787 787 · No. 67 778-1 778-1 · No. 68 69 69 · No. 69 760 760 · No. 70 279 279 · No. 71 278 278 · No. 72 338/339 338, 339 · No. 73 967 967 · No. 74 987 987 · No. 75 893 893 · No. 76 134/114 134, 114 · No. 77 154 154 · No. 78 885 885 · No. 79 584 584 · No. 80 247 247 · No. 81 594 594 · No. 82 604 604 · No. 83 889 889 · No. 84 654/665 654, 665 · No. 85 892 892 · No. 86 548 548 · No. 87 126/106 126, 106 · No. 88 146 146 · No. 89 996-1 996-1 · No. 90 378 378 · No. 91 996 996 · No. 92 378 378 · No. 93 490 490 · No. 94 347 347 · No. 95 992 992 · No. 96 444-1 444-1 · No. 97 444 444 · No. 98 438 438 · No. 99 379 379 · No. 100 410 410 · No. 101 072 072 · No. 102 876 876 · No. 103 876 876 · No. 104 148 148 · No. 105 128/108 128, 108 · No. 106 253 253 · No. 107 057 057 · No. 108 574 574 · No. 109 057 057 · No. 110 254 254 · No. 111 255 255 · No. 112 877 877 · No. 113 984 984 · No. 114 974 974 · No. 115 964 964 · No. 116 555 555 · No. 117 118 118 · No. 118 119 119 · No. 119 010 +2 010, 300, 765 · No. 120 991-6 991-6 · No. 121 740 740 · No. 122 123 123 · No. 123 446 446 · No. 124 991-4 991-4 · No. 125 965 965 · No. 126 975 975 · No. 127 985 985 · No. 128 879 879 · No. 129 878 878 · No. 130 228 228 · No. 131 229 229 · No. 132 697 697 · No. 133 179 179 · No. 134 179 179 · No. 135 233 233 · No. 136 759 759 · No. 137 388 388 · No. 138 493 493 · No. 139 437 437 · No. 140 782 782 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 492 492 · No. 147 995-5 995-5 · No. 148 994-7 994-7 · No. 149 995-2 995-2 · No. 150 995-1 995-1 · No. 151 995-3 995-3 · No. 152 995-4 995-4 · No. 153 991-5 991-5 · No. 154 991-1 991-1 · No. 155 156 156 · No. 156 991-8 991-8 · No. 157 991-3 991-3 · No. 158 991-2 991-2 · No. 159 991-9 991-9 · No. 160 994-6 994-6 · No. 161 994 994 · No. 162

Parts categories

View all parts →
Sell U660E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

27 applications · 3 makes · 2006–2017 Toyota 21 · Lexus 5 · Lotus 1

Make Model Year Drive Engine
Lexus ES 2006-2014 6 Spd FWD V6 3.5L
Lexus ES350 2007-2017 3.5
Lexus ES350 2007 6 Spd FWD V6 3.5L
Lexus RX 2008-2012 6 Spd F/AWD V6 3.5L
Lexus RX350 2008-2015 3.5
Lotus ELISE 2012-2015 6 Spd RWD V6 3.5L
Toyota Alphard 2008-2014 6 Spd F/AWD V6 3.5L
Toyota AURION 2006-2012 6 Spd FWD V6 3.5L
Toyota Avalon 2008-2017 3.5
Toyota Avalon 2007-2016 6 Spd FWD V6 3.5L
Toyota Avensis 2008-2016 6 Spd FWD L4 2.2L
Toyota Blade 2008-2012 6 Spd FWD V6 3.5L
Toyota Camry 2007-2017 3.5, 3.6
Toyota Camry 2007 6 Spd FWD V6 3.5L
Toyota Camry 2006-2016 6 Spd F/AWD V6 3.5L
Toyota Estima 2006-2016 6 Spd F/AWD V6 3.5L
Toyota Harrier 2013-2014 6 Spd F/AWD V6 3.5L
Toyota Highlander 2009-2016 6 Spd F/AWD V6 3.5L
Toyota Highlander 2008-2017 3.5
Toyota MARK X Z10 2007-2013 6 Spd F/AWD V6 3.5L
Toyota Rav4 2012-2016 6 Spd F/AWD L4 2.0L 2.2L V6 3.5L
Toyota Sienna 2010-2016 6 Spd F/4WD V6 3.5L
Toyota Sienna 2010-2016 3.5
Toyota Vanguard 2011 6 Spd F/4WD V6 3.5L
Toyota Venza 2009-2015 3.5
Toyota Venza 2008-2016 6 Spd F/4WD V6 3.5L
Toyota Verso 2009-2016 6 Spd FWD L4 1.8/2.2L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

U660- E
U660-E
U660 E
U660E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Main Housing Bearing Circlip
Main housing bearing attached to weak circlip; identified as most common problem in U660E units.
!
Direct Drum C1-C2 Clutch
Burnt clutch cover C1-C2 Drum (Direct) assembly requiring overhaul and full replacement.
!
Torque Converter Friction Lining
Worn lockup friction lining contaminates ATF, clogs valve body and solenoids; primary contamination source.
!
Valve Body Plunger Wear
Channels and plunger-valves wear or slag due to contaminated ATF from damaged torque converter lockup.
!
C1/C2 Friction Pack
Most frequently replaced component; full friction set in C1/C2 package (gears 1-4) typically replaced as complete set.
!
Brake Pack Friction Burn
Wear and burning of friction elements in braking packages B1-B3 affecting 2nd and 6th gear operation.
!
Selector Position Temperature Sensor
Overheated temperature sensor on selector position plate causes valve body malfunction; most replaced electrical part.
?
Overheating Piston Kit Damage
Transmission overheating leads to piston kit damage; piston kit ordered in nearly every overhaul of overheated U660E.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed automatic transmission U660E designed by Aisin in 2006 for FWD cars Lexus ES350, as well as for the luxury 6-cylinder models (Camry, RAV4, Avensis) for 3.5 lit. The unit was paired with the V6 engine.The U660F unit is intended for AWD crossovers and sedans. The U660 unit is a competitor of ZF 6HP26. In 2009, the U660 unit was complemented by U760E model cured from "common problems" and intened for a bit lower torque from the engine (up to 2.7 l). After some period of time the U761E sub-modification was released for less powerful engines with 2.0-liter capacity. Repair parts for this gearbox are the same as for U760. Among the market competitors of the U760 unit, specialists point out the ZF 6HP21 unit.

Technical issues and repair guidelines

Friction lining of the lockup unit is not the most crucial problem for driving, but it is critical for the “health” of this transmission. The torque converter is the main "contaminator" and the source of all problems of clogged valve body and solenoids. This gearbox usually covers 200 thousand kilometers, but the driver can significantly cut its service life by an aggressive driving style. Almost all major repairs of this gearbox include the torque converter repair. The torque converter repair with replacement of worn-out friction lining every 150-250 thousand kilometers (depending on the driving style) allows saving of some money on the valve body replacement.

According to judgement of experts, the most common problem of the U660E unit is related to the main housing bearing, which is attached to a “weak” circlip. The drum of Direct package is one more problem of this gearbox. Many gearboxes with short mileages (only70-100 thousand kilometers) were handed in for the overhaul and replacement of burnt clutch cover C1-C2 - Drum (Direct) in the assembled condition. Another issue is related to wear-out and burning of frictions in braking packages B1-B3 (gears 2 and 6). The most frequently replaced component is a set of frictions in the package C1/C2 (gears 1-4). Generally the whole set of friction components is replaced.

Valve body and solenoids in U660E

The most common problem for all 6-speed automatic gearboxes is the worn valve body. The problem with the valve body, which operated with damaged torque converter lockup and contaminated ATF, is related to wear-out or slagging of channels and plunger-valves of the valve body. The most frequently replaced component in the electrical part is the selector position plate with temperature sensors. The overheated temperature sensor is often considered to be the reason of the valve body malfunction. The first reason of early issues with electrical components (before covering 200 thousand kilometers) is the automatic transmission overheating. Almost each overhaul of overheated U660E transmission is accompanied with the order of pistons kit. The list of spare parts that may be damaged in this sophisticated gearbox as a result of neglected bearing vibrations is quite large (crown gear, sun gear, planetary gears, differential, pistons).

It should be taken into account, that all abovementioned problems with the U660 unit are common for very old or quite worn-out automatics. A high percentage of cars equipped with U660 serve before covering standard 200 thousand kilometers (in many cases even longer) without any repairs under the condition of timely ATF change and filter replacement.
