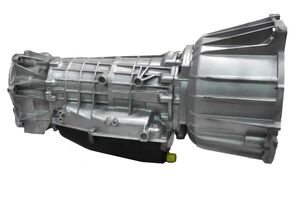

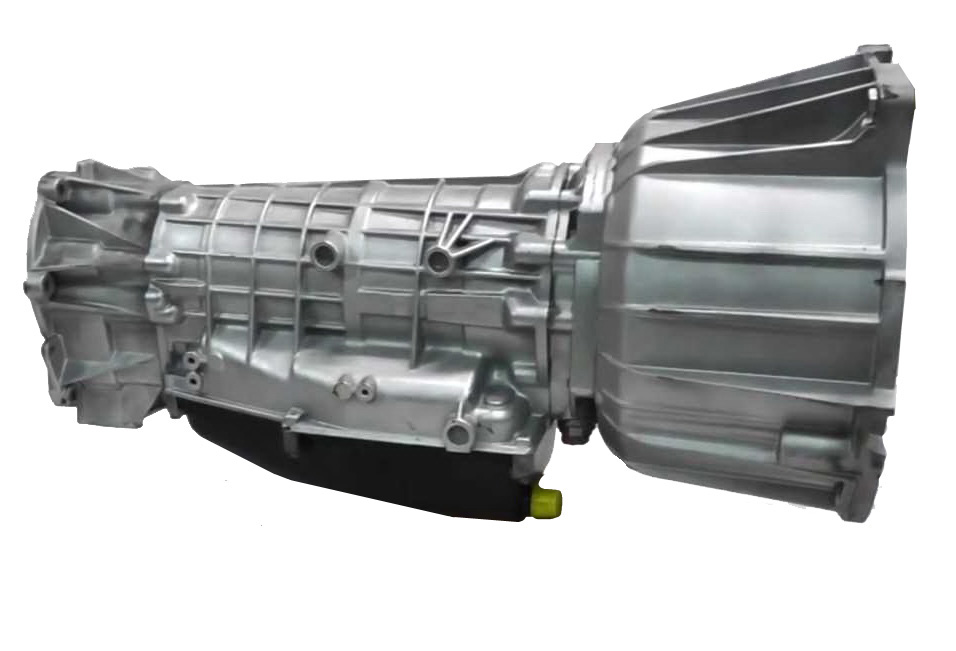

ZF 4HP22 Transmission

The 4-speed automatic transmission ZF 4HP22 was designed in the early 1980s for 2-3 liter diesel (rear-driven) car models. It has a "classic" engineering structure, ensuring not only high robustness, but also even wear-out of parts without obvious soft spots. The 4HP22 - 24 unit was used by all European automakers of high-priced and reliable cars: Audi, BMW, Jaguar etc. In terms of design, this transmission is similar to famous A4LD from Ford and A40-series from Toyota. The 4HP24 unit found application in 4WD models.

Speeds 4
Type AT
Drive RWD
Max torque 400
ATF capacity (L) 9,3
ATF change (L) 4
ATF type LT 71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4HP22
6.8/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.5
Documentation depth10.0
Knowledge & support2.5

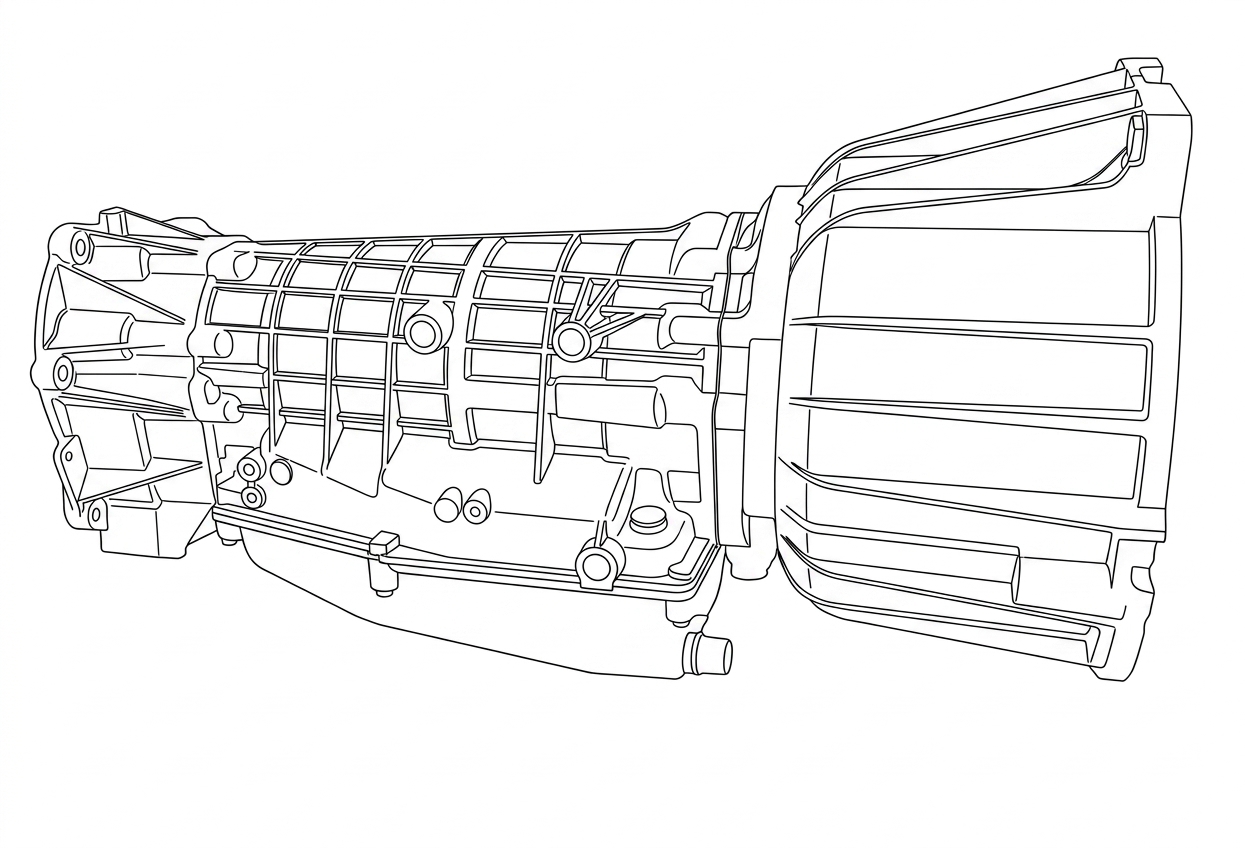

Exploded diagram & parts

Full 4HP22 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311 311 · No. 4 530 530 · No. 5 530 530 · No. 6 520 520 · No. 7 310 310 · No. 8 210* 210* · No. 9 211 211 · No. 10 212 212 · No. 11 048 048 · No. 12 554 554 · No. 13 335 335 · No. 14 334 334 · No. 15 964 964 · No. 16 974 974 · No. 17 670 670 · No. 18 231 231 · No. 19 232 232 · No. 20 233 233 · No. 21 574 574 · No. 22 129 129 · No. 23 128/108 128, 108 · No. 24 129 129 · No. 25 575 575 · No. 26 876 876 · No. 27 880 880 · No. 28 235 235 · No. 29 878 878 · No. 30 146 146 · No. 31 126/106 126, 106 · No. 32 879 879 · No. 33 985 985 · No. 34 975 975 · No. 35 965 965 · No. 36 336 336 · No. 37 337 337 · No. 38 555 555 · No. 39 048 048 · No. 40 883 883 · No. 41 630 630 · No. 42 333 333 · No. 43 332 332 · No. 44 962 962 · No. 45 972 972 · No. 46 47 47 · No. 47 982 982 · No. 48 126*/106 126*, 106 · No. 49 642 642 · No. 50 144 144 · No. 51 126/106 126, 106 · No. 52 989 989 · No. 53 54 54 · No. 54 979 979 · No. 55 969 969 · No. 56 340 340 · No. 57 341 341 · No. 58 639 639 · No. 59 632 632 · No. 60 339 339 · No. 61 338 338 · No. 62 966 966 · No. 63 976 976 · No. 64 65 65 · No. 65 893 893 · No. 66 104/126 104, 126 · No. 67 150 150 · No. 68 892 892 · No. 69 634 634 · No. 70 582 582 · No. 71 891 891 · No. 72 612 612 · No. 73 052 052 · No. 74 592 592 · No. 75 584 584 · No. 76 882 882 · No. 77 886 886 · No. 78 594 594 · No. 79 241 241 · No. 80 242 242 · No. 81 674 674 · No. 82 889 889 · No. 83 243 243 · No. 84 244 244 · No. 85 243 243 · No. 86 062 062 · No. 87 620 620 · No. 88 213 213 · No. 89 214 214 · No. 90 215 215 · No. 91 610 610 · No. 92 580 580 · No. 93 867 867 · No. 94 231 231 · No. 95 241 241 · No. 96 242 242 · No. 97 866 866 · No. 98 590 590 · No. 99 600 600 · No. 100 868 868 · No. 101 650 650 · No. 102 661 661 · No. 103 577 577 · No. 104 871 871 · No. 105 062 062 · No. 106 678 678 · No. 107 267 267 · No. 108 268 268 · No. 109 214 214 · No. 110 269 269 · No. 111 885 885 · No. 112 154 154 · No. 113 134/100 134, 100 · No. 114 987 987 · No. 115 977 977 · No. 116 549 549 · No. 117 967 967 · No. 118 338 338 · No. 119 339 339 · No. 120 121 121 · No. 121 557 557 · No. 122 861 861 · No. 123 140 140 · No. 124 120/100 120, 100 · No. 125 126 126 · No. 126 980 980 · No. 127 970 970 · No. 128 960 960 · No. 129 341 341 · No. 130 340 340 · No. 131 048 048 · No. 132 550 550 · No. 133 760 760 · No. 134 790 790 · No. 135 682 682 · No. 136 689 689 · No. 137 690 690 · No. 138 887 887 · No. 139 271 271 · No. 140 689 689 · No. 141 770/305 770, 305 · No. 142 074 074 · No. 143 841 841 · No. 144 275 275 · No. 145 798 798 · No. 146 421 421 · No. 147 421 421 · No. 148 010 010 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 156 156 · No. 156 157 157 · No. 157 421 421 · No. 158 421 421 · No. 159 740 740 · No. 160 431 431 · No. 161 765/300 765, 300 · No. 162

Parts categories

View all parts →
Sell 4HP22 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

33 applications · 10 makes · 1972–2006 Land Rover 10 · Jaguar 6 · BMW 4 · Volvo 4 · Alfa Romeo 2

Make Model Year Drive Engine
Alfa Romeo Alfetta-A 1987-1988 3 Spd RWD 2.5i
Alfa Romeo Spider 2000 1989-1993 3 Spd RWD 8 Valve & 16 Valve
BMW 325 1986-1988 2.7
BMW 633csi 1981 3.2, 3.5
BMW 733i 1981-1984 3.2
BMW 735i 1985-1992 3.5
Daimler 3.6 Litre Lfi 1989 4 Spd RWD 3.6L
Jaguar XJ40 1987-1993 4 Spd RWD 3.6L
Jaguar XJ6 1988-1994 4 Spd RWD L6 4.2L
Jaguar XJ6 1972-1979 3.6, 4.0, 4.2
Jaguar XJ6 4 Spd RWD 2.9L, 3.6L
Jaguar XJ6 4 Spd RWD 3.2L
Jaguar XJS 1987-1997 4 Spd RWD 3.6L
Land Rover Defender 1993-1997 3.9, 4.0
Land Rover Defender 90 1994-1997 4 Spd 4x4 V8 3.9L 4.0L
Land Rover Discovery 1994-2006 4 Spd 4x4 V8 3.9L 4.0L 4.6L
Land Rover Discovery 1994-2004 4 Spd 4X4 ALL
Land Rover Discovery 1994-2004 3.9, 4.0, 4.6
Land Rover Discovery 4 Spd 4x4 2.5D,2.5TD,3.5L,3.9L
Land Rover Range Rover 1987-2002 4 Spd 4X4 L6 2.5L V8 3.0L
Land Rover Range Rover 1987-2002 2.5, 3.9, 4.0, 4.2, 4.6
Land Rover Range Rover 4 Spd 4x4 V8 3.5L,3.9L,4.2L,
Land Rover Range Rover 4 Spd 4x4 2.5TD,V8 4.0L
Lotus Excel SA 1986-1992 4 Spd RWD 2.2L
Maserati Biturbo 1988-1997 4 Spd RWD V6 2.5L, V6 2.8L
Peugeot 505 1987-1996 4 Spd RWD 2.0L, 2.2L, 2.5
Peugeot 604 1987-1989 4 Spd RWD 2.5L
Porsche 911 4 Spd RWD 3.6L
Porsche 993 4 Spd RWD 3.6L
Volvo 740 1986-1994 4 Spd RWD L4 2.3L
Volvo 760 1986-1991 4 Spd RWD L4 2.3L
Volvo 780 1983-1988 2.4
Volvo 940 1991-1995 4 Spd RWD L4 2.3L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

1043020
1043 020
1043.020
4HP22A
4 HP 22
4HP22
4-HP-22
4HP22EH
1043010
1043 010
1043.010
A50.04
A50.01
4HP22 HL
A50.02
1043 050
A50.03
A50.05
4HP22HL
1043.050
1043050
ZF4HP22
ZF 4HP22
ZF 4HP 22
ZF4HP22EH
ZF4HP22HL
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Forward Package Friction Burnout
Forward clutch pack frictions burn first due to intensive operation, often caused by clogged or worn solenoids.
!
Clogged or Worn Solenoids
Solenoid wear and clogging causes oil starvation, leading to Forward package burnout. Scheduled replacement on high-mile
!
Valve Body Contamination
Dirty valve body caused by worn torque converter lockup clutch shedding debris onto valves, impairing hydraulic control.
!
Oil Pump Failure Land Rover
Land Rover oil pump fails prematurely due to contaminated fluid and prolonged operation with a faulty torque converter.
?
Gear Shift Delays and Kicks
Delayed shifts, kicks, or slippage occur when worn springs and solenoids cannot overcome friction debris blocking valves
?
Oil Starvation Signs
Oil starvation resulting from clogged solenoids or valve body leads to friction pack burning and accelerated wear.
!
Pump Housing Bushing Wear
Worn pump housing bushing (17mm covers) commonly replaced during overhaul; 13mm bushings and pump seal less frequently a
!
Torque Converter Lockup Clutch Wear
Worn locking clutch of torque converter contaminates fluid and valve body; requires concurrent torque converter repair.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission ZF 4HP22 was designed in the early 1980s for 2-3 liter diesel (rear-driven) car models. It has a "classic" engineering structure, ensuring not only high robustness, but also even wear-out of parts without obvious soft spots. The 4HP22 - 24 unit was used by all European automakers of high-priced and reliable cars: Audi, BMW, Jaguar etc. In terms of design, this transmission is similar to famous A4LD from Ford and A40-series from Toyota. The 4HP24 unit found application in 4WD models.

Technical issues and repair guidelines

The difference between 4HP22 and 4HP24 modifications lies in frictions and steel discs in packages. The modification with the valve body (type E9) and 4 solenoids is the most common in repair, while earlier series with 5-solenoids in the valve body are considered to be a rarity.The ZF 4HP24 unit is a fail-safe and massive transmission, constructed with the help of high-quality materials, ensuring enhanced safety margin.

Repair procedures

Friction components of the Forward package are the first to get burnt because of intensive operation. The percentage of hard parts replacement and seals (separately) is quite low only in the overhaul kit (repair kit). It is common to replace worn-out pump housing bushing (covers – 17 mm), and less frequently bushings (13 mm) with the pump gasket and pump seal in the 4HP22/24 unit suffering from oil starvation. Land Rover’s oil pump gets out of service early because of contaminated fluid and long-term operation with a faulty torque converter. It is required to perform the torque converter repair together with the abovementioned procedure.The improper operation of clogged or worn-out solenoids and valve body is named as the main reason of oil starvation causing burning of the package Forward.

The replacement of solenoids is a scheduled procedure for old cars using this transmission. The problem of a dirty valve body is usually explained by worn-out locking clutch of the torque converter. If there are some delays with gears shifting, kicks or slippage in ZF 4HP22 with mileages above 200 thousand kilometers, then it signals that springs and solenoids cannot handle the dirt from frictions falling on valves. The minor overhaul prolongs the resource of this transmission for many years. It is suggested that the average resource of ZF4HP22 (4HP24) before the overhaul can reach up to 300 thousand kilometers, but it depends on the driving style “aggressiveness”.
