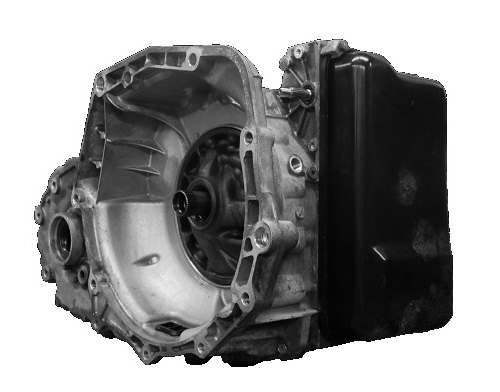

ZF 4HP16 Transmission

The 4-speed automatic transmission ZF4HP16 for was released in the early 2000-th, when its predecessor ZF 4HP20 was thoroughly tested under operational conditions. The 4HP16 unit is a reduction design copy of the4HP20 solution. ZF 4HP16 is intended for lower torque (up to 240 Nm) and mainly produced by Korean companies under the ZF licence for FWD cars such as Daewoo, Chevrolet (Lacetti), Grand Vitara etc with the engine from 1.6 up to 2 liters. This transmission is the competitor of the U240 unit.

Speeds 4
Type AT
Drive FWD
Max torque 240
ATF capacity (L) 6,9
ATF change (L) 4
ATF type LT 71141
