ZF
Source-verified model

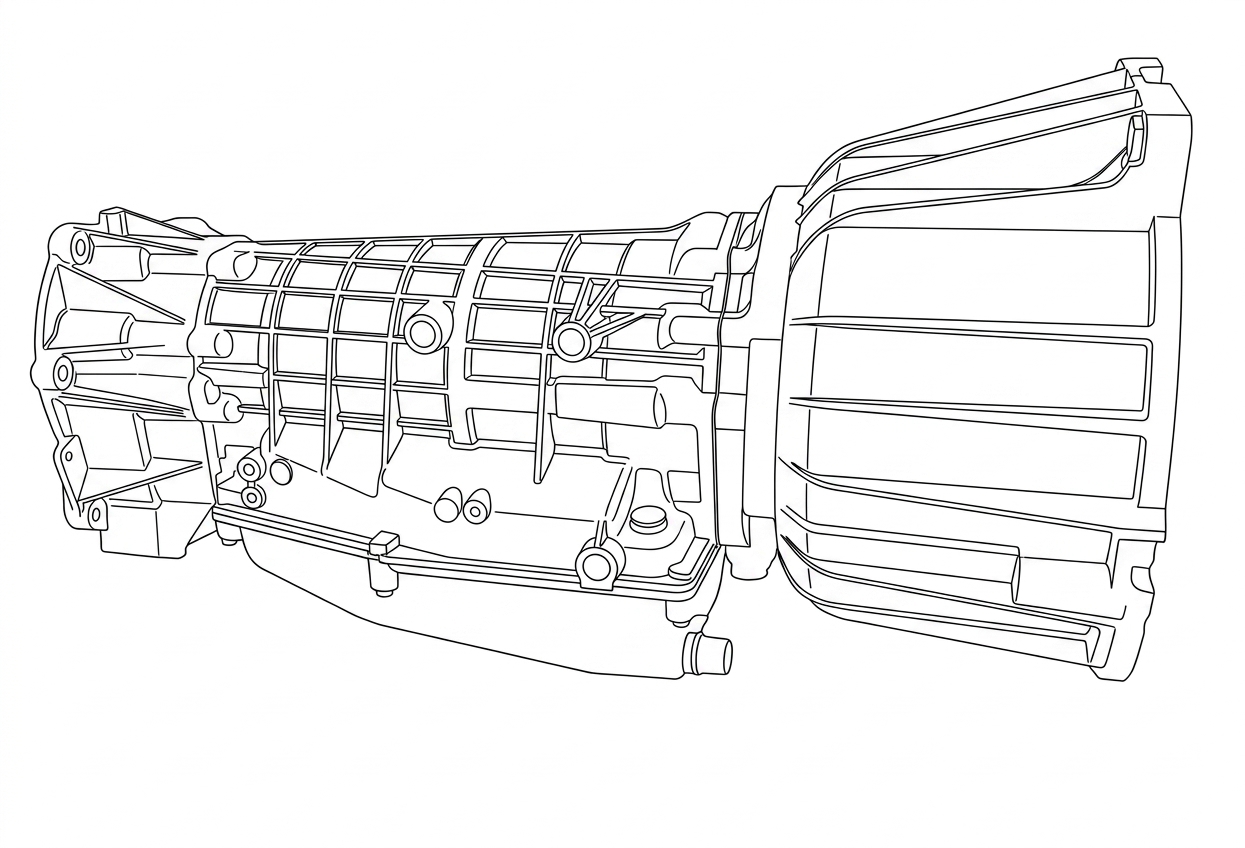

ZF 4HP24 Transmission
Speeds
4
Type
Automatic
Layout
Longitudinal
ATF capacity (L)
11
Weight
79.65 kg
Max torque
450 Nm
Browse parts → Find transmission shops
Contribute info
This feature is in progress and will be available soon.
0.0/10
Support & Market Presence Index
How widely this transmission is used, documented and supported across the Go4Trans graph.
Exploded diagram & parts
Parts categories
Sell 4HP24 parts on Go4TransStart selling →
Vehicle fitment explorer
Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.
26 applications · 4 makes · 1987–2006 Land Rover 9 · Jaguar 8 · Audi 5 · BMW 4
| Make | Model | Year | Drive | Engine |
|---|---|---|---|---|
| Audi | A6 Quattro | 1988-1997 | 4 Spd AWD | V8 4.2L |
| Audi | A8 Quattro | 1988-1997 | 4 Spd AWD | V8 4.2L |
| Audi | V-8 | 1990-1994 | 4 Spd AWD | V8 3.6L/4.2L |
| Audi | V8 Quattro | 1989-1994 | 4 Spd AWD | V6 3.6L; V8 4.2L |
| Audi | V8 Quattro | 1988-1994 | 3.6, 4.2 | |
| BMW | 750il | 1988-2001 | 5.0, 5.4 | |
| BMW | 850 | 1988-1994 | 4 Spd RWD | V12 5.0L |
| BMW | 850ci | 1991-1994 | 5.0 | |
| BMW | SÉRIE 7 | 1988-1994 | 4 Spd RWD | V12 5.0L |
| Jaguar | VANDEN PLAS | 1993-1997 | 4 Spd RWD | L6 4.0L |
| Jaguar | XJ Vanden Plas | 1990-1997 | 4 Spd RWD | L6 4.0L |
| Jaguar | XJ40 | 1989-1996 | 4 Spd RWD | 3.2L, 4.0L |
| Jaguar | XJ6 | 1996-1997 | 4 Spd RWD | L6 4.0L |
| Jaguar | XJ6, XJ6L | 1990-1997 | 4 Spd RWD | L6 4.0L |
| Jaguar | XJ8 | 1994-1997 | 4 Spd RWD | 4.0L |
| Jaguar | XJR | 1995-1997 | 4.0 | |
| Jaguar | XJS | 1989-1996 | 4 Spd RWD | 4.0L |
| Land Rover | Defender | 4 Spd RWD/4X4 | V8 3.9L | |
| Land Rover | Defender 90 | 1994-1997 | 4 Spd 4x4 | V8 3.9L 4.0L |
| Land Rover | Discovery | 1994-2006 | 4 Spd 4x4 | V8 3.9L 4.0L 4.6L |
| Land Rover | Discovery | 1994-2004 | 4 Spd 4X4 | ALL |
| Land Rover | Discovery | 4 Spd 4x4 | 2.5D,2.5TD,3.5L,3.9L | |
| Land Rover | Range Rover | 2000-2001 | 4 Spd RWD/4X4 | V8 4.6L |
| Land Rover | Range Rover | 1994-2002 | 4 Spd 4x4 | V8 3.9L 4.0L |
| Land Rover | Range Rover | 1987-2002 | 4 Spd 4X4 | L6 2.5L V8 3.0L |
| Land Rover | Range Rover | 4 Spd 4x4 | V8 4.6L |
Other and alternative codes of this transmission
＋ Contribute
This feature is in progress and will be available soon.
No aliases recorded yet — be the first to contribute one. Contribute →
verified naming
OEM designation
source name
Common problems & symptoms
Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.
?
Overheating under towing/high load
Problems with the unit are most often caused by overheating from towing, power upgrades, or inadequate cooling capacity.
?
Limp-home gear default
If the TCM loses certain key inputs it de-energizes all solenoids, causing the transmission to hydraulically default to 3rd gear when stationary or 4th gear when moving.
!
Output shaft speed sensor failure
Failure of the output shaft speed sensor, which replaces the hydraulic governor, forces the transmission into a default gear.
