ZF 3HP22 Transmission

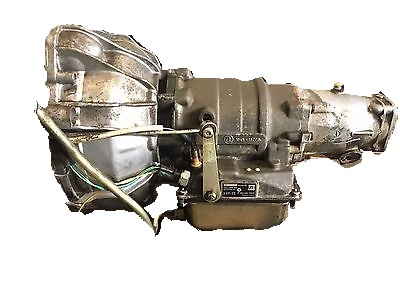

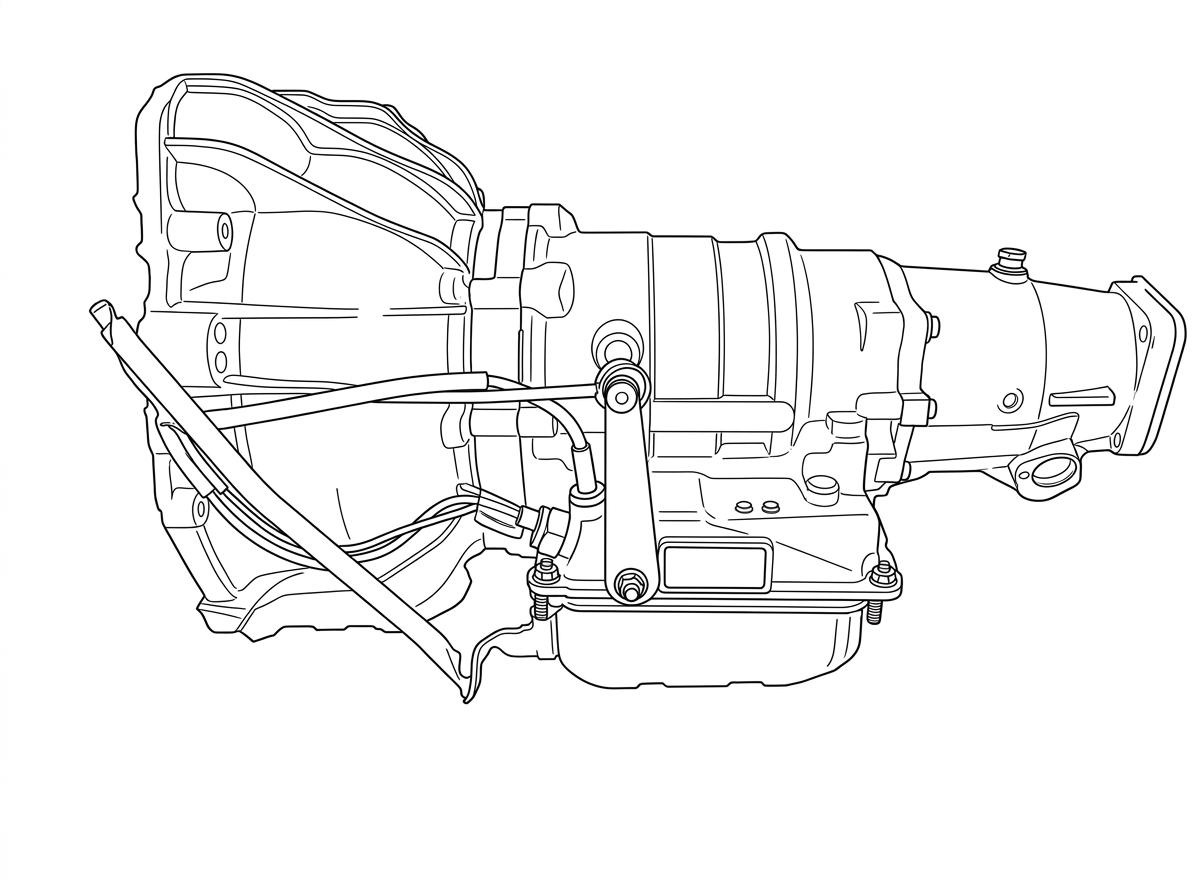

3-speed automatic transmission 3HP22 was produced by ZF company in 1973. This transmission was intended for rear drive passenger vehicles with motors M10, M20, M30 of BMW product range (big coupes and sedans, 3, 5, 6 and 7 series). This automatic transmission transmits the torque up to 320 Nm.

Speeds 3
Type AT
Drive RWD
Max torque 320
ATF capacity (L) 2.4
ATF change (L) 2
ATF type Dexron II
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
3HP22
5.3/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.3
Documentation depth7.3
Knowledge & support4.0

Exploded diagram & parts

Full 4HP22 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311 311 · No. 4 530 530 · No. 5 530 530 · No. 6 520 520 · No. 7 310 310 · No. 8 210* 210* · No. 9 211 211 · No. 10 212 212 · No. 11 048 048 · No. 12 554 554 · No. 13 335 335 · No. 14 334 334 · No. 15 964 964 · No. 16 974 974 · No. 17 670 670 · No. 18 231 231 · No. 19 232 232 · No. 20 233 233 · No. 21 574 574 · No. 22 129 129 · No. 23 128/108 128, 108 · No. 24 129 129 · No. 25 575 575 · No. 26 876 876 · No. 27 880 880 · No. 28 235 235 · No. 29 878 878 · No. 30 146 146 · No. 31 126/106 126, 106 · No. 32 879 879 · No. 33 985 985 · No. 34 975 975 · No. 35 965 965 · No. 36 336 336 · No. 37 337 337 · No. 38 555 555 · No. 39 048 048 · No. 40 883 883 · No. 41 630 630 · No. 42 333 333 · No. 43 332 332 · No. 44 962 962 · No. 45 972 972 · No. 46 47 47 · No. 47 982 982 · No. 48 126*/106 126*, 106 · No. 49 642 642 · No. 50 144 144 · No. 51 126/106 126, 106 · No. 52 989 989 · No. 53 54 54 · No. 54 979 979 · No. 55 969 969 · No. 56 340 340 · No. 57 341 341 · No. 58 639 639 · No. 59 632 632 · No. 60 339 339 · No. 61 338 338 · No. 62 966 966 · No. 63 976 976 · No. 64 65 65 · No. 65 893 893 · No. 66 104/126 104, 126 · No. 67 150 150 · No. 68 892 892 · No. 69 634 634 · No. 70 582 582 · No. 71 891 891 · No. 72 612 612 · No. 73 052 052 · No. 74 592 592 · No. 75 584 584 · No. 76 882 882 · No. 77 886 886 · No. 78 594 594 · No. 79 241 241 · No. 80 242 242 · No. 81 674 674 · No. 82 889 889 · No. 83 243 243 · No. 84 244 244 · No. 85 243 243 · No. 86 062 062 · No. 87 620 620 · No. 88 213 213 · No. 89 214 214 · No. 90 215 215 · No. 91 610 610 · No. 92 580 580 · No. 93 867 867 · No. 94 231 231 · No. 95 241 241 · No. 96 242 242 · No. 97 866 866 · No. 98 590 590 · No. 99 600 600 · No. 100 868 868 · No. 101 650 650 · No. 102 661 661 · No. 103 577 577 · No. 104 871 871 · No. 105 062 062 · No. 106 678 678 · No. 107 267 267 · No. 108 268 268 · No. 109 214 214 · No. 110 269 269 · No. 111 885 885 · No. 112 154 154 · No. 113 134/100 134, 100 · No. 114 987 987 · No. 115 977 977 · No. 116 549 549 · No. 117 967 967 · No. 118 338 338 · No. 119 339 339 · No. 120 121 121 · No. 121 557 557 · No. 122 861 861 · No. 123 140 140 · No. 124 120/100 120, 100 · No. 125 126 126 · No. 126 980 980 · No. 127 970 970 · No. 128 960 960 · No. 129 341 341 · No. 130 340 340 · No. 131 048 048 · No. 132 550 550 · No. 133 760 760 · No. 134 790 790 · No. 135 682 682 · No. 136 689 689 · No. 137 690 690 · No. 138 887 887 · No. 139 271 271 · No. 140 689 689 · No. 141 770/305 770, 305 · No. 142 074 074 · No. 143 841 841 · No. 144 275 275 · No. 145 798 798 · No. 146 421 421 · No. 147 421 421 · No. 148 010 010 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 156 156 · No. 156 157 157 · No. 157 421 421 · No. 158 421 421 · No. 159 740 740 · No. 160 431 431 · No. 161 765/300 765, 300 · No. 162

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 3HP22 in the Go4Trans marketplace.
Sell 3HP22 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

14 applications · 5 makes · 1971–1989 BMW 8 · Citroen 2 · Peugeot 2 · Lancia 1 · Talbot 1

Make Model Year Drive Engine
BMW 2002 1975-1976 2.0
BMW 2500 1971 2.5
BMW 2800 1971 2.8
BMW 530i 1975-1978 3.0
BMW 533i 1983-1984 3.2
BMW 630csi 1977-1978 3.0
BMW 633csi 1978-1980 3.2
BMW 733i 1978-1980 3.2
Citroen CX-2400 1981-1983 3 Spd FWD 2.4L
Citroen CX-2500 1983-1989 3 Spd FWD 2.5L
Lancia Thema 1985-1987 3 Spd RWD 2.0L
Peugeot 505 1978-1986 3 Spd RWD 2.0L, 2.2L, 2.5
Peugeot 604 1979-1983 3 Spd RWD 2.5L
Talbot Tagora 3 Spd RWD 2.2L, 2.3L TD, 2.7L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

3HP22Q
3HP22Q FWD
3 HP 22 FWD
1043.000
1043000
1043 000
3HP22
3-HP-22
3 HP 22
ZF 3HP22 FWD
ZF 3HP22
ZF3HP22
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Governor wear and failure
Governor on output shaft wears out, disrupting shifting pressure regulation and gear shift points based on vehicle speed
!
Clutch hub niche wear
Niches for plastic rings on the last clutch hub wear out, a known weak point in the 3HP22 transmission.
?
Governor pressure loss
Loss of governor pressure caused by worn clutch hub niches or governor failure, affecting shift timing and quality.
?
Incorrect gear shift points
Gear shifting occurs at wrong vehicle speeds due to governor malfunction disrupting shift pressure regulation.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

3-speed automatic transmission 3HP22 was produced by ZF company in 1973. This transmission was intended for rear drive passenger vehicles with motors M10, M20, M30 of BMW product range (big coupes and sedans, 3, 5, 6 and 7 series). This automatic transmission transmits the torque up to 320 Nm.

Technical issues and repair guidelines

One of the most common sources of problems in this 3HP22 transmission is the governor. The governor is a shifting pressure regulator on the output shaft of the transmission. The gear shifting point according to the car speed depends on the above mentioned governor.The wear-out of niches for plastic rings on the hub of the last transmission clutch is considered to be another soft spot. This problem also may lead to the governor pressure loss.
