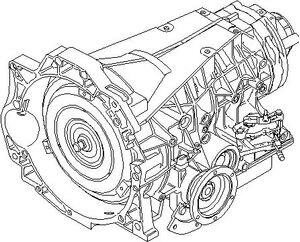

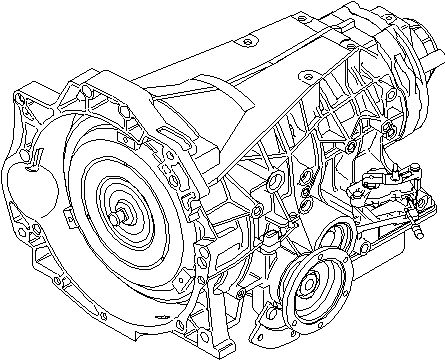

ZF 4HP18 Transmission

The 4-speed automatic transmission ZF 4HP18 (4HP18FLA Audi) was on SAAB 9000 (4HP18Q), Rover, Peugeout, Citroen. In 1989 this transmission was updated. Later, several more modifications were released. Presently, this transmission is mainly installed on FWD Audi 100 with engine capacity from 2.0 up to 3.0. Later this transmission was updated for AWD Audi 100 and Audi Quattro. ZF 4HP18 had been used on the abovementioned cars until 1994. This transmission competed with the legendary 097-01N transmission from Audi.The design of the 4HP18 unit became the foundation for the 5-speed 5HP18 and later…

Speeds 4
Type AT
Drive FWD/AWD
ATF capacity (L) 9
ATF change (L) 4
ATF type LT 71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4HP18
7.8/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.0
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full 4HP18 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 2 2 · No. 2 3 3 · No. 3 4 4 · No. 4 5 5 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 671 671 · No. 9 070 070 · No. 10 034 034 · No. 11 777 777 · No. 12 530 530 · No. 13 036 036 · No. 14 520 520 · No. 15 037 037 · No. 16 311 311 · No. 17 210 210 · No. 18 211* 211* · No. 19 332 332 · No. 20 962 962 · No. 21 333 333 · No. 22 124 124 · No. 23 972 972 · No. 24 25 25 · No. 25 26 26 · No. 26 493 493 · No. 27 778 778 · No. 28 29 29 · No. 29 494 494 · No. 30 124/104 124, 104 · No. 31 144 144 · No. 32 873 873 · No. 33 020 020 · No. 34 662 662 · No. 35 652 652 · No. 36 663 663 · No. 37 046 046 · No. 38 556 556 · No. 39 337 337 · No. 40 336 336 · No. 41 966 966 · No. 42 976 976 · No. 43 44 44 · No. 44 986 986 · No. 45 289 +8 289, 716, 288, 343, 720, 758, 292, 291, 076 · No. 46 189 189 · No. 47 371 371 · No. 48 897 897 · No. 49 697 697 · No. 50 685 685 · No. 51 680 680 · No. 52 680 680 · No. 53 686 686 · No. 54 687 687 · No. 55 265 265 · No. 56 265 265 · No. 57 265 265 · No. 58 265 265 · No. 59 130/110 130, 110 · No. 60 150 150 · No. 61 892 892 · No. 62 229* 229* · No. 63 212 212 · No. 64 881 881 · No. 65 673 673 · No. 66 380 380 · No. 67 049 049 · No. 68 554 554 · No. 69 335 335 · No. 70 334 334 · No. 71 964 964 · No. 72 974 974 · No. 73 984 984 · No. 74 877 877 · No. 75 760 760 · No. 76 730 730 · No. 77 276* 276* · No. 78 274 274 · No. 79 273 273 · No. 80 735 735 · No. 81 696 696 · No. 82 274 274 · No. 83 796 796 · No. 84 410 410 · No. 85 129 129 · No. 86 128/108 128, 108 · No. 87 148 148 · No. 88 876 876 · No. 89 232 232 · No. 90 550 550 · No. 91 038 038 · No. 92 331 331 · No. 93 330 330 · No. 94 960 960 · No. 95 970 970 · No. 96 970 970 · No. 97 862 862 · No. 98 99 99 · No. 99 120/100 120, 100 · No. 100 140 140 · No. 101 861 861 · No. 102 677 +3 677, 077, 275, 895 · No. 103 278 278 · No. 104 279 279 · No. 105 710 710 · No. 106 279 279 · No. 107 278 278 · No. 108 902 +6 902, 365, 904, 901, 366, 896, 906 · No. 109 757/304 757, 304 · No. 110 282 282 · No. 111 283 283 · No. 112 714 714 · No. 113 283 283 · No. 114 282 282 · No. 115 759/304 759, 304 · No. 116 213 213 · No. 117 214 214 · No. 118 215 215 · No. 119 570 570 · No. 120 216 216 · No. 121 217 217 · No. 122 218 218 · No. 123 219 219 · No. 124 574 574 · No. 125 234 234 · No. 126 235 235 · No. 127 236 236 · No. 128 624 624 · No. 129 614 614 · No. 130 584 584 · No. 131 250 250 · No. 132 251 251 · No. 133 252 252 · No. 134 062 062 · No. 135 594 594 · No. 136 678 678 · No. 137 254 254 · No. 138 889 889 · No. 139 894 894 · No. 140 010 010 · No. 141 379 379 · No. 142 280 280 · No. 143 281 281 · No. 144 712 712 · No. 145 281 281 · No. 146 280 280 · No. 147 421 421 · No. 148 740 740 · No. 149 495/326 495, 326 · No. 150 626 626 · No. 151 885 885 · No. 152 154 154 · No. 153 134/114 134, 114 · No. 154 135 135 · No. 155 664 664 · No. 156 890 890 · No. 157 257 257 · No. 158 654 654 · No. 159 665 665 · No. 160 260 260 · No. 161 977 977 · No. 162 967 967 · No. 163 893 893 · No. 164 338 338 · No. 165 339 339 · No. 166 765/300 765, 300 · No. 167 998 998 · No. 168 996 996 · No. 169 179 179 · No. 1 181 181 · No. 2 750/318 750, 318 · No. 3 070 070 · No. 4 034 034 · No. 5 777 777 · No. 6 7 7 · No. 7 530 530 · No. 8 520 520 · No. 9 036 036 · No. 10 210 210 · No. 11 211 211 · No. 12 332 332 · No. 13 333 333 · No. 14 962 962 · No. 15 962 962 · No. 16 333 333 · No. 17 872 872 · No. 18 989 989 · No. 19 982 982 · No. 20 874 874 · No. 21 124/104 124, 104 · No. 22 144 144 · No. 23 873 873 · No. 24 020 020 · No. 25 572 572 · No. 26 220 220 · No. 27 28 28 · No. 28 988 988 · No. 29 221 221 · No. 30 663 663 · No. 31 652 652 · No. 32 662 662 · No. 33 046 046 · No. 34 778 778 · No. 35 556 556 · No. 36 337 337 · No. 37 336 336 · No. 38 966 966 · No. 39 966 966 · No. 40 976 976 · No. 41 42 42 · No. 42 986 986 · No. 43 130/110 130, 110 · No. 44 150 150 · No. 45 892 892 · No. 46 229 229 · No. 47 212 212 · No. 48 881 881 · No. 49 049 049 · No. 50 673 673 · No. 51 380 380 · No. 52 049 049 · No. 53 554 554 · No. 54 335 335 · No. 55 334 334 · No. 56 964 964 · No. 57 974 974 · No. 58 335 335 · No. 59 984 984 · No. 60 877 877 · No. 61 129 129 · No. 62 128/108 128, 108 · No. 63 148 148 · No. 64 876 876 · No. 65 232 232 · No. 66 550 550 · No. 67 038 038 · No. 68 331 331 · No. 69 330 330 · No. 70 960 960 · No. 71 970 970 · No. 72 970 970 · No. 73 862 862 · No. 74 75 75 · No. 75 120/100 120, 100 · No. 76 140 140 · No. 77 861 861 · No. 78 213 213 · No. 79 214 214 · No. 80 214/215 214, 215 · No. 81 570 570 · No. 82 216 216 · No. 83 217 217 · No. 84 218 218 · No. 85 050 050 · No. 86 574 574 · No. 87 234 234 · No. 88 235 235 · No. 89 236 236 · No. 90 624 624 · No. 91 614 614 · No. 92 584 584 · No. 93 182 182 · No. 94 250 250 · No. 95 251 251 · No. 96 252 252 · No. 97 594 594 · No. 98 062 062 · No. 99 678 678 · No. 100 254 254 · No. 101 255 255 · No. 102 889 889 · No. 103 626 626 · No. 104 885 885 · No. 105 154 154 · No. 106 134/114 134, 114 · No. 107 135 135 · No. 108 664 664 · No. 109 890 890 · No. 110 257 257 · No. 111 654 654 · No. 112 665 665 · No. 113 894 894 · No. 114 076 076 · No. 115 275 275 · No. 116 898 898 · No. 117 677 677 · No. 118 291 291 · No. 119 290 290 · No. 120 716 716 · No. 121 720 720 · No. 122 289 289 · No. 123 288 288 · No. 124 077 077 · No. 125 902 +6 902, 365, 366, 904, 901, 896, 906 · No. 126 127 127 · No. 127 740 740 · No. 128 129 129 · No. 129 130 130 · No. 130 490 490 · No. 131 300/767 300, 767 · No. 132 789 789 · No. 133 786 786 · No. 134 189 189 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 139 139 · No. 139 140 140 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 260 260 · No. 145 893 893 · No. 146 970 970 · No. 147 967 967 · No. 148 339 339 · No. 149 338 338 · No. 150 760 760 · No. 151 685 685 · No. 152 689 689 · No. 153 680 680 · No. 154 265 265 · No. 155 265 265 · No. 156 713 713 · No. 157 280 280 · No. 158 281 281 · No. 159 712 712 · No. 160 796 796 · No. 161 780 780 · No. 162 163 163 · No. 163 379 379 · No. 164 264 264 · No. 165 797 797 · No. 166 279 279 · No. 167 710 710 · No. 168 795 795 · No. 169 304/759 304, 759 · No. 170 730 730 · No. 171 273 273 · No. 172 274 274 · No. 173 379 +2 379, 010, 769 · No. 174

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4HP18 in the Go4Trans marketplace.
Sell 4HP18 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

58 applications · 13 makes · 1970–1999 Audi 26 · Dodge 5 · Eagle 5 · Lancia 4 · Saab 4

Make Model Year Drive Engine
Alfa Romeo 164 1993-1994 4 Spd FWD 3.0L V6 24 Valve
Alfa Romeo 164 1989-1993 4 Spd FWD 3.0L V6 24 Valve
AMC Eagle Premier - 1988-1992 4 Spd FWD V6 - 3.0L
Audi 100 1992-1997 4 Spd FWD V6 2.6L 2.8L
Audi 100 1992-1994 4 Spd FWD V6 2.6/2.8L
Audi 100 1992-1993 4 Spd Transaxle V6 2.8L
Audi 100 1989-1997 2.3, 2.6, 2.8
Audi 100 CS 1992-1994 4 Spd Transaxle V6 2.8L
Audi 100 CS 1992-1994 2.8
Audi 100 CSQ 1992-1994 4 Spd Transaxle V6 2.8L
Audi 100 E 1989 2.3
Audi 100 GL 1972-1973 1.9
Audi 100 LS 1970-1977 1.8, 1.9
Audi 100 Quattro 1992-1994 4 Spd FWD V6 2.8L
Audi 100 S 1992-1994 4 Spd Transaxle V6 2.8L
Audi 100 S 1992-1994 2.8
Audi 200 1989-1997 4 Spd FWD V6 2.6L 2.8L
Audi 200 1989-1997 2.2, 2.6, 2.8
Audi 4000 1980-1986 1.6, 1.7, 1.8, 2.1, 2.2
Audi 5000 1978-1988 2.0, 2.1, 2.2, 2.3
Audi 90 CS 1993-1994 2.8
Audi A6 1995-1996 4 Spd FWD V6 2.8L
Audi A6 1994-1997 2.5, 2.6, 2.8
Audi A6 4 Spd FWD 5L 2.5L TDi
Audi A6 4 Spd FWD V6 2.6L, 2.8L, R5 2.2
Audi A6 Quattro 1995-1998 4 Spd AWD V6 2.8L
Audi A6, Avant 1994-1997 4 Spd FWD V6 2.5L 2.6L 2.8L
Audi A8 4 Spd FWD V6 2.8L
Audi A8 Quattro 4 Spd AWD V6 2.8L
Chrysler MONACO 1990-1992 4 Spd FWD V6 3.0L
Chrysler PREMIER/MONACO 1988-1992 4 Spd FWD V6 3.0L
Citroen XM 1989-1998 4 Spd FWD 2.0L, 3.0L
Dodge MONACO 1990-1992 4 Spd FWD V6 3.0L
Dodge Monaco 1988-1992 L4, V6 2.5, 3.0L
Dodge Monaco 1988-1992 2.5, 3.0
Dodge Monaco 1988-1991 4 Spd FWD V6 3.0L
Dodge PREMIER/MONACO 1988-1992 4 Spd FWD V6 3.0L
Eagle Eagle Premier 1988-1991 4 Spd FWD V6 3.0L
Eagle MONACO 1990-1992 4 Spd FWD V6 3.0L
EAGLE Premier 1988-1992 L4, V6 2.5, 3.0L
Eagle Premier 1988-1992 2.5, 3.0
Eagle PREMIER/MONACO 1988-1992 4 Spd FWD V6 3.0L
Fiat 2000 1987-1989 4 Spd FWD 2.0L
Fiat 2500 1987-1989 4 Spd FWD 2.5L
Fiat Croma 1989-1996 4 Spd FWD 20L
Lancia Chroma 1989-1994 4 Spd FWD 2.0L 8V, 2.0L 16V
Lancia Thema 1993-1998 4 Spd FWD V6 3.0L 12V
Lancia Thema 1989-1991 4 Spd FWD 2.0L, 2.5L TD
Lancia Thema 1989 4 Spd FWD 2.0L, V6 3.0L
Peugeot 605 1989-1999 4 Spd FWD 2.0L, 2.1D, 2.1TD, 3.0L
Plymouth MONACO 1990-1992 4 Spd FWD V6 3.0L
Plymouth PREMIER/MONACO 1988-1992 4 Spd FWD V6 3.0L
Porsche 944 1992-1994 3.0
Porsche 944 4 Spd 2WD 4Cyl 3.0L
Saab 900 1994-1998 2.0, 2.1
Saab 9000 1994-1998 4 Spd FWD V6 3.0L
Saab 9000 1986-1998 2.0, 2.3, 3.0
Saab 9000 1985-1997 4 Spd FWD 2.0L, 2.3L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

01F
1050.020
CMN
4HP18 FLA
1050 020
4HP18FLA
1050020
4-HP-18Q
1050 000
4HP18Q
4HP18 Q
4 HP 18
4 HP 18Q
1050.000
4-HP-18-Q
1050000
4HP18
4-HP-18
4 HP 18 Q
1050012
4HP18 FLE
4HP18FLE
1050.012
CMK
1050 012
4HP18FL
4HP18FL [1050 010 xxx]
4-HP-18QE
4 HP 18 QE
4HP18QE
4HP18 E
4 HP 18QE
1050004
1050.004
1050 004
4HP18 QE
4-HP-18-QE
4HP18E
ZF4HP18
ZF 4HP18
ZF 4HP 18
ZF 4HP 18E
ZF 4HP18E
ZF4HP18FLA
ZF4HP18-FLA
ZF4HP18FLE
ZH4HP18FLA
ZF4HP18FL
ZF4HP18Q
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Burnt Clutch Packages
Forward and 3-4 clutch packs commonly burn out, requiring friction replacement during overhaul.
!
Burnt Brake Bands
Brake bands deteriorate over time, typical failure mode reported in aged 4HP18 units.
!
Pump Bushing Wear
Pump bushing is a common replacement part; wear leads to fluid leakage and pressure loss.
!
Turbine Shaft Bushing Wear
Turbine shaft bushing commonly wears out, affecting torque transfer and internal fluid pressure.
!
Pump Compression Ring Damage
Vibrations cause compression ring on pump support to fail, compromising hydraulic circuit integrity.
!
Torque Converter Wear
Worn torque converter often found alongside pump bushing and seal failure; may require pump repair.
?
ATF Contamination Fluid Mixing
Mixing ATF fluids of different colors during partial changes accelerates internal seal and friction degradation.
!
Electrical Contact Decay
Decayed wiring insulation and corroded contacts cause electrical faults; repairable without removal.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission ZF 4HP18 (4HP18FLA Audi) was on SAAB 9000 (4HP18Q), Rover, Peugeout, Citroen. In 1989 this transmission was updated. Later, several more modifications were released. Presently, this transmission is mainly installed on FWD Audi 100 with engine capacity from 2.0 up to 3.0. Later this transmission was updated for AWD Audi 100 and Audi Quattro. ZF 4HP18 had been used on the abovementioned cars until 1994. This transmission competed with the legendary 097-01N transmission from Audi.The design of the 4HP18 unit became the foundation for the 5-speed 5HP18 and later for extremely popular 5HP19.

Technical issues and repair guidelines

The majority of 4HP18 repair cases accounts for the transmission modification for Audi. But about the fifth part of all repair operations is related to Saab, Alfa 164, Lancia, Citroen, which have a round filter.

This transmission successfully operates with different types of fluid (LT 71141 as well as with Dexron 2 or 3). Synthetic oil is more efficient, therefore analogs of Dexton III are often used when performing complete fluid change.It is required to keep the fluid clean by means of regular and partial ATF change to reach the mileage of 300-400 thousand kilometers before the first overhaul. It is prohibited to use fluids of different colors, when performing partial oil change.

The repair kit of gaskets and seals is usually ordered when performing reassembly of this transmission. Overhaul and Precision kits are also quite popular. All compression rings and rubber elements of all burnt packages also get replaced. It is common to replace frictions of Forward and 3-4 packs.

This transmission is handed in for repair (that happens quite rare) with the complaint, typical for old transmissions: burnt clutch packages and brake bands. Common parts for replacement in this transmission are pump bushing and turbine shaft bushing. Vibrations turn down the compression ring located on support of the pump.The “cosmetic” overhaul of this transmission with worn-out torque converter sometimes is limited to the pump repair and its bushing with the pump seal replacement. Minor repair operations of electrical parts (decayed isolation and contacts) are performed without transmission removal by owners themselves.
