ZF 4HP14 Transmission

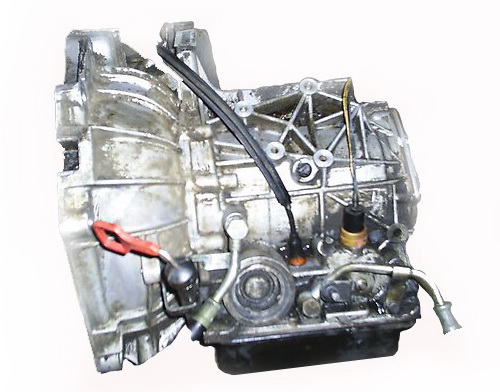

The 4-speed automatic transmission ZF 4HP14 found application on compact cars produced by Peugeot and Citroën, later it was installed on Daewoo models. This successful transmission also operated and on Volvo and Saab cars with engine capacity up to 2 liters. The main improvements in this transmission were implemented in 1986, and in 1989. Since then, the 4HP14 design hasn’t been seriously changed.

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 5,4
ATF change (L) 2,5
ATF type Dexron III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4HP14
6.9/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.8
Documentation depth10.0
Knowledge & support2.5

Exploded diagram & parts

Full 4HP14 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 181 181 · No. 2 750/318 750, 318 · No. 3 070 070 · No. 4 777 777 · No. 5 034 034 · No. 6 530 530 · No. 7 530 530 · No. 8 520 520 · No. 9 036 036 · No. 10 210 210 · No. 11 211 211 · No. 12 332 332 · No. 13 333 333 · No. 14 962 962 · No. 15 962 962 · No. 16 333 333 · No. 17 872 872 · No. 18 989 989 · No. 19 972 972 · No. 20 982 982 · No. 21 874 874 · No. 22 124/104 124, 104 · No. 23 144 144 · No. 24 873 873 · No. 25 020 020 · No. 26 572 572 · No. 27 220 220 · No. 28 988 988 · No. 29 221 221 · No. 30 663 663 · No. 31 32 32 · No. 32 652 652 · No. 33 34 34 · No. 34 662 662 · No. 35 046 046 · No. 36 778 778 · No. 37 556 556 · No. 38 337 337 · No. 39 336 336 · No. 40 966 966 · No. 41 966 966 · No. 42 976 976 · No. 43 986 986 · No. 44 45 45 · No. 45 130/110 130, 110 · No. 46 150 150 · No. 47 892 892 · No. 48 229 229 · No. 49 212 212 · No. 50 881 881 · No. 51 049 049 · No. 52 673 673 · No. 53 380 380 · No. 54 554 554 · No. 55 335 335 · No. 56 334 334 · No. 57 964 964 · No. 58 974 974 · No. 59 335 335 · No. 60 984 984 · No. 61 877 877 · No. 62 129 129 · No. 63 128/108 128, 108 · No. 64 148 148 · No. 65 876 876 · No. 66 232 232 · No. 67 550 550 · No. 68 177 177 · No. 69 038 038 · No. 70 331 331 · No. 71 330 330 · No. 72 960 960 · No. 73 970 970 · No. 74 970 970 · No. 75 862 862 · No. 76 77 77 · No. 77 120/100 120, 100 · No. 78 140 140 · No. 79 861 861 · No. 80 213 213 · No. 81 214 214 · No. 82 214/215 214, 215 · No. 83 570 570 · No. 84 216 216 · No. 85 217 217 · No. 86 218 218 · No. 87 050 050 · No. 88 574 574 · No. 89 234 234 · No. 90 235 235 · No. 91 236 236 · No. 92 624 624 · No. 93 614 614 · No. 94 584 584 · No. 95 182 182 · No. 96 250 250 · No. 97 251 251 · No. 98 252 252 · No. 99 594 594 · No. 100 062 062 · No. 101 678 678 · No. 102 254 254 · No. 103 889 889 · No. 104 626 626 · No. 105 885 885 · No. 106 154 154 · No. 107 134/114 134, 114 · No. 108 135 135 · No. 109 664 664 · No. 110 890 890 · No. 111 257 257 · No. 112 654 654 · No. 113 665 665 · No. 114 724 724 · No. 115 116 116 · No. 116 848 848 · No. 117 076 076 · No. 118 291 291 · No. 119 290 290 · No. 120 716 716 · No. 121 122 122 · No. 122 289 289 · No. 123 288 288 · No. 124 077 077 · No. 125 280 280 · No. 126 281 281 · No. 127 712 712 · No. 128 796 796 · No. 129 786 786 · No. 130 730 730 · No. 131 273 273 · No. 132 735 735 · No. 133 736 736 · No. 134 680 680 · No. 135 689 689 · No. 136 685 685 · No. 137 189 189 · No. 138 265 265 · No. 139 260 260 · No. 140 893 893 · No. 141 970 970 · No. 142 967 967 · No. 143 339 339 · No. 144 338 338 · No. 145 760 760 · No. 146 264 264 · No. 147 797 797 · No. 148 278 278 · No. 149 279 279 · No. 150 710 710 · No. 151 795 795 · No. 152 304/759 304, 759 · No. 153 998/996 998, 996 · No. 154 010 010 · No. 155 379 379 · No. 156 495/326 495, 326 · No. 157 158 158 · No. 158 159 159 · No. 159 160 160 · No. 160 161 161 · No. 161 162 162 · No. 162 163 163 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 167 167 · No. 167 168 168 · No. 168 169 169 · No. 169 903-1 +6 903-1, 902, 365, 904, 903, 366, 901 · No. 170 740 740 · No. 171 300/765 300, 765 · No. 172 173 173 · No. 173

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4HP14 in the Go4Trans marketplace.
Sell 4HP14 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

27 applications · 9 makes · 1982–2016 Peugeot 6 · Citroen 4 · Chevrolet 3 · Daewoo 3 · GMC 3

Make Model Year Drive Engine
Austin Montego 1986-1995 4 Spd FWD 2.0L
Chevrolet AVEO 2004-2016 4 Spd FWD L4 1.6L
Chevrolet LANOS 2005-2009 4 Spd FWD L4 1.4/1.5/1.6L
Chevrolet VIVA 2011 4 Spd FWD L4 1.6L
Citroen BX 1982-1994 4 Spd FWD 1.6L, 1.9L
Citroen Xantia 1994-1995 4 Spd FWD L4 2.0L
Citroen Xantia 1993-1998 4 Spd FWD 1.6L, 1.8L, 2.0L
Citroen ZX 1991-1998 4 Spd FWD 1.8L
Daewoo LANOS II 2000-2006 4 Spd FWD L4 1.4/1.5/1.6L
Daewoo Leganza 1996-2002 4 Spd FWD 1.8L, 2.0L
Daewoo Nubira 1996-1997 4 Spd FWD 1.5L, 1.8L
Fiat PALIO 2004-2007 4 Spd FWD L4 1.5L
Fiat SIENA 2004-2008 4 Spd FWD L4 1.5L
Geo AVEO 2004-2016 4 Spd FWD L4 1.6L
Geo LANOS 2005-2009 4 Spd FWD L4 1.4/1.5/1.6L
Geo VIVA 2011 4 Spd FWD L4 1.6L
GMC AVEO 2004-2016 4 Spd FWD L4 1.6L
GMC LANOS 2005-2009 4 Spd FWD L4 1.4/1.5/1.6L
GMC VIVA 2011 4 Spd FWD L4 1.6L
Peugeot 205 1983-1995 4 Spd FWD 1.1L, 1.4L, 1.6L, 1.8LD
Peugeot 205 4 Spd FWD L4 1.6L
Peugeot 305 1985-1991 4 Spd FWD 1.3L, 1.5L, 1.9LD
Peugeot 306 1993-2001 4 Spd FWD 1.8L, 2.0L
Peugeot 309 1987-1996 4 Spd FWD 1.9L
Peugeot 405 1987-1997 4 Spd FWD 1.6L, 1.8L, 1.9L
Rover 216 4 Spd FWD 1.6L
Rover 820 4 Spd FWD 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

4HP14
4 HP 14
1036 000
1036000
1036.000
4-HP-14
ZF 4HP-14
ZF 4HP 14
ZF 4HP14
ZF4HP14
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
ATF and filter degradation
ATF (Dexron III/VI) and filter require replacement every 100k km to maintain transmission health.
!
Forward pack friction wear
Friction clutches in the Forward pack are the most commonly worn components requiring overhaul.
!
Pump and turbine shaft bushing failure
Pump bushing and turbine shaft bushing burn out due to vibrations and overheating from worn torque converter.
!
Torque converter overheating
Worn torque converter causes overheating and vibrations, leading to bushing and seal damage.
!
Brake band wear
Brake band is a commonly ordered replacement part during transmission overhaul.
!
Seal deterioration and leaks
Gaskets and seals degrade over time; full overhaul kit replacement recommended during rebuild.
!
Valve body contamination
Valve body requires cleaning during overhaul to restore proper gear shifting performance.
?
Friction wear without burning
Friction discs wear out gradually rather than burning; steel discs less frequently need replacement.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission ZF 4HP14 found application on compact cars produced by Peugeot and Citroën, later it was installed on Daewoo models. This successful transmission also operated and on Volvo and Saab cars with engine capacity up to 2 liters. The main improvements in this transmission were implemented in 1986, and in 1989. Since then, the 4HP14 design hasn’t been seriously changed.

Technical issues and repair guidelines

The main maintenance requirement for this transmission during many years of reliable service is timely ATF change (Dexron III or Dexron VI) and fiilter replacement every 100 thousand kilometers. The torque converter unit of this transmission easily operates for 200 thousand kilometers without any repair. There is no much information related to the repair of hard parts of the ZF 4HP14 unit to draw some patterns, because this transmission operates properly for a long time and the car gets too old before the first transmission overhaul.

The most popular parts ordered for the overhaul of this transmission are the following:

- filter

- Repair kit of gaskets and seals (Overhaul Kit),

- brake band

- pump bushing (or turbine shaft bushing) and friction clutches

In most cases, repair specialists have to repair frictions in the Forward pack and steel discs. The kit of steel discs is ordered not so often for repair, because friction components wear out rather than get burnt.Seal, pump, and turbine shaft bushing are the first to get burnt because of vibrations and overheating of the worn-out torque converter.

In all other respects, this transmission is quite simple and almost problem-free. After the valve body cleaning, the torque converter reassembly, and proper repair this gear shifting unit becomes extremely robust.
