Home / Transmissions / Toyota / U760E
Toyota Source-verified model

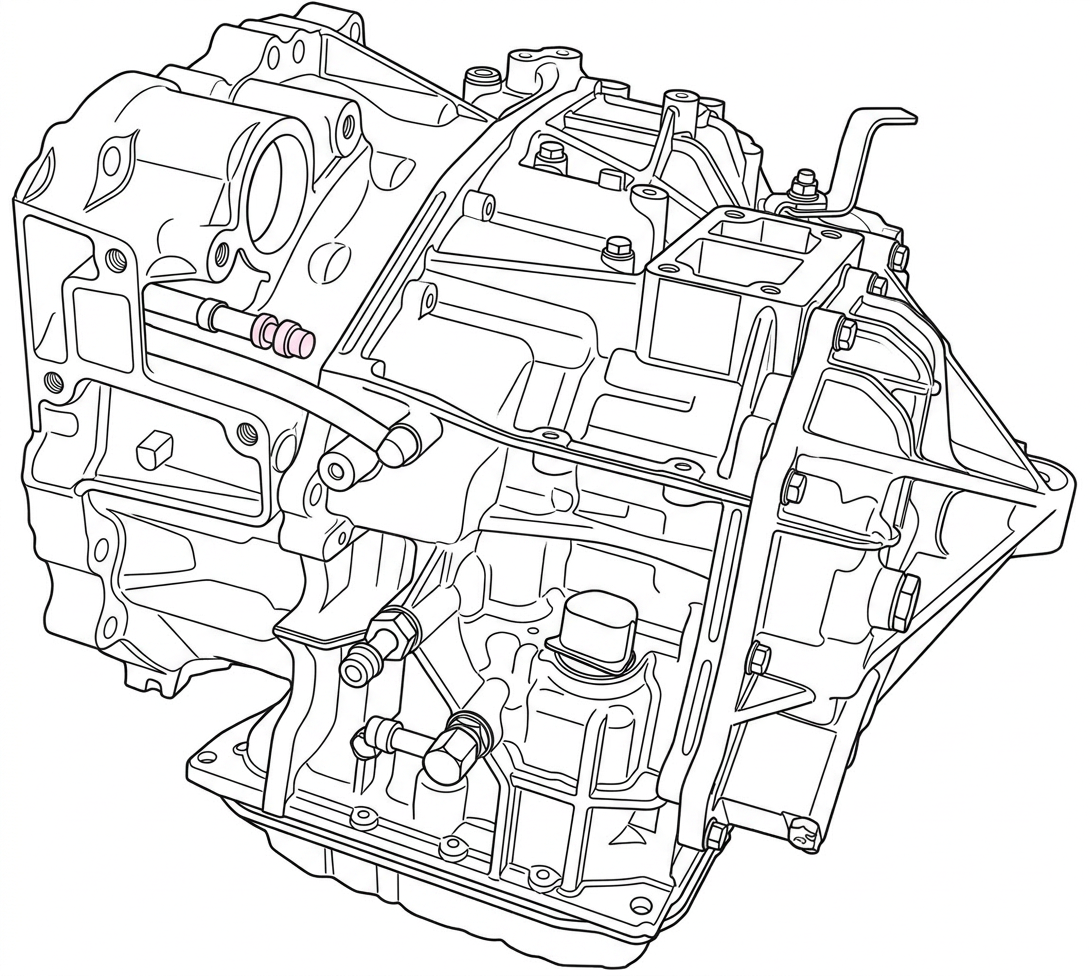

Toyota U760E Transmission

Type Automatic
ATF type Toyota WS
ATF capacity (L) 10.9 L
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

U760E
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

7resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full U660E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

277 277 · No. 1 273 273 · No. 2 274 274 · No. 3 730 730 · No. 4 281 281 · No. 5 280 280 · No. 6 864 864 · No. 7 865 865 · No. 8 616 616 · No. 9 670 670 · No. 10 177 177 · No. 11 214 214 · No. 12 215 215 · No. 13 571 571 · No. 14 867 867 · No. 15 888 888 · No. 16 042 042 · No. 17 586 586 · No. 18 056 056 · No. 19 614 614 · No. 20 056 056 · No. 21 217 217 · No. 22 218 218 · No. 23 596 596 · No. 24 076 076 · No. 25 750 750 · No. 26 999 999 · No. 27 999-6 999-6 · No. 28 776 776 · No. 29 293 293 · No. 30 291 291 · No. 31 292 292 · No. 32 716 716 · No. 33 720 720 · No. 34 786 786 · No. 35 289 289 · No. 36 288 288 · No. 37 132/112 132, 112 · No. 38 152 152 · No. 39 870 870 · No. 40 222 222 · No. 41 223 223 · No. 42 795 795 · No. 43 710 710 · No. 44 862 862 · No. 45 989 989 · No. 46 969 969 · No. 47 278 278 · No. 48 279 279 · No. 49 070 070 · No. 50 034 034 · No. 51 311 311 · No. 52 510 510 · No. 53 530 530 · No. 54 036 036 · No. 55 520 520 · No. 56 209 209 · No. 57 212 212 · No. 58 328/329 328, 329 · No. 59 961 961 · No. 60 61 61 · No. 61 981 981 · No. 62 122/102 122, 102 · No. 63 142 142 · No. 64 077 077 · No. 65 778 778 · No. 66 787 787 · No. 67 778-1 778-1 · No. 68 69 69 · No. 69 760 760 · No. 70 279 279 · No. 71 278 278 · No. 72 338/339 338, 339 · No. 73 967 967 · No. 74 987 987 · No. 75 893 893 · No. 76 134/114 134, 114 · No. 77 154 154 · No. 78 885 885 · No. 79 584 584 · No. 80 247 247 · No. 81 594 594 · No. 82 604 604 · No. 83 889 889 · No. 84 654/665 654, 665 · No. 85 892 892 · No. 86 548 548 · No. 87 126/106 126, 106 · No. 88 146 146 · No. 89 996-1 996-1 · No. 90 378 378 · No. 91 996 996 · No. 92 378 378 · No. 93 490 490 · No. 94 347 347 · No. 95 992 992 · No. 96 444-1 444-1 · No. 97 444 444 · No. 98 438 438 · No. 99 379 379 · No. 100 410 410 · No. 101 072 072 · No. 102 876 876 · No. 103 876 876 · No. 104 148 148 · No. 105 128/108 128, 108 · No. 106 253 253 · No. 107 057 057 · No. 108 574 574 · No. 109 057 057 · No. 110 254 254 · No. 111 255 255 · No. 112 877 877 · No. 113 984 984 · No. 114 974 974 · No. 115 964 964 · No. 116 555 555 · No. 117 118 118 · No. 118 119 119 · No. 119 010 +2 010, 300, 765 · No. 120 991-6 991-6 · No. 121 740 740 · No. 122 123 123 · No. 123 446 446 · No. 124 991-4 991-4 · No. 125 965 965 · No. 126 975 975 · No. 127 985 985 · No. 128 879 879 · No. 129 878 878 · No. 130 228 228 · No. 131 229 229 · No. 132 697 697 · No. 133 179 179 · No. 134 179 179 · No. 135 233 233 · No. 136 759 759 · No. 137 388 388 · No. 138 493 493 · No. 139 437 437 · No. 140 782 782 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 492 492 · No. 147 995-5 995-5 · No. 148 994-7 994-7 · No. 149 995-2 995-2 · No. 150 995-1 995-1 · No. 151 995-3 995-3 · No. 152 995-4 995-4 · No. 153 991-5 991-5 · No. 154 991-1 991-1 · No. 155 156 156 · No. 156 991-8 991-8 · No. 157 991-3 991-3 · No. 158 991-2 991-2 · No. 159 991-9 991-9 · No. 160 994-6 994-6 · No. 161 994 994 · No. 162

Parts categories

View all parts →
Kits
Kits
16 parts
Valve body & solenoids
Valve body & solenoids
10 parts
Electrical
Electrical
4 parts
Filters & pans
Filters & pans
2 parts
Seals & gaskets
Seals & gaskets
15 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
34 parts
Pump
Pump
3 parts
Friction & steel
Friction & steel
23 parts
Planetary & hard parts
Planetary & hard parts
18 parts
Hardware & other
Hardware & other
39 parts
Sell U760E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

14 applications · 3 makes · 2008–2017 Toyota 11 · Lexus 2 · Scion 1

Make Model Year Drive Engine
Lexus ES 2012-2014 6 Spd FWD L4 2.5L
Lexus RX 2010-2012 6 Spd FWD L4 2.7L
Scion tC 2011-2016 2.5
Toyota Camry 2009-2017 2.4, 2.5
Toyota Camry 2009-2016 6 Spd F/AWD L4 2.4L/2.5L
Toyota Harrier 2013-2014 6 Spd F/AWD L4 2.5L
Toyota Highlander 2009-2016 6 Spd F/AWD L4 2.7L
Toyota Highlander 2008-2017 2.7
Toyota Rav4 2013-2017 2.5
Toyota Rav4 2011-2016 6 Spd F/AWD L4 2.0L 2.2L 2.5L
Toyota Sienna 2010-2013 2.7
Toyota Vanguard 2011 6 Spd F/4WD L4 2.7L
Toyota Vanguard 2011 2.7
Toyota Venza 2008-2015 2.7

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

?
Torque converter lock-up shudder
A brief, intermittent shudder occurs during light-throttle torque-converter flex lock-up, typically between about 25-50 mph, most noticeable before an upshift.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
manual
T-SB-0036-13 Rev2: WS ATF Level Adjustment for U660E/F & U760E/F Transmissions
—
View →
other
U660E/U760E Remanufactured Transmission Fluid Fill Procedure
—
View →
manual
T-SB-0034-14 Rev2: Torque Converter Flex Lock-up Shudder
—
View →
link
Gears Magazine: Toyota's Aging Front Wheel Drive Six Speeds - Common Issues with the…
—
View →
manual
ATRA Technical Bulletin #1660: Erratic Shift Concerns, Solenoid Performance Codes and…
—
View →
manual
Toyota U660/760E TechTran Manual
—
View →
link
Sonnax Toyota/Lexus U660E/F, U760E/F Valve Body Layout
—
View →
