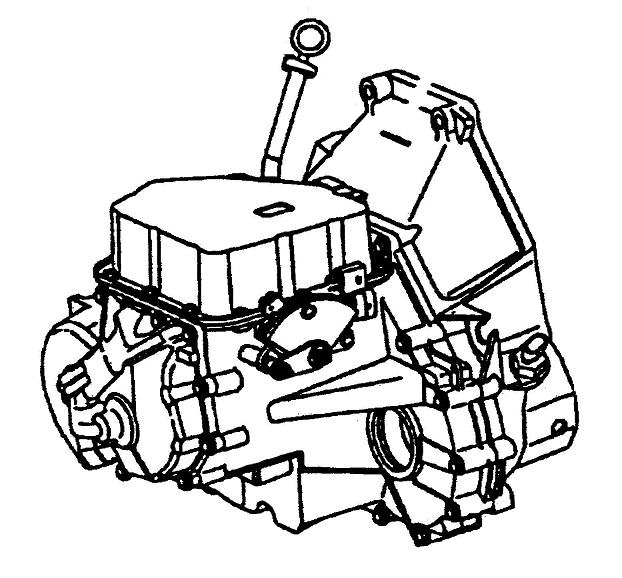

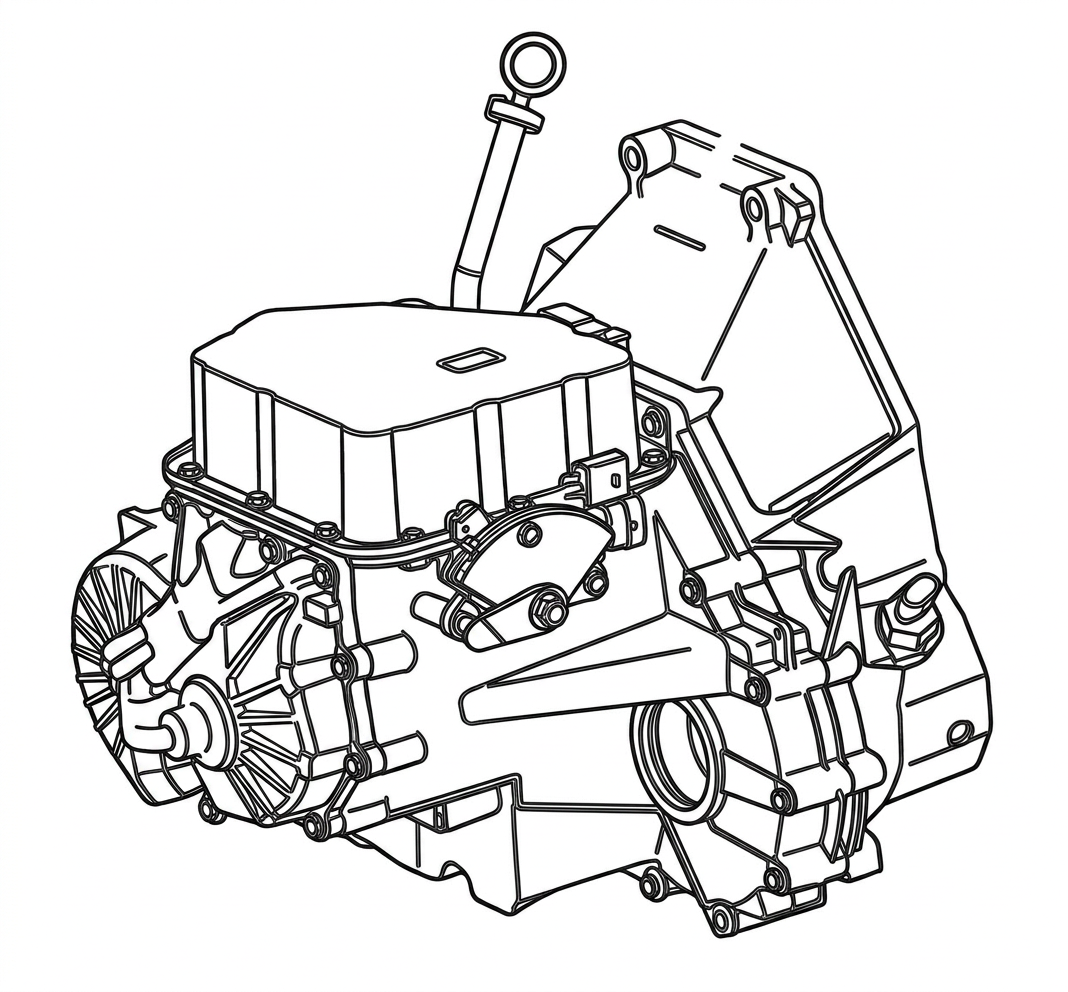

General Motors TAAT Transmission

TAAT automatic gearbox was released in 1991 by Saturn LLC. This type of gearbox was mainly used in 1991-UP Saturn S-Series. In terms of design TAAT is a parallel shaft FWD unit with the drive gear. TAAT has 4 forward gears and 1 reverse gear by means of multidisc clutches, 4-element torque converter with a lock-up clutch, 1-st sprag-type clutch, and a tooth clutch activated by a servo unit.

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 6,2
ATF change (L) 4,2-5,2
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
TAAT
6.2/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.1
Documentation depth10.0
Knowledge & support5.8

Exploded diagram & parts

Full TAAT parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

870 870 · No. 1 070 070 · No. 2 870 870 · No. 3 211 211 · No. 4 750 750 · No. 5 544 544 · No. 6 530 530 · No. 7 530 530 · No. 8 530 530 · No. 9 380 380 · No. 10 529 529 · No. 11 880 880 · No. 12 13 13 · No. 13 381 381 · No. 14 214 214 · No. 15 177 177 · No. 16 672 672 · No. 17 178 178 · No. 18 047 047 · No. 19 217 217 · No. 20 806 806 · No. 21 223 223 · No. 22 220 220 · No. 23 226 226 · No. 24 140/861* 140, 861* · No. 25 120/100 120, 100 · No. 26 141 141 · No. 27 862 862 · No. 28 972 972 · No. 29 962 962 · No. 30 010 010 · No. 31 332 332 · No. 32 333 333 · No. 33 552 552 · No. 34 333 333 · No. 35 332 332 · No. 36 962 962 · No. 37 972 972 · No. 38 862 862 · No. 39 141 141 · No. 40 120/100 120, 100 · No. 41 140 140 · No. 42 861* 861* · No. 43 229 229 · No. 44 232 232 · No. 45 234 234 · No. 46 236 236 · No. 47 803 803 · No. 48 238 238 · No. 49 241 241 · No. 50 881 881 · No. 51 243 243 · No. 52 800 800 · No. 53 247 247 · No. 54 248 248 · No. 55 251 251 · No. 56 252 252 · No. 57 861* 861* · No. 58 140 140 · No. 59 120/100 120, 100 · No. 60 141 141 · No. 61 877 877 · No. 62 974 974 · No. 63 964 964 · No. 64 334 334 · No. 65 335 335 · No. 66 554 554 · No. 67 795 795 · No. 68 254 254 · No. 69 178 178 · No. 70 676 676 · No. 71 052 052 · No. 72 550 550 · No. 73 332 332 · No. 74 333 333 · No. 75 962 962 · No. 76 972 972 · No. 77 862 862 · No. 78 141 141 · No. 79 120/100 120, 100 · No. 80 140 140 · No. 81 861* 861* · No. 82 256 256 · No. 83 257 257 · No. 84 260 260 · No. 85 810 810 · No. 86 257 257 · No. 87 887 887 · No. 88 89 89 · No. 89 807 807 · No. 90 267 267 · No. 91 269 269 · No. 92 804 804 · No. 93 270 270 · No. 94 268 268 · No. 95 830 830 · No. 96 835 835 · No. 97 816 816 · No. 98 272 272 · No. 99 271 271 · No. 100 273 273 · No. 101 274 274 · No. 102 888 888 · No. 103 662 662 · No. 104 285 285 · No. 105 281 281 · No. 106 652 652 · No. 107 801 801 · No. 108 208 208 · No. 109 796 796 · No. 110 494 494 · No. 111 493 493 · No. 112 789 789 · No. 113 767/302 767, 302 · No. 114 912 +2 912, 911, 195 · No. 115 914/364 914, 364 · No. 116 840 840 · No. 117 818 818 · No. 118 283 283 · No. 119 374 374 · No. 120 819 819 · No. 121 374 374 · No. 122 820 820 · No. 123 371 371 · No. 124 125 125 · No. 125 760/318 760, 318 · No. 126 992 992 · No. 127 072 072 · No. 128 129 129 · No. 129 130 130 · No. 130 131 131 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 304/759 304, 759 · No. 135 136 136 · No. 136 991-7 991-7 · No. 137 077 077 · No. 138 289 289 · No. 139 716 716 · No. 140 289 289 · No. 141 898 898 · No. 142 076 076 · No. 143 899 899 · No. 144 410 410 · No. 145 146 146 · No. 146 013 013 · No. 147 995 995 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to TAAT in the Go4Trans marketplace.
Sell TAAT parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

14 applications · 1 make · 1991–2003 Saturn 14

Make Model Year Drive Engine
Saturn LS 2000-2002 2.2, 3.0
Saturn LW1 2000-2002 2.2
Saturn LW2 2000-2002 3.0
Saturn S-Series 1995-2003 4 Spd FWD L4 1.9L
Saturn S-Series 1991-2002 4 Spd FWD L4 1.9L
Saturn SC 1991-1992 1.9
Saturn SC1 1993-2002 1.9
Saturn SC2 1993-2002 1.9
Saturn SL 1991-2002 1.9
Saturn SL1 1991-2002 1.9
Saturn SL2 1991-2002 1.9
Saturn SW1 1993-1999 1.9
Saturn SW2 1993-2001 1.9
Saturn SWP 2000-2001 1.9

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

TAAT
Saturn Taat
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Valve Body Internal Wear
Most problematic component in TAAT; causes delays, slippages, kicks, and loss of Reverse gear.
?
Delay or No Reverse
Reverse engagement delayed or absent; multiple root causes including valve body, shaft nut, sensor, or switch.
?
Gear Shift Slippage
Slipping during gear changes, likely linked to valve body malfunction in TAAT transmission.
!
Loose Main Shaft Nut
Loose-fitting main shaft nut can cause delayed or no Reverse condition in TAAT gearbox.
?
Harsh Shift Kicks
Abrupt or harsh engagement kicks during shifting attributed to valve body issues.
!
Malfunctioning Vehicle Speed Sensor
Faulty car speed sensor disrupts electronic control and can result in no-Reverse condition.
!
Pattern Select Switch Misadjustment
Incorrect adjustment of the pattern select switch leads to no-Reverse or incorrect gear selection.
!
Solenoid Failure Electronic Control
One or more of 5 solenoids may fail, disrupting shift timing, shift feel, and OBD diagnostics.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

TAAT automatic gearbox was released in 1991 by Saturn LLC. This type of gearbox was mainly used in 1991-UP Saturn S-Series. In terms of design TAAT is a parallel shaft FWD unit with the drive gear. TAAT has 4 forward gears and 1 reverse gear by means of multidisc clutches, 4-element torque converter with a lock-up clutch, 1-st sprag-type clutch, and a tooth clutch activated by a servo unit.

Technical issues and repair guidelines

One of the main peculiarities of this transmission in comparison with common automatic gearboxes lies in the electronic control. This gearbox uses 5 solenoids together with the transmission control module and its sensors to control shift timing, shift feel, and give on board diagnostics.

Repair specialists say that the valve body is the most problematic component in TAAT. Delays, slippages, kicks or lack of Reverse during gear-shifting are likely to be caused by valve body issues. However, there are several other sources of a Reverse problem:

1. Delay or no Reverse may be caused by the loose-fitting main shaft nut

2. Malfunctioning car speed sensor may also lead to no-Reverse condition.

3. Wrong adjustment of the pattern select switch
