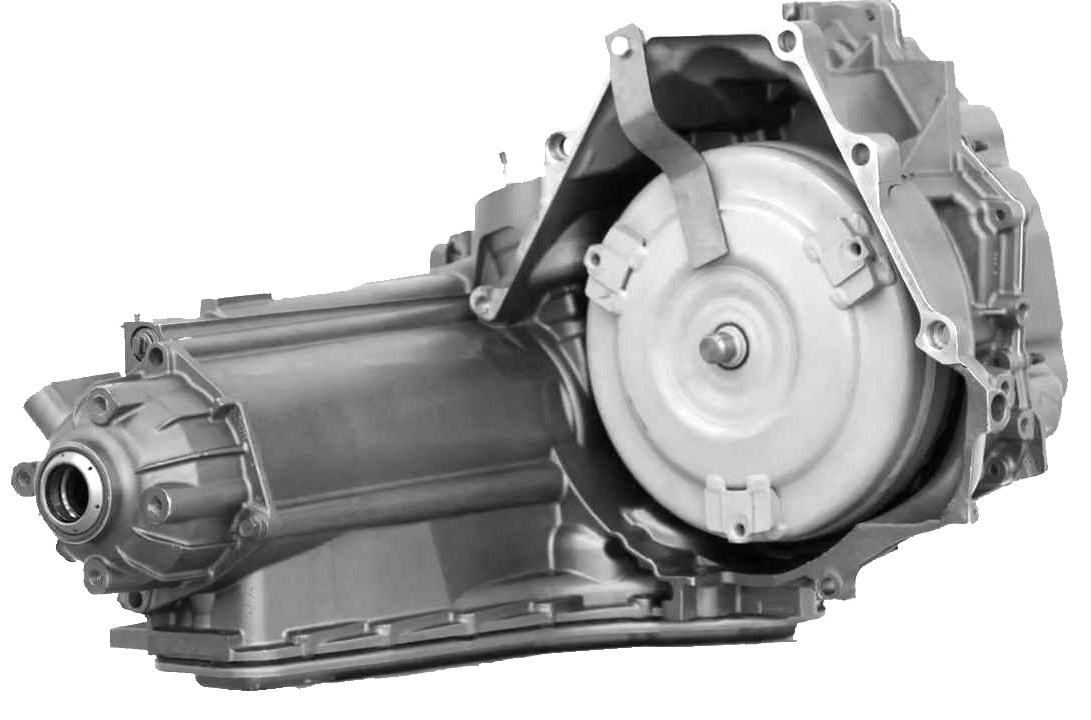

General Motors 4T65E Transmission

The 4-speed 4T65E was designed on the basis of the 4T60 transmission. In 1991, this gearbox was modified for FWD vehicles with engines (2-4 lit.). After testing, this transmission has been supplied to the market since 1993. The 4T60E was modified in 1993 and renamed as 4T65E. This gearbox is a robust product of GM, which properly operates for the first 5-7 years of service. The 440-T4 has been operating since 1983 on Cadillac named as 4T60, and considered to be quite convenient and repairable. Heavy duty (HD) modification is able to work in couple with 440 Nm engines.

Speeds 4
Type AT
Drive FWD/AWD
Max torque 380
ATF capacity (L) 12,7
ATF change (L) 7
ATF type Dexron VI
Layout Transverse
Weight 87.9 kg
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4T65E
9.1/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence9.3
Documentation depth10.0
Knowledge & support9.5

Exploded diagram & parts

Full 4T65E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

788 788 · No. 1 535 535 · No. 2 413 413 · No. 3 412 412 · No. 4 012 012 · No. 5 421 421 · No. 6 438 438 · No. 7 938 +3 938, 936B, 937, 354 · No. 8 939 939 · No. 9 947948 +2 947948, 946, 192 · No. 10 766/301 766, 301 · No. 11 520 520 · No. 12 539 539 · No. 13 538 538 · No. 14 532 532 · No. 15 533 533 · No. 16 538 538 · No. 17 205 205 · No. 18 176 176 · No. 19 313 313 · No. 20 534 534 · No. 21 510 510 · No. 22 740 740 · No. 23 421 421 · No. 24 320 +2 320, 321, 747 · No. 25 755 +2 755, 325B, 325 · No. 26 943 +3 943, 350, 942, 941 · No. 27 671/755S 671, 755S · No. 28 278 278 · No. 29 845 845 · No. 30 880 880 · No. 31 705 705 · No. 32 279 279 · No. 33 673 673 · No. 34 295 295 · No. 35 529 529 · No. 36 032 032 · No. 37 536 536 · No. 38 537 537 · No. 39 441 441 · No. 40 442 442 · No. 41 418 418 · No. 42 209 209 · No. 43 077 077 · No. 44 275 275 · No. 45 700 700 · No. 46 301 301 · No. 47 678 678 · No. 48 895 895 · No. 49 425 425 · No. 50 699 699 · No. 51 120/100 120, 100 · No. 52 140 140 · No. 53 217 217 · No. 54 220 220 · No. 55 570 570 · No. 56 280 280 · No. 57 706 706 · No. 58 281 281 · No. 59 862 862 · No. 60 970 970 · No. 61 960 960 · No. 62 331 331 · No. 63 330 330 · No. 64 997-7 997-7 · No. 65 997 997 · No. 66 998/322 998, 322 · No. 67 179E 179E · No. 68 179 179 · No. 69 177 177 · No. 70 702 702 · No. 71 298 298 · No. 72 713 713 · No. 73 045 045 · No. 74 226 226 · No. 75 024 024 · No. 76 046B 046B · No. 77 552 552 · No. 78 046 046 · No. 79 332/333 332, 333 · No. 80 962 962 · No. 81 972 972 · No. 82 874 874 · No. 83 145 145 · No. 84 125 125 · No. 85 124/104 124, 104 · No. 86 144 144 · No. 87 873 873 · No. 88 229 229 · No. 89 230* 230* · No. 90 048 048 · No. 91 554/233 554, 233 · No. 92 232 232 · No. 93 335 335 · No. 94 334 334 · No. 95 964 964 · No. 96 974 974 · No. 97 877 877 · No. 98 337 337 · No. 99 336 336 · No. 100 965 965 · No. 101 975 975 · No. 102 879 879 · No. 103 127 127 · No. 104 126/106 126, 106 · No. 105 146 146 · No. 106 878 878 · No. 107 129/149 129, 149 · No. 108 128/108 128, 108 · No. 109 148 148 · No. 110 876 876 · No. 111 881 881 · No. 112 694 694 · No. 113 656 656 · No. 114 656 656 · No. 115 656 656 · No. 116 667 667 · No. 117 669 669 · No. 118 658 658 · No. 119 658 658 · No. 120 658 658 · No. 121 668 668 · No. 122 619 619 · No. 123 612 612 · No. 124 241 241 · No. 125 624 624 · No. 126 053 053 · No. 127 582 582 · No. 128 237 237 · No. 129 698 698 · No. 130 238 238 · No. 131 584 584 · No. 132 251 251 · No. 133 056 056 · No. 134 558 558 · No. 135 056 056 · No. 136 026 026 · No. 137 652 652 · No. 138 664 664 · No. 139 286 286 · No. 140 559 559 · No. 141 061 061 · No. 142 022 022 · No. 143 914 +3 914, 896, 364, 897 · No. 144 410 410 · No. 145 843 843 · No. 146 674 674 · No. 147 257* 257* · No. 148 889 889 · No. 149 150 150 · No. 150 151 151 · No. 151 598 598 · No. 152 254 254 · No. 153 690 690 · No. 154 255 255 · No. 155 618 618 · No. 156 247 247 · No. 157 888 888 · No. 158 716 716 · No. 159 683 683 · No. 160 293* 293* · No. 161 292 292 · No. 162 911-5 +3 911-5, 363, 911B, 912 · No. 163 072 072 · No. 164 070 070 · No. 165 031 031 · No. 166 436 436 · No. 167 494 494 · No. 168 493 493 · No. 169 383 383 · No. 170 383 383 · No. 171 446 446 · No. 172 078 078 · No. 173 774/369 774, 369 · No. 174 848 848 · No. 175 686/345 686, 345 · No. 176 177 177 · No. 177 911 911 · No. 178 906 +6 906, 908, 903-5, 906B, 906-5, 760, 907 · No. 179 348 348 · No. 180 060 060 · No. 181 770 770 · No. 182 370 370 · No. 183 076 076 · No. 184 697 697 · No. 185 371 371 · No. 186 999 999 · No. 187 999-2 999-2 · No. 188 931B +5 931B, 931, 933, 932, 929, 352 · No. 189 928 +3 928, 927, 352, 926 · No. 190 191 191 · No. 191 265 265 · No. 192 680 680 · No. 193 847 847 · No. 194 913 913 · No. 195 901 +2 901, 366, 904 · No. 196 017 017 · No. 197 991-2 991-2 · No. 198 991-4 991-4 · No. 199 994 994 · No. 200 308 +2 308, 934, 746 · No. 201 306 306 · No. 202 364/909 364, 909 · No. 203 903/901-5 903, 901-5 · No. 204 902 +3 902, 365, 901-5, 901B · No. 205 206 206 · No. 206 379/010 379, 010 · No. 207 362 362 · No. 208 189 189 · No. 209 368 368 · No. 210 444 444 · No. 211 163 163 · No. 212 160 160 · No. 213 781 781 · No. 214 985 985 · No. 215

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4T65E in the Go4Trans marketplace.
Sell 4T65E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

164 applications · 8 makes · 1995–2019 Buick 50 · Pontiac 34 · Chevrolet 29 · Oldsmobile 15 · GMC 13

Make Model Year Drive Engine
Buick Allure 2005-2010 3.0, 3.6, 3.8, 5.3
Buick Allure 2005-2006 4 Spd FWD V6 3.6L 3.8L
Buick Century 2003-2005 V6 3.1L
Buick Century 2003-2005 3.1
Buick Century 2000-2005 4 Spd FWD V6 3.1L
Buick Century 2000-2004 4 Spd FWD V6 2.5L/ 3.1L
Buick Century 2000-2002 V6 3.1L
Buick Century 2000-2002 3.1
Buick GL8 2000-2010 4 Spd FWD V6 2.5/3.0L
Buick LaCrosse 2006-2009 4 Spd FWD L4 2.4L V6 3.0L
Buick LaCrosse 2005-2010 V6, V8 3.0, 3.6, 3.8, 5.3L
Buick LaCrosse 2005-2010 3.0, 3.6, 3.8, 5.3
Buick LaCrosse 2005-2007 4 Spd FWD V6 3.6L 3.8L
Buick LACROSSE/ALLURE 2004-2009 4 Spd FWD L4 2.4L V6 3.6L/3.8L
Buick Lesabre 2003-2005 V6 3.8L
Buick Lesabre 2003-2005 3.8
Buick Lesabre 1998-2005 4 Spd FWD V6 3.8L
Buick Lesabre 1998-2004 4 Spd FWD V6 3.8L
Buick Lesabre 1998-2002 V6 3.8L
Buick Lesabre 1998-2002 3.8
Buick Lucerne 2006-2011 3.8, 3.9
Buick Lucerne 2006-2010 V6 3.8, 3.9L
Buick Lucerne 2006-2007 4 Spd FWD V6 3.8L
Buick Lucerne 2005-2011 4 Spd FWD V6 3.8L
Buick Park Ave., Ultra 4 Spd FWD V6 3.8L 3.8L SC
Buick Park Avenue 2003-2005 V6 3.8L
Buick Park Avenue 2003-2005 3.8
Buick Park Avenue 1997-2002 V6 3.8L
Buick Park Avenue 1997-2002 3.8
Buick PARK AVENUE/ULTRA 1997-2004 4 Spd FWD V6 3.8L/3.8L SC
Buick Regal 2003-2008 4 Spd FWD L4 2.4L V6 2.5/3.0L
Buick Regal 2003-2004 V6 3.8L
Buick Regal 2003-2004 3.8
Buick Regal 1998-2004 4 Spd FWD V6 3.8L/3.8L SC
Buick Regal 1997-2004 4 Spd FWD V6 3.8L 3.8L SC
Buick Regal 1997-2004 4 Spd FWD V6 3.8L SC
Buick Regal 1997-2002 V6 3.8L
Buick Regal 1997-2002 3.8
Buick Rendezvous 2003-2007 V6 3.4, 3.5, 3.6L
Buick Rendezvous 2003-2007 3.4, 3.5, 3.6
Buick Rendezvous 2002-2007 4 Spd FWD/AWD V6 3.4L 3.5L 3.6L
Buick Rendezvous 2002 V6 3.4L
Buick Rendezvous 2002 3.4
Buick RENDEZVOUS APV 2002-2007 4 Spd FWD/AWD V6 3.4L/3.5L/3.6L
Buick Riviera 1997-1999 4 Spd FWD V6 3.8L
Buick Riviera 1997-1999 V6 3.8L
Buick Riviera 1997-1999 3.8
Buick Terraza 2005-2007 4 Spd FWD/AWD V6 3.5L/3.9L
Buick Terraza 2005-2007 V6 3.5, 3.9L
Buick Terraza 2005-2007 3.5, 3.9
Chevrolet Impala 2003-2011 3.4, 3.5, 3.8, 3.9, 5.3
Chevrolet Impala 2003-2010 V6, V8 3.4, 3.5, 3.8, 3.9, 5.3L
Chevrolet Impala 2000-2007 4 Spd FWD V6 3.8L SC V8 5.3L
Chevrolet Impala 2000-2002 V6 3.4, 3.8L
Chevrolet Impala 2000-2002 3.4, 3.8
Chevrolet Lumina 1997-2001 3.4, 3.8
Chevrolet Lumina(Car) 1997-2000 V6 3.4, 3.8L
Chevrolet LUMINA/MONTE CARLO 2000-2001 4 Spd FWD V6 3.1L
Chevrolet LUMINA/MONTE CARLO 1997-2001 4 Spd FWD V6 3.4L/3.8L/3.8L SC
Chevrolet MALIBU SS/MALIBU MAXX 2006-2007 4 Spd FWD V6 3.9L
Chevrolet Malibu SS/Malibu Maxx SS 2006-2007 4 Spd FWD V6 3.9L
Chevrolet Monte Carlo 2003-2007 V6, V8 3.4, 3.8, 3.9, 5.3L
Chevrolet Monte Carlo 2003-2007 3.4, 3.8, 3.9, 5.3
Chevrolet Monte Carlo 2001-2007 4 Spd FWD V6 3.5L 3.9L; V8 5.3L
Chevrolet MONTE CARLO 1997-2007 4 Spd FWD V8 5.3L
Chevrolet Monte Carlo 1997-2005 4 Spd FWD V6 3.4L 3.8L
Chevrolet Monte Carlo 1997-2005 4 Spd FWD V6 3.8L (W/S.C.)
Chevrolet Monte Carlo 1997-2002 V6 3.4, 3.8L
Chevrolet Monte Carlo 1997-2002 3.4, 3.8
Chevrolet Uplander 2005-2009 V6 3.5, 3.9L
Chevrolet Uplander 2005-2007 4 Spd FWD/AWD V6 3.5L/3.9L
Chevrolet UPLANDER 2003-2008 4 Spd F/AWD V6 3.5/3.9L
Chevrolet Venture 2003-2005 V6 3.4L
Chevrolet Venture 1999-2002 V6 3.4L
Chevrolet VENTURE APV 1999-2005 4 Spd FWD V6 3.4L
Chevrolet Venture(Van), APV 1999-2005 4 Spd FWD V6 3.4L
Chevrolet Truck Uplander 2005-2009 3.5, 3.9
Chevrolet Truck Venture 2003-2005 3.4
Chevrolet Truck Venture 1999-2002 3.4
Geo Impala 2000-2007 4 Spd FWD V6 3.8L SC V8 5.3L
Geo LUMINA/MONTE CARLO 2000-2001 4 Spd FWD V6 3.1L
Geo LUMINA/MONTE CARLO 1997-2001 4 Spd FWD V6 3.4L/3.8L/3.8L SC
Geo MALIBU SS/MALIBU MAXX 2006-2007 4 Spd FWD V6 3.9L
Geo Malibu SS/Malibu Maxx SS 2006-2007 4 Spd FWD V6 3.9L
Geo Monte Carlo 2001-2007 4 Spd FWD V6 3.5L 3.9L; V8 5.3L
Geo MONTE CARLO 1997-2007 4 Spd FWD V8 5.3L
Geo Monte Carlo 1997-2005 4 Spd FWD V6 3.4L 3.8L
Geo Monte Carlo 1997-2005 4 Spd FWD V6 3.8L (W/S.C.)
Geo Uplander 2005-2007 4 Spd FWD/AWD V6 3.5L/3.9L
Geo UPLANDER 2003-2008 4 Spd F/AWD V6 3.5/3.9L
Geo VENTURE APV 1999-2005 4 Spd FWD V6 3.4L
Geo Venture(Van), APV 1999-2005 4 Spd FWD V6 3.4L
GMC Impala 2000-2007 4 Spd FWD V6 3.8L SC V8 5.3L
GMC LUMINA/MONTE CARLO 2000-2001 4 Spd FWD V6 3.1L
GMC LUMINA/MONTE CARLO 1997-2001 4 Spd FWD V6 3.4L/3.8L/3.8L SC
GMC MALIBU SS/MALIBU MAXX 2006-2007 4 Spd FWD V6 3.9L
GMC Malibu SS/Malibu Maxx SS 2006-2007 4 Spd FWD V6 3.9L
GMC Monte Carlo 2001-2007 4 Spd FWD V6 3.5L 3.9L; V8 5.3L
GMC MONTE CARLO 1997-2007 4 Spd FWD V8 5.3L
GMC Monte Carlo 1997-2005 4 Spd FWD V6 3.4L 3.8L
GMC Monte Carlo 1997-2005 4 Spd FWD V6 3.8L (W/S.C.)
GMC Uplander 2005-2007 4 Spd FWD/AWD V6 3.5L/3.9L
GMC UPLANDER 2003-2008 4 Spd F/AWD V6 3.5/3.9L
GMC VENTURE APV 1999-2005 4 Spd FWD V6 3.4L
GMC Venture(Van), APV 1999-2005 4 Spd FWD V6 3.4L
Oldsmobile 88 Royale 1998-1999 4 Spd FWD V6 3.8L/3.8L SC
Oldsmobile 88 Royale 1997 4 Spd FWD V6 3.8L SC
Oldsmobile Aurora 2001-2003 4 Spd FWD V6 3.5L
Oldsmobile Intrigue 1998-2002 V6 3.5,3.8L
Oldsmobile Intrigue 1998-2002 4 Spd F/AWD V6 3.5/3.8L V8 4.5L
Oldsmobile Intrigue 1998-2002 3.5, 3.8
Oldsmobile Intrique 1998-2002 4 Spd FWD V6 3.5L 3.8L
Oldsmobile Royale, 88 1998-1999 4 Spd FWD V6 3.8L/3.8L SC
Oldsmobile Royale, 88 1997 4 Spd FWD V6 3.8L SC
Oldsmobile Silhouette 2003-2004 V6 3.4L
Oldsmobile Silhouette 2003-2004 3.4
Oldsmobile Silhouette 1999-2004 4 Spd FWD V6 3.4L
Oldsmobile Silhouette 1999-2002 V6 3.4L
Oldsmobile Silhouette 1999-2002 3.4
Oldsmobile Silhouette 1995-1998 4 Spd F/AWD V6 3.4L
Pontiac AZTEC 2001-2005 4 Spd FWD/AWD V6 3.4L
Pontiac Aztek 2003-2005 3.4
Pontiac Aztek 2001-2005 4 Spd FWD/AWD V6 3.4L
Pontiac Aztek 2001-2005 V6 3.4L
Pontiac Aztek 2001-2002 3.4
Pontiac Bonneville 2003-2004 V6 3.8L
Pontiac Bonneville 2003-2004 3.8
Pontiac Bonneville 1998-2005 4 Spd FWD V6 3.8L/3.8L SC
Pontiac Bonneville 1997-2002 V6 3.8L
Pontiac Bonneville 1997-2002 3.8
Pontiac Bonneville 1997 4 Spd FWD V6 3.8L SC
Pontiac G6 2006-2009 4 Spd FWD V6 3.9L
Pontiac G6 2006-2007 4 Spd FWD V6 3.9L
Pontiac G6 2005-2019 V6 3.9L
Pontiac G6 2005-2010 3.9
Pontiac Grand Prix 2005-2006 4 Spd FWD V8 5.7L
Pontiac Grand Prix 2003-2008 V6,V8 3.1,3.8,5.3L
Pontiac Grand Prix 2003-2008 3.1, 3.8, 5.3
Pontiac Grand Prix 2000-2007 4 Spd FWD V8 5.3L
Pontiac Grand Prix 1998-2006 4 Spd FWD V6 3.1L 3.8L
Pontiac Grand Prix 1998-2006 4 Spd FWD V6 3.8L (W/S.C.)
Pontiac Grand Prix 1998-1999 4 Spd FWD V6 3.8L/3.8L SC
Pontiac Grand Prix 1997-2002 V6 3.1, 3.8L
Pontiac Grand Prix 1997-2002 3.1, 3.8
Pontiac Grand Prix 1997 4 Spd FWD V6 3.8L (W/S.C.)
Pontiac Montana 2005-2009 V6 3.5,3.9 ( SV6)L
Pontiac Montana 2003-2006 V6 3.4L
Pontiac Montana 2003-2006 3.4
Pontiac Montana 1997-2002 V6 3.4L
Pontiac Montana 1997-2002 3.4
Pontiac Montana / SV6 1999-2007 4 Spd FWD/AWD V6 3.4L/3.5L/3.9L
Pontiac Montana SV6 2005-2009 3.5, 3.9
Pontiac Montana SV6 1999-2008 4 Spd F/AWD V6 3.5/3.9L
Pontiac Trans Sport 2000-2004 4 Spd F/AWD V6 3.4L
Saturn Relay 2005-2007 4 Spd FWD/AWD V6 3.5L 3.9L
Saturn Relay 2005-2007 4 Spd F/AWD V6 3.5L/3.9L
Saturn Relay 2005-2007 3.5, 3.9
Volvo 80 SERIES 1999-2002 4 Spd FWD L6 2.5L
Volvo 850 1999-2003 2.9
Volvo S80 1999-2006 4 Spd FWD L6 2.9L
Volvo S80 1999-2004 2.9
Volvo S80 1999-2002 4 Spd FWD L6 2.5L
Volvo XC90 2003 2.9
Volvo XC90 2002-2006 4 Spd AWD L6 2.9L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

M15
MN-7
4T65E
4T65 E
MN-3
MN 3
MN3
4T65-E
M76
MN7
MN 7
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Bearing Wear and Damage
All bearings prone to failure after high mileage; major repair requires full bearing replacement.
!
Differential Bearing Failure
Differential bearing failure can destroy sun gear and planet gears, causing metal debris in ATF.
!
Valve Body Metal Contamination
Oil flow carrying metal particles from differential damage can destroy the valve body.
!
3rd Clutch Friction Pack
3rd Clutch package uses one-sided frictions and is a primary soft spot in the friction system.
!
2nd Clutch Friction Pack
2nd Clutch friction package identified as a major weak point alongside the 3rd Clutch.
!
Broken low/forward band
A common failure in which the low or forward band breaks, causing loss of forward drive while reverse and low gears may still partially function, often with shuddering.
!
Pump shaft disengagement - no line pressure
The oil pump driveshaft can disengage from the pump drive gear, causing loss of line pressure and no movement in forward or reverse.
!
Solenoid Short Service Life
Electrical solenoids have short lifespan; operability check recommended at 150k km intervals.
!
Bushing Wear Throughout
Bushings wear out at high mileage and must be replaced as a complete kit during overhaul.
?
ATF Contamination and Overheating
Transmission sensitive to contaminated or overheated ATF; accelerates friction and valve body damage.
?
Shift flare / late or delayed shifts
Customers report shift flare and late or delayed shifts with metal debris found in the pan, traced to sticking valve body valves caused by sprocket bearing surface delamination.
!
Valve body valve sticking
Debris or burrs can cause valve body valves to stick, producing harsh shifts or slipping and triggering DTCs such as P0741, P0742, P0757 and P0842.
!
Pressure Control Solenoid (PCS) failure
A failing Pressure Control Solenoid can cause low line pressure, resulting in RPM drop, delayed engagement, and a harsh jerk into gear when shifting into Drive.
!
TCC apply valve wear / converter shudder
Wear in the TCC apply valve bore can cause lockup problems, intermittent code P0741, cycling TCC RPM, and torque converter shudder.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed 4T65E was designed on the basis of the 4T60 transmission. In 1991, this gearbox was modified for FWD vehicles with engines (2-4 lit.). After testing, this transmission has been supplied to the market since 1993. The 4T60E was modified in 1993 and renamed as 4T65E. This gearbox is a robust product of GM, which properly operates for the first 5-7 years of service. The 440-T4 has been operating since 1983 on Cadillac named as 4T60, and considered to be quite convenient and repairable. Heavy duty (HD) modification is able to work in couple with 440 Nm engines.

Technical issues and repair guidelines

The torque converter (TC) of 4T65E commonly causes a lot of problems during repair procedures. Bearings is a soft spot in this transmission unit. After covering 200 thousand kilometers bearings may get damaged at any moment. The major repair of this gearbox after 150-170 thousand kilometers requires replacement of all bearings.

Issues with the differential bearing may cause the most expensive difficulties (namely, damage of the sun gear differential together with differential planet gears). Then the oil flow with metal pieces may damage the valve body (VB).The main soft spots of the 4T65E frictions are two friction packages, namely, 3rd Clutch with one-sided frictions and 2nd Clutch.

In terms of design, the VB unit of the 4T60E has a lot of differences in comparison with the solution of the 4T60E. This gearbox is also sensitive to contaminated and overheated ATF as well as damaged differential.In electrical components, solenoids have quite a short service lifespan (it is advisable to check the operability of solenoids when the mileage exceeds 150 thousand kilometers).In case of an old car overhaul with mileages strongly beyond 200 thousand kilometers, it is required to replace worn-out bushings which are commonly ordered in a complete kit.

This gearbox is reliable and not complicated. After a major repair it has a substantial resource, if drivers monitor the ATF cleanness and not overload the transmission by maximum torques.Problems mainly occur in the XC90 using the differential in its design. Volvo cars with this gearbox are not intended for driving off the road as well as on muddy roads.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
4T65E Teardown Inspection with code P1811
Gary Ferraro
video
4T65 E Transmission Teardown Inspection
Automatic Transmission
video
4T65E-HD (Part 1).wmv
Mervin006
video
4T65E-HD (Part 2).wmv
Mervin006
video
4T65E-HD (Part 3).wmv
Mervin006
video
4T65E-HD (Part 4).wmv
Mervin006
video
4T65E-HD (Part 5).wmv
Mervin006
video
4T65E-HD (Part 6).wmv
Mervin006
video
4T65E-HD (Part 7).wmv
Mervin006
video
4T65E HD Part 8
Mervin006
video
4T65E HD Part 9
Mervin006
manual
Sonnax — GM 4T65 E Interactive
—
link
Hydra-Matic 4T65-E (M15/MN3/MN7/M76) Transaxle Data Compilation
—
manual
THM 4T65-E – ATSG Overhaul Manual (via ProCarManuals)
—
other
GM PI Bulletin: Flare, Late or Delayed Shifts, Metal Debris in Pan (4T65E)
—
other
GM PI Bulletin: 4T65E No Line Pressure
—
other
ATRA Technical Bulletins #968/#969 – 4T60/4T60E/4T65E Driven Sprocket Support
—
other
Sonnax GM 4T65-E Valve Body Layout
—

Contribute transmission data

Go4Trans grows as a community knowledge graph. Help make the 4T65E record more complete — every submission is reviewed before publication.

Contribute data

This feature is in progress and will be available soon.

Report a mistake on this page

This feature is in progress and will be available soon.

✓ Reviewed by our editorial team before going live
✓ Accepted contributions are credited in the Sources list
📋 Alias or code variant
🔩 Part number & fitment
🚗 Vehicle application
🏪 Repair shop listing
📖 Technical article
⚠ Problem report
