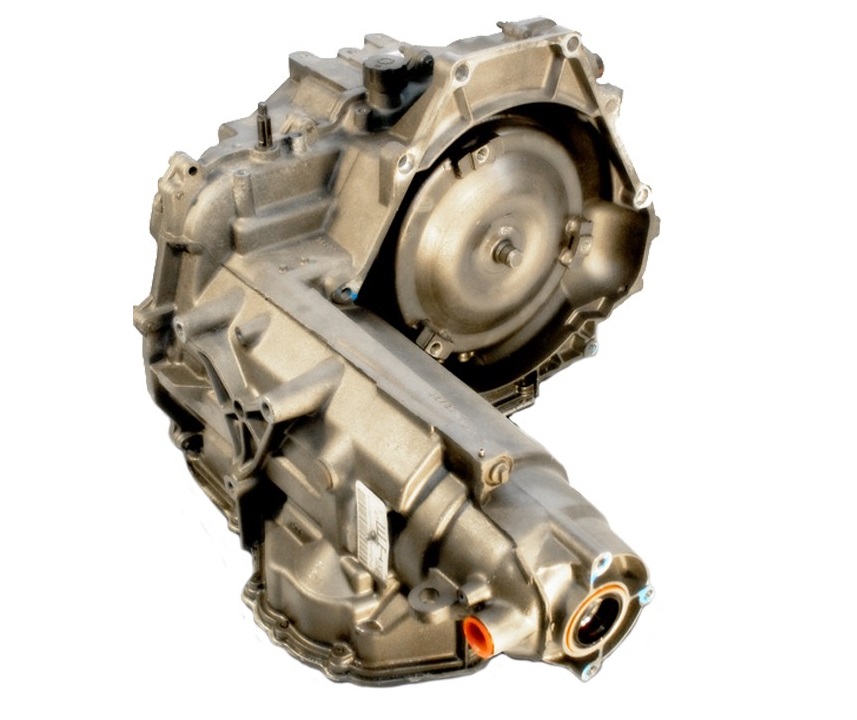

General Motors 4T40E Transmission

The 4-speed automatic transmission 4T40E, 4T45E rarely appears in repair services. It has been used since 1995 on FWD American (and Korean) GM vehicles with engines up to 2 liters. In terms of design, this transmission is related to the 3T40, their spare parts are interchangeable.

Speeds 4
Type AT
Drive FWD
Max torque 230
ATF capacity (L) 11,7
ATF change (L) 6,5
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4T40E
7.6/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.4
Documentation depth10.0
Knowledge & support2.5

Exploded diagram & parts

Full 4T45E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 442 442 · No. 2 3 3 · No. 3 4 4 · No. 4 5 5 · No. 5 520 520 · No. 6 510 510 · No. 7 8 8 · No. 8 9 9 · No. 9 313 +2 313, 176, 507-5 · No. 10 534 534 · No. 11 12 12 · No. 12 535 535 · No. 13 532/538 532, 538 · No. 14 528 528 · No. 15 209 209 · No. 16 17 17 · No. 17 18 18 · No. 18 740 740 · No. 19 20 20 · No. 20 747 +2 747, 320, 321 · No. 21 931 +3 931, 324, 755, 926B · No. 22 927 927 · No. 23 926/352 926, 352 · No. 24 931B 931B · No. 25 932 932 · No. 26 363 363 · No. 27 931 931 · No. 28 671 671 · No. 29 278 278 · No. 30 880 880 · No. 31 705 705 · No. 32 279 279 · No. 33 34 34 · No. 34 178 178 · No. 35 36 36 · No. 36 673 673 · No. 37 295 295 · No. 38 529 529 · No. 39 032 032 · No. 40 076 076 · No. 41 301/766 301, 766 · No. 42 43 43 · No. 43 44 44 · No. 44 446 446 · No. 45 937/895 937, 895 · No. 46 354 354 · No. 47 936 936 · No. 48 49 49 · No. 49 895 895 · No. 50 700 700 · No. 51 706 706 · No. 52 281 281 · No. 53 298 298 · No. 54 713 713 · No. 55 179 179 · No. 56 045 045 · No. 57 962 962 · No. 58 972 972 · No. 59 874 874 · No. 60 226 226 · No. 61 62 62 · No. 62 125 125 · No. 63 124/104 124, 104 · No. 64 144 144 · No. 65 022 022 · No. 66 986 986 · No. 67 667 667 · No. 68 656 656 · No. 69 061 061 · No. 70 556 556 · No. 71 061B 061B · No. 72 338 338 · No. 73 966 966 · No. 74 976 976 · No. 75 890 890 · No. 76 131 131 · No. 77 130/110 130, 110 · No. 78 150* 150* · No. 79 892 892 · No. 80 229 229 · No. 81 230* 230* · No. 82 046 046 · No. 83 177 177 · No. 84 559 559 · No. 85 047 047 · No. 86 969 969 · No. 87 979 979 · No. 88 989 989 · No. 89 871 871 · No. 90 132/112 132, 112 · No. 91 231 231 · No. 92 668 668 · No. 93 669 669 · No. 94 286 286 · No. 95 658 658 · No. 96 286 286 · No. 97 881 881 · No. 98 878 878 · No. 99 965 965 · No. 100 975 975 · No. 101 879 879 · No. 102 126/106 126, 106 · No. 103 146 146 · No. 104 244 244 · No. 105 051 051 · No. 106 555 555 · No. 107 241 241 · No. 108 056 056 · No. 109 624 624 · No. 110 584 584 · No. 111 238 238 · No. 112 612 612 · No. 113 888 888 · No. 114 594 594 · No. 115 582 582 · No. 116 889 889 · No. 117 235 235 · No. 118 592 592 · No. 119 050 050 · No. 120 574 574 · No. 121 882 882 · No. 122 232 232 · No. 123 875 875 · No. 124 438 438 · No. 125 329 329 · No. 126 490 490 · No. 127 148 148 · No. 128 128/108 128, 108 · No. 129 129 129 · No. 130 974 974 · No. 131 964B 964B · No. 132 964 964 · No. 133 554 554 · No. 134 048 048 · No. 135 048B 048B · No. 136 024 024 · No. 137 062 062 · No. 138 674 674 · No. 139 652 652 · No. 140 257 257 · No. 141 883 883 · No. 142 054 054 · No. 143 181 181 · No. 144 634 634 · No. 145 054 054 · No. 146 254 254 · No. 147 690 690 · No. 148 618 618 · No. 149 247 247 · No. 150 716 716 · No. 151 292 292 · No. 152 598 598 · No. 153 887 887 · No. 154 760 760 · No. 155 675 675 · No. 156 060 060 · No. 157 894 894 · No. 158 076 076 · No. 159 077 077 · No. 160 379 379 · No. 161 010 010 · No. 162 382 382 · No. 163 999/382 999, 382 · No. 164 165 165 · No. 165 436 436 · No. 166 493 493 · No. 167 410 410 · No. 168 741-1 741-1 · No. 169 993-7 993-7 · No. 170 171 171 · No. 171 991-2 991-2 · No. 172 991-4/991-3 991-4, 991-3 · No. 173 994 994 · No. 174 300/765 300, 765 · No. 175 846 846 · No. 176 177 177 · No. 177 903 +3 903, 902, 901, 365 · No. 178 179 179 · No. 179 365/366 365, 366 · No. 180 911 911 · No. 181 912/363 912, 363 · No. 182 363/364 363, 364 · No. 183 184 184 · No. 184 904 904 · No. 185 914 914 · No. 186

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4T40E in the Go4Trans marketplace.
Sell 4T40E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

72 applications · 8 makes · 1995–2010 Pontiac 16 · Chevrolet 14 · Saturn 13 · GMC 8 · Geo 8

Make Model Year Drive Engine
Buick Skylark 1997-1998 L4 2.4L
Buick Skylark 1997 4 Spd FWD L4 2.4L
Chevrolet Cavalier 1995-2006 4 Spd FWD L4 2.2L 2.3L 2.4L
Chevrolet Cavalier 1995-2006 L4 2.2, 2.3, 2.4 ( 4 speed)L
Chevrolet CAVALIER 1995-2005 4 Spd FWD L4 2.2/2.3/2.4L
Chevrolet Cobalt 2005-2010 L4 2.0, 2.2, 2.4L
Chevrolet HHR 2006-2010 L4 2.0, 2.2, 2.4L
Chevrolet LACETTI 2006-2008 4 Spd FWD L4 1.5/1.6L
Chevrolet Mailbu 1998-2003 4 Spd FWD L4 2.4L; V6 3.1L
Chevrolet Mailbu 1997-1999 4 Spd FWD L4 2.4L
Chevrolet MALIBU 1998-2003 4 Spd FWD L4 2.4L V6 3.1L
Chevrolet Malibu 1997-2010 L4, V6 2.2, 2.4, 3.1, 3.5, 3.9 (4 speed)L
Chevrolet MALIBU 1997 4 Spd FWD L4 2.4L
Chevrolet MALIBU HIBRIDO 1997-2010 4 Spd FWD L4 2.2/2.4L V6 3.6L
Chevrolet Optra 5 2004-2007 L4 2L
Chevrolet Optra 5 2004-2007 2.0
Daewoo Cielo GLX 1995-1997 4 Spd FWD 1.5L
Daewoo Lanos 1997-2000 4 Spd FWD 1.5L, 1.6L
Daewoo Nexia 2000-2003 4 Spd FWD L4 1.5L
Daewoo Nexia 1995-1997 4 Spd FWD 1.5L
Daewoo Nubira J100, J150 1997 4 Spd FWD 1.6L, 2.0L
Geo Cavalier 1995-2006 4 Spd FWD L4 2.2L 2.3L 2.4L
Geo CAVALIER 1995-2005 4 Spd FWD L4 2.2/2.3/2.4L
Geo LACETTI 2006-2008 4 Spd FWD L4 1.5/1.6L
Geo Mailbu 1998-2003 4 Spd FWD L4 2.4L; V6 3.1L
Geo Mailbu 1997-1999 4 Spd FWD L4 2.4L
Geo MALIBU 1998-2003 4 Spd FWD L4 2.4L V6 3.1L
Geo MALIBU 1997 4 Spd FWD L4 2.4L
Geo MALIBU HIBRIDO 1997-2010 4 Spd FWD L4 2.2/2.4L V6 3.6L
GMC Cavalier 1995-2006 4 Spd FWD L4 2.2L 2.3L 2.4L
GMC CAVALIER 1995-2005 4 Spd FWD L4 2.2/2.3/2.4L
GMC LACETTI 2006-2008 4 Spd FWD L4 1.5/1.6L
GMC Mailbu 1998-2003 4 Spd FWD L4 2.4L; V6 3.1L
GMC Mailbu 1997-1999 4 Spd FWD L4 2.4L
GMC MALIBU 1998-2003 4 Spd FWD L4 2.4L V6 3.1L
GMC MALIBU 1997 4 Spd FWD L4 2.4L
GMC MALIBU HIBRIDO 1997-2010 4 Spd FWD L4 2.2/2.4L V6 3.6L
Oldsmobile Alero 1999-2004 4 Spd FWD L4 2.2L 2.4L
Oldsmobile Alero 1999-2004 L4, V6 2.2,2.4,3.4L
Oldsmobile Alero 1999-2004 4 Spd FWD L4 2.2L/2.4L
Oldsmobile Cutlass 1997-1999 4 Spd FWD V6 3.1L
Oldsmobile Cutlass 1997-1999 V6 3.1L
Oldsmobile Cutlass 1997-1999 3.1
Pontiac G5 2007-2010 L4 2.2,2.4L
Pontiac G5 2007-2010 2.2, 2.4
Pontiac G5 2006 L4 2.2,2.4 ( Pursuit)L
Pontiac G5 Pursuit 2006 2.2, 2.4
Pontiac G6 2005-2010 V6 3.5L
Pontiac G6 2005-2010 3.5
Pontiac Grand Am 1999-2006 V6 2.2,2.4,3.4L
Pontiac Grand Am 1999-2005 2.2, 2.4, 3.4
Pontiac Grand Am 1999-2004 4 Spd FWD L4 2.2L 2.4L
Pontiac Grand Am 1999-2004 4 Spd FWD L4 2.2L/2.4L
Pontiac Pursuit 2005-2006 L4 2.2,2.4L
Pontiac Pursuit 2005-2006 2.0, 2.2, 2.4
Pontiac Sunfire 1995-2006 L4 2.4L
Pontiac Sunfire 1995-2006 2.4
Pontiac Sunfire 1995-2005 4 Spd FWD L4 2.2L 2.4L
Pontiac Sunfire 1995-2005 4 Spd F/AWD L4 2.2L/2.4L
Saturn Ion 2005-2007 2.0, 2.2, 2.4
Saturn L100 2001-2002 2.2
Saturn L200 2001-2003 2.2
Saturn L300 2003-2006 2.2, 3.0
Saturn L300 2003-2004 4 Spd FWD L4 2.2L
Saturn LS 2000-2004 4 Spd FWD L4 2.2L
Saturn LS1 2000-2002 1.9, 2.2
Saturn LS2 2000 3.0
Saturn LW 2000-2004 4 Spd FWD L4 2.2L
Saturn LW200 2001-2003 2.2
Saturn LW300 2001-2003 3.0
Saturn SERIE L 2000-2004 4 Spd FWD L4 2.2L V6 3.0L
Saturn Vue 2004-2008 2.4

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

4T40E
MN4
4T40-E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Wear
Torque converter identified as primary weak point, requiring early parts replacement in most American automatics.
?
Vibrations From Converter
Driving with worn torque converter causes noticeable vibrations in the vehicle.
?
Rapid ATF Contamination
Worn torque converter accelerates ATF contamination, degrading fluid quality prematurely.
!
Torque Converter Seal Failure
Seal near input shaft fails due to neglected torque converter wear, causing leaks.
!
Burnt ATF And Friction Elements
Burnt ATF condition requires replacement of all friction elements and the brake band.
!
Torque Converter Bushing Wear
Bushing located near input requires replacement when torque converter issues are left unaddressed.
!
Full Bushing Kit Failure
Neglected torque converter problems escalate to requiring replacement of the entire bushing kit.
!
ATF Filter Degradation
Regular ATF and filter replacement is a common service requirement for the 4T40E/4T45E.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission 4T40E, 4T45E rarely appears in repair services. It has been used since 1995 on FWD American (and Korean) GM vehicles with engines up to 2 liters. In terms of design, this transmission is related to the 3T40, their spare parts are interchangeable.

Technical issues and repair guidelines

The repair of the 4T40 transmission often lies in change of ATF, and replacement of filter and spare parts. The oil of any type (from Dexron III to Dexron VI) may be used for the 4T40 transmission.

The torque converter is a soft spot in almost all American automatic transmissions and requires replacement of spare parts quite early. Driving with worn torque converter may lead to vibrations, rapid ATF contamination and issues with the seal and bushing of the torque converter located immediately near the input. If this problem stays neglected, then it is required to change the torque converter bushing and the whole kit of bushings.The problem of burnt ATF is solved by replacement of all friction elements and the brake band.
