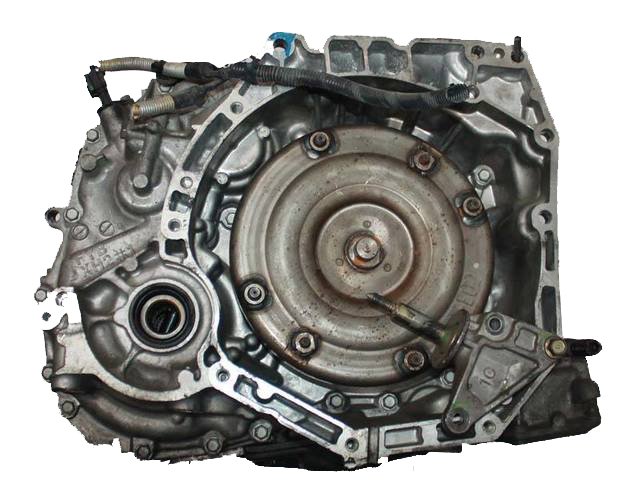

Jatco JF009E Transmission

The constantly variable transmission (CVT) JF009E (RE0F08A) is constructed for the class "mini" and can be paired with engines up to 1800 cm3. In 2002, the RE0F08A unit replaced not very popular RE0F21A modification.

Speeds ∞
Type CVT
Drive FWD
Max torque 175
ATF capacity (L) 8,3
ATF type CVT Fluid NS-2
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
JF009E
4.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.0
Documentation depth8.2
Knowledge & support4.0

Exploded diagram & parts

Full JF009E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

369 369 · No. 1 436 436 · No. 2 797-1 797-1 · No. 3 227 227 · No. 4 228 228 · No. 5 228 228 · No. 6 710 710 · No. 7 690 690 · No. 8 034/070 034, 070 · No. 9 311 311 · No. 10 510 510 · No. 11 530 530 · No. 12 035 035 · No. 13 036 036 · No. 14 520 520 · No. 15 181 181 · No. 16 310 310 · No. 17 211 211 · No. 18 670 670 · No. 19 554 554 · No. 20 880 880 · No. 21 232 232 · No. 22 777 777 · No. 23 778 778 · No. 24 076 076 · No. 25 750 750 · No. 26 999-6 999-6 · No. 27 796 796 · No. 28 280 280 · No. 29 281 281 · No. 30 712 712 · No. 31 730 730 · No. 32 281 281 · No. 33 280 280 · No. 34 276* 276* · No. 35 776 776 · No. 36 698 698 · No. 37 292 292 · No. 38 39 39 · No. 39 716 716 · No. 40 289 289 · No. 41 290* 290* · No. 42 699 699 · No. 43 964 964 · No. 44 335 335 · No. 45 974 974 · No. 46 877 877 · No. 47 853 853 · No. 48 128/108 128, 108 · No. 49 876 876 · No. 50 617 617 · No. 51 247 247 · No. 52 587 587 · No. 53 252 252 · No. 54 597 597 · No. 55 255 255 · No. 56 786 786 · No. 57 999-1 999-1 · No. 58 899 899 · No. 59 980 980 · No. 60 692 692 · No. 61 887 887 · No. 62 63 63 · No. 63 960 960 · No. 64 970 970 · No. 65 183 183 · No. 66 860A 860A · No. 67 706 706 · No. 68 860B 860B · No. 69 708 708 · No. 70 696 696 · No. 71 229 229 · No. 72 797 797 · No. 73 230* 230* · No. 74 892 892 · No. 75 150 150 · No. 76 130/110 130, 110 · No. 77 131 131 · No. 78 893 893 · No. 79 986 986 · No. 80 976 976 · No. 81 976-1 976-1 · No. 82 966 966 · No. 83 760 760 · No. 84 415 415 · No. 85 077 077 · No. 86 783 783 · No. 87 494 494 · No. 88 493 493 · No. 89 700 700 · No. 90 391B 391B · No. 91 488 488 · No. 92 992-1 992-1 · No. 93 446 446 · No. 94 387A 387A · No. 95 761 761 · No. 96 996 996 · No. 97 378 378 · No. 98 496B/378 496B, 378 · No. 99 371 371 · No. 100 691-1 691-1 · No. 101 691 691 · No. 102 691-3 691-3 · No. 103 759 759 · No. 104 991-4 991-4 · No. 105 794 794 · No. 106 991-6 991-6 · No. 107 995-1 995-1 · No. 108 995-2 995-2 · No. 109 995-3 995-3 · No. 110 444 444 · No. 111 010 010 · No. 112 347 347 · No. 113 793 793 · No. 114 496A 496A · No. 115 378/496A 378, 496A · No. 116 996/378 996, 378 · No. 117 421 421 · No. 118 435 435 · No. 119 425 425 · No. 120 430 430 · No. 121 414 414 · No. 122 264 264 · No. 123 047 047 · No. 124 705 705 · No. 125 861 861 · No. 126 707 707 · No. 127 865 865 · No. 128 971 971 · No. 129 187 187 · No. 130 981 981 · No. 131 888 888 · No. 132 695 695 · No. 133 235 235 · No. 134 236* 236* · No. 135 781 781 · No. 136 994 994 · No. 137 991-2 991-2 · No. 138 072 072 · No. 139 991-8 991-8 · No. 140 991-3 991-3 · No. 141 991-1 991-1 · No. 142 300/765 300, 765 · No. 143 740/410 740, 410 · No. 144 741-1 741-1 · No. 145 799-1 799-1 · No. 146 799/799-1 799, 799-1 · No. 147 148 148 · No. 148 492 492 · No. 149 469-1/469 469-1, 469 · No. 150 452 452 · No. 151 791 791 · No. 152 769 769 · No. 153 436 436 · No. 1 797-1 797-1 · No. 2 227 227 · No. 3 228 228 · No. 4 228 228 · No. 5 6 6 · No. 6 7 7 · No. 7 980 980 · No. 8 034/070 034, 070 · No. 9 10 10 · No. 10 510 510 · No. 11 12 12 · No. 12 035 035 · No. 13 14 14 · No. 14 520 520 · No. 15 16 16 · No. 16 310 310 · No. 17 18 18 · No. 18 19 19 · No. 19 20 20 · No. 20 232 232 · No. 21 777 777 · No. 22 778 778 · No. 23 076 076 · No. 24 750 750 · No. 25 999-6 999-6 · No. 26 796 796 · No. 27 280 280 · No. 28 281 281 · No. 29 712 712 · No. 30 730 730 · No. 31 281 281 · No. 32 280 280 · No. 33 276* 276* · No. 34 776 776 · No. 35 698 698 · No. 36 292 292 · No. 37 38 38 · No. 38 716 716 · No. 39 289 289 · No. 40 290* 290* · No. 41 699 699 · No. 42 964 964 · No. 43 974 974 · No. 44 984 984 · No. 45 877 877 · No. 46 853 853 · No. 47 128/108 128, 108 · No. 48 148 148 · No. 49 876 876 · No. 50 617 617 · No. 51 247 247 · No. 52 587 587 · No. 53 252 252 · No. 54 597 597 · No. 55 255 255 · No. 56 786 786 · No. 57 999-1 999-1 · No. 58 692 692 · No. 59 887 887 · No. 60 960 960 · No. 61 971 971 · No. 62 183 183 · No. 63 860A 860A · No. 64 706 706 · No. 65 860B 860B · No. 66 708 708 · No. 67 696 696 · No. 68 229 229 · No. 69 797 797 · No. 70 230* 230* · No. 71 892 892 · No. 72 150 150 · No. 73 130/110 130, 110 · No. 74 131 131 · No. 75 893 893 · No. 76 986 986 · No. 77 976 976 · No. 78 976-1 976-1 · No. 79 966 966 · No. 80 760 760 · No. 81 077 077 · No. 82 783 783 · No. 83 991-2 991-2 · No. 84 991-7 991-7 · No. 85 446 446 · No. 86 469 469 · No. 87 444 444 · No. 88 347 347 · No. 89 492A 492A · No. 90 387A 387A · No. 91 996 996 · No. 92 494 494 · No. 93 371 371 · No. 94 493 493 · No. 95 700 700 · No. 96 691-2 691-2 · No. 97 691 691 · No. 98 691-3 691-3 · No. 99 438 438 · No. 100 759 759 · No. 101 994 994 · No. 102 995-1 995-1 · No. 103 995-2 995-2 · No. 104 995-3 995-3 · No. 105 010 010 · No. 106 496A 496A · No. 107 378/496A 378, 496A · No. 108 996 996 · No. 109 378 378 · No. 110 378 378 · No. 111 496B 496B · No. 112 781 781 · No. 113 991-3/072 991-3, 072 · No. 114 794 794 · No. 115 991-6 991-6 · No. 116 793 793 · No. 117 421 421 · No. 118 435 435 · No. 119 425 425 · No. 120 430 430 · No. 121 414 414 · No. 122 264 264 · No. 123 047 047 · No. 124 705 705 · No. 125 861 861 · No. 126 707 707 · No. 127 865 865 · No. 128 971 971 · No. 129 187 187 · No. 130 981 981 · No. 131 795 795 · No. 132 235 235 · No. 133 236* 236* · No. 134 300/765 300, 765 · No. 135 740 740 · No. 136 741-1 741-1 · No. 137 138 138 · No. 138 139 139 · No. 139 991-8 991-8 · No. 140 492 492 · No. 141 387B 387B · No. 142 791 791 · No. 143 452 452 · No. 144 769 769 · No. 145

Parts categories

View all parts →
Sell JF009E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

9 applications · 1 make · 2002–2013 Nissan 9

Make Model Year Drive Engine
Nissan Cube 2002-2012 1.8
Nissan Juke 2011-2013 1.6
Nissan March 2006-2012 0.9
Nissan Micra K11E CVT FWD 1.0L, 1.2L
Nissan Note 2005-2012 1.5
Nissan Tiida 2005-2012 1.5, 1.8
Nissan Versa 2007 CVT FWD L4 1.8L
Nissan Versa 2006-2012 1.6, 1.8
Nissan Wingroad 2006-2012 1.5, 1.8

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

CVT-1
JF009E
1XB6B
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Contaminated Transmission Fluid
CVT is sensitive to dirty fluid; prolonged use with contaminated fluid risks internal component wear.
!
Clogged External Fine Filter
External fine filter requires replacement every 50-60k km; clogging restricts fluid flow and CVT performance.
?
Cold Fluid Performance Issues
CVT exhibits sensitivity to cold transmission fluid, potentially causing sluggish or erratic operation in low temperatur
!
Degraded Gaskets and Seals
Reassembly requires full gasket and seal repair kit replacement, indicating wear of sealing components over time.
!
Clogged Main Coarse Filter
Metal mesh pan filter can accumulate debris over extended service intervals, reducing fluid circulation.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The constantly variable transmission (CVT) JF009E (RE0F08A) is constructed for the class "mini" and can be paired with engines up to 1800 cm3. In 2002, the RE0F08A unit replaced not very popular RE0F21A modification.

The JF009E transmission found application in various Nissan models, (1.8L Nissan Serena, March, Cube 2000-09, Micra 03-09. FIAT Punto, Palo, Uno 03-09...), but became more popular in Nissan Cube, Tiida and Wingroad. In terms of design, this CVT is similar to neighboring Jatco variators and comes between highly-demanded JF011E (for the middle class) and JF015E (for the class mini/micro). Many spare parts from the RE0F21A unit are interchangeable.

Technical issues and repair guidelines

The main repair procedure for this invincible gearbox lies in fluid change and filter replacement. This CVT is sensitive to contaminated and cold transmission fluid. But in general, components of this CVT have an immense reserve for aggregated engines, serving for a long period of time even with contaminated fluid and clogged filters. The main coarse filter (made of metal with a mesh) is located in the pan and operates for a long period of time. This CVT also has an external fine filter, which is usually changed every 50-60 thousand kilometers. The reassembly includes spare parts replacement (Repair kit of gaskets and seals).

The design of this CVT family is developed for engines with a higher torque and has such a solid reserve of CVT components, that it gets in repair services when the car itself exhausts its resource, therefore repair procedures in these CVTs are so rare.
