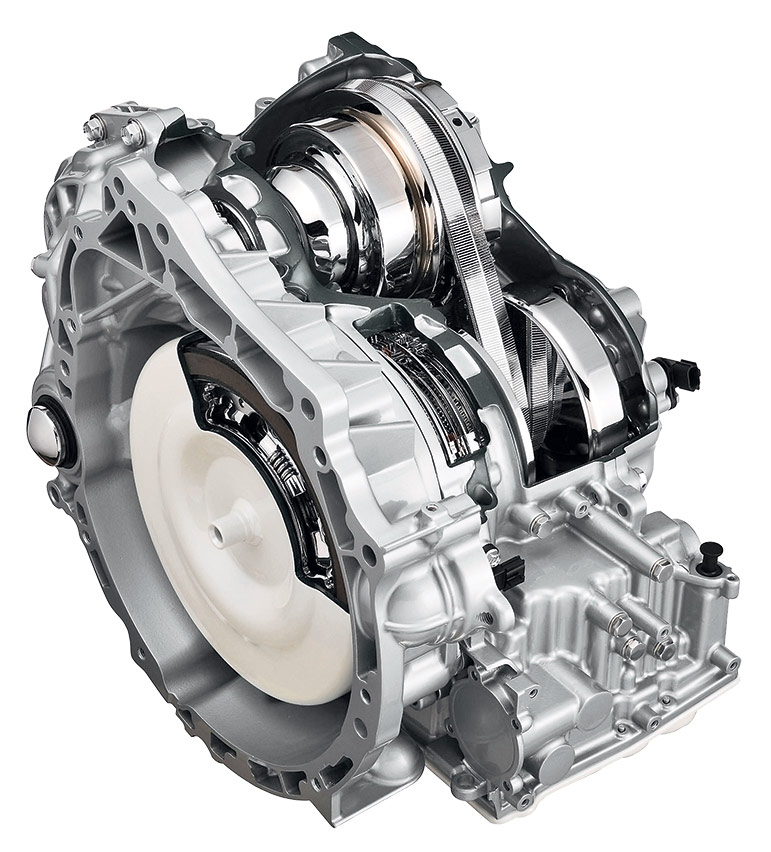

Jatco JF016E Transmission

In 2012, Jatco released the next generation of CVTs named as CVT8- JF016E to replace its best-selling JF011E. Firstly, Jatco tested CVT7-JF015E for classes "mini" and "micro" with engine capacity from 0.7 up to 1.6 liters. And when it became apparent that new features allow this gearboxes to be installed on vehicles with engines up to 1.8 liters, JF016E version was introduced for medium and premium class vehicles with engines up to 2.5 liters. Since 2014, this CVT entered production, and completely replaced its predecessor JF011E.

Speeds ∞
Type CVT
Drive FWD
ATF capacity (L) 8
ATF change (L) 4,5
ATF type CVT Fluid NS-3
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
JF016E
7.2/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.4
Documentation depth10.0
Knowledge & support2.5

Exploded diagram & parts

Full JF016E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

076 076 · No. 1 2 2 · No. 2 526 526 · No. 3 035 035 · No. 4 278 278 · No. 5 6 6 · No. 6 032 032 · No. 7 529 529 · No. 8 179 179 · No. 9 380 380 · No. 10 177A 177A · No. 11 670 670 · No. 12 177A 177A · No. 13 177A 177A · No. 14 211 211 · No. 15 554 554 · No. 16 880 880 · No. 17 273 273 · No. 18 274 274 · No. 19 730 730 · No. 20 712 712 · No. 21 274 274 · No. 22 273 273 · No. 23 796 796 · No. 24 031 031 · No. 25 070 070 · No. 26 750 750 · No. 27 525 525 · No. 28 702 702 · No. 29 529-1 529-1 · No. 30 507-3/507-1 507-3, 507-1 · No. 31 786 786 · No. 32 992 992 · No. 33 999-6/702-1 999-6, 702-1 · No. 34 527 527 · No. 35 281 281 · No. 36 778 778 · No. 37 036 +2 036, 778, 870 · No. 38 519 519 · No. 39 544 544 · No. 40 41 41 · No. 41 42 42 · No. 42 43 43 · No. 43 533 533 · No. 44 532 532 · No. 45 671 671 · No. 46 534 534 · No. 47 528 528 · No. 48 313 313 · No. 49 777A 777A · No. 50 510 510 · No. 51 52 52 · No. 52 309/777B 309, 777B · No. 53 698 698 · No. 54 291 291 · No. 55 292 292 · No. 56 716 716 · No. 57 720 720 · No. 58 292 292 · No. 59 291 291 · No. 60 290* 290* · No. 61 076AA 076AA · No. 62 072 072 · No. 63 410 410 · No. 64 991-2 991-2 · No. 65 991-3 991-3 · No. 66 994 994 · No. 67 964 964 · No. 68 974 974 · No. 69 984 984 · No. 70 877 877 · No. 71 853 853 · No. 72 128/108 128, 108 · No. 73 148 148 · No. 74 876 876 · No. 75 878 878 · No. 76 592 592 · No. 77 878 878 · No. 78 232 232 · No. 79 892 892 · No. 80 150 150 · No. 81 130/110 130, 110 · No. 82 131 131 · No. 83 617 617 · No. 84 247 247 · No. 85 587 587 · No. 86 251 251 · No. 87 893 893 · No. 88 976 976 · No. 89 966 966 · No. 90 339 339 · No. 91 338 338 · No. 92 991-4 991-4 · No. 93 991-5 991-5 · No. 94 799-1 799-1 · No. 95 991-1 991-1 · No. 96 436 436 · No. 97 493 493 · No. 98 438 438 · No. 99 760 760 · No. 100 344 344 · No. 101 999-1 999-1 · No. 102 103 103 · No. 103 104 104 · No. 104 105 105 · No. 105 106 106 · No. 106 994-1 994-1 · No. 107 108 108 · No. 108 109 109 · No. 109 110 110 · No. 110 111 111 · No. 111 494 494 · No. 112 113 113 · No. 113 769 769 · No. 114 326 326 · No. 115 013 013 · No. 116 387A 387A · No. 117 492 492 · No. 118 843 843 · No. 119 264 264 · No. 120 047 047 · No. 121 899 899 · No. 122 705 705 · No. 123 707 707 · No. 124 187 187 · No. 125 981 981 · No. 126 845 845 · No. 127 694 694 · No. 128 235 235 · No. 129 795 795 · No. 130 488 488 · No. 131 998 998 · No. 132 378 378 · No. 133 378 378 · No. 134 342 342 · No. 135 761 761 · No. 136 446B 446B · No. 137 379 379 · No. 138 139 139 · No. 139 347 347 · No. 140 700 700 · No. 141 759 759 · No. 142 425 425 · No. 143 415 415 · No. 144 414 414 · No. 145 843A 843A · No. 146 446A 446A · No. 147 010 010 · No. 148 370 370 · No. 149 783 783 · No. 150 439 439 · No. 151 152 152 · No. 152 421 421 · No. 153 740 740 · No. 154 428 428 · No. 155 435 435 · No. 156 430 430 · No. 157 765/300 765, 300 · No. 158 797A 797A · No. 159 710 710 · No. 160 227 227 · No. 161 228 228 · No. 162 228 228 · No. 163 862 862 · No. 164 980 980 · No. 165 960 960 · No. 166 970 970 · No. 167 860/706 860, 706 · No. 168 708/860 708, 860 · No. 169 696 696 · No. 170 229 229 · No. 171 172 172 · No. 172 230* 230* · No. 173 791 791 · No. 174 492 492 · No. 175 176 176 · No. 176

Parts categories

View all parts →
Sell JF016E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

66 applications · 10 makes · 2012–2018 Nissan 36 · Renault 11 · Mitsubishi 6 · Suzuki 5 · Chevrolet 3

Make Model Year Drive Engine
Chevrolet City Express 2014 L4 2.0LL
Chevrolet CITY EXPRESS 2014 CVT L4 2.0L
Chevrolet Truck City Express 2014-2017 2.0
Dongfeng Yumsun 2014 2
Geo CITY EXPRESS 2014 CVT L4 2.0L
GMC CITY EXPRESS 2014 CVT L4 2.0L
Mitsubishi ASX 2014 CVT FWD L4 2.0L
Mitsubishi ASX 2014 2.0
Mitsubishi DELICA D-5 2014-2016 CVT FWD L4 2.0L 2.4L
Mitsubishi Delica DS 2014 2.0, 2.4
Mitsubishi Lancer (Non-USA) 2013 1.8, 2.0, 2.4
Mitsubishi Outlander 2014-2016 CVT F/4WD L4 2.0L 2.4L
Nissan Altima 2012-2016 CVT FWD L4 2.5L
Nissan Altima 2012-2016 2.5
Nissan C-Hatch 2014 CVT FWD L3 1.2L L4 1.5L
Nissan C-Hatch 2014 1.2, 1.5
Nissan Dualis 2013-2014 CVT FWD L4 2.0L
Nissan Dualis 2013-2014 2.0
Nissan Elgrand 2013-2016 CVT FWD L4 2.5L
Nissan Elgrand 2013-2014 2.5
Nissan Juke 2014-2016 1.6
Nissan Juke 2013-2016 CVT F/AWD L4 1.6L
Nissan Lafesta 2014 CVT FWD L4 1.6L
Nissan Lafesta 2014 1.6
Nissan Murano 2015-2016 CVT 4WD L4 2.5L
Nissan Murano 2013-2014 CVT F/AWD L4 2.5L
Nissan Murano 2013-2014 2.5
Nissan NV 200 2013-2016 CVT FWD L4 2.0L
Nissan NV 200 2013-2016 2.0
Nissan Pathfinder 2014 2.5
Nissan Pathfinder 2013-2016 CVT FWD L4 2.5L
Nissan Qashqai 2014 CVT F/AWD L4 2.0L
Nissan Qashqai 2014 2.0
Nissan Rogue 2013-2017 2.5
Nissan Rogue 2013-2016 CVT FWD L4 2.5L
Nissan Sentra 2014-2017 1.6
Nissan Sentra 2014 CVT FWD L4 1.6L
Nissan Serena 2012-2014 CVT FWD L4 2.0L
Nissan Serena 2012-2014 2.0
Nissan Sylphy 2013-2014 CVT FWD L4 1.6L
Nissan Sylphy 2013-2014 1.6
Nissan Teana 2012-2014 CVT F/AWD L4 2.0L/2.5L V6 2.5L
Nissan Teana 2012-2014 2.0, 2.5
Nissan TEANA VIP 2013-2016 CVT FWD L4 2.0L 2.5L
Nissan Tiida 2014 CVT FWD L4 1.6L
Nissan Tiida 2014 1.6
Nissan X-Trail 2013-2014 CVT FWD L4 2.0L 2.5L
Nissan X-Trail 2013-2014 2.0, 2.5
Peugeot 508 2018 CVT FWD L4 1.6L
Renault CLiO 2012-2013 CVT FWD L4 1.5L
Renault CLiO 2012-2013 1.5
Renault DUSTER 2018 CVT FWD L4 2.0L
Renault Espace 2018 CVT FWD L4 2.5L
Renault Fluence 2014-2016 CVT FWD L4 2.0L
Renault Fluence 2014 2.0
Renault KADJAR 2016 CVT F/4WD L4 1.2/2.0L
Renault KAPTUR 2016-2018 CVT FWD L4 1.5L 1.6L
Renault Koleos 2014 CVT F/AWD L4 2.5L
Renault Koleos 2014 2.5
Renault Laguna 2016 CVT FWD L4 1.2/1.3/1.6/2.0L
Suzuki D-Car 2013-2014 2.4
Suzuki Kizashi 2013-2014 2.4
Suzuki SX4 2013-2014 1.6
Suzuki SX4 S-CROSS 2013-2016 CVT F/AWD L4 1.6L
Suzuki Vitara 2015-2016 CVT FWD L4 1.4L
Venucia C-CUV 2014 2.0

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

JF016E
JF016-E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lock-up Clutch
Expanded lock-up zone causes accelerated clutch wear, leading to rapid fluid contamination and torque converter failure.
!
Valve Body Premature Failure
Aggressive TCM calibration overloads valve body components; replacement may occur within warranty period.
!
Transmission Pump Failure
JF016E/017E pump has fewer components than JF011 but operates at same intensity, increasing wear and failure risk.
?
Fluid Contamination from Clutch
Lock-up clutch debris rapidly contaminates transmission fluid, signaling internal wear and requiring fluid and filter se
!
High Engine Displacement Incompatibility
JF016E on Nissan Murano 3.5L engine frequently requires repair due to design limits exceeded beyond 2.4L engine capacity
!
Oil Filter Cartridge Clogging
Filter-cartridge in heat exchanger requires early replacement; regulates fluid level in pan and clogs during initial ope
!
Cone Bearing Wear
Cone bearings are a known weak point inherited from JF011E; prone to wear and require inspection or replacement.
?
Overheating Sensitivity
CVT is sensitive to overheated transmission fluid; thermal degradation accelerates internal component wear and failure.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

In 2012, Jatco released the next generation of CVTs named as CVT8- JF016E to replace its best-selling JF011E. Firstly, Jatco tested CVT7-JF015E for classes "mini" and "micro" with engine capacity from 0.7 up to 1.6 liters. And when it became apparent that new features allow this gearboxes to be installed on vehicles with engines up to 1.8 liters, JF016E version was introduced for medium and premium class vehicles with engines up to 2.5 liters. Since 2014, this CVT entered production, and completely replaced its predecessor JF011E.

Technical issues and repair guidelines

The valve body of the CVT8 unit has a reduced number of valves. The torque converter lock-up zone was expanded,allowing to improve acceleration and fuel saving characteristics, but on the other side the lock-up clutch wear-out leads to rapid contamination and necessity to repair the torque converter.

Repair procedures

During the first years after release of the series, Jatco engineers adjusted the TCM settings in such a way that they allowed loading of CVT components to the limit to attract potential buyers with enhanced acceleration dynamics. Therefore, the valve body replacement may occur during the warranty period. The design of JF016E components is very similar to the JF011E unit. Thus, it is expected that this CVT will be “invincible” on vehicles with engines up to 2.4 liters and that CVT on Nissan Murano with 3.5 liter engine will frequently appear in repair services.

During the first years of operation, repair specialists have to replace the oil filter-cartridge. This filter-cartridge is installed in the heat exchanger and maintains the "right" fluid level in the pan. Cone bearings are considered to be another vulnerable place in this CVT as in its predecessor. Bearings for the next JF017E modification were significantly improved. Problems may occur with the pump JF016E- 017E, which has fewer components in comparison with JF011, but operates as intensive as its predecessor. This CVT is also sensitive to contaminated and overheated transmission fluid.
