Home / Transmissions / Nissan / RE0F08A
Nissan Source-verified model

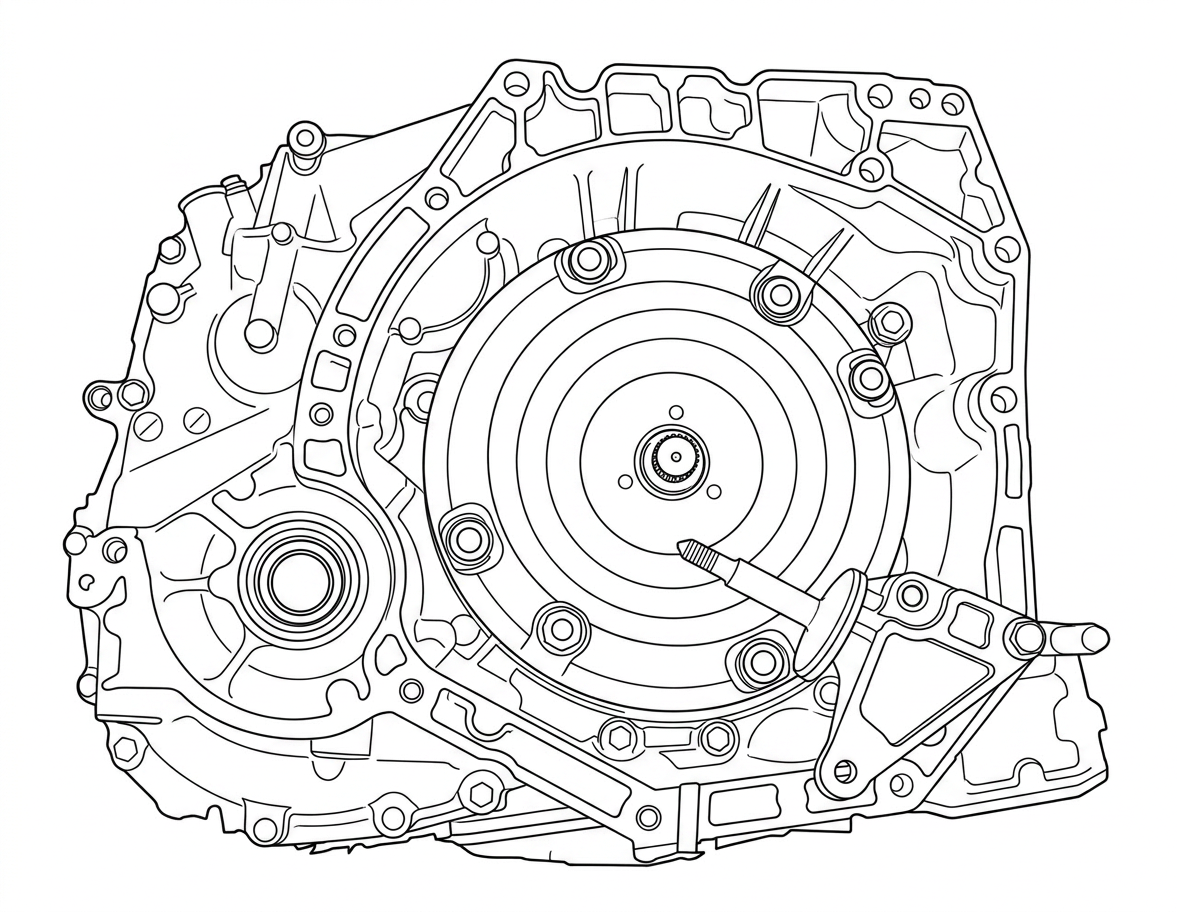

Nissan RE0F08A Transmission

Type CVT
ATF type Nissan CVT NS-2
ATF capacity (L) 7.4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

RE0F08A
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

2resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full JF009E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

369 369 · No. 1 436 436 · No. 2 797-1 797-1 · No. 3 227 227 · No. 4 228 228 · No. 5 228 228 · No. 6 710 710 · No. 7 690 690 · No. 8 034/070 034, 070 · No. 9 311 311 · No. 10 510 510 · No. 11 530 530 · No. 12 035 035 · No. 13 036 036 · No. 14 520 520 · No. 15 181 181 · No. 16 310 310 · No. 17 211 211 · No. 18 670 670 · No. 19 554 554 · No. 20 880 880 · No. 21 232 232 · No. 22 777 777 · No. 23 778 778 · No. 24 076 076 · No. 25 750 750 · No. 26 999-6 999-6 · No. 27 796 796 · No. 28 280 280 · No. 29 281 281 · No. 30 712 712 · No. 31 730 730 · No. 32 281 281 · No. 33 280 280 · No. 34 276* 276* · No. 35 776 776 · No. 36 698 698 · No. 37 292 292 · No. 38 39 39 · No. 39 716 716 · No. 40 289 289 · No. 41 290* 290* · No. 42 699 699 · No. 43 964 964 · No. 44 335 335 · No. 45 974 974 · No. 46 877 877 · No. 47 853 853 · No. 48 128/108 128, 108 · No. 49 876 876 · No. 50 617 617 · No. 51 247 247 · No. 52 587 587 · No. 53 252 252 · No. 54 597 597 · No. 55 255 255 · No. 56 786 786 · No. 57 999-1 999-1 · No. 58 899 899 · No. 59 980 980 · No. 60 692 692 · No. 61 887 887 · No. 62 63 63 · No. 63 960 960 · No. 64 970 970 · No. 65 183 183 · No. 66 860A 860A · No. 67 706 706 · No. 68 860B 860B · No. 69 708 708 · No. 70 696 696 · No. 71 229 229 · No. 72 797 797 · No. 73 230* 230* · No. 74 892 892 · No. 75 150 150 · No. 76 130/110 130, 110 · No. 77 131 131 · No. 78 893 893 · No. 79 986 986 · No. 80 976 976 · No. 81 976-1 976-1 · No. 82 966 966 · No. 83 760 760 · No. 84 415 415 · No. 85 077 077 · No. 86 783 783 · No. 87 494 494 · No. 88 493 493 · No. 89 700 700 · No. 90 391B 391B · No. 91 488 488 · No. 92 992-1 992-1 · No. 93 446 446 · No. 94 387A 387A · No. 95 761 761 · No. 96 996 996 · No. 97 378 378 · No. 98 496B/378 496B, 378 · No. 99 371 371 · No. 100 691-1 691-1 · No. 101 691 691 · No. 102 691-3 691-3 · No. 103 759 759 · No. 104 991-4 991-4 · No. 105 794 794 · No. 106 991-6 991-6 · No. 107 995-1 995-1 · No. 108 995-2 995-2 · No. 109 995-3 995-3 · No. 110 444 444 · No. 111 010 010 · No. 112 347 347 · No. 113 793 793 · No. 114 496A 496A · No. 115 378/496A 378, 496A · No. 116 996/378 996, 378 · No. 117 421 421 · No. 118 435 435 · No. 119 425 425 · No. 120 430 430 · No. 121 414 414 · No. 122 264 264 · No. 123 047 047 · No. 124 705 705 · No. 125 861 861 · No. 126 707 707 · No. 127 865 865 · No. 128 971 971 · No. 129 187 187 · No. 130 981 981 · No. 131 888 888 · No. 132 695 695 · No. 133 235 235 · No. 134 236* 236* · No. 135 781 781 · No. 136 994 994 · No. 137 991-2 991-2 · No. 138 072 072 · No. 139 991-8 991-8 · No. 140 991-3 991-3 · No. 141 991-1 991-1 · No. 142 300/765 300, 765 · No. 143 740/410 740, 410 · No. 144 741-1 741-1 · No. 145 799-1 799-1 · No. 146 799/799-1 799, 799-1 · No. 147 148 148 · No. 148 492 492 · No. 149 469-1/469 469-1, 469 · No. 150 452 452 · No. 151 791 791 · No. 152 769 769 · No. 153 436 436 · No. 1 797-1 797-1 · No. 2 227 227 · No. 3 228 228 · No. 4 228 228 · No. 5 6 6 · No. 6 7 7 · No. 7 980 980 · No. 8 034/070 034, 070 · No. 9 10 10 · No. 10 510 510 · No. 11 12 12 · No. 12 035 035 · No. 13 14 14 · No. 14 520 520 · No. 15 16 16 · No. 16 310 310 · No. 17 18 18 · No. 18 19 19 · No. 19 20 20 · No. 20 232 232 · No. 21 777 777 · No. 22 778 778 · No. 23 076 076 · No. 24 750 750 · No. 25 999-6 999-6 · No. 26 796 796 · No. 27 280 280 · No. 28 281 281 · No. 29 712 712 · No. 30 730 730 · No. 31 281 281 · No. 32 280 280 · No. 33 276* 276* · No. 34 776 776 · No. 35 698 698 · No. 36 292 292 · No. 37 38 38 · No. 38 716 716 · No. 39 289 289 · No. 40 290* 290* · No. 41 699 699 · No. 42 964 964 · No. 43 974 974 · No. 44 984 984 · No. 45 877 877 · No. 46 853 853 · No. 47 128/108 128, 108 · No. 48 148 148 · No. 49 876 876 · No. 50 617 617 · No. 51 247 247 · No. 52 587 587 · No. 53 252 252 · No. 54 597 597 · No. 55 255 255 · No. 56 786 786 · No. 57 999-1 999-1 · No. 58 692 692 · No. 59 887 887 · No. 60 960 960 · No. 61 971 971 · No. 62 183 183 · No. 63 860A 860A · No. 64 706 706 · No. 65 860B 860B · No. 66 708 708 · No. 67 696 696 · No. 68 229 229 · No. 69 797 797 · No. 70 230* 230* · No. 71 892 892 · No. 72 150 150 · No. 73 130/110 130, 110 · No. 74 131 131 · No. 75 893 893 · No. 76 986 986 · No. 77 976 976 · No. 78 976-1 976-1 · No. 79 966 966 · No. 80 760 760 · No. 81 077 077 · No. 82 783 783 · No. 83 991-2 991-2 · No. 84 991-7 991-7 · No. 85 446 446 · No. 86 469 469 · No. 87 444 444 · No. 88 347 347 · No. 89 492A 492A · No. 90 387A 387A · No. 91 996 996 · No. 92 494 494 · No. 93 371 371 · No. 94 493 493 · No. 95 700 700 · No. 96 691-2 691-2 · No. 97 691 691 · No. 98 691-3 691-3 · No. 99 438 438 · No. 100 759 759 · No. 101 994 994 · No. 102 995-1 995-1 · No. 103 995-2 995-2 · No. 104 995-3 995-3 · No. 105 010 010 · No. 106 496A 496A · No. 107 378/496A 378, 496A · No. 108 996 996 · No. 109 378 378 · No. 110 378 378 · No. 111 496B 496B · No. 112 781 781 · No. 113 991-3/072 991-3, 072 · No. 114 794 794 · No. 115 991-6 991-6 · No. 116 793 793 · No. 117 421 421 · No. 118 435 435 · No. 119 425 425 · No. 120 430 430 · No. 121 414 414 · No. 122 264 264 · No. 123 047 047 · No. 124 705 705 · No. 125 861 861 · No. 126 707 707 · No. 127 865 865 · No. 128 971 971 · No. 129 187 187 · No. 130 981 981 · No. 131 795 795 · No. 132 235 235 · No. 133 236* 236* · No. 134 300/765 300, 765 · No. 135 740 740 · No. 136 741-1 741-1 · No. 137 138 138 · No. 138 139 139 · No. 139 991-8 991-8 · No. 140 492 492 · No. 141 387B 387B · No. 142 791 791 · No. 143 452 452 · No. 144 769 769 · No. 145

Parts categories

View all parts →
Kits
Kits
15 parts
Valve body & solenoids
Valve body & solenoids
14 parts
Electrical
Electrical
10 parts
Filters & pans
Filters & pans
1 part
Seals & gaskets
Seals & gaskets
33 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
23 parts
Pump
Pump
4 parts
Friction & steel
Friction & steel
21 parts
Planetary & hard parts
Planetary & hard parts
31 parts
Hardware & other
Hardware & other
53 parts
Sell RE0F08A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

7 applications · 1 make · 2002–2016 Nissan 7

Make Model Year Drive Engine
Nissan Cube 2008-2016 CVT F/AWD L4 1.8L
Nissan CUBE CUBIC 2002-2012 CVT FWD L4 1.3/1.4/1.5L
Nissan March 2006-2016 CVT FWD L3 0.0L
Nissan Note 2005-2012 CVT FWD L4 1.5L
Nissan Tiida 2005-2012 CVT FWD L4 1.5/1.8L
Nissan Versa 2006-2013 CVT FWD L4 1.8L
Nissan Wingroad 2006-2012 CVT FWD L4 1.5/1.8L

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Belt damage
The transmission can set a belt damage trouble code, indicating incorrect gear ratio or physical damage to the CVT push belt.
!
Step motor circuit fault
The step (ratio control) motor circuit can fail, causing a DTC and preventing proper ratio/shift control.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
manual
CVT Installation Guide (fluid fill procedure & fluid chart)
—
View →
other
Jatco CVT Install Instructions / Warranty & Fluid Guide
—
View →
