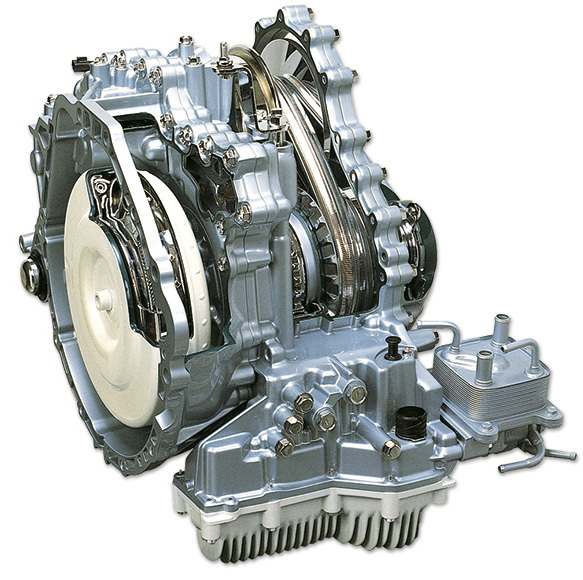

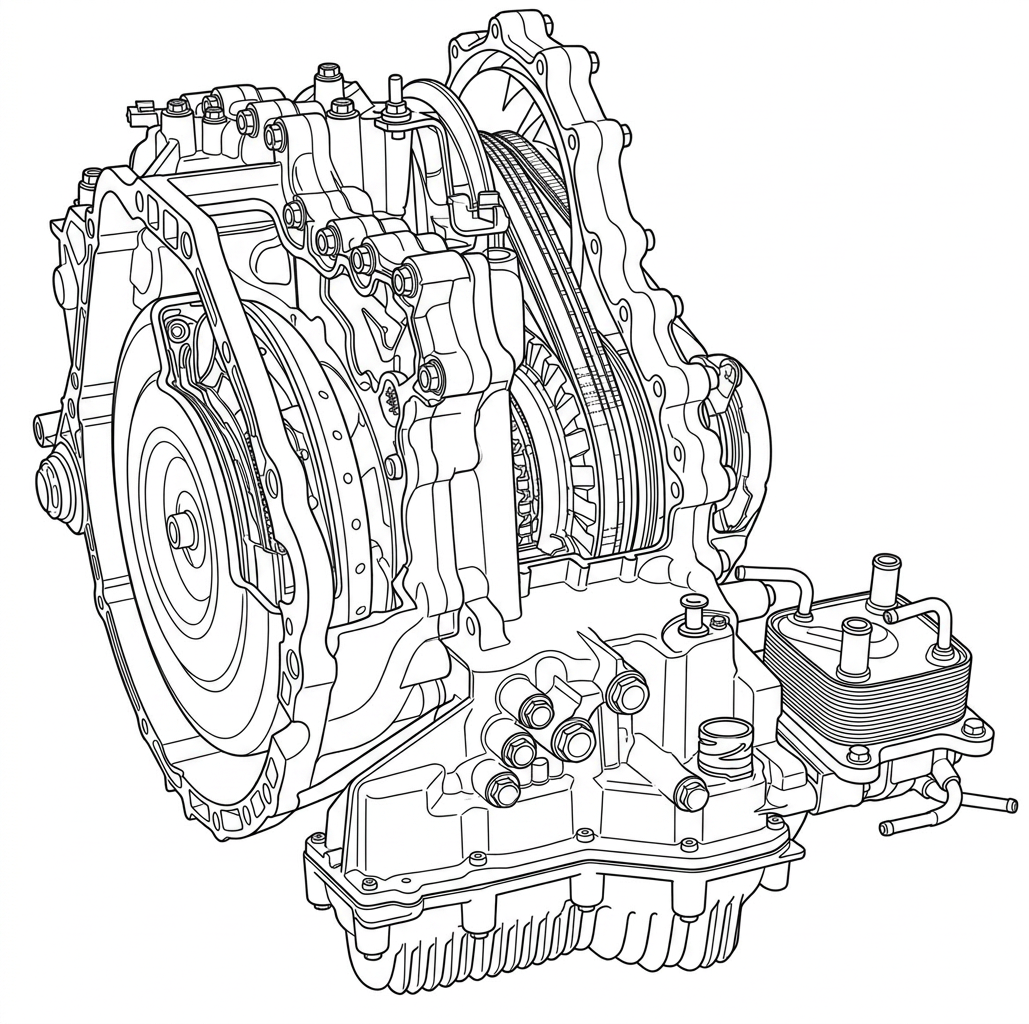

Jatco JF010E Transmission

The constantly variable transmission (CVT) RE0F09A/B (also named as JF010E – according to Jatco classification) is designed on the basis of famous RE0F06A, but for higher torque of Nissan engine with capacity equal to 3.5 liters V6 and since 2002 it has been used on Nissan Murano, and later (2007) modification for rare Maxima, Pressage, and for some time past installed on Teana of the Russian assembly.

Speeds ∞
Type CVT
Drive FWD/AWD
ATF capacity (L) 10,1
ATF change (L) 6
ATF type CVT Fluid NS-2
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
JF010E
5.1/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.2
Documentation depth10.0
Knowledge & support7.5

Exploded diagram & parts

Full RE0F09A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

436 436 · No. 1 228 228 · No. 2 693 693 · No. 3 797-1 797-1 · No. 4 710 710 · No. 5 690 690 · No. 6 070 070 · No. 7 034 034 · No. 8 311 311 · No. 9 510 510 · No. 10 035/530 035, 530 · No. 11 036 036 · No. 12 520 520 · No. 13 181 181 · No. 14 310 310 · No. 15 211 211 · No. 16 670 670 · No. 17 554 554 · No. 18 232 232 · No. 19 777 777 · No. 20 778 778 · No. 21 076 076 · No. 22 999-6/750 999-6, 750 · No. 23 999-6 999-6 · No. 24 796 796 · No. 25 280 280 · No. 26 281 281 · No. 27 712 712 · No. 28 730 730 · No. 29 274 274 · No. 30 273 273 · No. 31 276* 276* · No. 32 776 776 · No. 33 999-6/291 999-6, 291 · No. 34 292 292 · No. 35 36 36 · No. 36 716 716 · No. 37 289 289 · No. 38 288 288 · No. 39 290 290 · No. 40 974 +4 974, 335, 964, 984, 334 · No. 41 877 877 · No. 42 853 853 · No. 43 547 547 · No. 44 128/108 128, 108 · No. 45 148 148 · No. 46 876 876 · No. 47 889 889 · No. 48 597 597 · No. 49 889 889 · No. 50 617 617 · No. 51 247 247 · No. 52 587 587 · No. 53 786 786 · No. 54 980/899 980, 899 · No. 55 692 692 · No. 56 960/183 960, 183 · No. 57 970-1 970-1 · No. 58 970 970 · No. 59 860 860 · No. 60 706/708 706, 708 · No. 61 696 696 · No. 62 229 229 · No. 63 797 797 · No. 64 230 230 · No. 65 255 255 · No. 66 892 892 · No. 67 150 150 · No. 68 130/110 130, 110 · No. 69 131 131 · No. 70 893 893 · No. 71 976 976 · No. 72 966 966 · No. 73 760 760 · No. 74 077 077 · No. 75 999-1 999-1 · No. 76 991-2 991-2 · No. 77 072 072 · No. 78 991-3 991-3 · No. 79 347 347 · No. 80 446-1 446-1 · No. 81 998 998 · No. 82 700 700 · No. 83 691-2 691-2 · No. 84 691 691 · No. 85 691-3 691-3 · No. 86 759 759 · No. 87 415 415 · No. 88 790 790 · No. 89 794 794 · No. 90 991-6/995-1 991-6, 995-1 · No. 91 995-2 995-2 · No. 92 995-3 995-3 · No. 93 991-4 991-4 · No. 94 446 446 · No. 95 425 +5 425, 435, 428, 430, 414, 740 · No. 96 236 236 · No. 97 872 872 · No. 98 705 705 · No. 99 861 861 · No. 100 707 707 · No. 101 971 971 · No. 102 981/187 981, 187 · No. 103 888 888 · No. 104 695 695 · No. 105 694 694 · No. 106 235 235 · No. 107 795 795 · No. 108 994 994 · No. 109 300/765 300, 765 · No. 110 469 469 · No. 111 410 410 · No. 112 791 791 · No. 113 010 010 · No. 114 452 452 · No. 115 991-8 991-8 · No. 116 799 799 · No. 117 991-1 991-1 · No. 118 779 779 · No. 119 492 492 · No. 120 793 793 · No. 121

Parts categories

View all parts →
Sell JF010E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

7 applications · 2 makes · 2003–2014 Nissan 5 · Renault 2

Make Model Year Drive Engine
Nissan Altima 2007-2012 CVT FWD V6 3.5L
Nissan Altima 2007 CVT FWD V6 3.5L
Nissan Maxima 2007-2014 CVT FWD V6 3.5L
Nissan Maxima 2007 CVT FWD V6 3.5L
Nissan Murano 2003-2007 CVT FWD/AWD V6 3.5L
Renault Megane 2009-2011 CVT FWD L4 1.9L
Renault Scenic 2009-2011 CVT FWD L4 1.9L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

CVT-3
JF010E
JF 010-E
CVT 3
RE0FO9
CVT3
JF010-E
RE0FO9B
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pressure Control Valve Wedging
Pump pressure control valve wedges due to overheating and oil contamination, causing dynamic load on belt and cones.
!
Driving Belt Wear and Damage
Belt wears rapidly due to cold starts in winter, low-speed harsh acceleration, and contaminated oil damaging belt surfac
!
Cone Shaft Surface Wear
Input/output shaft cone surfaces degrade; unique design makes them the primary resource-limiting component of the CVT.
!
Forward Clutch Burning
Forward clutch is the most commonly burned clutch pack in RE0F09A/JF010E transmissions.
?
Dynamic Load After Heat-Up
Wedged pressure valve re-engages after warm-up causing sudden dynamic load, rapidly accelerating belt and cone damage.
!
Reverse Clutch Failure
Reverse clutch packs commonly require replacement, frequently reported alongside forward clutch repairs.
!
Step Motor Failure
Step motor has limited operational life when exposed to overheated oil, similar failure pattern as seen in JF011E.
!
Valve Body Plunger Wear
Long-term operation with contaminated NS-2 oil wears out valve body valves and plungers, degrading hydraulic control.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The constantly variable transmission (CVT) RE0F09A/B (also named as JF010E – according to Jatco classification) is designed on the basis of famous RE0F06A, but for higher torque of Nissan engine with capacity equal to 3.5 liters V6 and since 2002 it has been used on Nissan Murano, and later (2007) modification for rare Maxima, Pressage, and for some time past installed on Teana of the Russian assembly.

Technical issues and repair guidelines

The delicate usage with a long oil heat-up and frequent oil change (NS-2) accompanied by the torque converter repair is the best way for a car owner to preserve CVT during the first years of operation.

Typical problems of “old” CVTs RE0F09A:

In general, this CVT family is one of the most reliable in the world and these transmissions have been a standard in the world of transmission manufacturers for a long period of time. But this CVT lost competition on the market of 3-4 liter cars to automatic gearboxes and even to DSG. The typical overhaul of this CVT requires the torque converter repair. Common problems of “old” CVTs are related to the pressure control valve (of the pump) wedging caused by overheating and contamination in summer time. The valve can wedge and switch-on after a heat-up, that leads to the dynamic load on transmission components and rapidly damages the belt and cones.

The long-term operation with contaminated oil wears out valves and plungers of the valve body. The most popular spare part for JF010E is a driving belt. The first reason of rapid belt wear-out is related to insufficiently warmed up transmission in winter time. The second reason of the belt damage is the driving at low speeds in traffic jams with harsh accelerations. The most common reason of damage for surfaces of the belt and shafts is related to the oil cleanness.

- Forward Clutch is exposed to burning in most cases. It is also common to replace Reverse clutches.

- Sometimes orders for repair include the step-motor which has quite limited operational life in overheated oil ( as in JF011).

The main factor for operational durability of this transmission is related to the state of shafts (input and output) which are unique in terms of design. The surface of cones is the main resource of this transmission. All other units of this gearbox are much cheaper or easily operate during two service lives of this CVT.
