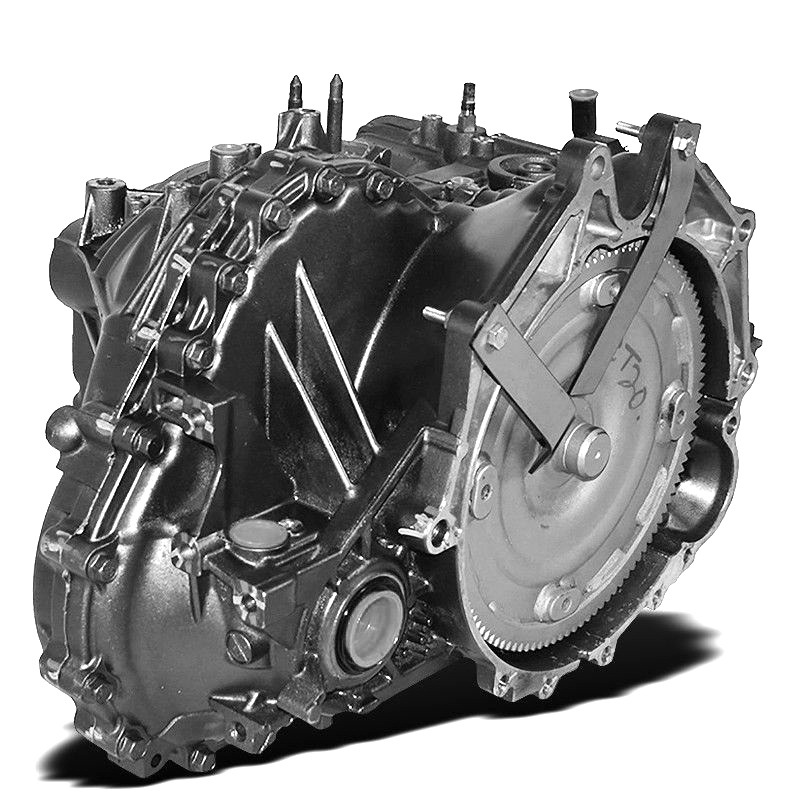

Mitsubishi F4A51 Transmission

The automatic transmission F4A51 from Mitsubishi company was developed in 1998. This transmission modification is intended for FWD and AWD vehicles with engine capacity from 1.3 up to 2,8 liters.

Speeds 4
Type AT
Drive FWD/4WD
ATF capacity (L) 8,5
ATF change (L) 3,5
ATF type SP III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
F4A51
7.3/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.1
Documentation depth10.0
Knowledge & support7.0

Exploded diagram & parts

Full F4A42 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774 774 · No. 1 796 796 · No. 2 274 274 · No. 3 275 275 · No. 4 276* 276* · No. 5 730 730 · No. 6 690 690 · No. 7 281/712 281, 712 · No. 8 281 281 · No. 9 586 586 · No. 10 878 878 · No. 11 146 146 · No. 12 126/106 126, 106 · No. 13 147 147 · No. 14 879 879 · No. 15 985 985 · No. 16 337C 337C · No. 17 975 975 · No. 18 965 965 · No. 19 336337 336337 · No. 20 336337 336337 · No. 21 046 046 · No. 22 555 555 · No. 23 046 046 · No. 24 022 022 · No. 25 695 695 · No. 26 259 259 · No. 27 654 654 · No. 28 897 897 · No. 29 665 665 · No. 30 695 695 · No. 31 229 229 · No. 32 263 263 · No. 33 750 750 · No. 34 776 776 · No. 35 730 730 · No. 36 274 274 · No. 37 273 273 · No. 38 735 735 · No. 39 712 712 · No. 40 696 696 · No. 41 899 899 · No. 42 277* 277* · No. 43 280 280 · No. 44 281 281 · No. 45 796 796 · No. 46 736 736 · No. 47 070 070 · No. 48 311 311 · No. 49 50 50 · No. 50 51 51 · No. 51 530 530 · No. 52 036 036 · No. 53 520 520 · No. 54 778 778 · No. 55 179 179 · No. 56 310 310 · No. 57 670 670 · No. 58 551 551 · No. 59 341 341 · No. 60 961 961 · No. 61 971 971 · No. 62 981 981 · No. 63 865 865 · No. 64 010 010 · No. 65 077 077 · No. 66 293* 293* · No. 67 291 291 · No. 68 292 292 · No. 69 716 716 · No. 70 71 71 · No. 71 289 289 · No. 72 288 288 · No. 73 076 076 · No. 74 438 438 · No. 75 410 410 · No. 76 992 992 · No. 77 436 436 · No. 78 786 786 · No. 79 013 013 · No. 80 338/339 338, 339 · No. 81 967 967 · No. 82 977 977 · No. 83 987 987 · No. 84 857 857 · No. 85 155* 155* · No. 86 134/114 134, 114 · No. 87 884 884 · No. 88 154 154 · No. 89 885* 885* · No. 90 395 395 · No. 91 662 662 · No. 92 883 883 · No. 93 337 337 · No. 94 880 880 · No. 95 122 +2 122, 880, 102 · No. 96 142 142 · No. 97 864* 864* · No. 98 219 219 · No. 99 571 571 · No. 100 710 710 · No. 101 279 279 · No. 102 711 711 · No. 103 279 279 · No. 104 795 795 · No. 105 760 760 · No. 106 285 285 · No. 107 652 652 · No. 108 109 109 · No. 109 652 652 · No. 110 652 652 · No. 111 889 889 · No. 112 058 058 · No. 113 584 584 · No. 114 248 248 · No. 115 056 056 · No. 116 614 614 · No. 117 056 056 · No. 118 246 246 · No. 119 594 594 · No. 120 580 580 · No. 121 040 040 · No. 122 123 123 · No. 123 124 124 · No. 124 578 578 · No. 125 040 040 · No. 126 222 222 · No. 127 124/104 124, 104 · No. 128 427 427 · No. 129 421 421 · No. 130 423 423 · No. 131 740 740 · No. 132 426 426 · No. 133 422 422 · No. 134 425 425 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 139 139 · No. 139 017 017 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 144* 144* · No. 148 982 982 · No. 149 972 972 · No. 150 962 962 · No. 151 333332 333332 · No. 152 956 956 · No. 153 039 039 · No. 154 874 874 · No. 155 570 570 · No. 156 039/214 039, 214 · No. 157 214 214 · No. 158 892* 892* · No. 159 150 150 · No. 160 130/110 130, 110 · No. 161 861* 861* · No. 162 140 140 · No. 163 120/100 120, 100 · No. 164 493 493 · No. 165 301/766 301, 766 · No. 166 446 446 · No. 167 347 347 · No. 168 446-4 446-4 · No. 169 916 916 · No. 170 999 999 · No. 171 896 896 · No. 172 360 360 · No. 173 909 909 · No. 174 360 360 · No. 175 342 342 · No. 176 185/233* 185, 233* · No. 177 181 181 · No. 178 179 179 · No. 179 180 180 · No. 180 780 780 · No. 181 995-2 995-2 · No. 182 995-3 995-3 · No. 183 991-6 991-6 · No. 184 991-2 991-2 · No. 185 991-4 991-4 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 191 191 · No. 191 195 195 · No. 192 907 907 · No. 193 896 896 · No. 194 141 141 · No. 195 331B 331B · No. 196 862 862 · No. 197 980 980 · No. 198 970 970 · No. 199 960 960 · No. 200 331 331 · No. 201 330 330 · No. 202 550 550 · No. 203 334 334 · No. 204 335 335 · No. 205 556 556 · No. 206 232 232 · No. 207 233* 233* · No. 208 223 223 · No. 209 210 210 · No. 210 211 211 · No. 211 212 212 · No. 212 213 213 · No. 213 214 214 · No. 214 215 215 · No. 215 759 759 · No. 216 217 217 · No. 217 788 788 · No. 218 995-1 995-1 · No. 219 994 994 · No. 220 221 221 · No. 221 222 222 · No. 222 223 223 · No. 223 906 906 · No. 224

Parts categories

View all parts →
Sell F4A51 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

24 applications · 6 makes · 1996–2016 Mitsubishi 9 · Kia 5 · Chery 4 · Hyundai 4 · Chrysler 1

Make Model Year Drive Engine
Chery CROSS EASTAR 2006-2009 4 Spd FWD L4 2.4L
Chery EASTAR/EASTAR A6 2003-2012 4 Spd FWD L4 2.0/2.4L
Chery TIGGO 2005-2016 4 Spd FWD L4 2.0L/2.4L
Chery TIGGO 3 2005-2013 4 Spd FWD L4 2.0L/2.4L
Chrysler Sebring 2001-2005 L4, V6 2.7, 3.0L
Dodge Stratus R/T 2001-2006 V6 3L
Hyundai GRANDEUR XG 2000-2005 4 Spd FWD V6 2.5L
Hyundai TRAJET 2000-2007 4 Spd FWD L4 2.0L V6 2.7L
Hyundai TUCSON 2004-2009 4 Spd FWD/4X4 L4 2.0L
Hyundai XG 2001-2005 4 Spd FWD V6 2.5L
Kia CARENS 2006-2012 4 Spd FWD L4 2.0L
Kia CARNIVAL 2000-2008 4 Spd FWD V6 2.5L
Kia GRAND CARNIVAL 2006-2012 4 Spd FWD V6 2.7L
Kia LOTZE 2005-2010 4 Spd FWD L4 2.0L
Kia Sportage 2004-2010 4 Spd FWD/4X4 L4 2.0L V6 2.7L
Mitsubishi CHARIOT GRANDIS 2000-2004 4 Spd FWD V6 3.0L
Mitsubishi Diamante 1997-2005 4 Spd FWD V6 3.0L 3.5L
Mitsubishi Diamante 1997-2004 4 Spd FWD V6 3.5L
Mitsubishi Eclipse 1996-2005 4 Spd FWD V6 3.0L
Mitsubishi Endeavor 2004-2011 3.8
Mitsubishi Endeavor 2004-2006 4 Spd AWD V6 3.8L
Mitsubishi Galant 1999-2011 4 Spd FWD V6 3.0L
Mitsubishi Galant 1999-2003 4 Spd FWD V6 3.0L
Mitsubishi Lancer 2009-2011 4 Spd FWD L4 1.5/1.6/1.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

W4A-5A
W4A5-A
F4A51
W4A5A
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pump Seal Failure
Pump and seals identified as primary weak points in F4A51/F4A52 transmissions, leading to leaks.
!
Valve Body Damage
Valve body failure results in expensive, time-consuming overhauls; considered a critical failure point.
!
Transmission Planet Failure
Planetary gear set failure documented as a known failure mode requiring teardown inspection.
!
Cracked Pump Alignment
Pump cracking and misalignment identified as a specific mechanical defect in F4A51 units.
?
Pump Leak External
External fluid leak originating from pump area, indicating seal or pump housing degradation.
?
No Forward Gear Engagement
Transmission fails to engage forward gears, indicating clutch pack, valve body, or pump failure.
?
Slipping in Reverse
Transmission slips when reverse gear is selected, suggesting worn clutch packs or low hydraulic pressure.
!
Abrupt Acceleration Sensitivity
Transmission is sensitive to hard acceleration events, accelerating internal wear and reducing service life.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The automatic transmission F4A51 from Mitsubishi company was developed in 1998. This transmission modification is intended for FWD and AWD vehicles with engine capacity from 1.3 up to 2,8 liters.

Technical issues and repair guidelines

This 4-speed automatic transmission has two modifications. The modification F4A51 was used cars with engines capacity from 1,3 up to 1,8 liters. The modification F4A52 was used for more powerful engines. In terms of design, these transmissions are similar, but at the same time some elements in one transmission are larger than parts in the other one. This automatic transmission was installed on Japanese cars Mitsubishi Galant, Lancer and Korean cars Hyundai Serato, Santa Fe and Sonata. Subsequently, the transmission found application in different American and Chinese mid-size cars. Later this transmission was upgraded and a maximum engine torque was increased. It should be emphasized, that the F4A42 unit gained a good reputation. Thanks to simplicity of its design, this transmission is notable for reliability and durability. Its not a surprise when after running 300.000 kilometers this transmission does not require the overhaul. However, the service lifespan of this transmission also depends on operating conditions and the driving style of the car owner. This transmission is very sensitive to abrupt accelerations and is mainly intended for operation in urban areas.

In order to simplify the repair procedure of the F4A52 system, it is required to use special repair kits, which help transmission specialists to fix any malfunctions. Pump and seals are the main soft spots in this transmission. In specific cases, problems may occur in the valve body. The valve body damage usually leads to expensive and time-consuming overhauls.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
F4A51 Teardown Inspection
Gary Ferraro
video
F4A51 Highlights
Gary Ferraro
video
F4A51 Transmission Planet Failure - Transmission Repair
Automatic Transmission
video
F4A51 Transmission Pump Leak Cracked, leaking fluid - Transmission Repair
Automatic Transmission
video
F4A/F5A Series Transmission Pump Alignment - Transmission Repair
Automatic Transmission
video
F5A51 Transmission, No Forward, Slips in Reverse - Transmission Repair
Automatic Transmission
