Ford F-4EAT (F4AEL) Transmission

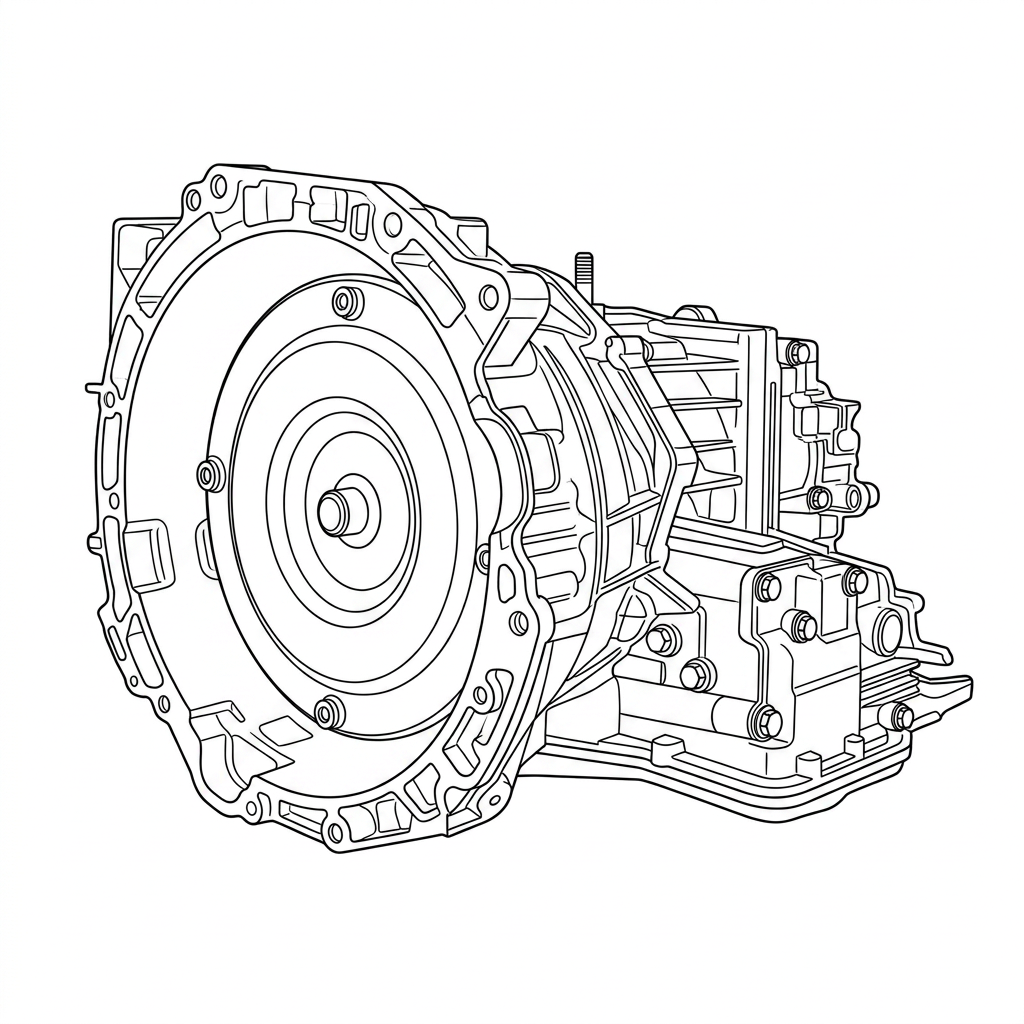

The 4-speed automatic transmission F4A-EL (KIA - 4EAT-F, F4E-AT) was designed by Mazda specialists together with Jatco in 1989 for FWD vehicles with the engine capacity of approx. 1.6 liters. This transmission had to replace the 3-speed F3A and was used for Mazda 323 and Ford Escort. In terms of design, this transmission is similar to the 4EAT-G.

Speeds 4
Type AT
Drive FWD
Max torque 150
ATF capacity (L) 7,8
ATF change (L) 3,5
ATF type SP-III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
F-4EAT
6.1/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.3
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full F-4EAT parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 2 2 · No. 2 3 3 · No. 3 497 497 · No. 4 5 5 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 9 9 · No. 9 493 493 · No. 10 494 494 · No. 11 774 774 · No. 12 13 13 · No. 13 14 14 · No. 14 15 15 · No. 15 16 16 · No. 16 17 17 · No. 17 18 18 · No. 18 19 19 · No. 19 20 20 · No. 20 21 21 · No. 21 22 22 · No. 22 23 23 · No. 23 410 410 · No. 24 446 446 · No. 25 422 422 · No. 26 369 369 · No. 27 849 849 · No. 28 848 848 · No. 29 30 30 · No. 30 31 31 · No. 31 32 32 · No. 32 076 076 · No. 33 291 291 · No. 34 292 292 · No. 35 847 847 · No. 36 716/720 716, 720 · No. 37 292 292 · No. 38 288 288 · No. 39 290* 290* · No. 40 076 076 · No. 41 347 347 · No. 42 43 43 · No. 43 031 031 · No. 44 032 032 · No. 45 070 070 · No. 46 529 529 · No. 47 381 381 · No. 48 750 750 · No. 49 374 374 · No. 50 679 679 · No. 51 283 283 · No. 52 282 282 · No. 53 284* 284* · No. 54 714 714 · No. 55 282 282 · No. 56 283 283 · No. 57 799 799 · No. 58 760 760 · No. 59 425 425 · No. 60 421 421 · No. 61 273 273 · No. 62 274 274 · No. 63 180 180 · No. 64 730 730 · No. 65 180 180 · No. 66 274 274 · No. 67 273 273 · No. 68 276* 276* · No. 69 735 735 · No. 70 367 +5 367, 365903, 366, 904, 901, 896 · No. 71 010 010 · No. 72 300/765 300, 765 · No. 73 74 74 · No. 74 996 996 · No. 75 76 76 · No. 76 671 671 · No. 77 049 049 · No. 78 673 673 · No. 79 475 475 · No. 80 626 626 · No. 81 213 213 · No. 82 550 550 · No. 83 331 331 · No. 84 330 330 · No. 85 960 960 · No. 86 970 970 · No. 87 980 980 · No. 88 862 862 · No. 89 90 90 · No. 90 120/100 120, 100 · No. 91 140 140 · No. 92 890* 890* · No. 93 594 594 · No. 94 889 889 · No. 95 96 96 · No. 96 332 332 · No. 97 333 333 · No. 98 967 967 · No. 99 977 977 · No. 100 865 865 · No. 101 134/114 134, 114 · No. 102 154 154 · No. 103 891 891 · No. 104 250 250 · No. 105 251 251 · No. 106 577 577 · No. 107 584 584 · No. 108 882 882 · No. 109 245 245 · No. 110 244 244 · No. 111 642 642 · No. 112 857 857 · No. 113 870 870 · No. 114 052 052 · No. 115 614 614 · No. 116 052 052 · No. 117 026 026 · No. 118 119 119 · No. 119 558 558 · No. 120 061 061 · No. 121 237 237 · No. 122 574 574 · No. 123 658 658 · No. 124 658 658 · No. 125 658 658 · No. 126 235 235 · No. 127 881 881 · No. 128 579 579 · No. 129 880 880 · No. 130 231 231 · No. 131 876* 876* · No. 132 148 148 · No. 133 128/108 128, 108 · No. 134 853 853 · No. 135 878* 878* · No. 136 152 152 · No. 137 132/112 132, 112 · No. 138 856 856 · No. 139 879 879 · No. 140 979 979 · No. 141 969 969 · No. 142 341 341 · No. 143 340 340 · No. 144 559 559 · No. 145 335 335 · No. 146 892* 892* · No. 147 150 150 · No. 148 130/110 130, 110 · No. 149 131 131 · No. 150 893 893 · No. 151 854 854 · No. 152 976 976 · No. 153 966 966 · No. 154 338 338 · No. 155 156 156 · No. 156 339 339 · No. 157 181 181 · No. 158 556 556 · No. 159 211 211 · No. 160 895 895 · No. 161 210* 210* · No. 162 037 037 · No. 163 036 036 · No. 164 179 179 · No. 165 520 520 · No. 166 543035530 543035530 · No. 167 543035530 543035530 · No. 168 543035530 543035530 · No. 169 510/310 510, 310 · No. 170 777 777 · No. 171 778 778 · No. 172

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to F-4EAT in the Go4Trans marketplace.
Sell F-4EAT parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

26 applications · 4 makes · 1990–2006 Kia 9 · Mazda 9 · Ford 4 · Mercury 4

Make Model Year Drive Engine
Ford Escort 1991-2003 1.8, 1.9, 2.0
Ford Escort 1991-2002 L4 1.8, 1.9, 2.0L
Ford Escort/ZX2 USA 1990-2003 4 Spd FWD L4 1.8L/1.9L/2.0L
Ford Probe 1990-1997 4 Spd FWD L4 2.2L; V6 2.5L 3.0L
Kia Rio / Rio5 2001-2005 4 Spd FWD L4 1.5L/1.6L
Kia Rio / Rio5 2001-2005 1.5, 1.6
Kia Rio, Rio Cinco 2001-2006 4 Spd FWD L4 1.5L 1.6L
Kia Sephia 1994-2001 1.6, 1.8
Kia Sephia / Mentor 1994-2001 4 Spd FWD L4 1.6L 1.8L
Kia SEPHIA A2 1997-2001 4 Spd FWD L4 1.5/1.8L
Kia Shuma 4 Spd FWD L4 1.8L
Kia Spectra 2000-2004 4 Spd FWD L4 1.8L
Kia Spectra 2000-2004 1.8
Mazda 323 1990-1995 1.6, 1.8
Mazda 323 1990-1994 4 Spd FWD L4 1.6L 1.8L
Mazda MX3 1992-1998 1.6, 1.8
Mazda MX3 1992-1995 4 Spd FWD L4 1.6L; V6 1.8
Mazda MX3 1992-1995 4 Spd FWD L4 1.6L V6 1.8L
Mazda Protégé 1995-1998 4 Spd FWD L4 1.5L 1.8L
Mazda PROTEGE 1990-1998 4 Spd FWD L4 1.5/1.8L
Mazda Protégé 1990-1998 1.5, 1.8
Mazda Protégé 1990-1994 4 Spd FWD L4 1.8L
Mercury Tracer 1991-1999 4 Spd FWD L4 1.8L 1.9L 2.0L
Mercury Tracer 1991-1999 L4 1.8,1.9,2.0L
Mercury Tracer 1991-1999 1.8,1.9, 2.0
Mercury Tracer 1990-1999 4 Spd FWD L4 1.8L/1.9L/2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

F4EAT
4EATF
F4 EAT
1 PAN
1PAN
F-4EAT
4EAT F
4EAT-F
F4E-AT
F4A-EL
GF 4EAT
GF4-EAT
GF4EAT
GF-4EAT
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Hub Bushing Wear
First bushing to wear out; wear exceeding 100 microns causes significant oil pressure loss and friction element burning.
!
Forward Pack Friction Elements Burnt
Forward clutch pack friction elements burn due to wear-out of rings and bushings; among first to fail.
!
Overdrive 3-4 Pack Burnt
Overdrive 3-4 clutch pack friction elements burn early due to bushing and ring wear degradation.
!
Reverse Pack Friction Elements Burnt
Reverse clutch pack burns along with Forward and OD 3-4 packs; clutch drum may also require replacement.
?
Burnt ATF Odor Detected
Burnt flavor in ATF indicates valve body contamination and solenoid wear; requires cleaning and solenoid replacement.
!
Oil Pump Damage from Contamination
Contaminated ATF and bushing wear vibrations negatively impact oil pump integrity and performance.
!
Rear Cover Replacement Required
Rear cover frequently replaced on Mazda units due to poor Y-alloy (aluminum alloy) quality used in manufacturing.
!
EPC and Shift Solenoid Failure
EPC solenoid (Ford/Mazda: SHIFT solenoid), 2-3 and 3-4 solenoids reach end of service life; replacement restores reliabi
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission F4A-EL (KIA - 4EAT-F, F4E-AT) was designed by Mazda specialists together with Jatco in 1989 for FWD vehicles with the engine capacity of approx. 1.6 liters. This transmission had to replace the 3-speed F3A and was used for Mazda 323 and Ford Escort. In terms of design, this transmission is similar to the 4EAT-G.

Technical issues and repair guidelines

This reliable and simple automatic transmission in most cases comes in repair services with the torque converter issues and replacement of spare parts: repair kit of gaskets and seals. Friction elements of Forward, Overdrive 3-4 and Reverse packs are the first to get burnt because of wear-out of rings and bushings. Later, repair specialists packages Coast and L\R. With transmission aging it is required to replace the kit of bushings. Significant oil pressure losses and burning of friction elements in packages occur, when the wear-out of bushings exceeds 100 microns. The bushing of the torque converter hub is the first to wear out.

The clutch drum (Reverse & Forward Clutch Drum (only for Ford/Mazda)) gets replaced together with burnt friction elements, steel and bearing discs on old cars.Operation with contaminated ATF and vibrations related to wear-out of bushes has a bad impact on the oil pump. The rear cover is also replaced quite often (poor Y-alloy in Mazda). The valve body of this transmission has a specific distinction: for Kia- there is a valve 3-2, for Ford and Mazda- no valve. A new design of the valve body is very robust and has no problems of the first series. Timely detection of the burnt flavor and cleaning of the valve body with replacement of the EPC solenoid (or SHIFT - Ford/Mazda), 2-3 and 3-4.), which reaches the end of its service life, ensure reliability and a long-time service life of this transmission without any serious problems.
