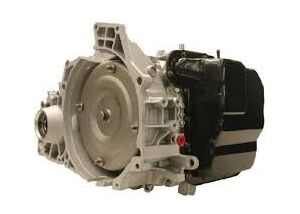

Ford CD4E Transmission

The 4-speed automatic transmission CD4E has been used since 1994 on well-known FWD vehicles with engines 2.0 - 2.5 liters of Mazda such as 626, Tribute and MX6 (LA4A-EL). Ford used this transmission on the Probe, and later after some updates on Mondeo, Escape and Fiesta (named as the 4F44E according to a new Ford classification).This transmission became quite competitive according to the ratio price/quality and had been used until 2007 (was in production for 13 years).

Speeds 4
Type AT
Drive FWD
Max torque 250
ATF capacity (L) 9,5
ATF change (L) 3,7
ATF type Mercon V
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
CD4E
6.7/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.6
Documentation depth10.0
Knowledge & support7.5

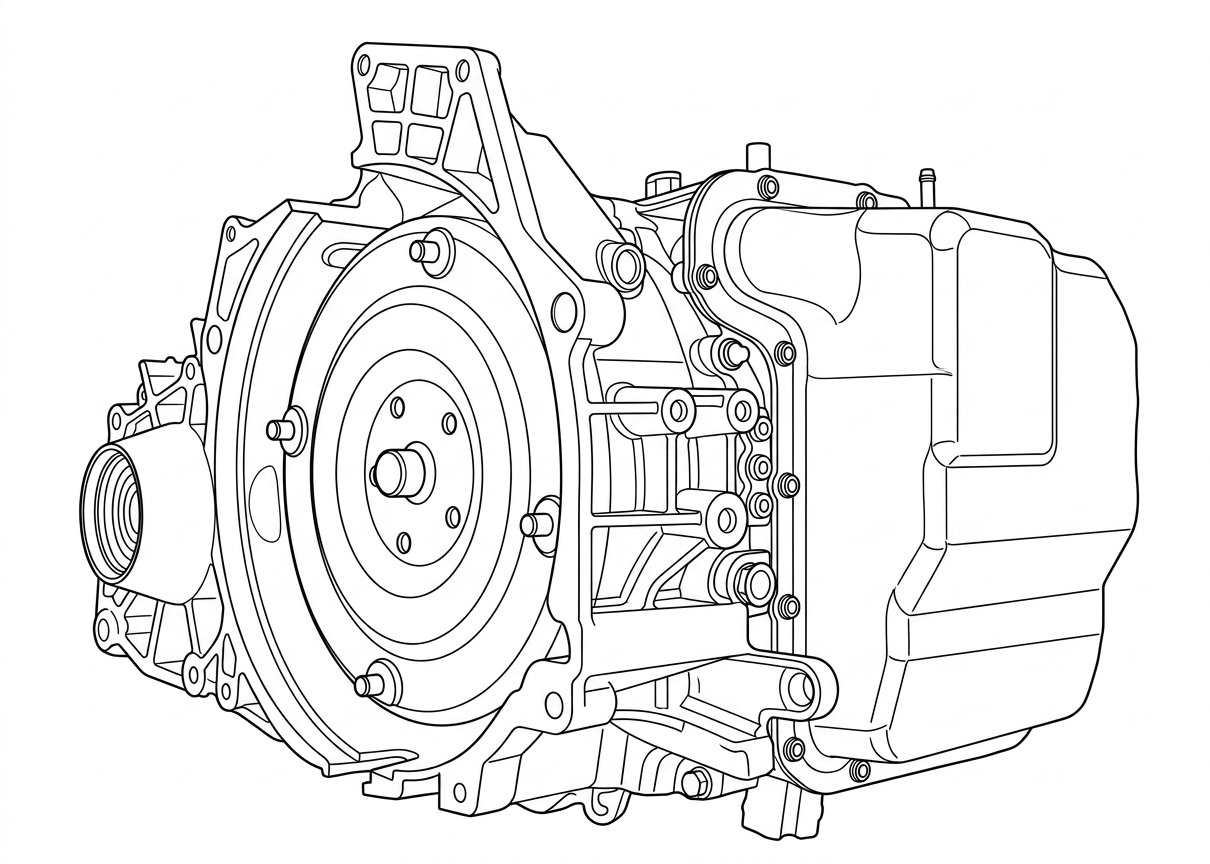

Exploded diagram & parts

Full CD4E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.
