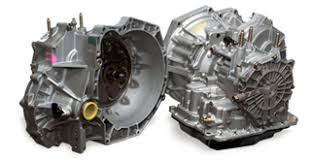

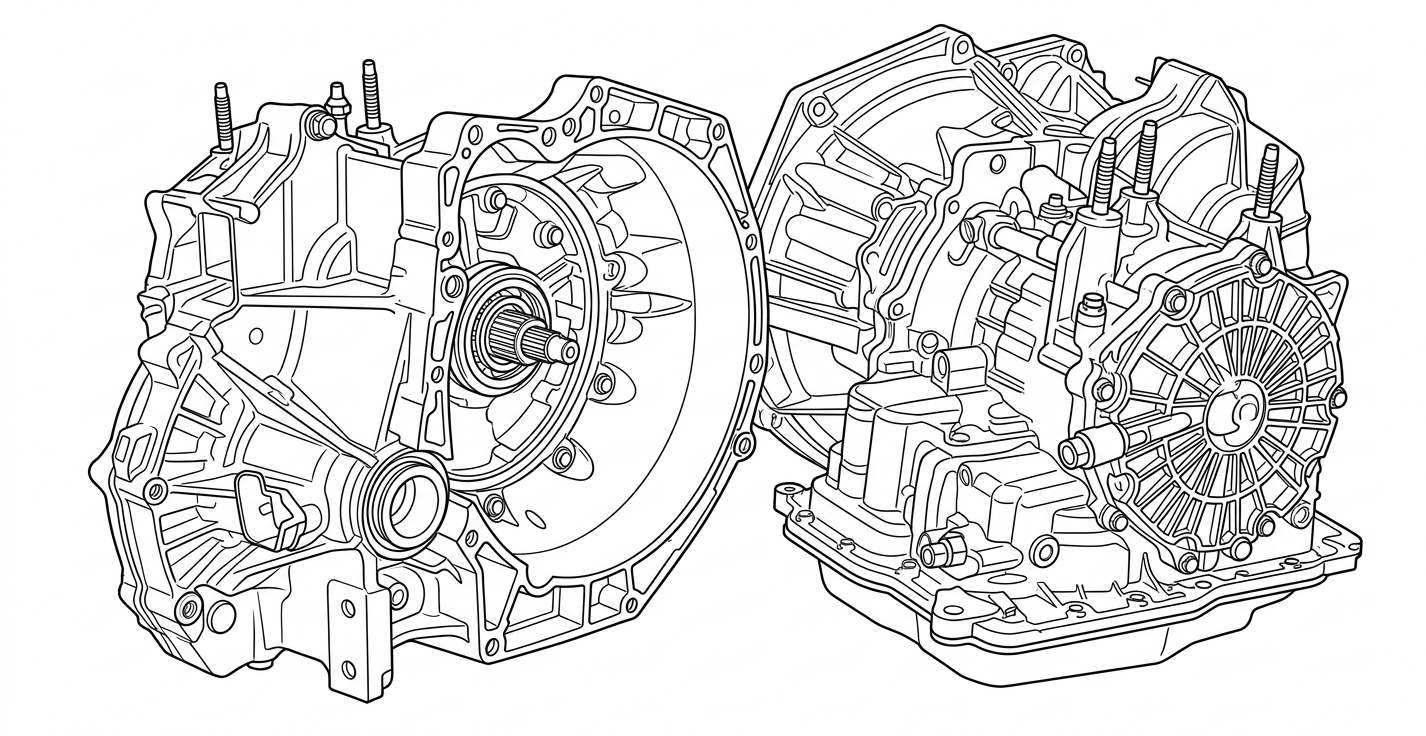

Ford 4F27E Transmission

The 4-speed automatic gearbox 4F27E was designed in 1998 for well-known FWD vehicles Ford Focus with the engine capacity from 1.3 up to 2 liters. According to Mazda classification, this models is also known as FN4A-EL. This gearbox is intended for lower torque. It is a remarkable solution which can be rebuilt without removing the whole mechanism. The cover is a common component for repair in this gearbox.

Speeds 4
Type AT
Drive FWD
Max torque 200
ATF capacity (L) 8
ATF change (L) 3,5
ATF type DexronVI / Mercon LV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4F27E
7.7/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.7
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full 4F27E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

436 436 · No. 1 370 370 · No. 2 776 776 · No. 3 293* 293* · No. 4 291 291 · No. 5 292 292 · No. 6 7 7 · No. 7 289 289 · No. 8 288 288 · No. 9 076 076 · No. 10 777 777 · No. 11 179 179 · No. 12 076 076 · No. 13 750 750 · No. 14 277* 277* · No. 15 273 273 · No. 16 274 274 · No. 17 730 730 · No. 18 690 690 · No. 19 712 712 · No. 20 281 281 · No. 21 280 280 · No. 22 689 689 · No. 23 070 070 · No. 24 311 311 · No. 25 530 530 · No. 26 530 530 · No. 27 520 520 · No. 28 037 037 · No. 29 778 778 · No. 30 037 037 · No. 31 211 211 · No. 32 554 554 · No. 33 964 964 · No. 34 974 974 · No. 35 964B 964B · No. 36 877 877 · No. 37 370 370 · No. 38 438 438 · No. 39 996 996 · No. 40 128/108 128, 108 · No. 41 148 148 · No. 42 876 876 · No. 43 574 574 · No. 44 710 710 · No. 45 279 279 · No. 46 278 278 · No. 47 284 284 · No. 48 999 999 · No. 49 760 760 · No. 50 278 278 · No. 51 279 279 · No. 52 696 696 · No. 53 795 795 · No. 54 967 967 · No. 55 977 977 · No. 56 664 664 · No. 57 865 865 · No. 58 134/114 134, 114 · No. 59 154 154 · No. 60 694 694 · No. 61 654 654 · No. 62 654 654 · No. 63 654 654 · No. 64 883 883 · No. 65 926B 926B · No. 66 926B 926B · No. 67 342 342 · No. 68 69 69 · No. 69 342 342 · No. 70 741-1 741-1 · No. 71 926 926 · No. 72 927 927 · No. 73 926 926 · No. 74 927 927 · No. 75 76 76 · No. 76 77 77 · No. 77 78 78 · No. 78 79 79 · No. 79 80 80 · No. 80 901 901 · No. 81 905 905 · No. 82 592 592 · No. 83 582 582 · No. 84 234 234 · No. 85 884 884 · No. 86 052 052 · No. 87 612 612 · No. 88 052 052 · No. 89 241 241 · No. 90 584 584 · No. 91 889 889 · No. 92 892 892 · No. 93 614 614 · No. 94 056 056 · No. 95 217 217 · No. 96 570 570 · No. 97 039 039 · No. 98 214 214 · No. 99 995-2 995-2 · No. 100 995-1 995-1 · No. 101 102 102 · No. 102 103 103 · No. 103 104 104 · No. 104 105 105 · No. 105 106 106 · No. 106 107 107 · No. 107 321 +2 321, 747, 320 · No. 108 109 109 · No. 109 110 110 · No. 110 111 111 · No. 111 904 904 · No. 112 366 366 · No. 113 995-3 995-3 · No. 114 115 115 · No. 115 890 890 · No. 116 140 140 · No. 117 120/100 120, 100 · No. 118 862 862 · No. 119 960B 960B · No. 120 970 970 · No. 121 960 960 · No. 122 550 550 · No. 123 892 892 · No. 124 151 151 · No. 125 130/110 130, 110 · No. 126 991-6 991-6 · No. 127 994 994 · No. 128 991-3 991-3 · No. 129 422 422 · No. 130 421 421 · No. 131 132 132 · No. 132 746/322 746, 322 · No. 133 426 426 · No. 134 423 423 · No. 135 410 410 · No. 136 137 137 · No. 137 991-4 991-4 · No. 138 010 010 · No. 139 431 431 · No. 140 765/300 765, 300 · No. 141 427 427 · No. 142 446 446 · No. 143 893 893 · No. 144 855 855 · No. 145 976 976 · No. 146 966 966 · No. 147 556 556 · No. 148 046 046 · No. 149 260 260 · No. 150 261 261 · No. 151 020 020 · No. 152 066 066 · No. 153 185 185 · No. 154 180 180 · No. 155 996 996 · No. 156 759 759 · No. 157 799 799 · No. 158 992 992 · No. 159 347 347 · No. 160 344 344 · No. 161

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4F27E in the Go4Trans marketplace.
Sell 4F27E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

44 applications · 2 makes · 1999–2016 Mazda 29 · Ford 15

Make Model Year Drive Engine
Ford Ecosport 2007-2012 4 Spd FWD L4 2.0L
Ford Festiva 4 Spd FWD L4 1.3L
Ford Fiesta 2008-2013 4 Spd FWD L4 1.3/1.4/1.5L
Ford Focus 2000-2012 4 Spd FWD L4 2.0L/2.3L
Ford Focus 2000-2010 L4 2.0, 2.3L
Ford Focus 2000-2010 2.0, 2.3
Ford Focus C-Max 2000-2011 4 Spd FWD L4 1.6/1.8/2.0/2.3L
Ford Focus USA 2000-2007 4 Spd FWD L4 2.0L/2.3L
Ford I-MAX 2007-2010 4 Spd F/AWD L4 1.8L
Ford IXION 2004-2005 4 Spd F/AWD L4 1.8L
Ford LASER 2000-2005 4 Spd FWD L4 1.5L/1.8L
Ford LYNX 2000-2005 4 Spd FWD L4 1.3L/1.6L
Ford TELSTAR 4 Spd FWD L4 2.0L
Ford TIERRA 2000-2007 4 Spd FWD L4 1.6L
Ford TRANSIT CONNECT 2009-2013 4 Spd FWD L4 2.0L
Mazda 2 2011-2013 1.5
Mazda 2 2007-2012 4 Spd FWD L4 1.3/1.5L
Mazda 3 2004-2014 4 Spd FWD L4 2.0L/2.3L
Mazda 3/i/s 2004-2009 2.0, 2.3
Mazda 323 2000-2007 4 Spd FWD L4 1.3/1.5/1.6/1.8/2.0L
Mazda 3i, 3S, 3SP23 2004-2007 4 Spd FWD L4 2.0L 2.3L
Mazda 5 2006-2008 2.3
Mazda 5 2006-2007 4 Spd FWD L4 2.3L
Mazda 5 2005-2011 4 Spd FWD L4 2.0L
Mazda 6 2002-2008 4 Spd FWD L4 2.3L
Mazda 6/i 2003-2006 2.3
Mazda 6/i 2003-2005 4 Spd FWD L4 2.3L
Mazda 8 2011-2014 4 Spd FWD L4 2.3L
Mazda ATENZA WAGON/5HB 2002-2005 4 Spd F/AWD L4 2.0L 2.3L
Mazda AXELA WAGON 2003-2013 4 Spd F/AWD L4 1.5/1.6/2.0/2.3L
Mazda BIANTE 2008-2016 4 Spd FWD/4X4 L4 2.0L
Mazda CX3 2016 4 Spd F/4WD L4 1.6L
Mazda CX7 4 Spd F/AWD L4 2.3L
Mazda DEMIO 2000-2014 4 Spd FWD L4 1.3L 1.5L
Mazda FAMILIA 2000-2005 4 Spd FWD L4 1.3/1.5/1.8/2.0L
Mazda MPV 2006-2016 4 Spd FWD L4 2.3L
Mazda MPV 2006 2.3
Mazda MPV (Van) 2006 4 Spd FWD L4 2.3L
Mazda PREMACY 2000-2010 4 Spd FWD L4 1.8/2.0/2.3L
Mazda Protégé 1999-2004 4 Spd FWD L4 1.6L 1.8L 2.0L
Mazda PROTEGE 1999-2004 4 Spd FWD L4 1.6/1.8L/2.0L
Mazda Protégé 1999-2003 1.6, 1.8, 2.0
Mazda Tribute 2003-2008 4 Spd F/AWD L4 2.3L
Mazda VERISA 2004-2009 4 Spd F/AWD L4 1.5L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

FN4AEL
FN4-AEL
FN4A-EL
4F247E
4F27E
AF27E
4F27-E
FN4AE-L
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Reverse Drum Rear Cover Clearance
Drum seating position on rear cover support wears out, causing oil leakage past teflon rings.
!
Overdrive Friction Pack Burnout
Overdrive friction components burn rapidly due to oil starvation from worn rear cover stator seat.
!
Reverse Friction Pack Burnout
Reverse friction pack burns out quickly linked to teflon ring oil leakage at rear cover support.
!
Rear Cover Stator Wear
FN4A-EL rear cover stator is softer material than 4F27E Ford variant, accelerating wear and failure.
?
Oil Leak Teflon Rings
Oil escapes past teflon rings at worn drum seating area, starving friction packs and causing burn damage.
!
Differential Wear Old Units
Differential is a known problem on older units; Ford revised it multiple times, varying tooth counts.
!
Valve Body Contamination
Valve body requires periodic cleaning; rubber seals and gaskets need replacement via overhaul kit.
!
Rubber Piston Degradation
Rubber-covered pistons on Reverse, Forward, and Low/Reverse clutches are secondary wear items needing replacement.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic gearbox 4F27E was designed in 1998 for well-known FWD vehicles Ford Focus with the engine capacity from 1.3 up to 2 liters. According to Mazda classification, this models is also known as FN4A-EL. This gearbox is intended for lower torque. It is a remarkable solution which can be rebuilt without removing the whole mechanism. The cover is a common component for repair in this gearbox.

This easy-to-operate gearbox is still assembled on many plants of Ford-Mazda worldwide. The range of 4F27E /FNR5 is the most common Ford-Mazda gearboxes in repair services. Spare parts for repair of 4F27E (FN4A-EL) are almost the same as in the 5-speed FNR5.

Technical issues and repair guidelines

  • Clearance of the Reverse drum on the back cover stator.

Friction components of Overdrive and Reverse packages get burnt quite rapidly. Fast burning of these elements is related to design peculiarities of such type of gearboxes. Burning of these reliable friction elements occurs because the drum seating position on the rear cover support wears out and oil leaks out from teflon rings.

  • Back cover of the FN4A-EL

Specialists assume that the back cover issue is related to the stator’s material in the FN4A-EL. It is softer than in Ford (4F27E), therefore gearboxes for Ford have no problems with the rear cover.

  • Electrical elements in the 4F27E work properly for a long time.

The valve body is usually cleaned and rubber with gaskets get replaced with the help of the Overhaul Kit.

  • The differential is one more problematic component of “old” units. Ford updated the differential several times for different cars and now differentials of the 4F27E vary in quantity of “teeth”.
  • Rubber-covered pistons (Reverse, Forward, Low/Reverse) are the spare parts of second priority.

This gearbox is well-known among repair specialists, most parts for this gearbox are widely available. Proper exploitation and well-timed maintenance make this gearbox reliable and repairable.
