Toyota A540E Transmission

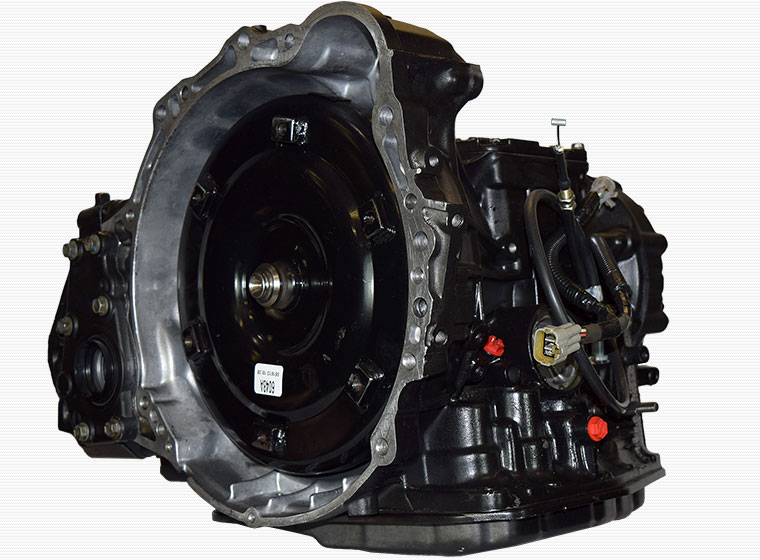

The 4-speed automatic transmission A540E produced by Aisin Warner has been used since 1989 on AWD and FWD 2- 3 liter Toyota Camry, RAV4, Sienna and Lexus ES250 and ES300. In terms of design, this transmission is the part of A140 - A240 series with interchangeable parts, but it can transmit a higher torque. There are several sub-modifications of this transmission.

Speeds 4
Type AT
Drive FWD/4WD
Max torque 280
ATF capacity (L) 8
ATF change (L) 3
ATF type Toyota Type T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A540E
5.3/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.7
Documentation depth10.0
Knowledge & support4.0

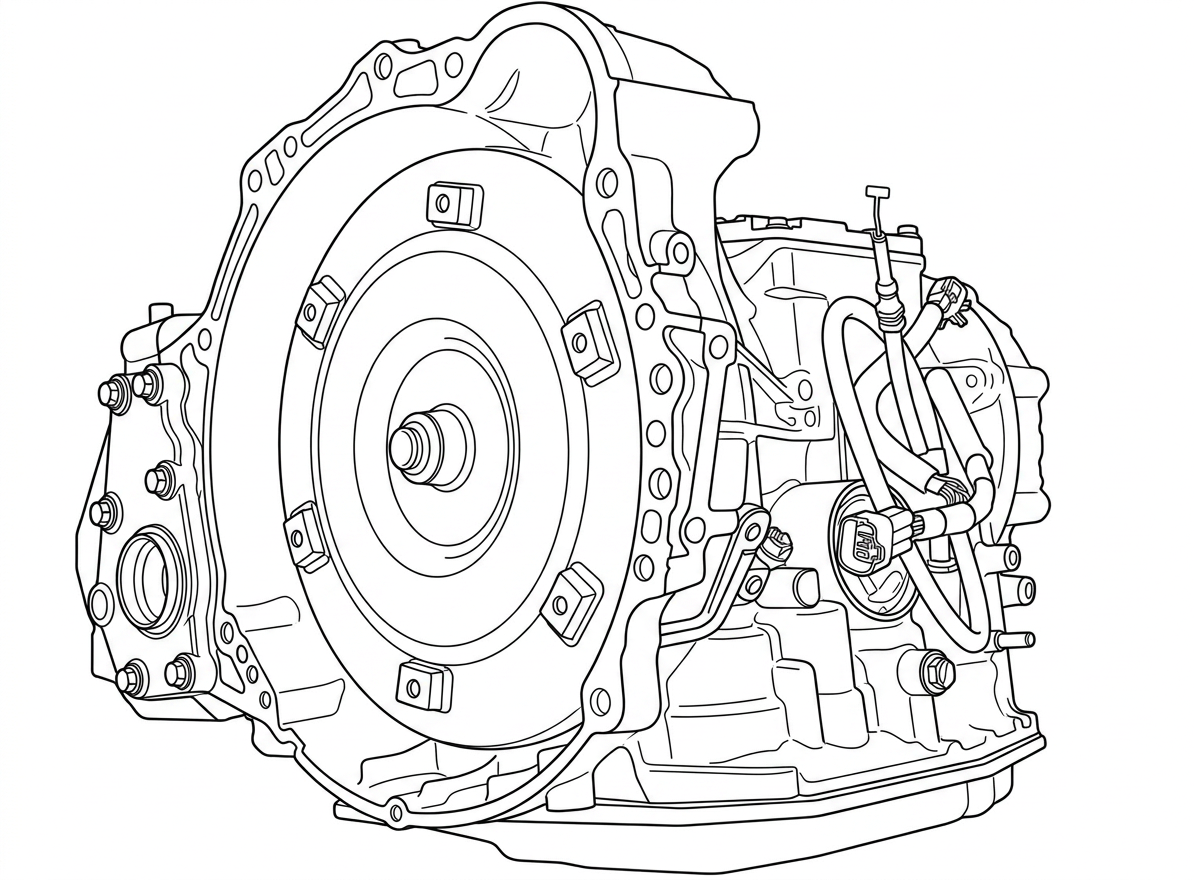

Exploded diagram & parts

Full A540E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

777 777 · No. 1 179 179 · No. 2 070 070 · No. 3 034 034 · No. 4 311 311 · No. 5 6 6 · No. 6 530 530 · No. 7 036 036 · No. 8 520 520 · No. 9 209 209 · No. 10 211 211 · No. 11 022 022 · No. 12 046 046 · No. 13 555 555 · No. 14 229 229 · No. 15 337 337 · No. 16 336 336 · No. 17 965 965 · No. 18 975 975 · No. 19 879 879 · No. 20 122/106 122, 106 · No. 21 146 146 · No. 22 878 878 · No. 23 225 225 · No. 24 226 226 · No. 25 227 227 · No. 26 554 554 · No. 27 335 335 · No. 28 964 964 · No. 29 974 974 · No. 30 877 877 · No. 31 122/106 122, 106 · No. 32 146 146 · No. 33 876 876 · No. 34 231 231 · No. 35 232 232 · No. 36 233 233 · No. 37 778 778 · No. 38 882 882 · No. 39 050 050 · No. 40 602 602 · No. 41 592 592 · No. 42 234 234 · No. 43 235 235 · No. 44 236 236 · No. 45 582 582 · No. 46 238 238 · No. 47 052 052 · No. 48 612 612 · No. 49 052 052 · No. 50 622 622 · No. 51 244 244 · No. 52 245 245 · No. 53 642 642 · No. 54 652 652 · No. 55 245 245 · No. 56 241 241 · No. 57 883 883 · No. 58 956 956 · No. 59 962 962 · No. 60 332 332 · No. 61 333 333 · No. 62 972 972 · No. 63 124/100 124, 100 · No. 64 144 144 · No. 65 873 873 · No. 66 888 888 · No. 67 665 665 · No. 68 654 654 · No. 69 888 888 · No. 70 584 584 · No. 71 251 251 · No. 72 246 246 · No. 73 594 594 · No. 74 604 604 · No. 75 889 889 · No. 76 996 996 · No. 77 438 438 · No. 78 774 774 · No. 79 436 436 · No. 80 150 150 · No. 81 130/100 130, 100 · No. 82 893 893 · No. 83 976 976 · No. 84 966 966 · No. 85 339 339 · No. 86 338 338 · No. 87 076 076 · No. 88 291 291 · No. 89 292 292 · No. 90 847 847 · No. 91 716 716 · No. 92 720 720 · No. 93 289 289 · No. 94 288 288 · No. 95 290 290 · No. 96 725 725 · No. 97 698 698 · No. 98 077 077 · No. 99 100 100 · No. 100 101 101 · No. 101 102 102 · No. 102 375 375 · No. 103 786 786 · No. 104 446 446 · No. 105 302 +4 302, 756, 724, 760, 758 · No. 106 736 736 · No. 107 730 730 · No. 108 274 274 · No. 109 273 273 · No. 110 075 075 · No. 111 735 735 · No. 112 075 075 · No. 113 895 895 · No. 114 681 681 · No. 115 696 696 · No. 116 699 699 · No. 117 280 280 · No. 118 281 281 · No. 119 712 712 · No. 120 796 796 · No. 121 122 122 · No. 122 123 123 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 127 127 · No. 127 128 128 · No. 128 129 129 · No. 129 130 130 · No. 130 894 894 · No. 131 795 795 · No. 132 207 207 · No. 133 263 263 · No. 134 268 268 · No. 135 269 269 · No. 136 710 710 · No. 137 269 269 · No. 138 268 268 · No. 139 898 898 · No. 140 590 590 · No. 141 580 580 · No. 142 216 216 · No. 143 661 661 · No. 144 650 650 · No. 145 694 694 · No. 146 867 867 · No. 147 148 148 · No. 148 908-1 +4 908-1, 908, 906B, 906, 907 · No. 149 410 410 · No. 150 072 072 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 362 +2 362, 909, 896 · No. 156 992 992 · No. 157 158 158 · No. 158 545 545 · No. 159 331 331 · No. 160 330 330 · No. 161 960 960 · No. 162 862 862 · No. 163 970 970 · No. 164 850 850 · No. 165 120/100 120, 100 · No. 166 140 140 · No. 167 864 864 · No. 168 142 142 · No. 169 122/106 122, 106 · No. 170 010 010 · No. 171 326 326 · No. 172 431 431 · No. 173 174 174 · No. 174 765/300 765, 300 · No. 175 176 176 · No. 176 865 865 · No. 177 971 971 · No. 178 961 961 · No. 179 341 341 · No. 180 340 340 · No. 181 217 217 · No. 182 038 038 · No. 183 551 551 · No. 184 185 185 · No. 185 039 039 · No. 186 219 219 · No. 187 221 221 · No. 188 189 189 · No. 189 759/304 759, 304 · No. 190 780 780 · No. 191 425 425 · No. 192

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A540E in the Go4Trans marketplace.
Sell A540E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

12 applications · 2 makes · 1988–2001 Toyota 7 · Lexus 5

Make Model Year Drive Engine
Lexus ES 1990-2001 4 Spd FWD V6 2.5L 3.0L
Lexus ES 250 1990-1991 2.5
Lexus ES300 1994-1998 3.0
Lexus ES300 1992-1993 4 Spd FWD V6 3.0L
Lexus ES300 1992-1993 3.0
Toyota Camry 1992-1993 4 Spd FWD V6 3.0L
Toyota Camry 1992-1993 2.5
Toyota Camry 1988-1993 4 Spd FWD V6 2.5L/3.0L
Toyota Camry 1988-1991 2.5
Toyota CAMRY GRACIA 2000-2001 4 Spd FWD L4 2.0/2.2L V6 3.0L
Toyota Sienna 1998-2000 4 Spd FWD V6 3.0L
Toyota WINDOM 2000-2001 4 Spd FWD V6 2.5L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A541
A540
A540-E
A540E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Friction Wear
Worn torque converter frictions cause debris contamination leading to valve body and solenoid clogging.
?
Valve Body Solenoid Clogging
Contamination from worn converter frictions clogs solenoids, resulting in hydraulic pressure shortage in clutch packs.
?
Clutch Pack Burnt Frictions
Pressure shortage due to clogged valve body causes friction discs and clutch packs to burn out.
!
Pump Bushing and Seal Failure
Insufficient pump lubrication from pressure loss causes bushing and seal burn and subsequent ATF leaks.
!
Reverse Gear Issues
Early A540H units produced before 1991 reported specific problems with reverse gear engagement.
!
Torque Converter Lockup Wear
Torque converter lockup clutch requires periodic replacement; primary wear item over long service life.
?
ATF Contamination and Degradation
Neglected ATF changes accelerate friction wear debris buildup, triggering cascading valve body failures.
!
Valve Body Seal Deterioration
Valve body seals degrade over time; low-cost repair involves cleaning valve body and replacing seals and pump bushing.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission A540E produced by Aisin Warner has been used since 1989 on AWD and FWD 2- 3 liter Toyota Camry, RAV4, Sienna and Lexus ES250 and ES300. In terms of design, this transmission is the part of A140 - A240 series with interchangeable parts, but it can transmit a higher torque. There are several sub-modifications of this transmission.

The most significant design changes were introduced in 1994 for A541E used with 3-liter engines, this gearbox differs in friction components of the 2-brake package andadditional 4-th solenoid of the torque converter lockup in the valve body. Tested design, simple electrical components and most importantly control settings that made it impossible to load components of this transmission to maximum torques – all these conditions ensured high reliability parameters of the A541 unit and durability of this transmission.

Technical issues and repair guidelines

There is no much information on the repair of this transmission, because it operates for a long time without any problems, therefore it is hard to point out any soft spots in A540-541 transmission units. It has been reported that the first released gearboxes (A540H before 1991) had some issues with the reverse gear. The most common reason for appearance of these transmissions in repair services is related to the change of oil and replacement of filter (for A541E Camry V6).

The A540E unit usually gets in repair service with worn-out torque converter frictions causing clogging of the valve body and solenoids, resulting in the pressure shortage in packages (frictions and discs get burnt) and short supply of the pump lubrication (bushing and seal burn and leak).Problems of A540E (A541E, 540H) are commonly related to ill-timed preventive measures for the torque converter, and have nothing to do with durability of this robust transmission capable of covering one million kilometers (standard for Toyota) with just few replacements of the torque converter lockup and ATF change.

Usually at the early stages of wear-out of old Toyota cars owners restrict repair actions to the low-cost repair-cleaning of the valve body with replacement of seals and the pump bushing.The repair process obviously includes the pan gasket replacement. When taking more serious approach to the overhaul of used transmission, it is common to replace all gaskets and seals kit. After the overhaul, this transmission can operate until the end of the car service life.
