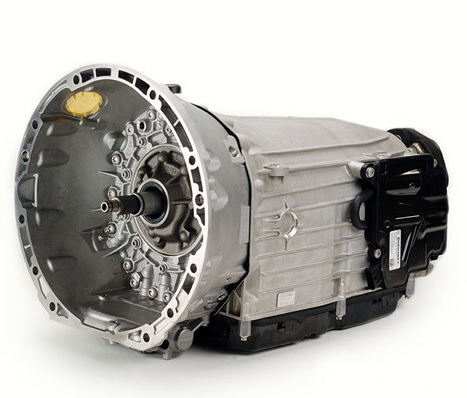

Mercedes-Benz 722.9 Transmission

The 7-speed automatic transmission Mercedes 722.9 was produced in 2004 (G-tronic) and considered to be a masterpiece from Mercedes Benz for C-class models. It was used for all RWD Mercedes cars from C180 to C350. This transmission was designed on constructive basis of the 6-th series of automatic transmissions and many spare parts are interchangeable.

Speeds 7
Type AT
Drive RWD/AWD
Max torque 550-850
ATF capacity (L) 9,1
ATF change (L) 5
ATF type 236.15
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
722.9
8.8/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence9.5
Documentation depth10.0
Knowledge & support7.0

Exploded diagram & parts

Full 722.9 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 070 070 · No. 2 034 034 · No. 3 4 4 · No. 4 530 530 · No. 5 311 311 · No. 6 750/544 750, 544 · No. 7 880 880 · No. 8 520 520 · No. 9 211 211 · No. 10 967 967 · No. 11 977 977 · No. 12 886 886 · No. 13 135 135 · No. 14 134/114 134, 114 · No. 15 154 154 · No. 16 885 885 · No. 17 228 228 · No. 18 555 555 · No. 19 965 965 · No. 20 336 +2 336, 975, 985 · No. 21 879 879 · No. 22 127 127 · No. 23 126/106 126, 106 · No. 24 777 777 · No. 25 776 776 · No. 26 778 778 · No. 27 146 146 · No. 28 878 878 · No. 29 554 554 · No. 30 964 964 · No. 31 974 974 · No. 32 877 877 · No. 33 129 129 · No. 34 128/108 128, 108 · No. 35 148 148 · No. 36 876 876 · No. 37 234 234 · No. 38 592 592 · No. 39 235 235 · No. 40 236 236 · No. 41 582 582 · No. 42 237 237 · No. 43 239 239 · No. 44 698 698 · No. 45 238 238 · No. 46 620 620 · No. 47 244 244 · No. 48 619 619 · No. 49 177 177 · No. 50 550 550 · No. 51 475 475 · No. 52 215 215 · No. 53 330 330 · No. 54 331 331 · No. 55 970/960 970, 960 · No. 56 331B/980 331B, 980 · No. 57 862 862 · No. 58 121 121 · No. 59 120/100 120, 100 · No. 60 861/140 861, 140 · No. 61 594/882 594, 882 · No. 62 216 216 · No. 63 580 580 · No. 64 250 250 · No. 65 889 889 · No. 66 590 590 · No. 67 246 246 · No. 68 247 247 · No. 69 584 584 · No. 70 610 610 · No. 71 249 249 · No. 72 614 614 · No. 73 220 220 · No. 74 221 221 · No. 75 888 888 · No. 76 864 864 · No. 77 142 142 · No. 78 122/102 122, 102 · No. 79 123 123 · No. 80 781 781 · No. 81 865 865 · No. 82 971 971 · No. 83 961 961 · No. 84 341 341 · No. 85 551 551 · No. 86 231 231 · No. 87 232 232 · No. 88 233 233 · No. 89 894 894 · No. 90 892 892 · No. 91 150 150 · No. 92 130/110 130, 110 · No. 93 873/131 873, 131 · No. 94 144 144 · No. 95 760 760 · No. 96 271 271 · No. 97 98 98 · No. 98 895 895 · No. 99 074 074 · No. 100 347 347 · No. 101 841 841 · No. 102 798 798 · No. 103 459 459 · No. 104 305 305 · No. 105 841B 841B · No. 106 798 798 · No. 107 770 770 · No. 108 017 017 · No. 109 999 999 · No. 110 382B 382B · No. 111 072 072 · No. 112 379 379 · No. 113 010 010 · No. 114 425 425 · No. 115 791 791 · No. 116 422/446 422, 446 · No. 117 741M 741M · No. 118 104/124 104, 124 · No. 119 124B 124B · No. 120 125 125 · No. 121 874 874 · No. 122 982 982 · No. 123 972 972 · No. 124 962B/332 962B, 332 · No. 125 333 +2 333, 332B, 962 · No. 126 552 552 · No. 127 339 339 · No. 128 338 338 · No. 129 634 634 · No. 130 690 690 · No. 131 270 270 · No. 132 460 460 · No. 133 421 +6 421, 427, 428, 300, 740, 782, 765 · No. 134 992 992 · No. 135 991-3 991-3 · No. 136 991-7 991-7 · No. 137 994 994 · No. 138 994-3 994-3 · No. 139 995-1 995-1 · No. 140 483 483 · No. 141 995-4 995-4 · No. 142 790 790 · No. 143 779 779 · No. 144 991-2 991-2 · No. 145

Parts categories

View all parts →
Sell 722.9 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

100 applications · 2 makes · 2000–2018 Mercedes-Benz 99 · Nissan 1

Make Model Year Drive Engine
Mercedes-Benz C230 2006-2009 2.5
Mercedes-Benz C230 2006 7 Spd RWD V6 2.5L
Mercedes-Benz C250 2012-2015 1.8
Mercedes-Benz C280 2006-2007 3.0
Mercedes-Benz C280 2006 7 Spd RWD V6 3.0L
Mercedes-Benz C300 2008-2017 3.0, 3.5
Mercedes-Benz C350 2006-2015 3.5
Mercedes-Benz C350 2006 7 Spd RWD V6 3.5L
Mercedes-Benz C400 2015 3.0
Mercedes-Benz C450 AMG 2015-2016 3.0
Mercedes-Benz C63 AMG 2007-2015 5.5, 6.2
Mercedes-Benz CL 2003-2014 7 Spd R/AWD V8 4.6/5.0/5.5L
Mercedes-Benz CL500 2005-2006 7 Spd RWD V8 5.0L
Mercedes-Benz CL500 2005-2006 5.0
Mercedes-Benz CL550 2007-2014 4.6, 5.5
Mercedes-Benz CL63 AMG 2007-2014 5.5, 6.3
Mercedes-Benz CLASSE C 2000-2012 7 Spd R/AWD L4 2.2L V6 2.5/3.0/3.5 V8
Mercedes-Benz CLASSE E 2002-2014 7 Spd R/AWD L4 1.6L V6 2.4L V8 4.0L
Mercedes-Benz CLASSE GL 2006-2014 7 Spd AWD V6 3.0L V8 4.0L/5.5L
Mercedes-Benz CLASSE R 2005-2014 7 Spd R/AWD V6 3.0L V8 4.6/5.0L
Mercedes-Benz CLASSE S 2005-2014 7 Spd R/AWD L4 2.2L V8 4.0L 4.3L V12
Mercedes-Benz CLASSE SL 2005-2012 7 Spd R/AWD V6 3.0/3.5L V8 5.0/5.5
Mercedes-Benz CLC 2008-2011 7 Spd RWD V6 2.5L 3.5L
Mercedes-Benz CLC 2005-2006 7 Spd RWD V6 2.5L/3.5L
Mercedes-Benz CLK 2004-2009 7 Spd RWD V6 2.5L/3.0/3.5L
Mercedes-Benz CLK350 2006-2013 3.5
Mercedes-Benz CLK350 2006 7 Spd RWD V6 3.5L
Mercedes-Benz CLK500 2005-2006 7 Spd RWD V8 5.0L
Mercedes-Benz CLK500 2005-2006 5.0
Mercedes-Benz CLK550 2007-2009 5.5
Mercedes-Benz CLS 2004-2014 7 Spd R/AWD L4 2.2L V6 3.0L V8 4.6L
Mercedes-Benz CLS400 2014-2017 3.0
Mercedes-Benz CLS500 2006 7 Spd RWD V8 5.0L
Mercedes-Benz CLS500 2006 7 SPD RWD V8 5.8L
Mercedes-Benz CLS500 2006 5.0
Mercedes-Benz CLS550 2007-2013 4.6, 5.5
Mercedes-Benz CLS63 AMG 2007-2014 5.5, 6.3
Mercedes-Benz E320 CDI 2008-2009 3.0
Mercedes-Benz E350 2006-2016 3.0, 3.5
Mercedes-Benz E350 2006 7 Spd RWD V6 3.5L
Mercedes-Benz E500 2005-2006 7 Spd RWD V8 5.0L
Mercedes-Benz E500 2005-2006 5.0
Mercedes-Benz E550 2007-2017 4.6, 5.5
Mercedes-Benz E63 AMG 2007-2016 5.5, 6.3
Mercedes-Benz G WAGEN 2006-2014 7 Spd AWD V6 3.0L V8 4.0L V12 6.0L
Mercedes-Benz G500 2007-2013 5.0
Mercedes-Benz G550 2010-2017 5.5
Mercedes-Benz G63 AMG 2012-2018 5.5
Mercedes-Benz GL CLASS 2014-2016 7 Spd RWD V8 5.5L
Mercedes-Benz GL320 CDI 2007-2009 3.0
Mercedes-Benz GL350 2009-2015 3.0
Mercedes-Benz GL450 2007-2015 3.0, 4.5, 4.6
Mercedes-Benz GL550 2008-2017 4.7
Mercedes-Benz GLE Series 2016-2017 3.0, 4.7
Mercedes-Benz GLK 2008-2016 7 Spd R/AWD L4 1.8/2.2L V6 3.0/3.5L
Mercedes-Benz GLK350 2010-2015 3.5
Mercedes-Benz ML320 CDI 2007-2009 3.0
Mercedes-Benz ML350 2006-2015 3.0, 3.5
Mercedes-Benz ML350 2006 7 Spd RWD/4X4 V6 3.7L
Mercedes-Benz ML400 2015 3.0
Mercedes-Benz ML500 2006-2007 5.0
Mercedes-Benz ML500 2006 7 Spd RWD/4X4 V8 5.0L
Mercedes-Benz ML500 2005-2014 7 Spd RWD/4X4 V8 5.0L
Mercedes-Benz ML550 2008-2014 4.6, 5.5
Mercedes-Benz ML63 AMG 2007-2014 5.5, 6.3
Mercedes-Benz R320 CDI 2007-2009 3.0
Mercedes-Benz R350 2006-2011 3.0, 3.5
Mercedes-Benz R350 2006 7 Spd RWD/4X4 V6 3.5L
Mercedes-Benz R500 2006-2007 5.0
Mercedes-Benz R500 2006 7 Spd RWD/4X4 V8 5.0L
Mercedes-Benz R550 2008 5.5
Mercedes-Benz R63 AMG 2007 6.3
Mercedes-Benz S-CLASS 2013-2016 7 Spd R/4WD V12 6.0L V8 5.5L
Mercedes-Benz S-CLASS COUPÉ 2014-2016 7 Spd R/4WD V12 6.0L V8 5.5L
Mercedes-Benz S350 2013 3.0
Mercedes-Benz S400 (hybrid) 2010-2013 3.5
Mercedes-Benz S430 2005-2006 7 Spd RWD V8 4.3L
Mercedes-Benz S430 2005-2006 4.3
Mercedes-Benz S500 2005-2006 7 Spd RWD V8 5.0L
Mercedes-Benz S500 2005-2006 5.0
Mercedes-Benz S550 2007-2017 4.7, 5.5
Mercedes-Benz S63 AMG 2007-2013 5.5, 6.2
Mercedes-Benz SL400 2014-2017 3.0
Mercedes-Benz SL500 2004-2006 7 SPD RWD V8 5.0L
Mercedes-Benz SL500 2004-2006 5.0
Mercedes-Benz SL550 2007-2017 4.7, 5.5
Mercedes-Benz SL63 AMG 2007-2013 5.5, 6.3
Mercedes-Benz SLK250 2012-2015 1.8
Mercedes-Benz SLK280 2006-2008 3.0
Mercedes-Benz SLK280 2006 7 Spd RWD V6 3.0L
Mercedes-Benz SLK300 2008-2011 3.0
Mercedes-Benz SLK350 2005-2016 3.5
Mercedes-Benz SLK350 2005-2006 7 Spd RWD V6 3.5L
Mercedes-Benz SLK55 AMG 2005-2016 5.5
Mercedes-Benz SLK55 AMG 2005-2006 7 SPD RWD V8 5.5L
Mercedes-Benz SLK55AMG 2005-2006 7 Spd RWD V8 5.0L
Mercedes-Benz Sprinter Van 2500-3500 2014-2016 1.8, 2.1
Mercedes-Benz VIANO 2014 7 Spd RWD L4 2.2L V6 3.0L 3.5L
Mercedes-Benz VITO 2014 7 Spd RWD L4 2.2L V6 3.5L
Nissan Skyline 2013-2016 7 Spd RWD L4 1.6L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

7G Tronic Plus
722 9
M215
722.9 4Matic
7GTronic Plus
722.9
7GTronik Plus
722-9
7G-Tronic Plus
7G-Tronik Plus
7229
NAG-2
NAG2
K7B1000
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Connector Electronic Board Failure
Sensor Y3/8n1 burns out on the connector electronic board; board replacement typically required.
!
Torque Converter Friction Wear
Controlled slipping from 1st gear causes rapid ATF contamination and premature torque converter friction wear.
!
K2 Friction Pack Burnout
K2 friction package most commonly replaced; K1 and K3 less frequent. Full kit ordered when oil is burnt.
!
Valve Body Contamination Damage
Operates up to 130°C; overheated/contaminated fluid and shavings clog solenoids and break small springs.
?
Low Oil Pressure Issues
Abnormal valve body operation causes oil pressure shortages, leading to burnt frictions and cascading failures.
!
Housing Bell Vibration Damage
Transmission bell housing cracks or damages due to vibrations from aggressive driving conditions.
!
Multi-Function Switch Failure
Servo mechanism module faults in electrical part negatively impact oil pump, rear planetary gear, and bushings.
?
Premature ATF Contamination
Transmission sensitive to fluid shortage and contamination; teflon ring wear disrupts accurate gear shifting.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 7-speed automatic transmission Mercedes 722.9 was produced in 2004 (G-tronic) and considered to be a masterpiece from Mercedes Benz for C-class models. It was used for all RWD Mercedes cars from C180 to C350. This transmission was designed on constructive basis of the 6-th series of automatic transmissions and many spare parts are interchangeable.

  • W7X550 - for engines up to 3,5L and 550Nm; ATF capacity - 8,6L;
  • W7A700 - for engines up to 5,5L and 700Nm; ATF capacity - 8,9L;
  • W7B700 - for engines up to 6,3L and 850Nm; ATF capacity - 9,1L.

Technical issues and repair guidelines

For this transmission, Mercedes engineers used the controlled slipping of the of the torque converter frictions, which starts from the first gear. In many cases, this peculiarity leads to rapid fluid contamination by the torque converter frictions and premature necessity for fluid change and the torque converter rebuilding.

The whole family of 722.9 transmissions is sensitive to issues with fluid shortages and its contamination. The main spare parts in this transmission are wearable teflon rings, which are crucial for accurate gear shifting. There are two types of friction components for this gearbox- one-sided and two-sided.In most cases, frictions of the K2 package get replaced. The K1 frictions are replaced less often as well as K3 frictions, but repair specialists order a full kit of friction discs in case of burnt oil.

The first typical problem of the 9th series is related to the failure of the connector electronic board - the sensor Y3 / 8n1 gets burnt. In most cases, this board is replaced. The resource of solenoids heavily depends on the oil contamination level and leakproofness of packages.The second common problem of this transmission is the damage of the housing bell caused by vibrations from aggressive driving.

The valve body in this transmission operates at temperatures up to 130º and it is very sensitive to overheated and contaminated fluid and shavings. Small springs of the valve body can break down, solenoids may get clogged. Experts assume that abnormal operation of the valve body leads to shortages of oil pressure in the 722.9 unit, frictions get burnt and other problems occur in the chain order. Since Mercedes engineers provided the valve body repair without the transmission removal, thus it is possible to detect the abovementioned problem and solve it by means of reassembly and cleaning.

Problems also occur in the multi-function switch (Servo mechanism module). Although components of this transmission are quite reliable, but problems in the electrical part have a negative impact on the oil pump and consequently result in issues with the rear planetary gear and bushings.The torque converter repair is one more operation which should become a preventive measure to prolong the service life of this transmission.
