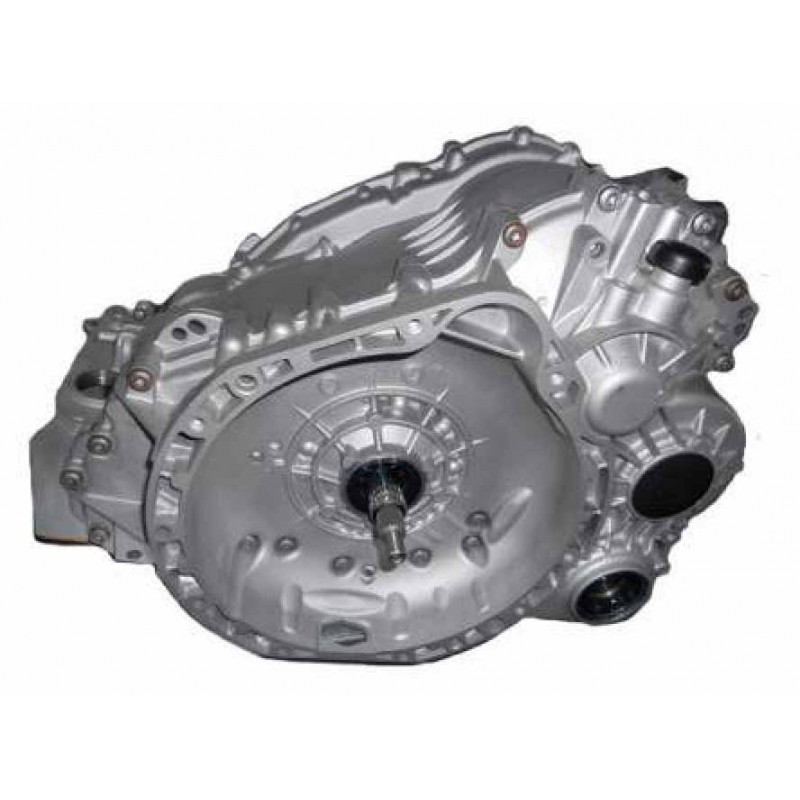

Mercedes-Benz 722.8 Transmission

The 722.8 transmission (CVT) has been produced since 2005 and mainly used on Mercedes A170. It is also installed on other cars of A series with engine capacity from 1.5 to 2.0 liters.

Speeds ∞
Type CVT
Drive FWD
Max torque 300
ATF capacity (L) 7
ATF change (L) 6
ATF type 236.20
Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
722.8
5.8/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.6
Documentation depth10.0
Knowledge & support5.0
Sell 722.8 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

15 applications · 1 make · 2004–2013 Mercedes-Benz 15

Make Model Year Drive Engine
Mercedes-Benz A Class (Non-USA) 2004-2013 1.5, 1.6, 1.8, 2.0, 2.2
Mercedes-Benz A150 (W169) 2005 7 Spd FWD CVT 1.5L
Mercedes-Benz A160 CDI (W169) 2005 7 Spd FWD CVT 1.6L Diesel
Mercedes-Benz A170 CDI (W169) 2005 7 Spd FWD CVT 1.7L
Mercedes-Benz A180 CDI (W169) 2005 7 Spd FWD CVT 1.8L Diesel
Mercedes-Benz A200 (W169) 2005 7 Spd FWD CVT 2.0L
Mercedes-Benz A200 CDI (W169) 2005 7 Spd FWD CVT 2.0L Diesel
Mercedes-Benz A200 Turbo (W169) 2005 7 Spd FWD CVT 2.0L Turbo
Mercedes-Benz B Class (Non-USA) 2006-2011 2.0
Mercedes-Benz B150 (W245) 2005 7 Spd FWD CVT 1.5L
Mercedes-Benz B170 (W245) 2005 7 Spd FWD CVT 1.7L
Mercedes-Benz B180 (W245) 2005 7 Spd FWD CVT 1.8L
Mercedes-Benz B180 CDI (W245) 2005 7 Spd FWD CVT 1.8L Diesel
Mercedes-Benz B200 CDI (W245) 2005 7 Spd FWD CVT 2.0L Diesel
Mercedes-Benz B200 Turbo (W245) 2005 7 Spd FWD CVT 2.0L Turbo

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

722 8
7228
M169
Autotronic
722-8
722.8
722.8 ECVT
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Worn friction components clutch
Easily worn frictions negatively impact clutch; worsened by unit removal with engine during service.
!
Degraded rings and seals
Worn rings and seals cause oil starvation, leading to premature burning of friction components.
!
Contaminated CVT fluid filter
Dirty fluid critically damages cones and belt; metal dust contamination accelerates component wear.
!
Electronic control board failure
TCU board made by Mercedes partner fails post-warranty due to fluid contamination and overheating.
!
Push belt wear failure
Bosch-Fondorn push belt is a vulnerable and expensive component; most costly spare part in the unit.
!
Shaft cone bearings failure
Shaft bearings fail first among hard parts due to lateral dynamic loads; failure ends CVT service life.
!
Sensors magnetized steel dust
Steel dust from worn components magnetizes onto sensors causing sensor failure and transmission faults.
?
Overheating transmission fluid
Elevated operating temperature accelerates bearing wear and reduces overall CVT lifespan significantly.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 722.8 transmission (CVT) has been produced since 2005 and mainly used on Mercedes A170. It is also installed on other cars of A series with engine capacity from 1.5 to 2.0 liters.

The design of this CVT is based on model patent CVT with the "push" belt produced by Bosch-Fondorn and the most expensive spare part – the belt itself. This CVT is the analog and competitor of a Japanese CVT JF011E.

Technical issues and repair guidelines

Overhauls of old cars with this transmission usually require the kit of spare parts (gaskets and seals from Autoline) and the kit of friction components. Friction components are replaced quite often in the process of the transmission reassembly, because the 722.8 unit is removed together with the engine, and easily wornout frictions already have a negative impact on the clutch. Driving with worn rings and seals lead to oil starvation and premature burning of quite durable friction components.

The fluid in 722.8 should be changed timely together with filter. The fluid and its purity are critical for cones and belts of this CVT, therefore for old 722.8 units, it is recommended to add the fluid at every opportunity and check its level with a service gauge.

The electrical part always causes a lot of problems in Mercedes transmissions. The board was made by the partnering company of Mercedes and after the warranty period you can face such problems as contaminated fluid (metal dust) and overheating. Steel dust magnetized on sensors lead to their failure.The belt is another vulnerable place in this advanced unit. Mercedes used the belt with additional resource on durability and reliability for its CVT.

Shaft bearings are the first among hard parts to get out of order (like with Jatco CVTs) because of lateral dynamic loads. The end of shaft-cones service life means the end for the CVT unit itself. The lifespan of bearings is highly dependent on the fluid cleanness, and most importantly - on its operating temperature.
