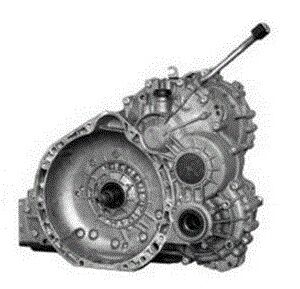

Mercedes-Benz 722.7 Transmission

The 5-speed automatic transmission 722.7 (W5A180) had been used since 1998 until 2005 on vehicles of A-class (A168, A190) with the engine capacity up to 2.0 liters as well as on VANEO (W414) with the same type of engines.

Speeds 5
Type AT
Drive FWD
Max torque 205
ATF capacity (L) 6,3
ATF change (L) 3,3
ATF type 236.12
Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
722.7
6.3/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.1
Documentation depth10.0
Knowledge & support4.0
Sell 722.7 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

16 applications · 1 make · 1997–2006 Mercedes-Benz 16

Make Model Year Drive Engine
Mercedes-Benz A140 (W168) 1997-2004 5 Spd FWD 1.4L
Mercedes-Benz A160 (W168) 1997-2004 5 Spd FWD 1.6L
Mercedes-Benz A160 CDI (W168) 1997-2004 5 Spd FWD 1.6L Diesel
Mercedes-Benz A170 CDI (W168) 1997-2004 5 Spd FWD 1.7L Diesel
Mercedes-Benz A190 (W168) 2000-2004 5 Spd FWD 1.9L
Mercedes-Benz A210 Evo (W168) 2000-2004 5 Spd FWD 2.0L
Mercedes-Benz C230 2006 7 SPD RWD V6 2.5L
Mercedes-Benz C280 2006 7 SPD RWD V6 3.0L
Mercedes-Benz C350 2006 7 SPD RWD V6 3.5L
Mercedes-Benz CLASSE A 2000-2005 5 Spd FWD L4 1.4/1.6/1.9L
Mercedes-Benz CLK350 2006 7 SPD RWD V6 3.5L
Mercedes-Benz E350 2006 7 SPD RWD V6 3.5L
Mercedes-Benz ML350 2006 7 Spd RWD/4X4 V6 3.7L
Mercedes-Benz R350 2006 7 Spd RWD/4X4 V6 3.5L
Mercedes-Benz SLK280 2006 7 SPD RWD V6 3.0L
Mercedes-Benz Vaneo 2002 5 Spd FWD 1.7Ltr CDi

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

M168
722-7
7227
722 7
W5A180
722.7
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Clutch Drum K1 Damage
Excessive pressure damages drum metal or pulls out closing ring, requiring full K1 clutch cover replacement.
?
Slipping In First Gear
Transmission slips during first gear engagement due to K1 clutch pack failure from drum or piston damage.
!
Valve Body Clogging Aging
Clogged or aged valve body causes excessive pressure transmission to K1 clutch pack, accelerating drum wear.
!
Electronic Valve Body Plate
Sensitive electronic board fails due to water ingress, temperature fluctuation, or metal chip contamination in oil.
!
Overheated Transmission Oil
Operating with overheated ATF rapidly accelerates electronic plate damage, leading to premature board failure.
!
Torque Converter Lockup Clutch
TC lock-up clutch wear contributes to valve body pressure issues; replacement recommended at 150-200k km.
!
Solenoid Wiring Sensor Failure
Broken board sensors or solenoid wiring cause abnormal operation; requires specialist-level diagnostics and VIN encoding
?
Abnormal Transmission Operation
Various fault codes detected each diagnostic cycle due to electronic plate degradation from contamination or thermal str
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission 722.7 (W5A180) had been used since 1998 until 2005 on vehicles of A-class (A168, A190) with the engine capacity up to 2.0 liters as well as on VANEO (W414) with the same type of engines.

Technical issues and repair guidelines

Before covering 200 thousand kilometers these automatic gearboxes get in repair services for 2 reason

1. The clutch drum K1

Due to construction peculiarities of the 722.7 unit and its valve body (VB), at one of the phases of clogging and aging of the 722.7 electrics transmitted excessive pressure on this pack damages the metal of the drum with the piston or pulls out the closing ring, that leads to slipping and necessity for change of the entire clutch cover K1. Preventive measures include well-timed cleaning of the VB unit, or well-timed change of the TC lock-up clutch after gearbox travels 150-200 thousand kilometers.

2.Valve body electronic plate

For proper diagnostics and repair estimation, it is necessary to obtain error codes. Change of the board sensors or wiring of solenoids demands classification of the specialist and programming capabilities for encoding the plate for VIN of the car. Mercedes electronic boards are sensitive to the water, temperature difference, metal chips in oil. Each time diagnostics detects various causes of abnormal operation. The minor repair helps to delay the preventive repair for several years by means of cleaning\washing of the VB unit, repair of the electric plate with broken sensors. Operation with overheated oil damages the electronic plate extremely fast.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
How to dismantle and inspect Mercedes A class automatic gearbox.
Sevan Motors South Harrow
video
Merc A160 slipping in first gear broken drum 'F' light on
Clasie van Vuuren
