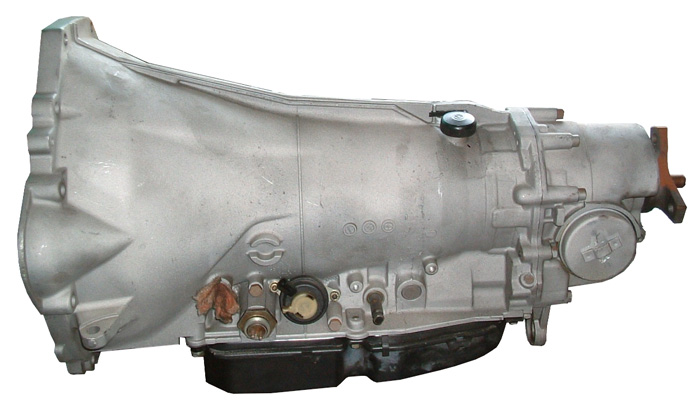

Mercedes-Benz 722.5 Transmission

The 5-speed automatic transmission 722.5 had been used on rear- and four-wheel drive vehicles (Gelendwagen) from 1990 to 1997. The 722.5 design is based on successful 4-speed solution 722.3. The construction of the 3-rd series is complemented with advanced electronic control and the clutch package Overdrive. Almost all componentsin the 722.5 unit are interchangeable with 722.3. All typical problems are also identical.

Speeds 5
Type AT
Drive RWD/AWD
Max torque 580
ATF capacity (L) 8,5
ATF change (L) 4
ATF type 236.14
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
722.5
5.2/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.7
Documentation depth9.5
Knowledge & support4.0

Exploded diagram & parts

Full 722.3 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 311 311 · No. 3 4 4 · No. 4 530 530 · No. 5 544 544 · No. 6 520 520 · No. 7 179 179 · No. 8 310 310 · No. 9 211 211 · No. 10 210 210 · No. 11 212 212 · No. 12 210 210 · No. 13 338 338 · No. 14 339 339 · No. 15 966 966 · No. 16 976 976 · No. 17 986 986 · No. 18 893 893 · No. 19 20 20 · No. 20 130* 130* · No. 21 22 22 · No. 22 022 022 · No. 23 228 228 · No. 24 555 555 · No. 25 336 336 · No. 26 337 337 · No. 27 778 778 · No. 28 965 965 · No. 29 975 975 · No. 30 985 985 · No. 31 879 879 · No. 32 126*/106 126*, 106 · No. 33 878 878 · No. 34 886 886 · No. 35 229 229 · No. 36 582 582 · No. 37 229 229 · No. 38 670 670 · No. 39 240 240 · No. 40 241 241 · No. 41 584 584 · No. 42 250 250 · No. 43 240 240 · No. 44 614 614 · No. 45 624 624 · No. 46 253 253 · No. 47 636 636 · No. 48 989 989 · No. 49 654 654 · No. 50 664 664 · No. 51 254 254 · No. 52 570 570 · No. 53 881 881 · No. 54 050 050 · No. 55 861 861 · No. 56 120*/100 120*, 100 · No. 57 862 862 · No. 58 980 980 · No. 59 970 970 · No. 60 960 960 · No. 61 330 330 · No. 62 331 331 · No. 63 550 550 · No. 64 214 214 · No. 65 026 026 · No. 66 257 257 · No. 67 180 180 · No. 68 180 180 · No. 69 634 634 · No. 70 71 71 · No. 71 906 +4 906, 361, 907, 909, 896 · No. 72 364 +7 364, 912, 914, 199, 917, 897, 913-3, 911 · No. 73 74 74 · No. 74 921 921 · No. 75 917-5 917-5 · No. 76 913-1/913-5 913-1, 913-5 · No. 77 434 434 · No. 78 434 434 · No. 79 410 410 · No. 80 072 072 · No. 81 82 82 · No. 82 760 760 · No. 83 894 894 · No. 84 683 683 · No. 85 269 269 · No. 86 690 690 · No. 87 271 271 · No. 88 895 895 · No. 89 847 847 · No. 90 841 841 · No. 91 798 798 · No. 92 992 992 · No. 93 999-3 999-3 · No. 94 681-5 681-5 · No. 95 770/305 770, 305 · No. 96 010 010 · No. 97 916 916 · No. 98 843 843 · No. 99 163 163 · No. 100 164 164 · No. 101 917-1 917-1 · No. 102 384 384 · No. 103 684 684 · No. 104 687 687 · No. 105 999-2 999-2 · No. 106 107 107 · No. 107 108 108 · No. 108 109 109 · No. 109 110 110 · No. 110 111 111 · No. 111 112 112 · No. 112 765/300 765, 300 · No. 113 160 160 · No. 114 686 +3 686, 345, 680, 898 · No. 115 848 848 · No. 116 779 779 · No. 117

Parts categories

View all parts →
Sell 722.5 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

10 applications · 1 make · 1984–2004 Mercedes-Benz 10

Make Model Year Drive Engine
Mercedes-Benz 300SL 1990-1993 5 Spd RWD L6 3.0L
Mercedes-Benz 300SL 1990-1993 3.0
Mercedes-Benz 350SD 1990-1991 3.5
Mercedes-Benz 350SDL 1990-1991 3.5
Mercedes-Benz CLASSE S 1994-1995 5 Spd RWD L6 3.2L
Mercedes-Benz S320 1994-1995 5 Spd RWD L6 3.2L
Mercedes-Benz S320 1994-1995 3.2
Mercedes-Benz SL230 1984-2004 7 Spd RWD L4 2.3L; V6 3.2L
Mercedes-Benz SL320 1994-1997 5 SPD RWD L6 3.2L
Mercedes-Benz SL320 1994-1997 3.2

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

722.5
722 5
722-5
129
7225
W 5 A 030
M129
W5A030
MERC129
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lock-up Clutch Wear
Friction linings of lock-up clutch wear out with active use, leading to torque converter failure requiring rebuild.
?
Leaking Torque Converter Pump Seal
Leaking pump seal is the diagnostic sign of lock-up clutch friction lining wear-out in the torque converter.
!
Reverse Package Piston Spring Damage
Reverse clutch pack piston springs fail due to age-related degradation, causing damage to the entire transmission unit.
!
Pump Seal and Bushing Failure
Current pump seal and pump bushing frequently require replacement, commonly addressed during overhaul.
!
Friction Components General Wear
All friction components frequently require full replacement during overhaul due to general wear across the unit.
!
Gaskets and Seals Degradation
General gasket and seal wear requires a full repair kit during overhaul; typical for aging 722.5 units.
!
Oil Filter Contamination
Oil filter replacement is a standard overhaul requirement, indicating susceptibility to contamination over service life.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission 722.5 had been used on rear- and four-wheel drive vehicles (Gelendwagen) from 1990 to 1997. The 722.5 design is based on successful 4-speed solution 722.3. The construction of the 3-rd series is complemented with advanced electronic control and the clutch package Overdrive. Almost all componentsin the 722.5 unit are interchangeable with 722.3. All typical problems are also identical.

Technical issues and repair guidelines

The repair kit of gaskets and seals is ordered for reassembly of 722.5. In addition to typical overhaul procedures for this transmissions (replacement of gaskets and seals), repair specialists also replace the oil filter. The overhaul certainly includes repair of the torque converter caused by wear-out of friction linings of actively operating lock-up clutch (leaking pump seal is the sign of wear-out). In many cases, the repair consists of replacement of current pump seal and the pump bushing.

Transmission specialists also frequently have to replace all friction components. The package Reverse (piston) is replaced quite often because of damaged springs (because of old age) which are harmful for the whole unit.

The electrical part in the 722.5 unit (as well as hard parts) is quite reliable and its service life is compatible to the car's lifespan. Automatic transmission of 5-th series endures harsh operation conditions without any serious problems in contrast to following generations of 5- and 7-speed automatic transmissions 722.6 and 722.9.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
722.5 Mercedes Transmission
Gary Ferraro
video
Mercedes 722.5 Valvebody Overhaul
Gary Ferraro
