Home / Transmissions / General Motors / 4L70E
General Motors Source-verified model

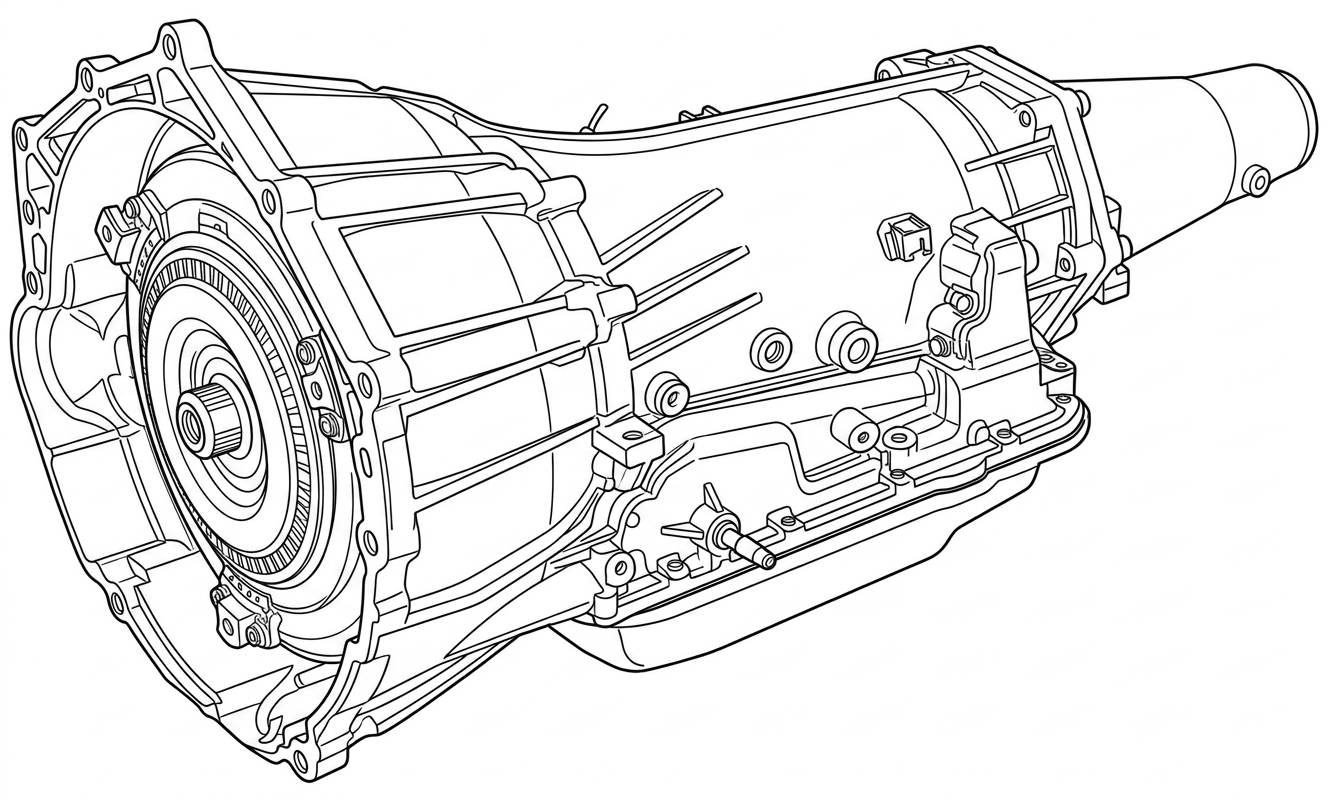

General Motors 4L70E Transmission

Drive RWD
Max torque 400-430 lb-ft
Layout Longitudinal
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

4L70E
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

3resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full 4L60E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

916 916 · No. 1 089 089 · No. 2 070 070 · No. 3 034 034 · No. 4 531 531 · No. 5 535/540 535, 540 · No. 6 176 176 · No. 7 313 313 · No. 8 534 534 · No. 9 538 538 · No. 10 539 539 · No. 11 532/533 532, 533 · No. 12 13 13 · No. 13 538 538 · No. 14 036 036 · No. 15 520 520 · No. 16 014/379P 014, 379P · No. 17 037 037 · No. 18 211 211 · No. 19 311 311 · No. 20 310 310 · No. 21 020 020 · No. 22 046 046 · No. 23 480 480 · No. 24 556 556 · No. 25 046A 046A · No. 26 335 335 · No. 27 334A 334A · No. 28 966 966 · No. 29 976 976 · No. 30 893 893 · No. 31 131* 131* · No. 32 130/110 130, 110 · No. 33 150* 150* · No. 34 892 892 · No. 35 229 229 · No. 36 230* 230* · No. 37 777/309 777, 309 · No. 38 537 537 · No. 39 536 536 · No. 40 778 778 · No. 41 380 380 · No. 42 482/480A 482, 480A · No. 43 554 554 · No. 44 334 334 · No. 45 960 960 · No. 46 331 331 · No. 47 330 330 · No. 48 547 547 · No. 49 971 971 · No. 50 963 963 · No. 51 333/332 333, 332 · No. 52 964 964 · No. 53 341 341 · No. 54 969 969 · No. 55 979 979 · No. 56 877 877 · No. 57 136/116 136, 116 · No. 58 149 149 · No. 59 129 129 · No. 60 475 475 · No. 61 232 232 · No. 62 881 881 · No. 63 574 574 · No. 64 658 658 · No. 65 658 658 · No. 66 658 658 · No. 67 669 669 · No. 68 668 668 · No. 69 128/108 128, 108 · No. 70 148* 148* · No. 71 876 876 · No. 72 141 141 · No. 73 74 74 · No. 74 970 970 · No. 75 76 76 · No. 76 77 77 · No. 77 120/100 120, 100 · No. 78 79 79 · No. 79 140* 140* · No. 80 861* 861* · No. 81 052 052 · No. 82 612 612 · No. 83 052 052 · No. 84 894 894 · No. 85 247 247 · No. 86 582 582 · No. 87 238 238 · No. 88 592 592 · No. 89 054 054 · No. 90 602 602 · No. 91 054A 054A · No. 92 882 882 · No. 93 241 241 · No. 94 624 624 · No. 95 886 886 · No. 96 056 056 · No. 97 614 614 · No. 98 244 244 · No. 99 883 883 · No. 100 664 664 · No. 101 884 884 · No. 102 654 654 · No. 103 884 884 · No. 104 250 250 · No. 105 584 584 · No. 106 251 251 · No. 107 134 +2 134, 155*, 114 · No. 108 135 135 · No. 109 594 594 · No. 110 604 604 · No. 111 238 238 · No. 112 886 886 · No. 113 977 977 · No. 114 967 967 · No. 115 339/339C 339, 339C · No. 116 338 338 · No. 117 639 639 · No. 118 996 996 · No. 119 996 996 · No. 120 896 896 · No. 121 991-6 991-6 · No. 122 750 750 · No. 123 760 760 · No. 124 064 064 · No. 125 348 348 · No. 126 904 904 · No. 127 902 902 · No. 128 197 197 · No. 129 366A 366A · No. 130 678 678 · No. 131 849 849 · No. 132 847 847 · No. 133 958 958 · No. 134 374 374 · No. 135 770 770 · No. 136 066 066 · No. 137 074 074 · No. 138 139 139 · No. 139 140 140 · No. 140 991-3 991-3 · No. 141 991-5 991-5 · No. 142 994 994 · No. 143 776 776 · No. 144 992 992 · No. 145 072 072 · No. 146 410 410 · No. 147 927 927 · No. 148 938/191 938, 191 · No. 149 936 936 · No. 150 483 483 · No. 151 995-1 995-1 · No. 152 995-3 995-3 · No. 153 995-2 995-2 · No. 154 908-5/908-1 908-5, 908-1 · No. 155 194 194 · No. 156 366 366 · No. 157 907 907 · No. 158 494 494 · No. 159 379 379 · No. 160 497 497 · No. 161 991-4 991-4 · No. 162 991-2 991-2 · No. 163 425 425 · No. 164 797 797 · No. 165 418 418 · No. 166 740 +3 740, 321, 747, 320 · No. 167 435 435 · No. 168 191 191 · No. 169 926 926 · No. 170 308 308 · No. 171 906 906 · No. 172 905 905 · No. 173 195 195 · No. 174 909 909 · No. 175 909-5 909-5 · No. 176 371 371 · No. 177 010 010 · No. 178 927 927 · No. 179 352 352 · No. 180 744-5 744-5 · No. 181 848 848 · No. 182 684 684 · No. 183 680 680 · No. 184 444 444 · No. 185 345 345 · No. 186 686 686 · No. 187 687 687 · No. 188 418 418 · No. 189 442 442 · No. 190 421 421 · No. 191 933 933 · No. 192 931 931 · No. 193 934 934 · No. 194 929 929 · No. 195 927 927 · No. 196 908 908 · No. 197 901 901 · No. 198 765/300 765, 300 · No. 199 934 934 · No. 200 931 931 · No. 201 933 933 · No. 202 887 887 · No. 203 078 078 · No. 204 774 774 · No. 205 369 369 · No. 206 999 999 · No. 207 997 997 · No. 208 179 179 · No. 209 347 347 · No. 210 373 373 · No. 211 901B 901B · No. 212 839 839 · No. 213 779 779 · No. 214 376 376 · No. 215 315/314 315, 314 · No. 216 178 178 · No. 217 490 490 · No. 218

Parts categories

View all parts →
Kits
Kits
166 parts
Torque converter
Torque converter
1 part
Valve body & solenoids
Valve body & solenoids
168 parts
Electrical
Electrical
22 parts
Filters & pans
Filters & pans
20 parts
Seals & gaskets
Seals & gaskets
101 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
55 parts
Bands & servos
Bands & servos
12 parts
Pump
Pump
38 parts
Friction & steel
Friction & steel
133 parts
Planetary & hard parts
Planetary & hard parts
180 parts
Hardware & other
Hardware & other
168 parts
Sell 4L70E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

115 applications · 9 makes · 1992–2013 Chevrolet 54 · GMC 37 · Cadillac 9 · Buick 4 · Geo 4

Make Model Year Drive Engine
Buick Rainier 2007 L6, V8 4.2, 5.3, 6.0L
Buick Rainier 2007 4.2, 5.3, 6.0
Buick Rainier 2004-2006 L6, V8 4.2, 5.3L
Buick Roadmaster 1993-1996 V8 5.7L
Cadillac Commercial Chassis 1994-1996 V8 5.7L
Cadillac Escalade 2004-2006 V8 5.3, 5.7, 6.0L
Cadillac Escalade 2004-2006 V8 6 ( ESV)L
Cadillac Escalade 2004-2006 V8 6 ( EXT)L
Cadillac Escalade 2003 V8 6 (ESV)L
Cadillac Escalade 2002-2003 V8 6 ( EXT)L
Cadillac Escalade 1999-2003 V8 5.3, 5.7, 6.0L
Cadillac Escalade/ESV/EXT 2007 5.3, 5.7, 6.0
Cadillac Fleetwood 1993-1996 V8 5.7L
Chevrolet Avalanche 2007 4 Spd RWD/4X4 V8 5.3L
Chevrolet AVALANCHE 2006-2008 4 Spd RWD/4X4 V8 6.0L
Chevrolet Blazer 1997-2005 V6 4.3L
Chevrolet Blazer 1995-1996 V6 4.3L
Chevrolet Blazer 1993-1994 V8 5.7, 6.5 (K1500 1/2 Ton)L
Chevrolet Blazer 1993-1994 V6 4.3(S10 2WD)L
Chevrolet Blazer 1993-1994 V6 4.3 (T10 4WD)L
Chevrolet C1500 1993-1996 V6, V8 4.3, 5.0, 5.7 ( 1/2 Ton - Pickup)L
Chevrolet C2500 1993-1996 V6, V8 4.3, 5.0, 5.7 ( 3/4 Ton - Pickup)L
Chevrolet Camaro 1997-2002 V6, V8 3.8, 5.7L
Chevrolet Camaro 1993-1996 V6, V8 3.4, 5.7L
Chevrolet Caprice 1993-1996 V6, V8 4.3, 5.0, 5.7L
Chevrolet Colorado 2007-2010 L4, L5, V8 2.8, 2.9, 3.5, 3.7, 5.3L
Chevrolet Colorado 2004-2006 L4, L5, V8 2.8, 2.9, 3.5, 3.7, 5.3L
Chevrolet Corvette 2004-2005 V8 5.7, 6.0L
Chevrolet Corvette 1997-2003 V8 5.7, 6.0L
Chevrolet Corvette 1993-1996 V8 5.7L
Chevrolet Express G1500 - Van 2007-2010 V6, V8 4.3, 5.0, 5.3, 5.7L
Chevrolet Express G1500 - Van 1997-2006 V6, V8 4.3, 5.0, 5.3, 5.7L
Chevrolet Express G1500 - Van 1996 V6, V8 4.3, 5.0L
Chevrolet Express G2500 - Van 1997-2006 V6, V8 4.3, 4.8, 5.0, 5.3, 5.7L
Chevrolet G10/1500 - Van 1993-1995 V6, V8 4.3, 5.0, 5.7L
Chevrolet G10/1500- Sport Van 1993-1994 V6, V8 4.3, 5.0, 5.7L
Chevrolet G20/2500 - Van 1993-1996 V6, V8 4.3, 5.0L
Chevrolet G20/2500 Sport Van 1993-1995 V6, V8 4.3, 5.0, 5.7, 6.2L
Chevrolet Impala 1994-1999 V8 5.7L
Chevrolet K1500 4WD - Pickup 1993-1996 V6, V8 4.3, 5.0, 5.7, 6.2, 6.5, 7.4L
Chevrolet S10 - Pickup 1997-2004 L4, V6 2.2, 4.3L
Chevrolet S10 - Pickup 1993-1996 L4, V6 2.2, 2.5, 2.8, 4.3L
Chevrolet Silverado 1500 2007-2009 V6, V8 4.3, 4.8, 5.3L
Chevrolet Silverado 1500 1999-2006 V6, V8 4.3, 4.8, 5.3 (2WD)L
Chevrolet Silverado 1500HD 2007 V6, V8 4.3, 4.8, 5.3, 6.0 ( Classic 1/2 Ton)L
Chevrolet Silverado 2500 1999-2004 V8 5.3 (2WD)L
Chevrolet Silverado 3500 2001-2006 V8 6L
Chevrolet SSR 2003-2006 V8 5.3, 6.0L
Chevrolet Suburban 1500 2000-2006 V8 5.3, 6.0L
Chevrolet Suburban 2500 2000-2006 V8 6L
Chevrolet Suburban C1500 1997-1999 V8 5.7, 6.5, 7.4L
Chevrolet Suburban C1500 1993-1994 V8 5.7, 7.4L
Chevrolet Suburban K1500 4WD 1997-1999 V8 6.5L
Chevrolet Suburban K1500 4WD 1992-1994 V8 5.7, 6.5, 7.4L
Chevrolet Tahoe 2000-2009 V8 4.8, 5.3, 5.7L
Chevrolet TrailBlazer 2007-2009 L6, V8 4.2, 5.3, 6.0L
Chevrolet TrailBlazer 2006-2007 4 Spd RWD/4X4 V8 6.0L
Chevrolet TrailBlazer 2002-2006 L6, V8 4.2, 5.3, 6.0L
Chevrolet YUKON 2500 2007-2008 4 Spd RWD/4X4 V8 6.0L
Chevrolet Truck Astro Van 2007 V6 4.3L
Chevrolet Truck Astro Van 2007 4.3
Chevrolet Truck Astro Van 1997-2006 V6 4.3L
Chevrolet Truck Astro Van 1993-1996 V6 4.3L
Chevrolet Truck Avalanche 2007 V8 5.3, 6.0L
Chevrolet Truck Avalanche 2002-2006 V8 5.3(1500 1/2 Ton)L
Chevrolet Truck Blazer S10 2WD 2007 2.2, 4.2, 4.3, 5.3
Chevrolet Truck TrailBlazer 2007-2009 4.2, 5.3, 6.0
Geo Avalanche 2007 4 Spd RWD/4X4 V8 5.3L
Geo AVALANCHE 2006-2008 4 Spd RWD/4X4 V8 6.0L
Geo TrailBlazer 2006-2007 4 Spd RWD/4X4 V8 6.0L
Geo YUKON 2500 2007-2008 4 Spd RWD/4X4 V8 6.0L
GMC Avalanche 2007 4 Spd RWD/4X4 V8 5.3L
GMC AVALANCHE 2006-2008 4 Spd RWD/4X4 V8 6.0L
GMC C1500 1993-1996 V6, V8 4.3, 5.0, 6.2, 7.4 ( 1/2 Ton - Pickup)L
GMC C2500 1993-1995 V6, V8 4.3, 5.0, 6.2, 7.4 ( 3/4 Ton - Pickup)L
GMC Canyon 2007-2011 L4, L5, V8 2.8, 2.9, 3.5, 3.7, 5.3L
GMC Canyon 2004-2006 L4, L5, V8 2.8, 3.5, 2.9, 3.7, 5.3L
GMC Envoy 2007-2009 L6, V6, V8 4.2, 4.3, 5.3L
GMC Envoy 2004-2006 L6, V6, V8 4.2, 4.3, 5.3L
GMC Envoy 1998-2003 L6, V6, V8 4.3, 4.2, 5.3L
GMC G1500 Rally Wagon - Van 1993 V6, V8 4.3, 5.0, 5.7L
GMC G1500 Vandura Cargo - Van 1993-1995 V6, V8 4.3, 5.0L
GMC G2500 Rally Wagon - Van 1993-1995 V6, V8 4.3, 5.0, 5.7, 6.2L
GMC G2500 Vandura Cargo - Van 1993-1995 V6, V8 4.3, 5.0, 5.7, 6.2L
GMC Jimmy 1997-2005 V6 4.3L
GMC Jimmy 1995-1996 V6 4.3L
GMC K1500 4WD - Pickup 1993-1996 V6, V8 4.3, 5.0L
GMC K2500 4WD - Pickup 1993-1996 V6, V8 4.3, 5.0, 6.2L
GMC Safari Van 1997-2005 V6 4.3L
GMC Safari Van 1993-1996 V6 4.3L
GMC Savana G1500 - Van 1997-2009 V6, V8 4.3, 5.0, 5.7, 5.3L
GMC Savana G2500- Van 1997-2009 V6, V8 4.3, 5.0, 5.7, 4.8, 5.3L
GMC Savana G2500- Van 1996 V6, V8 4.3, 5.0L
GMC Sierra 1500 2007 V6, V8 4.3, 4.8, 5.3, 6.0 ( Classic 1/2 Ton)L
GMC Sierra 1500 1999-2006 V6, V8 4.3, 4.8, 5.3, 6.0 ( 4WD - Pickup 1/2 Ton)L
GMC Sierra 2500 1999-2005 V8 6 (2WD - Pickup 3/4 Ton )L
GMC Sierra 3500 2001-2006 V8 6.0, 6.6, 8.1L
GMC Sonoma 1993-2003 L4, V6 2.2, 2.5, 2.8, 4.3L
GMC Suburban C1500 1993-1994 V8 5.7, 6.5L
GMC Suburban C2500 1993-1994 V8 5.7, 6.5, 7.4L
GMC TrailBlazer 2006-2007 4 Spd RWD/4X4 V8 6.0L
GMC Yukon 2007-2009 V8 4.8, 5.0, 5.3L
GMC Yukon 2000-2006 V8 4.8, 5.0, 5.3L
GMC Yukon 1993-1996 V8 5.7L
GMC YUKON 2500 2007-2008 4 Spd RWD/4X4 V8 6.0L
GMC Yukon XL 2000-2006 V8 5.3, 6.2L
GMC Truck Sierra 2500 3/4 Ton 2WD - Pickup 2007-2013 4.2, 4.3, 4.8, 5.0, 5.3, 5.4, 5.7, 6.0, 6.2
GMC Truck Yukon 2007-2012 4.8, 5.0, 5.3
Hummer H2/H2 SUT 2007 6.0
Oldsmobile Bravada 1997-2004 L6, V6 4.2,4.3L
Oldsmobile Bravada 1993-1996 V6 4.3L
Pontiac Firebird 1997-2002 V6,V8 3.8,5.7L
Pontiac Firebird 1993-1996 V6,V8 3.4,3.8,5.7L
Pontiac GTO 2004-2007 V8 5.7,6.0L
Saab 9-7X 2007-2009 4.2, 5.3, 6.0

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
3-4 clutch pack failure
The 3-4 clutch pack is a well-known frequent failure point, with friction and steel plates slipping and burning, especially behind high-torque V8 engines.
!
1-2 accumulator piston cracking
The 1-2 accumulator piston can crack or wear, producing shift flare, neutral hang-up, or hard 1-2 shifts; a redesigned piston was later introduced.
?
Squawk/grunt noise on 2-3 shift
Drivers may notice a squawk or grunt type noise specifically when the transmission shifts from 2nd to 3rd gear.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
manual
GM PI Bulletin PIP5071 - Squawk Or Grunt Noise On The 2-3 Shift
—
View →
other
Sonnax Smart-Tech Input Housing Kit Instructions (GM 4L60-E/4L65-E/4L70-E)
—
View →
link
GM 4L60-E, 4L65-E, 4L70-E Vacuum Test Guide (Sonnax)
—
