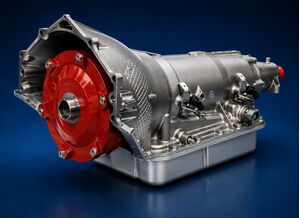

General Motors 4L85E Transmission

The automatic transmission 4L85E was firstly presented in 2001 together with powerful engines Duramax V8 (with torque reaching up to 650 Nm). This transmission was installed only on large SUVs, pickups and minibuses. This transmission is very powerful and can be applied cars which take part in off-road racing, drag racing or custom street driving.

Speeds 4
Type AT
Drive RWD/4WD
Max torque 650
ATF capacity (L) 13,6
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4L85E
6.6/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence9.0
Documentation depth6.3
Knowledge & support0.0

Exploded diagram & parts

Full 4L80E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

181 181 · No. 1 070 070 · No. 2 034 034 · No. 3 530 530 · No. 4 530 530 · No. 5 036 036 · No. 6 520 520 · No. 7 311 311 · No. 8 310 310 · No. 9 380 380 · No. 10 670 670 · No. 11 177 177 · No. 12 178 178 · No. 13 038 038 · No. 14 551 551 · No. 15 040 040 · No. 16 334 334 · No. 17 335 335 · No. 18 960 960 · No. 19 970 970 · No. 20 865 865 · No. 21 650 650 · No. 22 136/116 136, 116 · No. 23 156 156 · No. 24 864 864 · No. 25 214 214 · No. 26 580 580 · No. 27 580-6 580-6 · No. 28 868 868 · No. 29 880 880 · No. 30 861 861 · No. 31 140 140 · No. 32 120/100 120, 100 · No. 33 777 777 · No. 34 961 961 · No. 35 340 340 · No. 36 341 341 · No. 37 545 545 · No. 38 971 971 · No. 39 862 862 · No. 40 217 217 · No. 41 048 048 · No. 42 554 554 · No. 43 334 334 · No. 44 335 335 · No. 45 336 336 · No. 46 964 964 · No. 47 974 974 · No. 48 877 877 · No. 49 127 127 · No. 50 128/106 128, 106 · No. 51 232 232 · No. 52 574 574 · No. 53 235 235 · No. 54 575 575 · No. 55 878 878 · No. 56 878 878 · No. 57 146 146 · No. 58 126/106 126, 106 · No. 59 127 127 · No. 60 879 879 · No. 61 975 975 · No. 62 965 965 · No. 63 181 181 · No. 64 334 334 · No. 65 335 335 · No. 66 555 555 · No. 67 663 663 · No. 68 652 652 · No. 69 652 652 · No. 70 652 652 · No. 71 694 694 · No. 72 886 886 · No. 73 022 022 · No. 74 873 873 · No. 75 144 144 · No. 76 124/104 124, 104 · No. 77 872 872 · No. 78 852 852 · No. 79 874 874 · No. 80 972 972 · No. 81 962 962 · No. 82 333 333 · No. 83 630 630 · No. 84 044 044 · No. 85 226 226 · No. 86 883 883 · No. 87 243 243 · No. 88 244 244 · No. 89 245 245 · No. 90 654 654 · No. 91 054 054 · No. 92 980 980 · No. 93 674 674 · No. 94 054 054 · No. 95 612 612 · No. 96 053 053 · No. 97 582 582 · No. 98 783 783 · No. 99 024 024 · No. 100 238 238 · No. 101 476 476 · No. 102 845 845 · No. 103 584 584 · No. 104 672 672 · No. 105 250 250 · No. 106 251 251 · No. 107 252 252 · No. 108 594 594 · No. 109 889 889 · No. 110 253 253 · No. 111 254 254 · No. 112 255 255 · No. 113 062 062 · No. 114 678 678 · No. 115 374 374 · No. 116 894 894 · No. 117 268 268 · No. 118 269* 269* · No. 119 760 760 · No. 120 064 064 · No. 121 073 073 · No. 122 895 895 · No. 123 348 348 · No. 124 770 770 · No. 125 066 066 · No. 126 074 074 · No. 127 446 446 · No. 128 347 347 · No. 129 946 946 · No. 130 913 913 · No. 131 132 132 · No. 132 379 379 · No. 133 410 410 · No. 134 436 436 · No. 135 436 436 · No. 136 320 320 · No. 137 938/934 938, 934 · No. 138 991-4 991-4 · No. 139 991-3 991-3 · No. 140 799 799 · No. 141 994 994 · No. 142 991-6 991-6 · No. 143 906 906 · No. 144 909 909 · No. 145 911 +2 911, 911-4, 911-5 · No. 146 353 353 · No. 147 354 354 · No. 148 947 947 · No. 149 363 363 · No. 150 494 494 · No. 151 010 010 · No. 152 437 437 · No. 153 747/321 747, 321 · No. 154 308 308 · No. 155 351 351 · No. 156 932 932 · No. 157 487 487 · No. 158 937 937 · No. 159 351 351 · No. 160 942 942 · No. 161 941 941 · No. 162 992 992 · No. 163 072 072 · No. 164 991-1 991-1 · No. 165 483 483 · No. 166 995-3 995-3 · No. 167 995-2 995-2 · No. 168 995-1 995-1 · No. 169 170 170 · No. 170 907 907 · No. 171 908 908 · No. 172 192 192 · No. 173 912 912 · No. 174 307 307 · No. 175 300/765 300, 765 · No. 176 435 435 · No. 177 418 418 · No. 178 740 740 · No. 179 422 422 · No. 180 931 931 · No. 181 936 936 · No. 182 797 797 · No. 183 914 914 · No. 184 371 371 · No. 185 741-1 741-1 · No. 186 421 421 · No. 187 442 442 · No. 188 999 999 · No. 189 037 037 · No. 190 211* 211* · No. 191 309 309 · No. 192 332 332 · No. 193 352 352 · No. 194 996 996 · No. 195

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4L85E in the Go4Trans marketplace.
Sell 4L85E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

78 applications · 3 makes · 1992–2016 Chevrolet 37 · GMC 35 · Geo 6

Make Model Year Drive Engine
Chevrolet C1500 1997-1999 V6, V8 4.3, 5.0, 5.7, 6.5 ( 1/2 Ton - Pickup)L
Chevrolet C1500 1995-1996 V8 6.2, 6.5, 7.4 ( 1/2 Ton - Pickup)L
Chevrolet C2500 1997-2000 V8 5.0, 5.7, 6.5, 7.4 ( 3/4 Ton - Pickup)L
Chevrolet C2500 1995-1996 V8 6.2, 6.5, 7.4 ( 3/4 Ton - Pickup)L
Chevrolet EXPRESS 2005-2016 4 Spd RWD V8 6.6L DIESEL
Chevrolet Express G1500 - Van 1996 V8 5.7, 6.5L
Chevrolet Express G2500 - Van 1997-2006 V8 6.0,6.5, 6.6L
Chevrolet Express G3500 - Van 1997-2006 V8 4.8, 5.7, 6.0,L
Chevrolet G10/1500 - Van 1997-1998 V8 5.7L
Chevrolet G10/1500 - Van 1996 V8 5.0, 5.7L
Chevrolet G20/2500 - Van 1997-1998 V8 5.7, 6.5L
Chevrolet G20/2500 - Van 1995-1996 V8 5.7, 6.5L
Chevrolet G20/2500 Sport Van 1995-1996 V8 6.5, 7.4L
Chevrolet K1500 4WD - Pickup 1997-1999 V6, V8 4.3, 5.0, 5.7, 6.5L
Chevrolet K2500 4WD - Pickup 1997-2000 V8 5.7, 6.5, 7.4L
Chevrolet SAVANA 2005-2016 4 Spd RWD V8 6.6L DIESEL
Chevrolet Silverado 1500 2003-2006 V8 6 ( 4WD)L
Chevrolet Silverado 1500HD 2001-2007 V8 6L
Chevrolet Silverado 2500 1999-2004 V8 6 (2WD)L
Chevrolet Silverado 2500 1999-2004 V8 6 (4WD)L
Chevrolet Silverado 2500HD 2001-2006 V8 6L
Chevrolet Silverado 3500 2001-2006 V8 6.6L
Chevrolet Suburban 1500 2007-2009 V8 5.3, 6.0L
Chevrolet Suburban 2500 2000-2009 V8 8.1L
Chevrolet SUBURBAN 2500 2000-2007 4 Spd RWD/4X4 V8 8.1L
Chevrolet Suburban C1500 1995-1996 V8 5.7, 6.5L
Chevrolet Suburban C2500 1997-1999 V8 5.7, 6.5, 7.4L
Chevrolet Suburban C2500 1995-1996 V8 5.7, 6.5, 7.4L
Chevrolet Suburban K1500 4WD 1997-1999 V8 6.5L
Chevrolet Suburban K1500 4WD 1995-1996 V8 5.7, 6.5L
Chevrolet Suburban K2500 4WD 1997-1999 V8 6.5, 7.4L
Chevrolet Suburban K2500 4WD 1995-1996 V8 5.7, 6.5, 7.4L
Chevrolet Tahoe 1995-1999 V8 5.7, 6.5L
Chevrolet VAN FULL SIZE 3500 2006-2007 4 Spd RWD V8 6.6L DIESEL
Chevrolet YUKON 1500 2004-2007 4 Spd RWD/4X4 V8 6.0/8.1L
Chevrolet YUKON 2500 2004-2006 4 Spd RWD/4X4 V8 8.1L
Chevrolet Truck Avalanche 2002-2006 V8 8.1(2500 3/4 Ton)L
Geo EXPRESS 2005-2016 4 Spd RWD V8 6.6L DIESEL
Geo SAVANA 2005-2016 4 Spd RWD V8 6.6L DIESEL
Geo SUBURBAN 2500 2000-2007 4 Spd RWD/4X4 V8 8.1L
Geo VAN FULL SIZE 3500 2006-2007 4 Spd RWD V8 6.6L DIESEL
Geo YUKON 1500 2004-2007 4 Spd RWD/4X4 V8 6.0/8.1L
Geo YUKON 2500 2004-2006 4 Spd RWD/4X4 V8 8.1L
GMC C1500 1997-1999 V6, V8 4.3, 5.0, 5.7, 6.5 ( 1/2 Ton - Pickup)L
GMC C1500 1995-1996 V8 5.7, 6.5 ( 1/2 Ton - Pickup)L
GMC C2500 1997-2000 V8 5.0, 5.7, 6.5, 7.4 ( 3/4 Ton - Pickup)L
GMC C2500 1995-1996 V8 5.7, 6.5, 7.4, 5.0 ( 3/4 Ton - Pickup)L
GMC EXPRESS 2005-2016 4 Spd RWD V8 6.6L DIESEL
GMC G2500 Rally Wagon - Van 1995 V8 6.5L
GMC G2500 Vandura Cargo - Van 1995 V8 6.5L
GMC K1500 4WD - Pickup 1997-1999 V6, V8 4.3, 5.0, 5.7, 6.5L
GMC K1500 4WD - Pickup 1995-1996 V8 5.7, 6.5L
GMC K2500 4WD - Pickup 1997-2000 V8 5.0, 5.7, 6.5, 7.4L
GMC K2500 4WD - Pickup 1995-1996 V8 5.7, 6.5, 7.4L
GMC SAVANA 2005-2016 4 Spd RWD V8 6.6L DIESEL
GMC Savana G1500 - Van 1996 V6, V8 4.3, 5.0, 5.7L
GMC Savana G2500- Van 1997-2006 V8 6.0, 6.5, 6.6L
GMC Savana G2500- Van 1996 V8 5.7, 6.5L
GMC Sierra 1500 2002-2006 V8 6 ( 4WD - Pickup 1/2 Ton)L
GMC Sierra 1500HD 2007 V8 6 (Classic 1/2 Ton)L
GMC Sierra 1500HD 2001-2006 V8 6 ( 1/2 Ton - Pickup)L
GMC Sierra 2500 1999-2004 V8 6 (2WD - Pickup 3/4 Ton )L
GMC SUBURBAN 2500 2000-2007 4 Spd RWD/4X4 V8 8.1L
GMC Suburban C1500 1997-1999 V8 5.7, 6.5L
GMC Suburban C1500 1995-1996 V8 5.7, 6.5L
GMC Suburban C2500 1997-1999 V8 5.7, 6.5, 7.4L
GMC Suburban C2500 1995-1996 V8 5.7, 6.5, 7.4L
GMC Suburban K1500 4WD 1997-1999 V8 5.7, 6.5L
GMC Suburban K1500 4WD 1992-1996 V8 5.7, 6.5L
GMC Suburban K2500 4WD 1997-1999 V8 5.7, 6.5, 7.4L
GMC Suburban K2500 4WD 1992-1996 V8 5.7, 7.4, 6.5L
GMC VAN FULL SIZE 3500 2006-2007 4 Spd RWD V8 6.6L DIESEL
GMC Yukon 1997-2007 V8 5.7, 6.0, 6.5, 7.4, 8.1L
GMC Yukon 1995-1996 V8 6.0, 6.5, 7.4, 8.1L
GMC YUKON 1500 2004-2007 4 Spd RWD/4X4 V8 6.0/8.1L
GMC YUKON 2500 2004-2006 4 Spd RWD/4X4 V8 8.1L
GMC Yukon XL 2001-2006 V8 6L
GMC Yukon XL 2000-2006 V8 5.3L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

MN 8
4L85-E
MN8
MN-8
4l85E
4L85 E
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
12 Pin Harness Fluid Leak
Early style 12 pin harnesses allow transmission fluid to leak around the connector, shorting the pinouts.
?
Transmission Limp Mode Activation
Shorted pinouts from fluid-contaminated 12 pin harness cause transmission to enter limp mode or limp home mode.
!
Harness Connector Pin Shorting
Transmission fluid ingress into early 12 pin connector causes electrical shorts across pinouts, disrupting TCM signals.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The automatic transmission 4L85E was firstly presented in 2001 together with powerful engines Duramax V8 (with torque reaching up to 650 Nm). This transmission was installed only on large SUVs, pickups and minibuses. This transmission is very powerful and can be applied cars which take part in off-road racing, drag racing or custom street driving.

These transmissions have issues with early style 12 pin harnesses in which transmission fluid leaks around the harness and shorts the pinouts causing transmission to go into "limp mode" (some manuals say "limp home mode"). This issue can be easily rectified by simply cleaning the plug
