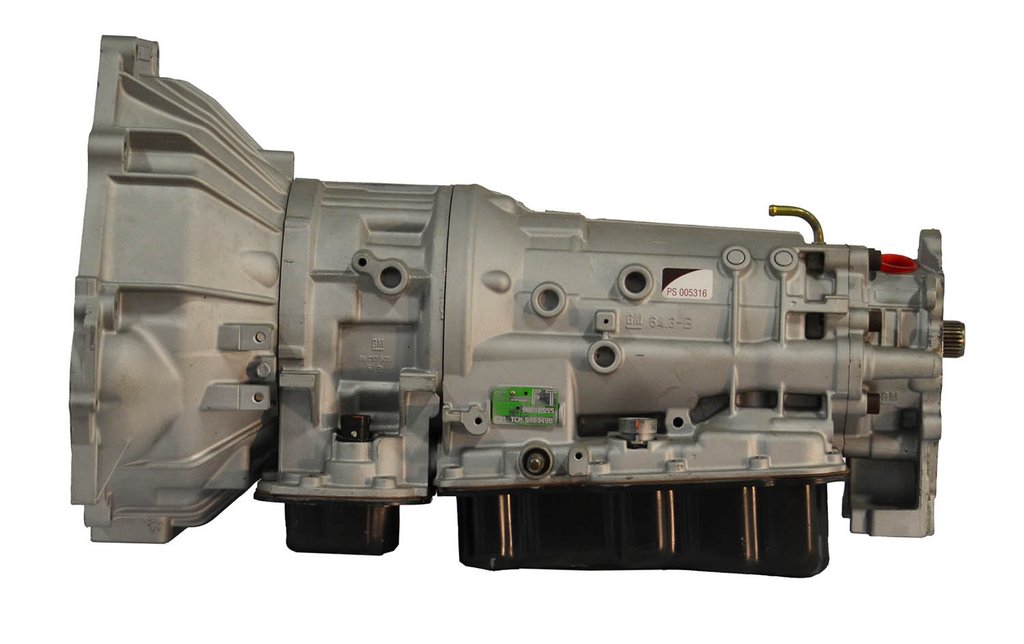

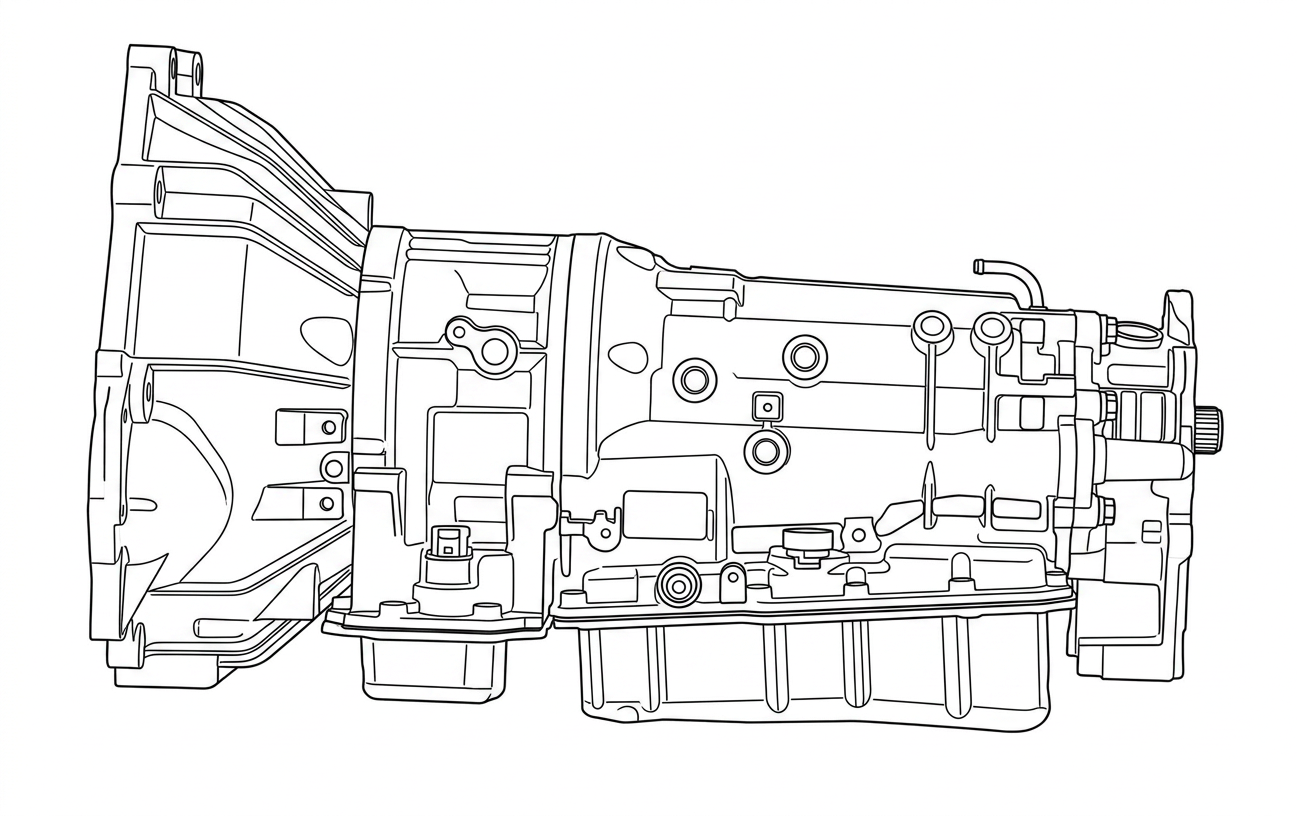

General Motors 4L30E Transmission

The 4-speed automatic transmission 4L30E is the successor of a reliable 3-speed transmission 3L30E, which has been used since 1969. These transmissions were made in the USA and in Europe (Strasbourg) under the name AR25 for RWD Opel Omega and AR35 for a 3-liter Katera.

Speeds 4
Type AT
Drive RWD/AWD
Max torque 350
ATF capacity (L) 9,7
ATF change (L) 4,6
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4L30E
7.4/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.4
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full 4L30E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 3 3 · No. 3 544 544 · No. 4 530 530 · No. 5 036 036 · No. 6 530 530 · No. 7 311 311 · No. 8 310 310 · No. 9 211* 211* · No. 10 140 140 · No. 11 100/120 100, 120 · No. 12 673 673 · No. 13 899 899 · No. 14 039 039 · No. 15 551 551 · No. 16 039 039 · No. 17 340 340 · No. 18 341 341 · No. 19 961 961 · No. 20 971 971 · No. 21 981 981 · No. 22 650 650 · No. 23 660 660 · No. 24 865 865 · No. 25 851 851 · No. 26 777 777 · No. 27 778 778 · No. 28 29 29 · No. 29 938 938 · No. 30 936 936 · No. 31 939 939 · No. 32 937 937 · No. 33 136/116 136, 116 · No. 34 156 156 · No. 35 863 863 · No. 36 610 610 · No. 37 042 042 · No. 38 580 580 · No. 39 880 880 · No. 40 217 217 · No. 41 590 590 · No. 42 223 223 · No. 43 862 862 · No. 44 970 970 · No. 45 960 960 · No. 46 330 330 · No. 47 331 331 · No. 48 762 762 · No. 49 631/318 631, 318 · No. 50 630 630 · No. 51 037 037 · No. 52 339 339 · No. 53 338 338 · No. 54 966 966 · No. 55 56 56 · No. 56 57 57 · No. 57 58 58 · No. 58 59 59 · No. 59 976 976 · No. 60 61 61 · No. 61 62 62 · No. 62 63 63 · No. 63 986 986 · No. 64 893 893 · No. 65 854 854 · No. 66 130/110 130, 110 · No. 67 150 150 · No. 68 211* 211* · No. 69 046 046 · No. 70 552 552 · No. 71 332 332 · No. 72 333 333 · No. 73 962 962 · No. 74 75 75 · No. 75 76 76 · No. 76 77 77 · No. 77 78 78 · No. 78 972 972 · No. 79 80 80 · No. 80 81 81 · No. 81 82 82 · No. 82 982 982 · No. 83 874 874 · No. 84 852 852 · No. 85 124/104 124, 104 · No. 86 958 958 · No. 87 872 872 · No. 88 594 594 · No. 89 873 873 · No. 90 229 229 · No. 91 230 230 · No. 92 048 048 · No. 93 555 555 · No. 94 336 336 · No. 95 337 337 · No. 96 965 965 · No. 97 975 975 · No. 98 985 985 · No. 99 879 879 · No. 100 858 858 · No. 101 126/106 126, 106 · No. 102 231 231 · No. 103 232 232 · No. 104 612 612 · No. 105 444 444 · No. 106 996 996 · No. 107 996 996 · No. 108 436 436 · No. 109 376 376 · No. 110 848 848 · No. 111 774 774 · No. 112 078 078 · No. 113 369 369 · No. 114 115 115 · No. 115 654 654 · No. 116 654 654 · No. 117 878 878 · No. 118 665 665 · No. 119 241 241 · No. 120 242 242 · No. 121 253 253 · No. 122 584 584 · No. 123 250 250 · No. 124 251 251 · No. 125 254 254 · No. 126 614 614 · No. 127 557 557 · No. 128 026 026 · No. 129 257 257 · No. 130 258 258 · No. 131 255 255 · No. 132 050 050 · No. 133 760 760 · No. 134 064 064 · No. 135 894 894 · No. 136 189 189 · No. 137 685 685 · No. 138 847 847 · No. 139 681 681 · No. 140 895 895 · No. 141 305/770 305, 770 · No. 142 906 906 · No. 143 494 494 · No. 144 493 493 · No. 145 146 146 · No. 146 147 147 · No. 147 148 148 · No. 148 149 149 · No. 149 150 150 · No. 150 425 425 · No. 151 435 435 · No. 152 322/746 322, 746 · No. 153 320/747 320, 747 · No. 154 927 927 · No. 155 928 928 · No. 156 157 157 · No. 157 446 446 · No. 158 908 908 · No. 159 160 160 · No. 160 161 161 · No. 161 907 907 · No. 162 163 163 · No. 163 164 164 · No. 164 165 165 · No. 165 444 444 · No. 166 744 744 · No. 167 926 926 · No. 168 010 010 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 410 410 · No. 174 766/301 766, 301 · No. 175 422 422 · No. 176 177 177 · No. 177 740 740 · No. 178 765/300 765, 300 · No. 179 909 909 · No. 180 307 307 · No. 181

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4L30E in the Go4Trans marketplace.
Sell 4L30E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

51 applications · 8 makes · 1987–2010 Isuzu 19 · Opel 8 · Vauxhall 8 · Cadillac 7 · Acura 3

Make Model Year Drive Engine
Acura SLX 1996-1999 4 Spd RWD V6 3.2L 3.5L
Acura SLX 1996-1999 4 Spd RWD V6 3.2/3.5L
Acura SLX 1996-1999 3.2, 3.5
Buick Catera 1997-2001 4 Spd RWD V6 3.0L
Cadillac Catera 1998-2001 4 Spd RWD V6 3.0L
Cadillac Catera 1997-2001 V6 3L
Cadillac Catera 1997-2001 3.0
Cadillac CTS 2003-2007 V6, V8 2.8, 3.2, 3.6, 4.4, 4.6L
Cadillac SRX 2004-2009 V6, V8 2.8, 3.6, 4.4L
Cadillac STS 2004-2007 V6 2.8, 3.6, 4.6L
Cadillac XLR 2004-2009 V6, V8 2.8, 3.6, 4.6L
Honda Passport 1994-2002 4 Spd RWD/4X4 L4 2.6L; V6 3.2L
Honda Passport 1994-2002 4 Spd RWD L4 2.6L V6 3.2L
Honda Passport 1994-2002 2.6, 3.2
Isuzu Amigo 1999-2002 4 Spd RWD V6 3.2L
Isuzu Amigo 1999-2000 4 Spd RWD/4X4 V6 3.2L
Isuzu Amigo 1998-2000 3.2
Isuzu Axiom 2002-2006 4 Spd RWD/4X4 V6 3.5L
Isuzu Axiom 2002-2006 3.5
Isuzu Axiom 2002-2004 4 Spd RWD V6 3.5L
Isuzu Rodeo 2003 4 Spd RWD/4X4 L4 2.2L
Isuzu Rodeo 1991-2004 2.2, 2.6, 3.1, 3.2, 3.5
Isuzu Rodeo 1991-2002 4 Spd RWD/4X4 L4 3.0L
Isuzu Rodeo 1990-2006 4 Spd RWD/4X4 L4 2.2L 2.6L
Isuzu Rodeo 1990-2006 4 Spd RWD/4X4 V6 3.1L 3.2L 3.5L
Isuzu Rodeo Sport 2001-2003 2.2, 3.2
Isuzu Trooper 1992-2002 4 Spd RWD/4X4 V6 3.2L 3.5L
Isuzu Trooper 1990-2002 4 Spd 4X4 V6 3.2/3.5L
Isuzu Trooper 1989-2002 3.2, 3.5
Isuzu Vehicross 1999-2001 4 Spd RWD/4X4 V6 3.5L
Isuzu Vehicross 1999-2001 4 Spd 4X4 V6 3.5L
Isuzu Vehicross 1999-2001 4 Spd 4X4 V6 3.2L
Isuzu Vehicross 1999-2001 3.5
Opel CATERA 2000-2001 4 Spd RWD V6 3.0L
Opel FRONTERA 2000-2004 4 Spd RWD L4 2.2L V6 3.2L
Opel Frontera-B 1999 4 Spd RWD 2.2LTD, 3.2L
Opel Monteray 1998-2000 4 Spd RWD 3.5L Petrol
Opel OMEGA 2000-2003 4 Spd RWD L4 2.0/2.2/2.5L V6 2.5L
Opel Omega-A 1987-1993 4 Spd RWD 2.0L, 2.4L, 2.6L, 3.0L
Opel Omega-B 1994 4 Spd RWD 2.2L, 2.6L, 3.2L
Opel Senator-B 1988-1994 4 Spd RWD 2.6L, 3.0L
Pontiac G8 2008-2010 V6 3.0, 3.6L
Pontiac Solstice 2006-2010 L4 2.0,2.4L
Vauxhall Carlton 4 Spd RWD 2.0L, 2.4L, 2.6L, 3.0L
Vauxhall Frontera B 1999 4 Spd 4x4 3.2L, 2.2L TD
Vauxhall Monteray 1998-2000 4 Spd 4x4 3.5L
Vauxhall Monteray 1992-1997 4 Spd RWD V6 2.5L
Vauxhall Omega 1994-2003 4 Spd RWD 2.0L, 2.5L, V6 3.0L
Vauxhall Omega Diesel 1994-2003 4 Spd RWD 4L 2.5L D, 6L 2.5L D
Vauxhall Omega Diesel 1994-2003 4 Spd RWD 2.5L TD
Vauxhall Senator 4 Spd RWD 2.6L, 3.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

4L40-E
4L30 E
THM R1
THMR1
THM-R1W
GM4
ML4
THM-R1
4L30E
4L40E
THM R1W
4L30-E
4L40 E
THMR1W
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Friction Wear
Lock-up friction wear causes varnish accumulation, leading to oil pressure drop and oil starvation.
!
Valve Body Varnish Buildup
Varnish deposits in narrow valve body passages cause pressure drop; requires disassembly and cleaning.
!
Oil Pump Damage
Worn pump liner combined with contaminated ATF leads to oil pump failure and oil starvation.
!
Solenoid Resource Exhaustion
Solenoids degrade over time; exhausted solenoids are a typical electrical failure in this transmission.
?
Oil Pressure Drop
Reduced hydraulic pressure resulting from varnish accumulation and friction wear in torque converter and valve body.
!
Line Pressure Solenoid Failure
Line pressure solenoid frequently requires replacement; affects band pressure regulation via PWM control.
!
Bushing Wear From Starvation
Oil starvation caused by pressure drop damages bushings despite their otherwise adequate service life.
!
Plastic Washer Bearing Wear
Plastic washer-bearings are considered consumable parts requiring periodic replacement during overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission 4L30E is the successor of a reliable 3-speed transmission 3L30E, which has been used since 1969. These transmissions were made in the USA and in Europe (Strasbourg) under the name AR25 for RWD Opel Omega and AR35 for a 3-liter Katera.

The 4L30E has been installed since 1990 on RWD and AWD BMWs of all series with engine capacity of up to 3 liters, but it was more widely used on GM, Opel Omega, Isuzu and even on Honda Passport where it proved to be highly efficient.

Technical issues and repair guidelines

The torque converter, valve body and solenoids in the 4L30E transmission have a relatively limited resource. The operability of these components is gradually deteriorating because of the friction lock-up wear-out and accumulation of varnish in the narrowest places leading to the oil pressure drop and oil starvation, that results in a harmful impact on bushings, which have a proper resource.Operations with the worn-out pump liner and contaminated ATF lead to the oil pump damage. Plastic washer-bearings are also considered to be spare parts to be replaced.

The valve body after 200 thousand kilometers requires a statutory disassembly, repair and cleaning from varnish. The linear pressure solenoid was introduced in the valve body design for the brake band drive gear for regulation of the band pressure on the drum by means of PWM. Solenoids with exhausted resource are considered to be a typical problem in the electrical part of the transmission. The line pressure solenoid is also frequently replaced.

It is a reliable well-regulated transmission with a robust service resource for its components. After a simple overhaul this transmission can additionally operate for several years, if you properly monitor the ATF condition.
