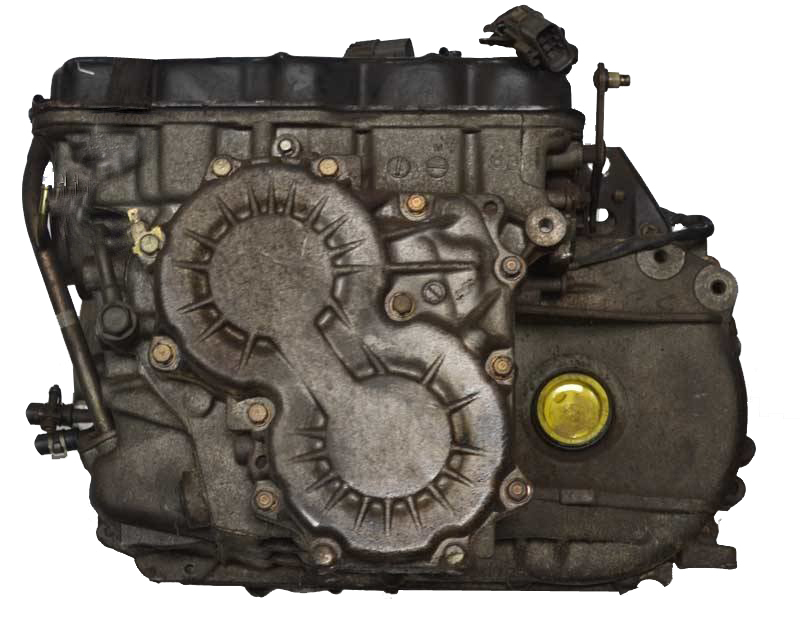

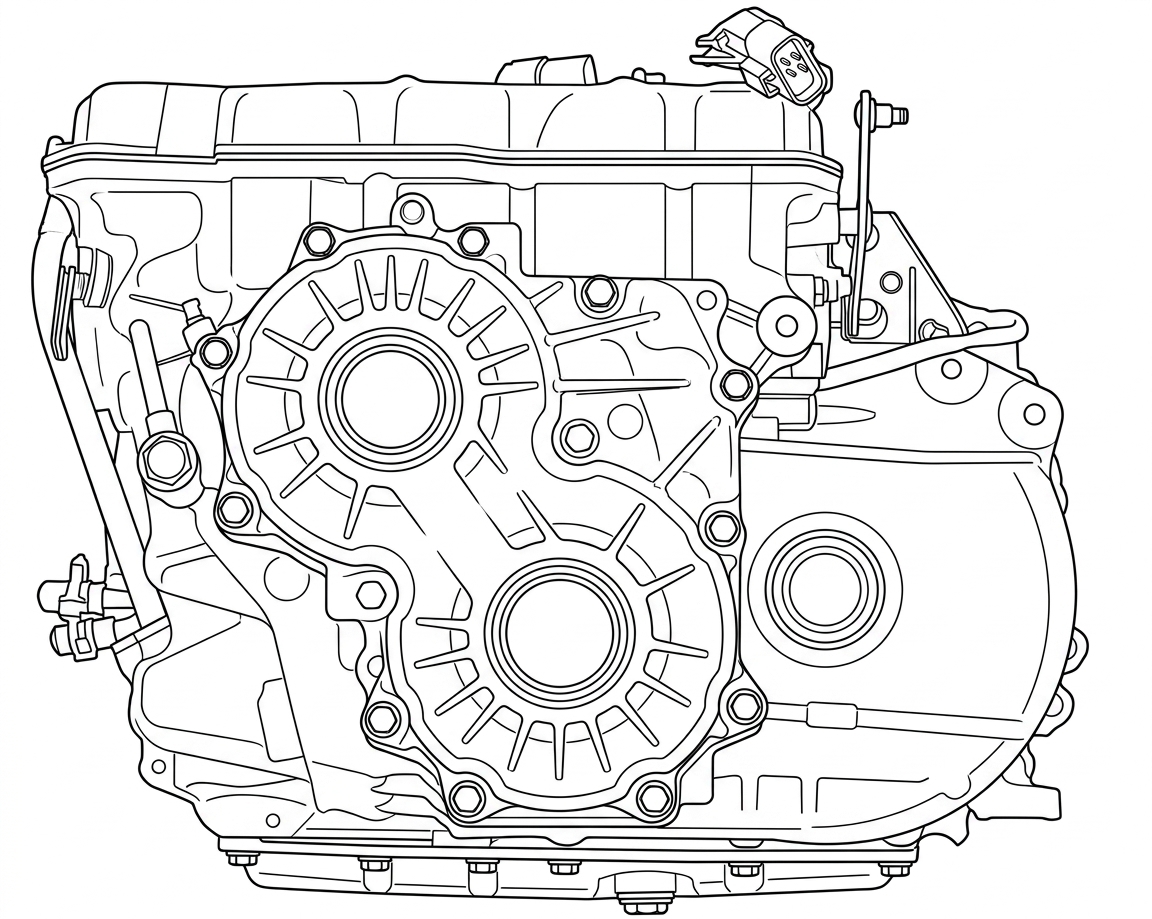

Nissan RL4F02A Transmission

The 4-speed automatic transmission RL4F02A and and its modification RE4F02A (produced by Jatco) found application on FWD Nissan models with the engine capacity of approximately 2.0 liters. The RL modification is intended for lower torque from engines 1.6-2.4 lit, while the RE modification had been installed on 3.0 Maxima until 1994. This transmission had been used on Maxima and Pulsar for 5 years, then it was replaced by more sophisticated and low-priced version- RE4F04A and RE4F03A for engines with the capacity of up to 2-lit.

Speeds 4
Type AT
Drive FWD
Max torque 260
ATF capacity (L) 6
ATF type Nissan AT-Matic D Fluid
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
RL4F02A
4.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.2
Documentation depth10.0
Knowledge & support0.0

Exploded diagram & parts

Full RL4F02A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

897 897 · No. 1 686/306 686, 306 · No. 2 774/848 774, 848 · No. 3 926 +5 926, 927, 929-5, 352, 351, 929 · No. 4 684 684 · No. 5 076293 076293 · No. 6 076293 076293 · No. 7 291 291 · No. 8 292 292 · No. 9 716/683 716, 683 · No. 10 11 11 · No. 11 288 288 · No. 12 289 289 · No. 13 14 14 · No. 14 15 15 · No. 15 273 273 · No. 16 274 274 · No. 17 730 730 · No. 18 19 19 · No. 19 265/368 265, 368 · No. 20 265 +3 265, 369, 847, 774-5 · No. 21 265 265 · No. 22 410/349 410, 349 · No. 23 992 992 · No. 24 786 786 · No. 25 070 070 · No. 26 034 034 · No. 27 750/318 750, 318 · No. 28 538 538 · No. 29 532/533 532, 533 · No. 30 31 31 · No. 31 538 538 · No. 32 176 176 · No. 33 535 535 · No. 34 534 534 · No. 35 209 209 · No. 36 036 036 · No. 37 520 520 · No. 38 179 179 · No. 39 180 180 · No. 40 036C 036C · No. 41 037 037 · No. 42 211* 211* · No. 43 020 020 · No. 44 220 220 · No. 45 046 046 · No. 46 556 556 · No. 47 339 339 · No. 48 966 966 · No. 49 50 50 · No. 50 51 51 · No. 51 976 976 · No. 52 53 53 · No. 53 54 54 · No. 54 986 986 · No. 55 893 893 · No. 56 854 854 · No. 57 130/110 130, 110 · No. 58 150* 150* · No. 59 892 892 · No. 60 380 380 · No. 61 670 670 · No. 62 010 010 · No. 63 536 536 · No. 64 891 891 · No. 65 221 221 · No. 66 555 555 · No. 67 331330 331330 · No. 68 331330 331330 · No. 69 965 965 · No. 70 71 71 · No. 71 975 975 · No. 72 73 73 · No. 73 985 985 · No. 74 879 879 · No. 75 858 858 · No. 76 106/126 106, 126 · No. 77 146* 146* · No. 78 878 878 · No. 79 228 228 · No. 80 229 229 · No. 81 062 062 · No. 82 575 575 · No. 83 062 062 · No. 84 229 229 · No. 85 622 622 · No. 86 052 052 · No. 87 243 243 · No. 88 244 244 · No. 89 883 883 · No. 90 642 642 · No. 91 882 882 · No. 92 582 582 · No. 93 229 229 · No. 94 614 614 · No. 95 247 247 · No. 96 584 584 · No. 97 250 250 · No. 98 244 244 · No. 99 060 060 · No. 100 594 594 · No. 101 253 253 · No. 102 254 254 · No. 103 876 876 · No. 104 148* 148* · No. 105 853 853 · No. 106 108/128 108, 128 · No. 107 877 877 · No. 108 984 984 · No. 109 110 110 · No. 110 111 111 · No. 111 974 974 · No. 112 113 113 · No. 113 114 114 · No. 114 115 115 · No. 115 116 116 · No. 116 117 117 · No. 117 118 118 · No. 118 964 964 · No. 119 335 335 · No. 120 334 334 · No. 121 048 048 · No. 122 554 554 · No. 123 885 885 · No. 124 154* 154* · No. 125 134/114 134, 114 · No. 126 857 857 · No. 127 886 886 · No. 128 987 987 · No. 129 130 130 · No. 130 131 131 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 977 977 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 139 139 · No. 139 140 140 · No. 140 967 967 · No. 141 333 333 · No. 142 354/937 354, 937 · No. 143 355 355 · No. 144 936 936 · No. 145 789 789 · No. 146 698 698 · No. 147 438 438 · No. 148 149 149 · No. 149 493 493 · No. 150 494 494 · No. 151 999 999 · No. 152 699 699 · No. 153 901 +14 901, 199, 902, 903, 906, 195, 767, 905, 903-5, 194, 366, 904, 760, 896, 302 · No. 154 181 181 · No. 155 711 711 · No. 156 790 790 · No. 157 278 278 · No. 158 279 279 · No. 159 049 049 · No. 160 184 184 · No. 161 710 710 · No. 162 283282 283282 · No. 163 283282 283282 · No. 164 284* 284* · No. 165 780 780 · No. 166 320 +2 320, 747, 321 · No. 167 445 445 · No. 168 371 371 · No. 169 712 712 · No. 170 281280 281280 · No. 171 281280 281280 · No. 172 276* 276* · No. 173 759/304 759, 304 · No. 174 425 425 · No. 175 420 420 · No. 176 322/746 322, 746 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 181 181 · No. 181 182 182 · No. 182 183 183 · No. 183 184 184 · No. 184 185 185 · No. 185

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to RL4F02A in the Go4Trans marketplace.
Sell RL4F02A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

6 applications · 1 make · 1985–1992 Nissan 6

Make Model Year Drive Engine
Nissan Axxess 1990 4 Spd FWD L4 2.4L
Nissan Bluebird 4 Spd FWD 1.6L, 1.8L, 2.0L
Nissan Maxima 1985-1992 2.8, 3.0
Nissan Maxima 1985-1988 4 Spd FWD V6 3.0L
Nissan Praire 4 Spd FWD 2.0L
Nissan Pulsar 1988-1990 4 Spd FWD L4 1.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

RL4F02A
RE
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lock-Up Solenoid
Lock-up solenoid operates intensively and fails early; has been modified several times by manufacturer.
!
Remaining Solenoids General Failure
All solenoids prone to early wear; failure causes oil starvation leading to bushing and drum damage.
!
Friction Components Wear-Out
Worn friction elements contaminate valve body valves and solenoids, restricting valve core spring movement.
!
Valve Body Contamination
Debris from worn friction components clogs valve body passages and solenoids, impairing hydraulic control.
?
Clutch Slipping at Gears
Worn clutch packs cause slipping in specific gears; vehicle loses ability to climb inclines.
!
Bushing and Drum Deterioration
Oil starvation from failed solenoids causes cranking of bushings and deterioration of drums and planetary gears.
!
Rubber Gaskets Ageing
General ageing of rubber seals and gaskets is a common issue in older RL4F02A units.
?
Jolts and Shift Stoppages
Common symptom resulting from contaminated valve body and worn solenoids restricting proper hydraulic flow.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission RL4F02A and and its modification RE4F02A (produced by Jatco) found application on FWD Nissan models with the engine capacity of approximately 2.0 liters. The RL modification is intended for lower torque from engines 1.6-2.4 lit, while the RE modification had been installed on 3.0 Maxima until 1994. This transmission had been used on Maxima and Pulsar for 5 years, then it was replaced by more sophisticated and low-priced version- RE4F04A and RE4F03A for engines with the capacity of up to 2-lit.

Technical issues and repair guidelines

This transmission is quite reliable, but when it comes to the repair of this transmission is can be quite expensive. Thus, many car owners prefer to replace this gearbox by the used one. The problem of “old” RL4F02A transmissions as in all Nissan gearboxes lies in the electronic control elements. The torque converter lock-up solenoid operates quite intensively and gets out of service very early. It was modified several times.The rest of solenoids should also be changed before they stop operating properly, because it leads to the oil starvation, cranking of bushings, deterioration of drums, planetary gears and pump.

But usually issues are related to general ageing of rubber gaskets and wear-out of friction components, which contaminate valves of the valve body and solenoids, prevent springs from moving valve cores. All this results in such common issues as jolts and stoppages. The wear-out of friction elements initially affects the torque converter lock-up mechanism, then worn-out clutches start slipping at some gears and the car ceases moving uphill. Generally, this transmission is quite reliable and has a high operational reserve. After the reassembly and cleaning, this gearbox can operate on the snow and in off-road conditions for a long period of time.
