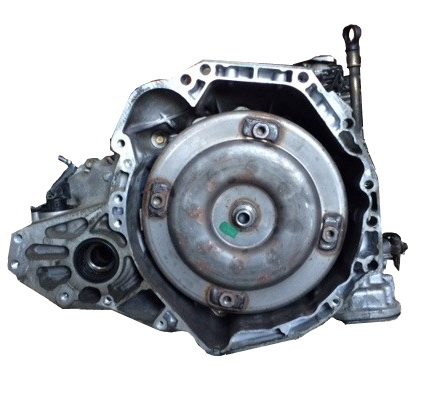

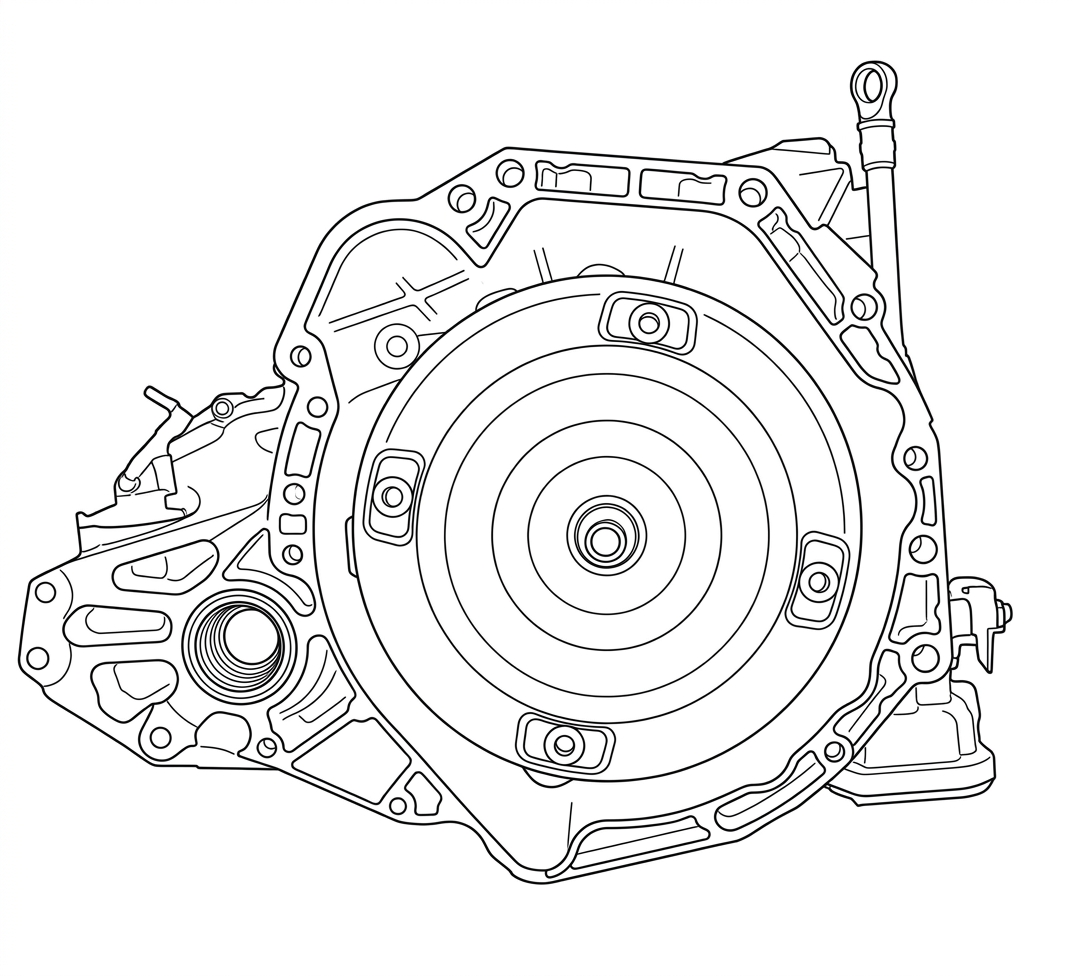

Nissan RE4F03A Transmission

The 4-speed automatic gearbox RL4F03A / V RE4F03A / B was designed by Jatco in 1990 for FWD Nissan Primera with the engine capacity up to 2 liters. This transmission replaced the previous version RL4F02A with the hydraulic control.

Speeds 4
Type AT
Drive RWD/AWD
Max torque 240
ATF capacity (L) 8,2
ATF change (L) 3,5
ATF type AT-Matic D Fluid
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
RE4F03A
7.2/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.4
Documentation depth10.0
Knowledge & support2.5

Exploded diagram & parts

Full RE4F03A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774/848 774, 848 · No. 1 750 750 · No. 2 070 070 · No. 3 034 034 · No. 4 311 311 · No. 5 6 6 · No. 6 530 530 · No. 7 036 036 · No. 8 520 520 · No. 9 179 179 · No. 10 037 037 · No. 11 211 211 · No. 12 226 226 · No. 13 227 227 · No. 14 020 020 · No. 15 046 046 · No. 16 556 556 · No. 17 339 339 · No. 18 338 338 · No. 19 966 966 · No. 20 976 976 · No. 21 893 893 · No. 22 131 131 · No. 23 131 131 · No. 24 130/110 130, 110 · No. 25 150 150 · No. 26 892 892 · No. 27 177 177 · No. 28 555 555 · No. 29 336 336 · No. 30 337 337 · No. 31 965 965 · No. 32 975 975 · No. 33 879 879 · No. 34 778 778 · No. 35 999 999 · No. 36 126/106 126, 106 · No. 37 146 146 · No. 38 878 878 · No. 39 229 229 · No. 40 054 054 · No. 41 575 575 · No. 42 054 054 · No. 43 235 235 · No. 44 622 622 · No. 45 052243244 052243244 · No. 46 052243244 052243244 · No. 47 052243244 052243244 · No. 48 882 882 · No. 49 642 642 · No. 50 883 883 · No. 51 154 154 · No. 52 134/114 134, 114 · No. 53 857 857 · No. 54 857 857 · No. 55 155 155 · No. 56 582 582 · No. 57 238 238 · No. 58 614 614 · No. 59 247 247 · No. 60 584 584 · No. 61 251 251 · No. 62 594 594 · No. 63 060 060 · No. 64 254 254 · No. 65 574 574 · No. 66 658 658 · No. 67 658 658 · No. 68 658 658 · No. 69 254 254 · No. 70 579 579 · No. 71 889 889 · No. 72 233 233 · No. 73 876 876 · No. 74 148 148 · No. 75 128/108 128, 108 · No. 76 853 853 · No. 77 863 863 · No. 78 156 156 · No. 79 136/116 136, 116 · No. 80 851 851 · No. 81 877 877 · No. 82 984 984 · No. 83 84 84 · No. 84 85 85 · No. 85 974 974 · No. 86 87 87 · No. 87 88 88 · No. 88 89 89 · No. 89 960 960 · No. 90 340 340 · No. 91 341 341 · No. 92 964 964 · No. 93 334 334 · No. 94 335 335 · No. 95 048 048 · No. 96 897 897 · No. 97 680 +3 680, 306, 684, 686 · No. 98 554 554 · No. 99 268 268 · No. 100 885 885 · No. 101 977 977 · No. 102 967 967 · No. 103 332 332 · No. 104 333 333 · No. 105 232 232 · No. 106 062 062 · No. 107 678 678 · No. 108 234 234 · No. 109 268 268 · No. 110 267 267 · No. 111 269 269 · No. 112 189 189 · No. 113 634 634 · No. 114 790 790 · No. 115 272 272 · No. 116 271 271 · No. 117 710 710 · No. 118 796 796 · No. 119 780 780 · No. 120 907 +3 907, 367, 365, 903-1 · No. 121 909 +6 909, 361B, 361, 906, 903, 903-1, 901 · No. 122 760 760 · No. 123 304/759 304, 759 · No. 124 904 +3 904, 366, 896, 902 · No. 125 126 126 · No. 126 280 280 · No. 127 281 281 · No. 128 712 712 · No. 129 795 795 · No. 130 077 077 · No. 131 292 292 · No. 132 847 847 · No. 133 716 716 · No. 134 720 720 · No. 135 786 786 · No. 136 289 289 · No. 137 293 293 · No. 138 076 076 · No. 139 140 140 · No. 140 072 072 · No. 141 142 142 · No. 142 010 010 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 148 148 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 730 730 · No. 153 274 274 · No. 154 273 273 · No. 155 713 713 · No. 156 276 276 · No. 157 420 420 · No. 158 322 +2 322, 321, 320 · No. 159 300/765 300, 765 · No. 160 779 779 · No. 161

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to RE4F03A in the Go4Trans marketplace.
Sell RE4F03A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

46 applications · 3 makes · 1990–2018 Nissan 40 · Infiniti 5 · Renault 1

Make Model Year Drive Engine
Infiniti G20 1994-2002 4 Spd FWD L4 2.0L
Infiniti G20 1994-1999 4 Spd FWD L4 2.0L
Infiniti G20 1991-2002 2.0
Infiniti G20 1991-1993 4 Spd FWD L4 2.0L
Infiniti Q45 1990-2001 4.1, 4.5
Nissan 200SX 1995-1998 4 Spd FWD L4 1.6L
Nissan 200SX 1995-1998 4 Spd FWD L4 2.0L
Nissan 200SX 1995-1998 1.6, 2.0
Nissan AD Van 2006-2014 4 Spd F/AWD L4 1.2/1.5/1.6/1.8L
Nissan Almera 2000-2006 4 Spd FWD 1.8L 16V
Nissan Almera 2000-2006 4 Spd FWD L4 1.8L
Nissan Almera 1995-2000 4 Spd FWD 1.6L, 2.0L
Nissan ALMERA TINO 2000-2006 4 Spd FWD L4 1.8L
Nissan Bluebird Sylphy 2000-2012 4 Spd FWD L4 1.5/1.6/2.0L
Nissan CUBE CUBIC 2000-2009 4 Spd FWD L4 1.3/1.4/1.5L
Nissan EVALIA 2012-2014 4 Spd FWD L4 1.5L
Nissan GENISS 2006-2011 4 Spd FWD L4 1.8L
Nissan Grand Livina 2007-2014 4 Spd FWD L4 1.5/1.6/1.8L
Nissan Latio 2007-2012 4 Spd FWD L4 1.6/1.8L
Nissan Livina Geniss 2007-2014 4 Spd FWD L4 1.5/1.6/18L
Nissan March 2002-2012 4 Spd FWD L3 1.2L L4 1.2/1.4/1.5L
Nissan Maxima 2001-2011 4 Spd FWD V6 3.0L
Nissan Micra K12 2002 4 Spd FWD 1.0L, 1.2L
Nissan Note 2005-2013 4 Spd FWD L4 1.5L
Nissan NX 1992-1993 4 Spd FWD L4 1.6/2.0L
Nissan NX 1991-1993 4 Spd FWD L4 1.6L 2.0L
Nissan NX 1991-1993 1.6, 2.0
Nissan PRESEA 2000-2001 4 Spd FWD L4 1.5L
Nissan Primera 1990-2000 4 Spd FWD 1.6L, 1.8L, 2.0L
Nissan Pulsar 2000-2006 4 Spd F/AWD L4 1.8L/2.0L
Nissan Sentra 1993-2012 4 Spd FWD L4 1.6L
Nissan Sentra 1993-2006 1.6, 1.8, 2.0, 2.5
Nissan Sentra 1993-1999 4 Spd FWD L4 1.6L
Nissan Sentra 1993-1999 4 Spd FWD L4 2.0L
Nissan Sentra 1991-1999 4 Spd FWD L4 1.6/2.0L
Nissan Sentra 1991-1992 4 Spd FWD L4 1.6/2.0L
Nissan Sunny 2000-2004 4 Spd FWD L4 1.4/1.6/2.2L
Nissan Sunny 1991-1996 4 Spd FWD 2.0L
Nissan Teana 2006-2008 4 Spd FWD L4 2.0L
Nissan Tiida 2006-2016 4 Spd FWD L4 1.5/1.6/1.8L
Nissan TIIDA/LATIO/YIDA 2005-2014 4 Spd FWD L4 1.5/1.6/1.8L
Nissan TSURU 2002-2011 4 Spd FWD L4 1.6L
Nissan Versa 2006-2014 4 Spd FWD L4 1.5/1.6/1.8L
Nissan Versa 2006-2013 4 Spd FWD L4 1.6/1.8L
Nissan Wingroad 2000-2012 4 Spd FWD L4 1.5L
Renault CAPTUR 2016-2018 4 Spd FWD L4 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

RE4F03A
RL4F03A
RL4F033A
RE4F033A
RL4F03A/V
RE4F03A/V
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Worn Sealing Rings
Ring wear reduces oil pressure in clutch packages, primary cause requiring replacement during overhaul.
!
Solenoid Block Failure
Worn solenoids cause fluid shortage in clutch packages, leading to friction slipping and oil burning.
?
Friction Clutch Slipping
Slipping of friction clutches caused by insufficient fluid pressure due to worn solenoids.
?
Burnt Friction Elements
Oil and friction element burning resulting from prolonged solenoid wear and fluid starvation.
!
Reverse Drum Piston Wear
Wear of reverse drum piston surface and brake band caused by oil starvation conditions.
!
High Clutch Drum Damage
Shaft bending and surface wear on high clutch drum shaft and drum body due to oil starvation.
!
Pump Seal Oil Leakage
Oil leakage from pump seal indicating wear of torque converter parts and pump bushing.
!
Valve Body Contamination
Valve body requires cleaning and reassembly with gasket and spring replacement during routine overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic gearbox RL4F03A / V RE4F03A / B was designed by Jatco in 1990 for FWD Nissan Primera with the engine capacity up to 2 liters. This transmission replaced the previous version RL4F02A with the hydraulic control.

In 1994, another update was made, and a new modification was released in 2000 under the name RE4F03B. The RE4F03A unit turned out to be very popular in accordance with the ratio price / reliability. After 2000, this transmission has been actively installed on the entire range of Nissan vehicles. Now this range of automatic gear shifting units is used for many models of Nissan cars all over the world.

Technical issues and repair guidelines

During each overhaul of this transmission, repair specialists replace the kit of gaskets and seals, which should be changed after a long-time operation to prevent the damage of the rubber elements. But the main repair procedure consists of replacement of rings, because their wearout may have a negative impact on the oil pressure in clutch packages. In most cases, repair procedures lie in cleaning and reassembly of the valve body, replacement of gaskets, spare parts, springs (of shock absorber), and the torque converter repair. Every second repair includes replacement of the solenoids block The issue with worn-out solenoids may lead to fluid shortages in clutch packages and result in slipping of friction clutches, oil burning and later burning of all frictions.

Hard parts of this transmission are very reliable. This gearbox may be considered invincible except for oil leakages from the pump seal (occur after 150 thousand kilometers), which usually says about the wear-out of torque converter spare parts and the pump bushing. It is recommended to change the fluid not according to its period of operation, but according to its transparency.

When this transmission unit in old cars is exposed to "oil starvation", then it may lead the following malfunctions ( in the following order):

- Reverse drum with the piston, wear-out of the surface by the brake band.

- High clutch drum. The shaft cranks, different types of wear-out of the shaft surface and drum. Reverse friction elements are prone to burning

If the fluid state in monitored and solenoids are timely replaced, then this transmission unit will operate properly for a long period of time.
