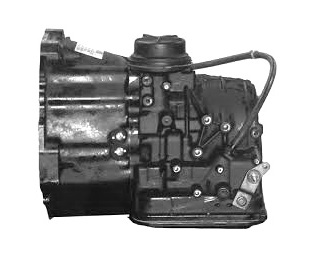

Nissan RL3F01A Transmission

RL3F01A is one of the first 3-speed automatic transmissions Jatco (RN3F01A) had been installed on some rear wheel drive small cars of Nissan (PULSAR, SENTRA, STANZA) since 1982 until 1989. This is the first transmission with introduced forced torque converter lock-up. The family of 4-speed automatic transmissions RL4F01A \ RE4F02A was released simultaneously with RL3F01A and was very popular.RL3F01A is the successor of 3-speed rear wheel drive automatic transmission 3N71B (later modified in L4N71B, JR401E).

Speeds 3
Type AT
Drive FWD
Max torque 150
ATF capacity (L) 6,1
ATF change (L) 2,8
ATF type AT-Matic D Fluid
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
RL3F01A
4.8/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.7
Documentation depth8.9
Knowledge & support2.5

Exploded diagram & parts

Full RL3F01A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774 774 · No. 1 077 077 · No. 2 291 291 · No. 3 292 292 · No. 4 849 849 · No. 5 683 683 · No. 6 716 716 · No. 7 720 720 · No. 8 288 288 · No. 9 289 289 · No. 10 290* 290* · No. 11 399 399 · No. 12 725 725 · No. 13 076 076 · No. 14 070 070 · No. 15 032 032 · No. 16 529 529 · No. 17 304 304 · No. 18 032 032 · No. 19 277* 277* · No. 20 273 273 · No. 21 274 274 · No. 22 730 730 · No. 23 281 281 · No. 24 25 25 · No. 25 26 26 · No. 26 750/318 750, 318 · No. 27 786 786 · No. 28 793 793 · No. 29 780 780 · No. 30 283 283 · No. 31 282 282 · No. 32 714 714 · No. 33 282 282 · No. 34 283 283 · No. 35 679 679 · No. 36 208 208 · No. 37 799 799 · No. 38 670 670 · No. 39 594 594 · No. 40 243 243 · No. 41 883 883 · No. 42 644 644 · No. 43 244 244 · No. 44 584 584 · No. 45 244 244 · No. 46 243 243 · No. 47 886 886 · No. 48 622 622 · No. 49 884 884 · No. 50 052 052 · No. 51 612 612 · No. 52 052 052 · No. 53 671 671 · No. 54 238 238 · No. 55 237 237 · No. 56 582 582 · No. 57 236 236 · No. 58 235 235 · No. 59 592 592 · No. 60 232 232 · No. 61 876 876 · No. 62 146* 146* · No. 63 126/106 126, 106 · No. 64 853 853 · No. 65 877 877 · No. 66 984 984 · No. 67 68 68 · No. 68 69 69 · No. 69 974 974 · No. 70 71 71 · No. 71 72 72 · No. 72 73 73 · No. 73 74 74 · No. 74 964 964 · No. 75 334/335 334, 335 · No. 76 062 062 · No. 77 554 554 · No. 78 230 230 · No. 79 229 229 · No. 80 876 876 · No. 81 146* 146* · No. 82 126/106 126, 106 · No. 83 879 879 · No. 84 985 985 · No. 85 86 86 · No. 86 87 87 · No. 87 975 975 · No. 88 89 89 · No. 89 90 90 · No. 90 965 965 · No. 91 336/337 336, 337 · No. 92 046 046 · No. 93 555 555 · No. 94 022 022 · No. 95 885 885 · No. 96 154* 154* · No. 97 134/114 134, 114 · No. 98 686 +2 686, 345, 687 · No. 99 361 +5 361, 909, 362, 907, 896, 906 · No. 100 154 154 · No. 101 857 857 · No. 102 977 977 · No. 103 967 967 · No. 104 211 211 · No. 105 037 037 · No. 106 181 181 · No. 107 179 179 · No. 108 035530 035530 · No. 109 035530 035530 · No. 110 035530 035530 · No. 111 543 543 · No. 112 544 544 · No. 113 684/680 684, 680 · No. 114 760 760 · No. 115 410 410 · No. 116 117 117 · No. 117 118 118 · No. 118 119 119 · No. 119 120 120 · No. 120 121 121 · No. 121 122 122 · No. 122 010/326 010, 326 · No. 123 124 124 · No. 124 916 916 · No. 125 765/300 765, 300 · No. 126 992 992 · No. 127 740 740 · No. 128 779 779 · No. 129

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to RL3F01A in the Go4Trans marketplace.
Sell RL3F01A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

18 applications · 2 makes · 1981–1992 Nissan 11 · Datsun 7

Make Model Year Drive Engine
Datsun 200SX 1981 2.0, 2.2, 2.8
Datsun 310 1981-1982 1.5
Datsun 510 1981 2.0
Datsun 720 1981-1982 2.2
Datsun 810 1981 2.4, 2.8
Datsun Maxima 1982 2.4, 2.8
Datsun Stanza 1982 2.0
Nissan Bluebird U11 3 Spd FWD 1.6L, 1.8L, 2.0L
Nissan Cherry N12 3 Spd FWD 1.3L, 1.5L
Nissan Micra 1983-1991 3 Spd FWD 1.0L, 1.2L
Nissan Multi 1986-1988 2.0
Nissan Pulsar 1983-1990 3 Spd FWD L4 1.5/1.6L
Nissan Pulsar 1983-1990 1.5, 1.6, 1.8
Nissan Pulsar 1982-1990 3 Spd FWD L4 1.5/1.6L
Nissan Pulsar NX 1984-1990 1.6, 1.8
Nissan Sentra 1983-1992 1.5, 1.6, 1.7, 1.8, 2.0
Nissan Stanza 1983-1985 2.0
Nissan Stanza 3 Spd FWD 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

RL3F01A
RN3F01A
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Friction Clutch Pack Wear
Forward clutch friction plates wear over time, requiring replacement during overhaul as primary repair item.
!
Gaskets and Seals Degradation
All gaskets age significantly over long service life; rubber deteriorates and seals begin leaking due to age.
!
Burnt Transmission Fluid
Burnt ATF condition indicates internal clutch or friction material failure; requires full overhaul beyond basic service.
?
External Transmission Fluid Leaks
Aged rubber seals and gaskets cause external fluid leaks, indicating overhaul is required.
!
Metal Filter Contamination
Metal filter accumulates debris over service life; typically cleaned and reused rather than replaced during overhaul.
!
Torque Converter Lockup Failure
First-generation forced torque converter lock-up system prone to issues given age of units produced 1982-1989.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

RL3F01A is one of the first 3-speed automatic transmissions Jatco (RN3F01A) had been installed on some rear wheel drive small cars of Nissan (PULSAR, SENTRA, STANZA) since 1982 until 1989. This is the first transmission with introduced forced torque converter lock-up. The family of 4-speed automatic transmissions RL4F01A \ RE4F02A was released simultaneously with RL3F01A and was very popular.RL3F01A is the successor of 3-speed rear wheel drive automatic transmission 3N71B (later modified in L4N71B, JR401E).

Technical issues and repair guidelines

For the overhaul of this automatic transmission (which takes place very rarely) transmission specialists order the following:

-the kit of friction clutches or clutches Forward (when ordering separate parts).

Metal filter which is usually cleaned and washed. Following the above mentioned recommendations may be enough (if the oil is not burnt) to prolong the service lifespan of this transmission for several years.

- repair kit of gaskets and seals (by the time of the overhaul all gaskets are very old, rubber gets damaged and seals start leaking because of long time in service.
