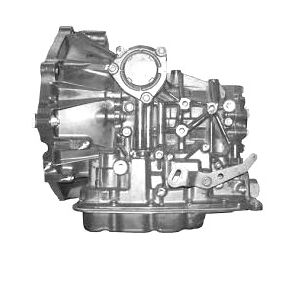

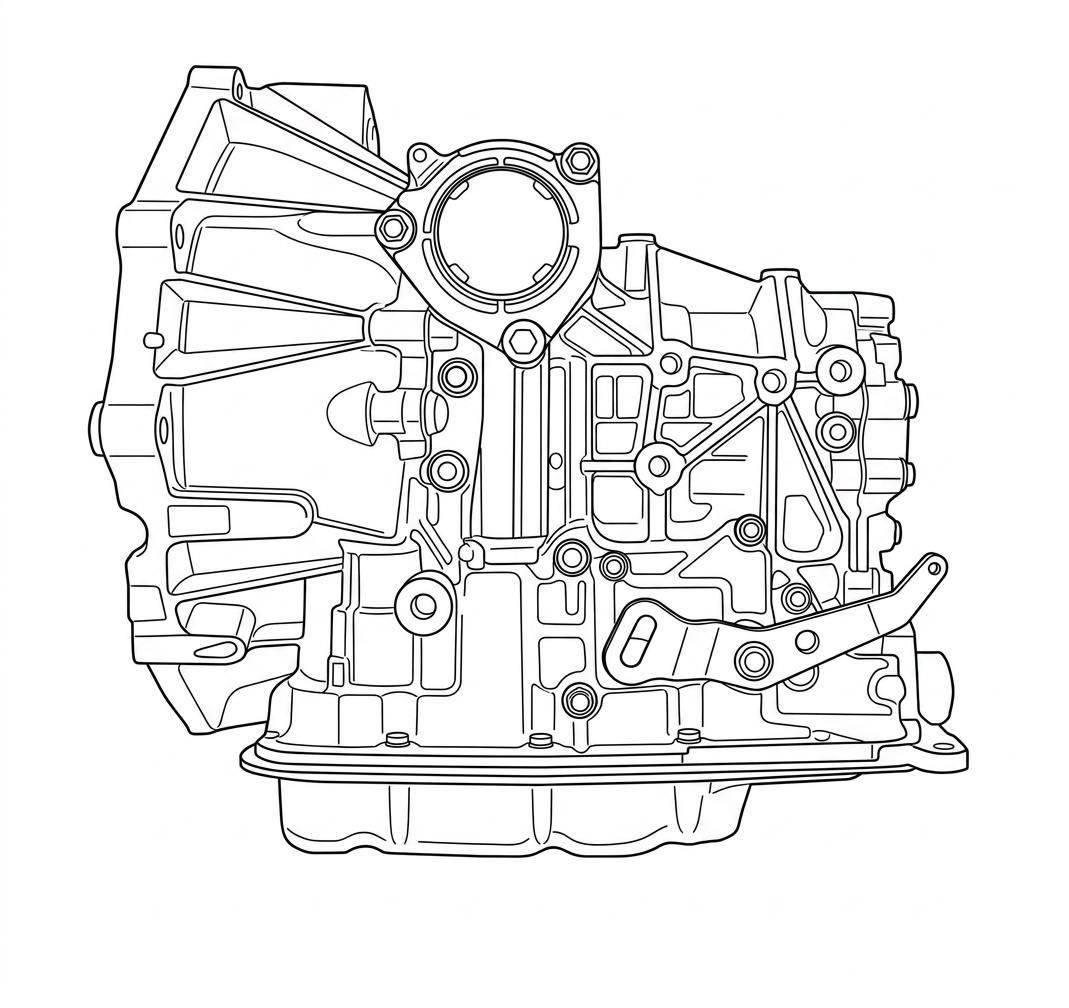

Ford / Nissan RE4F04A Transmission

The 4-speed automatic transmission RE4F04A was designed by Jatco in 1993 for 3 liter Maxima using the experience of the JF403E gearbox which was created in 1990 for Isuzu. Later this transmission was installed on other popular Nissan and Infinity models with engine capacity up to 3 liters. At the same time, another modification RE4F03A was released for lower torque from engines with the capacity up to two liters. This family of 4-speed automatic transmissions is used on FWD vehicles with engines from 2 up to 3 liters. Experts call this gearbox as " the 04-th Nissan", which is considered…

Speeds 4
Type AT
Drive FWD
Max torque 290
ATF capacity (L) 9,5
ATF change (L) 4,5
ATF type Nissan Matic-D
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
RE4F04A
7.1/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.8
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full RE4F03A parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

774/848 774, 848 · No. 1 750 750 · No. 2 070 070 · No. 3 034 034 · No. 4 311 311 · No. 5 6 6 · No. 6 530 530 · No. 7 036 036 · No. 8 520 520 · No. 9 179 179 · No. 10 037 037 · No. 11 211 211 · No. 12 226 226 · No. 13 227 227 · No. 14 020 020 · No. 15 046 046 · No. 16 556 556 · No. 17 339 339 · No. 18 338 338 · No. 19 966 966 · No. 20 976 976 · No. 21 893 893 · No. 22 131 131 · No. 23 131 131 · No. 24 130/110 130, 110 · No. 25 150 150 · No. 26 892 892 · No. 27 177 177 · No. 28 555 555 · No. 29 336 336 · No. 30 337 337 · No. 31 965 965 · No. 32 975 975 · No. 33 879 879 · No. 34 778 778 · No. 35 999 999 · No. 36 126/106 126, 106 · No. 37 146 146 · No. 38 878 878 · No. 39 229 229 · No. 40 054 054 · No. 41 575 575 · No. 42 054 054 · No. 43 235 235 · No. 44 622 622 · No. 45 052243244 052243244 · No. 46 052243244 052243244 · No. 47 052243244 052243244 · No. 48 882 882 · No. 49 642 642 · No. 50 883 883 · No. 51 154 154 · No. 52 134/114 134, 114 · No. 53 857 857 · No. 54 857 857 · No. 55 155 155 · No. 56 582 582 · No. 57 238 238 · No. 58 614 614 · No. 59 247 247 · No. 60 584 584 · No. 61 251 251 · No. 62 594 594 · No. 63 060 060 · No. 64 254 254 · No. 65 574 574 · No. 66 658 658 · No. 67 658 658 · No. 68 658 658 · No. 69 254 254 · No. 70 579 579 · No. 71 889 889 · No. 72 233 233 · No. 73 876 876 · No. 74 148 148 · No. 75 128/108 128, 108 · No. 76 853 853 · No. 77 863 863 · No. 78 156 156 · No. 79 136/116 136, 116 · No. 80 851 851 · No. 81 877 877 · No. 82 984 984 · No. 83 84 84 · No. 84 85 85 · No. 85 974 974 · No. 86 87 87 · No. 87 88 88 · No. 88 89 89 · No. 89 960 960 · No. 90 340 340 · No. 91 341 341 · No. 92 964 964 · No. 93 334 334 · No. 94 335 335 · No. 95 048 048 · No. 96 897 897 · No. 97 680 +3 680, 306, 684, 686 · No. 98 554 554 · No. 99 268 268 · No. 100 885 885 · No. 101 977 977 · No. 102 967 967 · No. 103 332 332 · No. 104 333 333 · No. 105 232 232 · No. 106 062 062 · No. 107 678 678 · No. 108 234 234 · No. 109 268 268 · No. 110 267 267 · No. 111 269 269 · No. 112 189 189 · No. 113 634 634 · No. 114 790 790 · No. 115 272 272 · No. 116 271 271 · No. 117 710 710 · No. 118 796 796 · No. 119 780 780 · No. 120 907 +3 907, 367, 365, 903-1 · No. 121 909 +6 909, 361B, 361, 906, 903, 903-1, 901 · No. 122 760 760 · No. 123 304/759 304, 759 · No. 124 904 +3 904, 366, 896, 902 · No. 125 126 126 · No. 126 280 280 · No. 127 281 281 · No. 128 712 712 · No. 129 795 795 · No. 130 077 077 · No. 131 292 292 · No. 132 847 847 · No. 133 716 716 · No. 134 720 720 · No. 135 786 786 · No. 136 289 289 · No. 137 293 293 · No. 138 076 076 · No. 139 140 140 · No. 140 072 072 · No. 141 142 142 · No. 142 010 010 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 148 148 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 730 730 · No. 153 274 274 · No. 154 273 273 · No. 155 713 713 · No. 156 276 276 · No. 157 420 420 · No. 158 322 +2 322, 321, 320 · No. 159 300/765 300, 765 · No. 160 779 779 · No. 161

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to RE4F04A in the Go4Trans marketplace.
Sell RE4F04A parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

41 applications · 4 makes · 1992–2014 Nissan 31 · Mercury 6 · Infiniti 3 · Ford 1

Make Model Year Drive Engine
Ford VILLAGER 1993-2001 4 Spd FWD V6 3.0L/3.3L
Infiniti I30 2000-2001 4 Spd FWD V6 3.0L
Infiniti I30 1996-1999 3.0
Infiniti I30 1995-2001 4 Spd FWD V6 3.0L
Mercury Villager 1995-2002 V6 3.0,3.3L
Mercury Villager 1995-2002 3.0, 3.3
Mercury Villager 1993-2002 4 Spd FWD V6 3.0L 3.3L
Mercury Villager 1993-2002 4 Spd FWD V6 3.0L/3.3L
Mercury Villager 1993-1994 V6 3.0,3.3L
Mercury Villager 1993-1994 3.0, 3.3
Nissan Altima 1995-2006 2.4, 2.5
Nissan Altima 1993-2007 4 Spd FWD L4 2.4L
Nissan Altima 1993-1999 4 Spd FWD L4 2.4L
Nissan Altima 1993-1994 2.4, 2.5, 3.5
Nissan AVENIR 2000-2006 4 Spd F/AWD L4 1.8L/2.0L
Nissan BASSARA 2000-2003 4 Spd F/AWD L4 2.5L V6 3.0L
Nissan Bluebird Sylphy 2000-2009 4 Spd F/AWD L4 1.5/1.8/2.0L
Nissan CEFIRO 2000-2008 4 Spd FWD V6 2.0/2.5/3.0/3.5L
Nissan March 2000-2007 4 Spd FWD L4 1.3L
Nissan Maxima 1995-2003 3.0
Nissan Maxima 1993-1994 3.0
Nissan Maxima 1992-2000 4 Spd FWD V6 3.0L
Nissan Maxima 1992-1999 4 Spd FWD V6 3.0L (DOHC)
Nissan Maxima SL 2004 4 Spd FWD V6 3.5L
Nissan Maxima SL 2004 4 Spd FWD V6 3.0L
Nissan PRESAGE 2000-2009 4 Spd F/AWD L4 2.4/2.5L V6 3.0L
Nissan PRESEA 2000-2001 4 Spd FWD L4 1.8L
Nissan Primera 2000-2006 4 Spd FWD L4 1.8/2.0/2.5L
Nissan Quest 1995-2003 3.0, 3.3
Nissan Quest 1993-2002 4 Spd FWD V6 3.0/3.3L
Nissan Quest 1993-1994 3.0
Nissan Quest S 2005-2006 4 Spd FWD V6 3.5L
Nissan Quest S/SL 2004 4 Spd FWD V6 3.5L
Nissan RNESSA 2000-2001 CVT FWD L4 2.0L/2.4L
Nissan Serena 2012 4 Spd FWD L4 2.0L
Nissan Teana 2004-2013 4 Spd F/AWD L4 2.0/2.5 V6 2.3/3.5L
Nissan Tiida 2006-2012 4 Spd FWD L4 1.8L
Nissan Vanette 2009-2013 4 Spd FWD L4 1.6L
Nissan VERITA 2000-2006 4 Spd FWD L4 1.3L
Nissan Wingroad 2000-2008 4 Spd FWD L4 1.3/1.5/1.8L
Nissan X-Trail 2001-2014 4 Spd FWD/4X4 L4 2.0L/2.5L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

4F20E
RE4F04A
RE4F04 A
RE4F04-A
RE4F04A/B
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lockup Clutch
Lockup clutch friction lining wears to glue layer, contaminating valve body and damaging pump shaft.
?
Severe Vibration On Pump Shaft
Damaged torque converter lockup mechanism causes severe vibrations on pump shaft, leading to pump seal failure.
?
Leaking Pump Seal
First visible sign of faulty torque converter; seal leaks due to pump shaft damage from lockup debris.
!
Rear Planetary Gear Failure
Rear planetary gear is a typical problem component, prone to wear under prolonged or high-load operation.
!
High Clutch Forward Clutch
High Clutch and Forward Clutch are the most commonly failing friction elements in RE4F04A transmissions.
?
Metal Chips In Pan
Accumulation of metal chips and shavings in the oil pan indicates advanced internal wear requiring full rebuild.
!
Pump Cover Bushing Wear
Extended operation with worn torque converter and leaking pump seal causes pump cover bushing to wear out.
!
Solenoid Block Exhaustion
Most heavily loaded solenoid pair fails first; entire solenoid block replaced together due to uneven load distribution.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission RE4F04A was designed by Jatco in 1993 for 3 liter Maxima using the experience of the JF403E gearbox which was created in 1990 for Isuzu. Later this transmission was installed on other popular Nissan and Infinity models with engine capacity up to 3 liters. At the same time, another modification RE4F03A was released for lower torque from engines with the capacity up to two liters. This family of 4-speed automatic transmissions is used on FWD vehicles with engines from 2 up to 3 liters. Experts call this gearbox as " the 04-th Nissan", which is considered to be Jatco's achievement in terms of reliability and price.

Technical issues and repair guidelines

RE4F04A is the most popular Nissan gearbox in repair services, which is called "the 4-th Nissan" according to the professional slang.

Typical repair procedures for old automatic gearboxes RE4F04\ LJ4A-EL

In addition to the common set of repair parts for reassembly of the old RE4F04A, it is required to replace the friction lining of the torque converter lockup. When using a powerful engine, the torque converter of this transmission damages its clutch coupling. The lock-up mechanism, damaged till the glue layer, clogs the valve body and gives severe vibrations on the pump shaft, damaging both the pump seal and the pump itself. The first sign of the faulty torque converter is a leaking seal.

Repair of torque converter

In these Jatco transmissions, the brake band may be considered as the spare part of the first priority. The brake band is replaced together with change of frictions in the High package. All friction elements get replaced if the car comes in the repair service with burnt fluid. Many repair parts of the JF506E transmission can be used for repair of RE4F04A. Typical problem element of this transmission is the rear planetary gear. When driving for a long period of time with worn-out torque converter and leaking pump seal, you can face the problem of worn-out pump cover bushing. Another common component to be replaced is the set of solenoids in the RE4F04 unit. Solenoids operate under different load, pair of the most extensively operating solenoids is the first to exhaust its resource from the whole block, but they are replaced altogether. High Clutch and Forward Clutch get out of order in most cases.

In general, this transmission has a significant reserve, allowing drivers to use the potential of this transmission to the fullest. It gets out of order only when the pan already contains much of metal chips and shavings. Under the condition of well-timed torque converter repair and maintenance services, this transmission can serve for incredibly long periods of time.
