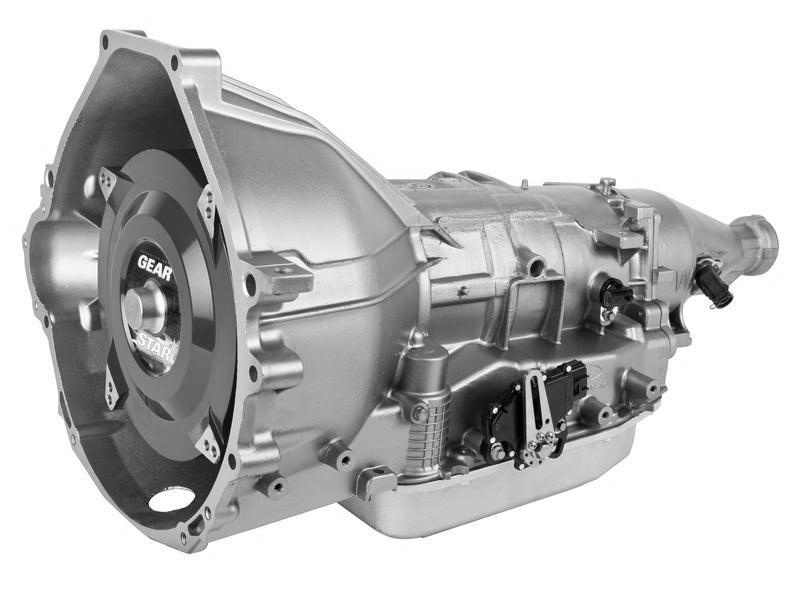

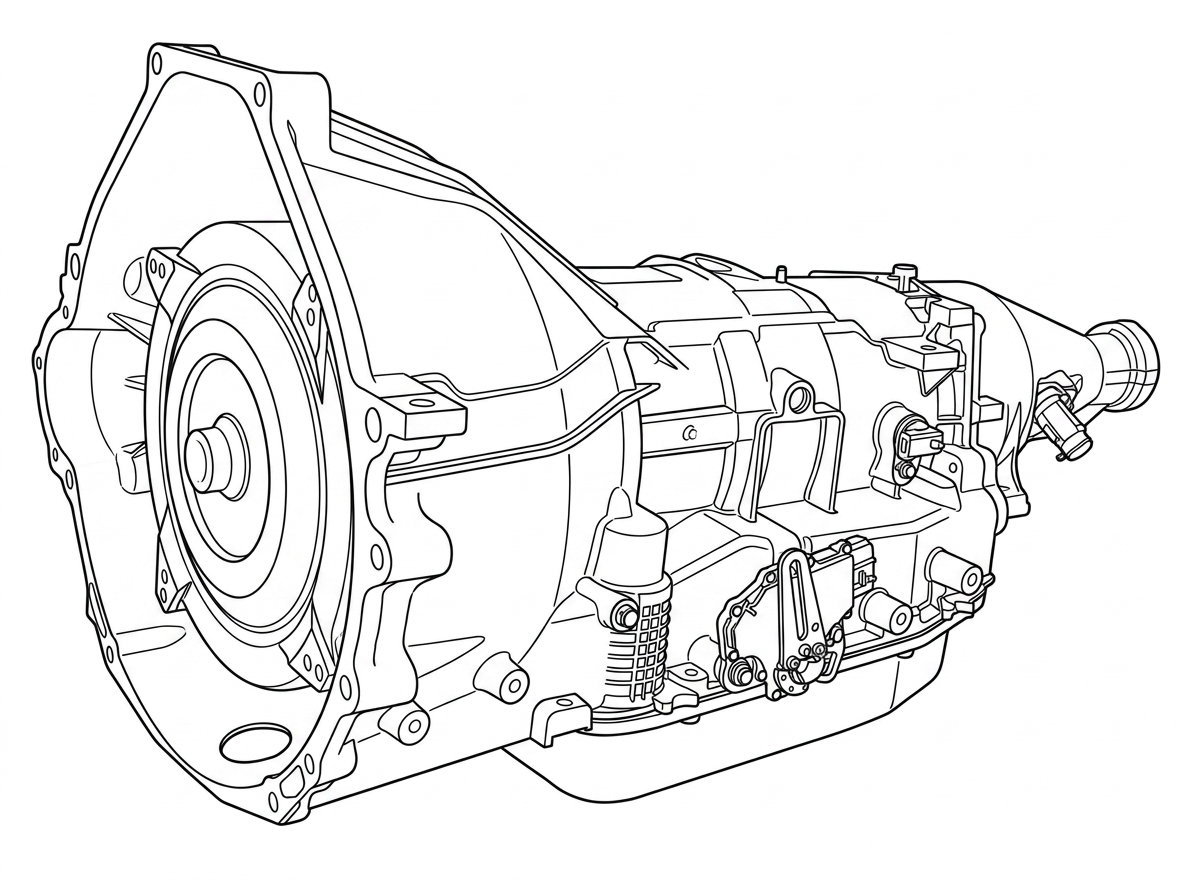

Ford 4R70W (AODE) Transmission

The 4-speed automatic transmission AOD had been installed on well-known Crown Victoria with 4.6 liter engine since 1980, it was in production for 15 years. In 1993 it was updated into electronic AOD-E version. After that, it was modified into the 4R70W (1995) without significant changes and was used until 2006. The last modification of this popular series named 4R75W was released in 2003.

Speeds 4
Type AT
Drive RWD
ATF capacity (L) 8,5
ATF change (L) 3,5
ATF type Mercon V
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
