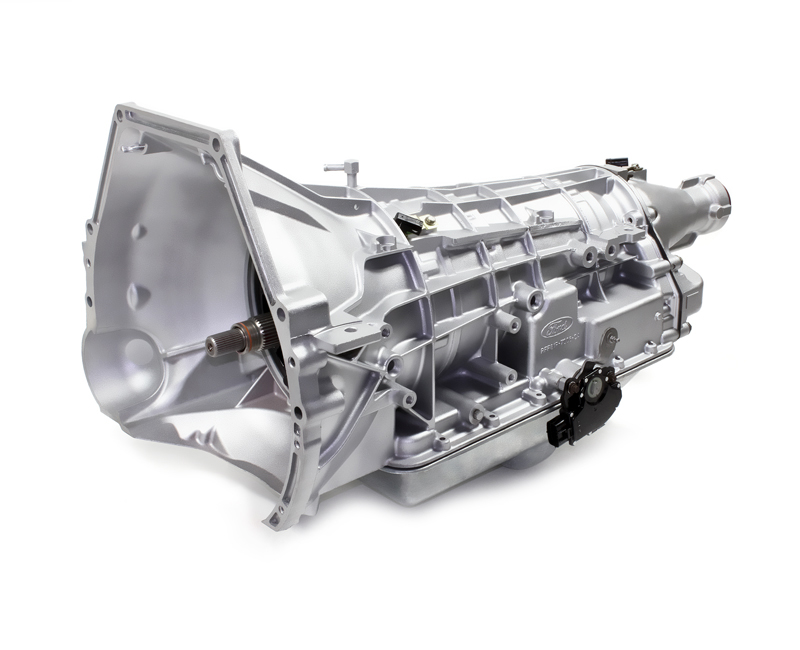

Ford 4R100 Transmission

The 4-speed automatic transmission 4R100\ E4OD for powerful RWD vehicles with engine capacity from 5 liters was produced by Ford since 1996.This transmission is a modification of its predecessor E4OD, which was used since 1989.It is tested, well-balanced and rare in repair transmission. Efficient and not complicated design of this transmission served as a basis for the following generation of the 5-speed automatic transmissions - 5R110W. (starting from 2003).

Speeds 4
Type AT
Drive RWD
Max torque 1000
ATF capacity (L) 16,2
ATF change (L) 8
ATF type Mercon V
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
4R100
8.5/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence9.2
Documentation depth10.0
Knowledge & support5.8

Exploded diagram & parts

Full 4R100 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 311 311 · No. 3 777 777 · No. 4 530 530 · No. 5 530 530 · No. 6 036 036 · No. 7 178 178 · No. 8 520 520 · No. 9 037/179 037, 179 · No. 10 037 037 · No. 12 13 13 · No. 13 210 210 · No. 14 211 211 · No. 15 038 038 · No. 16 559 559 · No. 17 341 341 · No. 18 340 340 · No. 19 969 969 · No. 20 979 979 · No. 21 871 871 · No. 22 132/112 132, 112 · No. 23 152 152 · No. 24 25 25 · No. 25 670/878* 670, 878* · No. 26 863 863 · No. 27 660 660 · No. 28 650 650 · No. 29 864 864 · No. 30 661 661 · No. 31 214 214 · No. 32 610 610 · No. 33 036 036 · No. 34 866 866 · No. 35 580 580 · No. 36 217 217 · No. 37 590 590 · No. 38 778 778 · No. 39 675 675 · No. 40 223 223 · No. 41 868 868 · No. 42 860* 860* · No. 43 140 140 · No. 44 120/100 120, 100 · No. 45 862 862 · No. 46 970 970 · No. 47 960 960 · No. 48 330/331 330, 331 · No. 49 545 545 · No. 50 330/332 330, 332 · No. 51 962 962 · No. 52 972 972 · No. 53 224 224 · No. 54 55 55 · No. 55 179 179 · No. 56 636 636 · No. 57 179 179 · No. 58 225 225 · No. 59 226 226 · No. 60 145 145 · No. 61 124/104 124, 104 · No. 62 144 144 · No. 63 022 022 · No. 64 663 663 · No. 65 652 652 · No. 66 652 652 · No. 67 652 652 · No. 68 227 227 · No. 69 046B 046B · No. 70 555 555 · No. 71 046 046 · No. 72 337 337 · No. 73 336 336 · No. 74 965 965 · No. 75 975 975 · No. 76 879 879 · No. 77 126/106 126, 106 · No. 78 146 146 · No. 79 878* 878* · No. 80 229 229 · No. 81 181 181 · No. 82 181 181 · No. 83 554 554 · No. 84 335 335 · No. 85 334 334 · No. 86 964 964 · No. 87 974-1 974-1 · No. 88 974 974 · No. 89 877 877 · No. 90 149 149 · No. 91 853 853 · No. 92 126/108 126, 108 · No. 93 146* 146* · No. 94 878* 878* · No. 95 232 232 · No. 96 231 231 · No. 97 881 881 · No. 98 602 602 · No. 99 592 592 · No. 100 235 235 · No. 101 582 582 · No. 102 238 238 · No. 103 040 040 · No. 104 612 612 · No. 105 040 040 · No. 106 622 622 · No. 107 243 243 · No. 108 884 884 · No. 109 888 888 · No. 110 235 235 · No. 111 584 584 · No. 112 235 235 · No. 113 894 894 · No. 114 594 594 · No. 115 604 604 · No. 116 889 889 · No. 117 892 892 · No. 118 150 150 · No. 119 130/110 130, 110 · No. 120 854 854 · No. 121 576 576 · No. 122 890 890 · No. 123 654 654 · No. 124 286 286 · No. 125 254 254 · No. 126 664* 664* · No. 127 976 976 · No. 128 966 966 · No. 129 339 339 · No. 130 338 338 · No. 131 438 438 · No. 132 781 781 · No. 133 438 438 · No. 134 799 799 · No. 135 991-2 991-2 · No. 136 994 994 · No. 137 760 760 · No. 138 064 064 · No. 139 064 064 · No. 140 263 263 · No. 141 690 690 · No. 142 895 895 · No. 143 678 678 · No. 144 848 848 · No. 145 305/770 305, 770 · No. 146 066 066 · No. 147 074 074 · No. 148 149 149 · No. 149 991-3 991-3 · No. 150 784 784 · No. 151 783 783 · No. 152 783 783 · No. 153 072 072 · No. 154 347 347 · No. 155 790 790 · No. 156 016 016 · No. 157 018 018 · No. 158 379 379 · No. 159 410 410 · No. 160 991-4 991-4 · No. 161 991-5 991-5 · No. 162 991-6 991-6 · No. 163 995-2 995-2 · No. 164 995-1 995-1 · No. 165 995-3 995-3 · No. 166 906/907 906, 907 · No. 167 896 896 · No. 168 742 742 · No. 169 420 420 · No. 170 320 +2 320, 747, 321 · No. 171 765/300 765, 300 · No. 172 010 010 · No. 173 992 992 · No. 174 740 740 · No. 175 492 492 · No. 176 779 779 · No. 177 062 062 · No. 178

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 4R100 in the Go4Trans marketplace.
Sell 4R100 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

124 applications · 2 makes · 1989–2007 Ford 118 · Lincoln 6

Make Model Year Drive Engine
Ford Bronco 1996-1998 V8 5.8L
Ford Bronco 1995-1996 4 Spd RWD/4X4 V8 5.0L/5.8L
Ford Bronco 1994-1996 4 Spd RWD/4X4 V8 5.0L/5.8L
Ford Bronco 1994-1995 V8 5.8L
Ford E150 1998-2004 V6,V8 4.6,5.4 ( 1/2 Ton Econoline - Van)L
Ford E150 1996-1997 L6,V8 4.2,4.6,4.9,5,5.4,5.8 ( 1/2 Ton Econoline - Van)L
Ford E150 1989-1995 L6,V8 5.8 ( 1/2 Ton Econoline - Van)L
Ford E250 Econoline - Van 3/4 Ton 1998-2004 V6,V8 4.6,5.4,7.3L
Ford E250 Econoline - Van 3/4 Ton 1996-1997 L6,V8 4.9,5.4,5.8,7.3L
Ford E250 Econoline - Van 3/4 Ton 1989-1995 L6,V8 5.8,7.3,7.5L
Ford E350 Econoline Club Wagon 1998-2000 V6,V8,V10 4.2,5.4,6.8,7.3L
Ford E350 Econoline Club Wagon 1996-1997 L6,V8 4.9,5.4,5.8,6.8,7.3,7.5L
Ford E350 Econoline Club Wagon 1989-1995 L6,v8 7.3,7.5L
Ford E350 Econoline Van 1998-2000 V8,V10 6.8,7.3L
Ford E350 Econoline Van 1996-1997 L6,V8 5.8,6.8,7.3,7.5L
Ford E350 Econoline Van 1989-1995 L6,V8 5.8,7.3,7.5L
Ford E450 Super Duty 1998-2004 V8,V10 5.4,6,6.8,7.3L
Ford E550 Super Duty Custom 2003 V8,V10 6.8,7.3L
Ford Econoline 150 4 Spd RWD L6 4.9L V8 5.4L/5.8L
Ford Econoline 150 4 Spd RWD V8 5.4L
Ford ECONOLINE 250 SUPERDUTY 1998-2004 4 Spd RWD V8 5.4/7.3L DIESEL V10
Ford ECONOLINE 250 SUPERDUTY 1995-1997 4 Spd RWD V8 5.7/7.3L DIESEL V10
Ford Econoline 250/250 Super Duty 4 Spd RWD 6.8L
Ford Econoline 250/250 Super Duty 4 Spd RWD V8 5.4L/7.3L D V10 6.8L
Ford Econoline 350 Super Duty 2004-2005 4 Spd RWD V8 5.4L
Ford Econoline 350 Super Duty 2003 4 Spd RWD 6.8L
Ford ECONOLINE 350 SUPERDUTY 1998-2005 4 Spd RWD V8 5.4L V10 6.8L
Ford ECONOLINE 350 SUPERDUTY 1995-1997 4 Spd RWD V8 5.7L DIESEL V10
Ford Econoline 350/350 Super Duty 4 Spd RWD 6.8L
Ford Econoline 350/350 Super Duty 4 Spd RWD V8 5.4L/7.3L D V10 6.8L
Ford Excursion 2000-2005 4 Spd RWD/4X4 V10 6.8L
Ford Excursion 2000-2005 4 Spd RWD/4X4 V8 5.4/7.3L DIESEL V10
Ford Excursion 2000-2003 V8,V10 5.4,6,6.8,7.3L
Ford Expedition 1998-2002 V8 5.4L
Ford Expedition 1998-2002 4 Spd RWD/4X4 V8 5.4L
Ford Expedition 1997-1998 V8 5.4L
Ford Expedition 1996-1997 4 Spd RWD/4X4 V8 5.4L
Ford Expedition 4 Spd RWD/4X4 V8 5.4L (16 Valve)
Ford F Super Duty - Pickup 1996-1997 V6,V8 4.2,4.6,4.9,5,5.4,5.8,7.3,7.5L
Ford F150 4 Spd RWD/4X4 L6 4.9L; V8 5.4L
Ford F150 4 Spd RWD/4X4 V8 5.4L (16Valve)
Ford F150 - Pickup 1998-2004 V8 5.4L
Ford F150 - Pickup 1989-1995 L6,V8 5.8L
Ford F150/F250 1998-2007 4 Spd RWD/4X4 V8 5.4L DIESEL V10 6.8L
Ford F150/F250 1995-1997 4 Spd RWD/4X4 L6 4.9L V8 5.0 DIESEL 7.3L
Ford F250 4 Spd RWD/4X4 V8 5.4L 5.8L
Ford F250 4 Spd RWD/4X4 V8 7.3 (Diesel) 7.5L
Ford F250 - Pickup 1998-1999 V8 5.4L
Ford F250 - Pickup 1989-1995 L6,V8 4.9,5,5.8,7.3,7.5L
Ford F250 Super Duty- Pickup 1999-2004 V8,V10 6.0, 6.8L
Ford F250, F250 Super Duty 4 Spd RWD/4X4 V8 5.4L 5.9L 6.0L
Ford F250, F250 Super Duty 4 Spd RWD/4X4 V8 7.3L (Diesel)
Ford F250, F250 Super Duty 4 Spd RWD/4X4 V10 6.8L
Ford F350 4 Spd RWD/4X4 V8 5.8L 7.5L
Ford F350 4 Spd RWD/4X4 V8 7.3L (Diesel)
Ford F350 Super Duty - Pickup 1999-2004 V8,V10 5.4L
Ford F350 SUPERDUTY 1999-2004 4 Spd RWD/4X4 V8 5.4/7.3L DIESEL V10
Ford F350 SUPERDUTY 1995-1998 4 Spd RWD/4X4 L6 4.9L V8 5.8L DIESEL
Ford F350- Pickup 1996-1997 L6,V8 7.3,7.5L
Ford F350- Pickup 1989-1995 L6,V8 7.3,7.5L
Ford F350, F350 Super Duty 4 Spd RWD/4X4 V8 5.4L 6.0L (Diesel)
Ford F350, F350 Super Duty 4 Spd RWD/4X4 V8 7.3L (Diesel)
Ford F350, F350 Super Duty 4 Spd RWD/4X4 V10 6.8L
Ford F450 Super Duty - Truck 1998-2002 V8,V10 6.8,7.3L
Ford F450 Super Duty - Truck 1996-1997 V8 7.3,75L
Ford F450 Super Duty - Truck 1990-1995 V8 7.3L
Ford F450 SUPERDUTY 1995-1998 4 Spd RWD/4X4 V8 7.5L 7.3 DIESEL
Ford F450, F450 Super Duty 2003-2006 4 Spd RWD/4X4 V8 5.4L 6.0L (Diesel)
Ford F450, F450 Super Duty 2003-2006 4 Spd RWD/4X4 V8 7.3L (Diesel)
Ford F450, F450 Super Duty 2003-2006 4 Spd RWD/4X4 V10 6.8L
Ford F450, F450 Super Duty 4 Spd RWD/4X4 V8 5.4L 6.0L (Diesel)
Ford F450, F450 Super Duty 4 Spd RWD/4X4 V8 7.3 (Diesel)
Ford F450, F450 Super Duty 4 Spd RWD/4X4 V 10 6.8L
Ford F450, F450 Super Duty 4 Spd RWD/4X4 V8 7.5L 7.3L (Diesel)
Ford F450/550 SUPERDUTY 1998-2004 4 Spd RWD/4X4 V8 7.3L DIESEL V10 6.8L
Ford F550 Super Duty 1999-2002 V8 7.3L
Ford F650 Super Duty 2000-2004 L6,V8 5.9,6,6.7,7.2,7.3L
Ford F750 Super Duty 2000-2004 L6,V8 5.9, 6.0, 6.7, 7.2, 7.3L
Ford Truck Bronco 1996-1998 5.8
Ford Truck Bronco 1994-1995 5.8
Ford Truck E & E350 Super Duty 1 Ton Econoline - Van 1998-2004 5.4, 6.8, 7.3
Ford Truck E & E350 Super Duty 1 Ton Econoline - Van 1996-1997 6.8, 7.3, 7.5
Ford Truck E150 1/2 Ton Econoline - Van 1998-2004 4.6, 5.4
Ford Truck E150 1/2 Ton Econoline - Van 1996-1997 4.2, 4.6, 4.9, 5.0, 5.4, 5.8
Ford Truck E150 1/2 Ton Econoline - Van 1989-1995 5.8
Ford Truck E150 1/2 Ton Econoline Club Wagon 1998-1999 4.6, 5.4
Ford Truck E150 1/2 Ton Econoline Club Wagon 1996-1997 4.6, 4.9, 5.0, 5.4, 5.8
Ford Truck E150 1/2 Ton Econoline Club Wagon 1989-1995 5.0, 5.8
Ford Truck E250 3/4 Ton Econoline - Van 1998-2004 4.6, 5.4, 7.3
Ford Truck E250 3/4 Ton Econoline - Van 1996-1997 4.9, 5.4, 5.8, 7.3
Ford Truck E250 3/4 Ton Econoline - Van 1989-1995 5.8, 7.3, 7.5
Ford Truck E250 3/4 Ton Econoline Club Wagon 1989-1991 5.8, 7.3, 7.8
Ford Truck E350 1 Ton Econoline - Van 1998-2000 6.8, 7.3
Ford Truck E350 1 Ton Econoline - Van 1996-1997 5.8, 6.8, 7.3, 7.5
Ford Truck E350 1 Ton Econoline - Van 1989-1995 5.8, 7.3, 7.5
Ford Truck E350 1 Ton Econoline Club Wagon 1998-2000 4.2, 5.4, 6.8, 7.3
Ford Truck E350 1 Ton Econoline Club Wagon 1996-1997 4.9, 5.4, 5.8, 6.8, 7.3, 7.5
Ford Truck E350 1 Ton Econoline Club Wagon 1989-1995 7.3, 7.5
Ford Truck E450 Super Duty 1 1/2 Ton 1998-2004 5.4, 6.0, 6.8, 7.3
Ford Truck E550 Super Duty Custom 2003 6.8, 7.3
Ford Truck Excursion 2000-2003 5.4, 6.0, 6.8, 7.3
Ford Truck Expedition 1998-2002 5.4
Ford Truck Expedition 1997-1998 5.4
Ford Truck F Super Duty - Pickup 1996-1997 4.2, 4.6, 4.9, 5.0, 5.4, 5.8, 7.3, 7.5
Ford Truck F150 1/2 Ton - Pickup 1998-2004 5.4
Ford Truck F150 1/2 Ton - Pickup 1989-1995 5.8
Ford Truck F250 3/4 Ton - Pickup 1998-1999 5.4
Ford Truck F250 3/4 Ton - Pickup 1989-1995 4.9, 5.0, 5.8, 7.3, 7.5
Ford Truck F250 Super Duty 3/4 Ton - Pickup 1999-2004 6.0, 6.8
Ford Truck F350 1 Ton - Pickup 1996-1997 7.3, 7.5
Ford Truck F350 1 Ton - Pickup 1989-1995 7.3, 7.5
Ford Truck F350 Super Duty 1 Ton - Pickup 1999-2004 5.4
Ford Truck F450 Super Duty 1 1/2 Ton Truck 1998-2002 6.8, 7.3
Ford Truck F450 Super Duty 1 1/2 Ton Truck 1996-1997 7.3, 7.5
Ford Truck F450 Super Duty 1 1/2 Ton Truck 1990-1995 7.3
Ford Truck F550 Super Duty 1999-2002 7.3
Ford Truck F650 Super Duty 2000-2004 5.9, 6.0, 6.7, 7.2, 7.3
Ford Truck F750 Super Duty 2000-2004 5.9, 6.0, 6.7, 7.2, 7.3
Lincoln Blackwood 2002 4 Spd RWD V8 5.4L
Lincoln Blackwood 2002 V8 5.4L
Lincoln Blackwood 2002 5.4
Lincoln Navigator 1998-2004 V8 5.4L
Lincoln Navigator 1998-2004 5.4
Lincoln Navigator 4 Spd RWD/4X4 V8 5.4L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

E4O D
E40 D
4R100
E4OD
E40D
E4O-D
E40-D
E400
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Solenoid Block End of Life
Solenoids reach end of service life and are replaced as a complete block unit.
!
Valve Body Clogging
Valve body and pressure-transmitting valves become clogged, disrupting hydraulic line pressure.
?
Burnt Friction Components
Clogged valve body or failed solenoids cause friction clutch packs to burn out.
?
Burnt Clutch Drums
Severe hydraulic pressure issues lead to drum burning beyond friction pack damage.
!
ATF Burnt Condition
Burnt ATF requires full replacement of the friction kit across all clutch packs.
!
Intermediate Direct Band Wear
Brake band Intermediate/Direct/High/Reverse is a standard replacement item during overhaul.
!
Pump and Input Shaft Seals
Pump seals and input shaft seals degrade on high-mileage older vehicles and require replacement.
!
Overrunning Clutch Sprag Separator
Intermediate overrunning clutch sprag separator is a common wear component addressed during rebuild.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission 4R100\ E4OD for powerful RWD vehicles with engine capacity from 5 liters was produced by Ford since 1996.This transmission is a modification of its predecessor E4OD, which was used since 1989.It is tested, well-balanced and rare in repair transmission. Efficient and not complicated design of this transmission served as a basis for the following generation of the 5-speed automatic transmissions - 5R110W. (starting from 2003).

Technical issues and repair guidelines

Problems with this transmission start with solenoids, reaching the end of their service life, or when the valve body gets clogged together with valves, transmitting the pressure in line. It leads to the burning of friction components or even drums.Filters for both modifications 4R100\ E4OD are the same and differ by high scoop.The kit of frictions gets fully replaced in case of burnt ATF.

In addtion to spare parts with rubber covered pistons, a typical repair order includes the brake band Intermediate (Direct, High/ Reverse). Seals of the pump and the input shaft are replaced in the course of repair of old cars.

Then transmission specialists usually deal with the following components:

- the drum Intermediate/ Overdrive Clutch

- Separator of the overrunning clutch Sprag, (INTERM).

- solenoids are replaced as a whole block.
