Ford A4LD Transmission

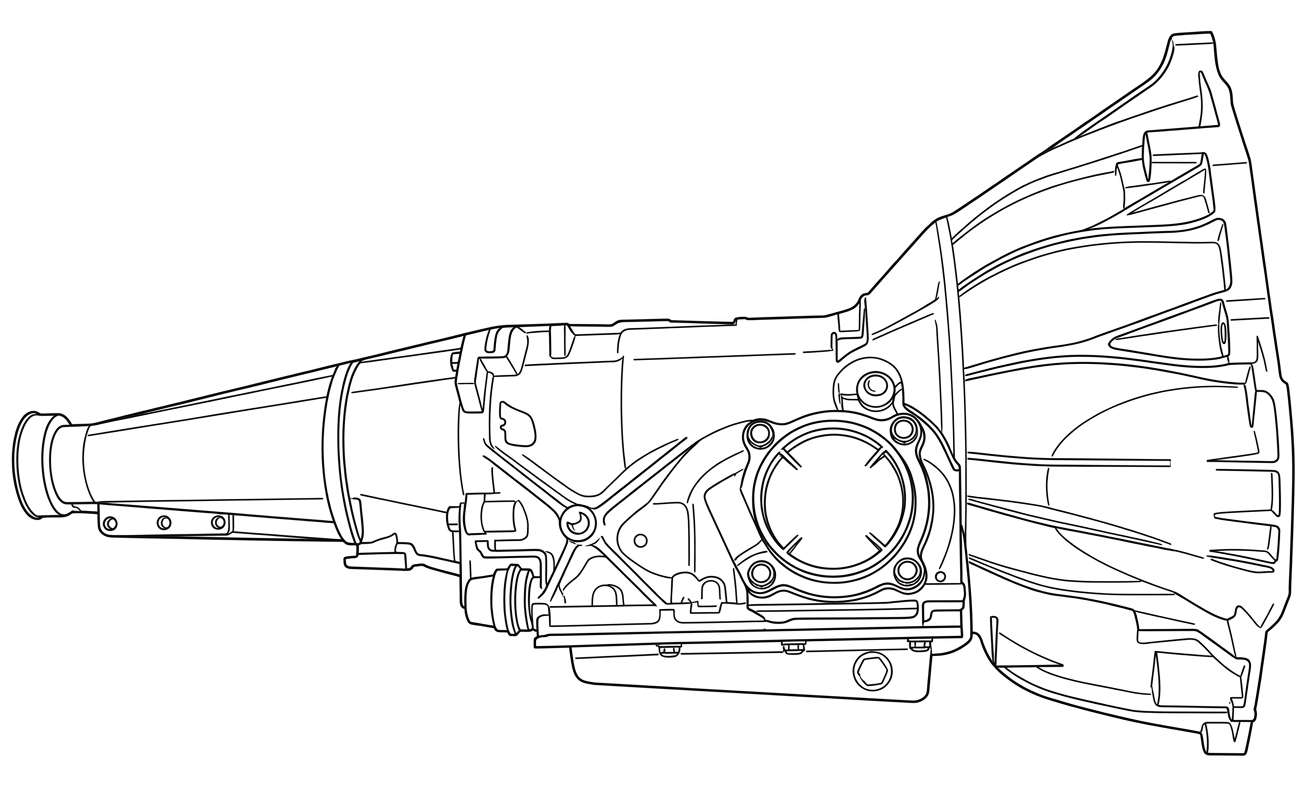

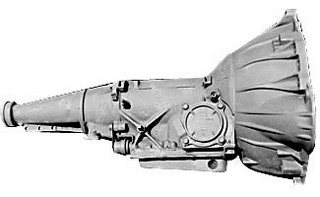

The 4-speed automatic gearbox Ford A4LD was designed for RWD vehicles (Explorer, Mazda pickup cars and many others) with engines from 2.5 up to 4 liters. This family of transmissions is manufactured in Bordeaux, France. After the update in 1995, this gearbox was provided with an electronic control, the letter "E" was added to its name (A4LD-E). In 1997, this gearbox became fully equipped with an electronic control unit and changed its name in accordance with a new classification- 4R44E,and after the update of several units, the 4R55E modification was released. Spare parts for repair of these…

Speeds 4
Type AT
Drive RWD
ATF capacity (L) 9,5
ATF change (L) 4
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A4LD
7.3/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.1
Documentation depth10.0
Knowledge & support7.0

Exploded diagram & parts

Full A4LD parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

670 670 · No. 1 070 070 · No. 2 034 034 · No. 3 750 750 · No. 4 544 544 · No. 5 310 310 · No. 6 311 311 · No. 7 313 313 · No. 8 530 530 · No. 9 036 036 · No. 10 178 178 · No. 11 530 530 · No. 12 179 179 · No. 13 778 778 · No. 14 037 037 · No. 15 211 211 · No. 16 022 022 · No. 17 046 046 · No. 18 550 550 · No. 19 336 336 · No. 20 337 337 · No. 21 961 961 · No. 22 23 23 · No. 23 24 24 · No. 24 971 971 · No. 25 26 26 · No. 26 27 27 · No. 27 981 981 · No. 28 862 862 · No. 29 120/100 120, 100 · No. 30 140 140 · No. 31 861* 861* · No. 32 214 214 · No. 33 040 040 · No. 34 610 610 · No. 35 216 216 · No. 36 218/580 218, 580 · No. 37 217 217 · No. 38 590 590 · No. 39 776 776 · No. 40 220 220 · No. 41 650 650 · No. 42 674 674 · No. 43 868 868 · No. 44 883 883 · No. 45 630 630 · No. 46 47 47 · No. 47 211* 211* · No. 48 226 226 · No. 49 022 022 · No. 50 046 046 · No. 51 555 555 · No. 52 336 336 · No. 53 337 337 · No. 54 961 961 · No. 55 56 56 · No. 56 57 57 · No. 57 58 58 · No. 58 971 971 · No. 59 60 60 · No. 60 985 985 · No. 61 879 879 · No. 62 120/106 120, 106 · No. 63 140 140 · No. 64 878* 878* · No. 65 229 229 · No. 66 554 554 · No. 67 335 335 · No. 68 334 334 · No. 69 964 964 · No. 70 71 71 · No. 71 974 974 · No. 72 73 73 · No. 73 984 984 · No. 74 877 877 · No. 75 853 853 · No. 76 128/108 128, 108 · No. 77 148 148 · No. 78 876* 876* · No. 79 232 232 · No. 80 881 881 · No. 81 231 231 · No. 82 438 438 · No. 83 232 232 · No. 84 882 882 · No. 85 602 602 · No. 86 592 592 · No. 87 235 235 · No. 88 582 582 · No. 89 239 239 · No. 90 884 884 · No. 91 622 622 · No. 92 243 243 · No. 93 052 052 · No. 94 612 612 · No. 95 052 052 · No. 96 884 884 · No. 97 890 890 · No. 98 244 244 · No. 99 584 584 · No. 100 251 251 · No. 101 698 698 · No. 102 894 894 · No. 103 594 594 · No. 104 604 604 · No. 105 889 889 · No. 106 254 254 · No. 107 024 024 · No. 108 061 061 · No. 109 556 556 · No. 110 654 654 · No. 111 654 654 · No. 112 654 654 · No. 113 893 893 · No. 114 664 664 · No. 115 257 257 · No. 116 362 362 · No. 117 904 904 · No. 118 896 896 · No. 119 362 362 · No. 120 904 904 · No. 121 896 896 · No. 122 160 160 · No. 123 995-2 995-2 · No. 124 995-1 995-1 · No. 125 995-3 995-3 · No. 126 996 996 · No. 127 996 996 · No. 128 901 901 · No. 129 902 902 · No. 130 901 901 · No. 131 902 902 · No. 132 346 346 · No. 133 843 843 · No. 134 135 135 · No. 135 136 136 · No. 136 760 760 · No. 137 064 064 · No. 138 263 263 · No. 139 189 189 · No. 140 685 685 · No. 141 681-2 681-2 · No. 142 681-6 681-6 · No. 143 681-4 681-4 · No. 144 681-3 681-3 · No. 145 062 062 · No. 146 678 678 · No. 147 305 305 · No. 148 770 770 · No. 149 066 066 · No. 150 074 074 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 991-3 991-3 · No. 155 156 156 · No. 156 848 848 · No. 157 158 158 · No. 158 797 797 · No. 159 160 160 · No. 160 349 349 · No. 161 370/439 370, 439 · No. 162 444 444 · No. 163 347 347 · No. 164 347 347 · No. 165 410 410 · No. 166 072 072 · No. 167 436 436 · No. 168 911 911 · No. 169 747 +2 747, 321, 320 · No. 170 843C 843C · No. 171 010 010 · No. 172 173 173 · No. 173 915-5 915-5 · No. 174 916-1 916-1 · No. 175 176 176 · No. 176 912 912 · No. 177 421 421 · No. 178 740 740 · No. 179 421 421 · No. 180 765/300 765, 300 · No. 181 916-3 916-3 · No. 182 183 183 · No. 183 916-1 916-1 · No. 184 919 919 · No. 185 916-3 916-3 · No. 186 916-2 916-2 · No. 187 307 307 · No. 188 914 914 · No. 189 363C 363C · No. 190 425 425 · No. 191 843B 843B · No. 192 431 431 · No. 193 922 922 · No. 194 919 919 · No. 195 196 196 · No. 196 922 922 · No. 197

Parts categories

View all parts →
Sell A4LD parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

39 applications · 3 makes · 1984–2009 Ford 28 · Mazda 10 · Merkur 1

Make Model Year Drive Engine
Ford Aerostar 1995 4 Spd RWD/4X4 V6 3.0L/4.0L
Ford Aerostar 1990-1995 V6 3,4L
Ford Aerostar 1986-1995 4 Spd RWD V6 3.0L/4.0L
Ford Aerostar 1986-1989 L4,V6 2.3,2.8,3L
Ford Bronco 1985-1990 V6 2.8,2.9L
Ford Explorer 1992-1994 4 Spd RWD/4X4 V6 4.0L
Ford Explorer 1991-1994 4 Spd RWD/4X4 V6 4.0L
Ford Explorer 1991-1994 V6 4L
Ford Mustang 1990-1993 4 Spd RWD L4 2.3L
Ford Mustang 1990-1993 L4 2.3L
Ford Mustang 1990-1993 2.3
Ford Mustang 1987-1989 L4 2.3L
Ford Mustang 1987-1989 2.3
Ford Ranger 1990-1994 4 Spd RWD/4X4 L4 2.3L
Ford Ranger 1990-1994 4 Spd RWD/4X4 V6 2.9L 3.0L 4.0L
Ford Ranger 1990-1994 L4,V6 2.3,2.9,3,4L
Ford Ranger 1985-1989 L4,V6 2.0, 2.3L
Ford Sierra 1984-1993 4 Spd RWD 1.8L,2.0L,2.8L,2.9L
Ford Thunderbird 1987-1988 L4 2.3L
Ford Thunderbird 1987-1988 2.3
Ford Transit 4 Spd FWD L4 2.5L
Ford Truck Aerostar 1990-1995 3.0, 4.0
Ford Truck Aerostar 1986-1989 2.3, 2.8, 3.0
Ford Truck Bronco II 1985-1990 2.8, 2.9
Ford Truck Explorer 1991-1994 4.0
Ford Truck Ranger 1990-1994 2.3, 2.9, 3.0, 4.0
Ford Truck Ranger 1985-1989 2.0, 2.3
Ford Truck Transit 1986-1999 4 Spd RWD Diesel
Mazda B2300 - Pickup 1997-2009 2.3
Mazda B2300 - Pickup 1993-1994 2.3
Mazda B2300, B3000, B4000 1994 4 Spd RWD/4X4 L4 2.3L 3.0; V6 4.0L
Mazda B2500 - Pickup 1998-2001 2.5
Mazda B3000 - Pickup 1997-2008 3.0
Mazda B4000 - Pickup 1997-2009 4.0
Mazda Navajo 1991-1994 4 Spd RWD/4X4 V6 4.0L
Mazda Navajo 1991-1994 4 Spd RWD V6 4.0L
Mazda Navajo 1991-1994 4.0
Mazda PICKUP 1994 4 Spd RWD L4 2.3 V6 3.0/4.0L
Merkur Scorpio 1988-1989 2.9

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A4LD
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Brake Band OD Intermediate Failure
Brake band O.D./Intermediate fails frequently, often together with Overdrive drum and Servo piston.
!
Overdrive Drum Failure
Overdrive drum considered a soft spot; fails alongside brake band and Servo piston of the brake band.
?
Overdrive Drum Vibration Overheating
Vibrations and overheating of Overdrive drum lead to replacement of friction elements, steel discs, bearing disc, and pu
!
Worn Pump Bushing Insufficient Flow
Worn pump bushing causes insufficient pump productivity, leading to burnt clutch packages. Detectable via leaking seal.
!
Valve Body Clogging Pressure Issues
Valve body clogs with friction dust from worn torque converter, causing insufficient or excessive line pressure.
!
Torque Converter Friction Wear
Torque converter friction worn to glue layer accelerates solenoid and valve body clogging and wear.
!
EPC and Shift Solenoid Failure
EPC solenoids, 4 shift solenoids, and TCC solenoid reach end of service life and require replacement.
!
Forward Clutch Pack Wear
Forward Clutch friction and steel discs are the most frequently replaced clutch components, outselling Direct pack 2:1.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic gearbox Ford A4LD was designed for RWD vehicles (Explorer, Mazda pickup cars and many others) with engines from 2.5 up to 4 liters. This family of transmissions is manufactured in Bordeaux, France. After the update in 1995, this gearbox was provided with an electronic control, the letter "E" was added to its name (A4LD-E). In 1997, this gearbox became fully equipped with an electronic control unit and changed its name in accordance with a new classification- 4R44E,and after the update of several units, the 4R55E modification was released. Spare parts for repair of these gearboxes are interchangeable.

Technical issues and repair guidelines

The torque converter in these transmissions is the first component to be replaced during repair procedures. In most cases, transmission specialists order the Masterkit repair kit to fix this transmission. This kit includes all gaskets and seals, rings and friction components with discs, except filter and brake bands, which are ordered separately. Repair kits contain all necessary gaskets and spare parts of the valve body, other gearbox components and pan, to replace the old rubber, paper gaskets and plastic of the transmission, which served for more than 10 years.

This transmission is handed in for repair after failures of the brake band O.D.\Intermediate and the drum Overdrive. The drum Overdrive is also considered to be a soft spot and gets out of order together with the brake band and Servo piston of the brake band. When solving the abovementioned problems, specialists also replace the brake band piston INTM./ O.D.

Vibrations and overheating of this drum may lead to replacement of not only friction elements of the package Overdrive, steel discs, and bearing disc, but also of the pump support.In many cases, packages get burnt because of worn-out pump bushing and insufficient pump productivity. This problem can be detected by means of the leaking seal.

The repair of electrical components consists of replacement of EPC solenoids, solenoids shift (4), solenoids of the torque converter locking (TCC), which reached the end of their service life.The valve body often causes insufficient (on bushings) or excessive pressure. The valve body gets clogged with friction dust from the worn torque converter. If the torque converter friction is worn out to the glue layer, then it significantly speeds up the wear-out and clogging of solenoids and the valve body.The most replaceable clutch discs are friction elements of the Forward Clutch package and corresponding steel discs, which twofold outrun the package Direct in sales, other friction elements are replaced more rarely.
